Description
Shinybow SB-5460 Overview
The SB-5460 4 x 2 Component Video/Audio Routing Switcher with IR Remote Control from Shinybow is a 4-input to 2-output Component Video (YPBPR), and Stereo Audio (AR/AL) switching unit with a video bandwidth of 250 MHz.
With 4 inputs and 2 outputs, this router switcher enables you to route any input to any output along with eliminating the need to move around Component Video and Stereo Audio input and output cables. This router switcher is suitable for HD (High-Definition) LCD HDTV resolutions of 480p, 720p, 1080i, and 1080p or Plasma display monitor applications.

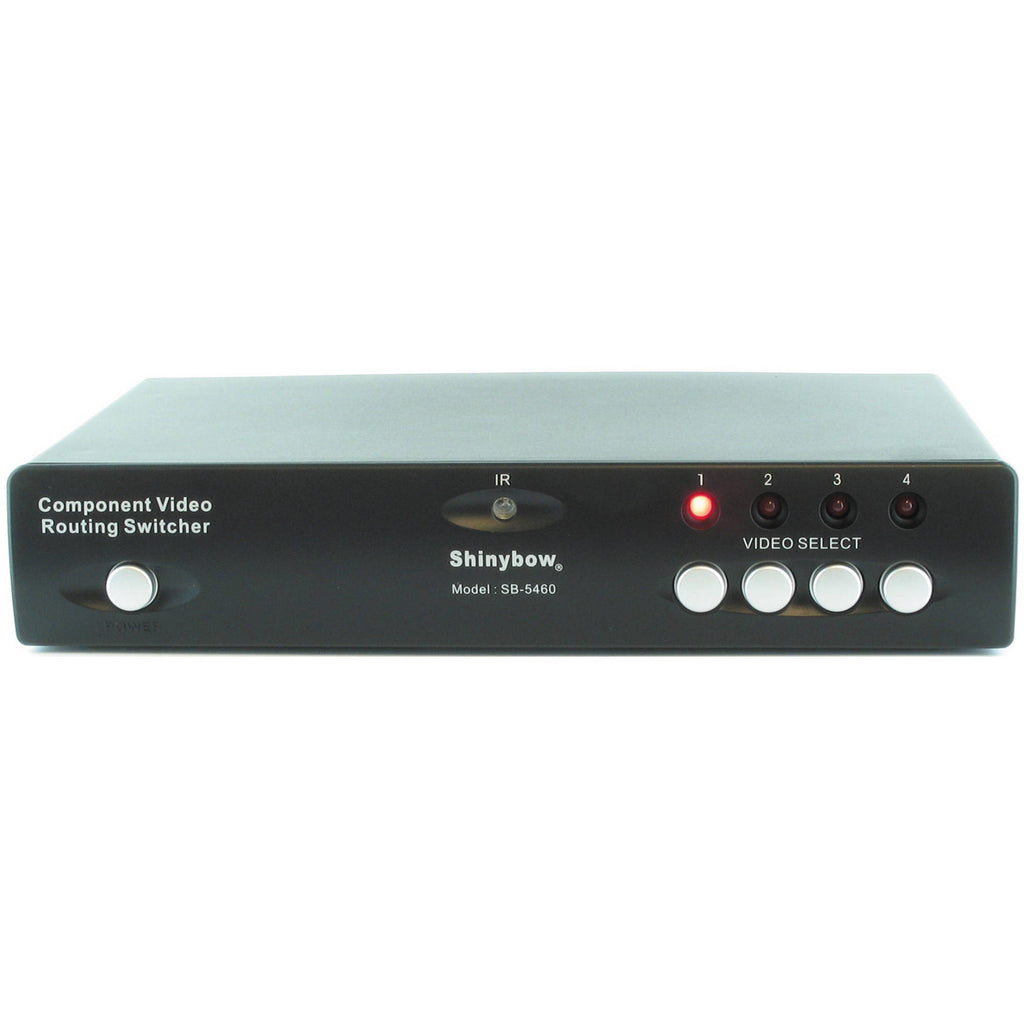

The unit�s control is provided via the front selection pushbuttons with LED readout or via the IR remote controller. It can also be rack mounted using 19� rack ears (part number #1U-300L, sold separately).
In the Box
- Shinybow SB-5460 4 x 2 Component Video/Audio Routing Switcher

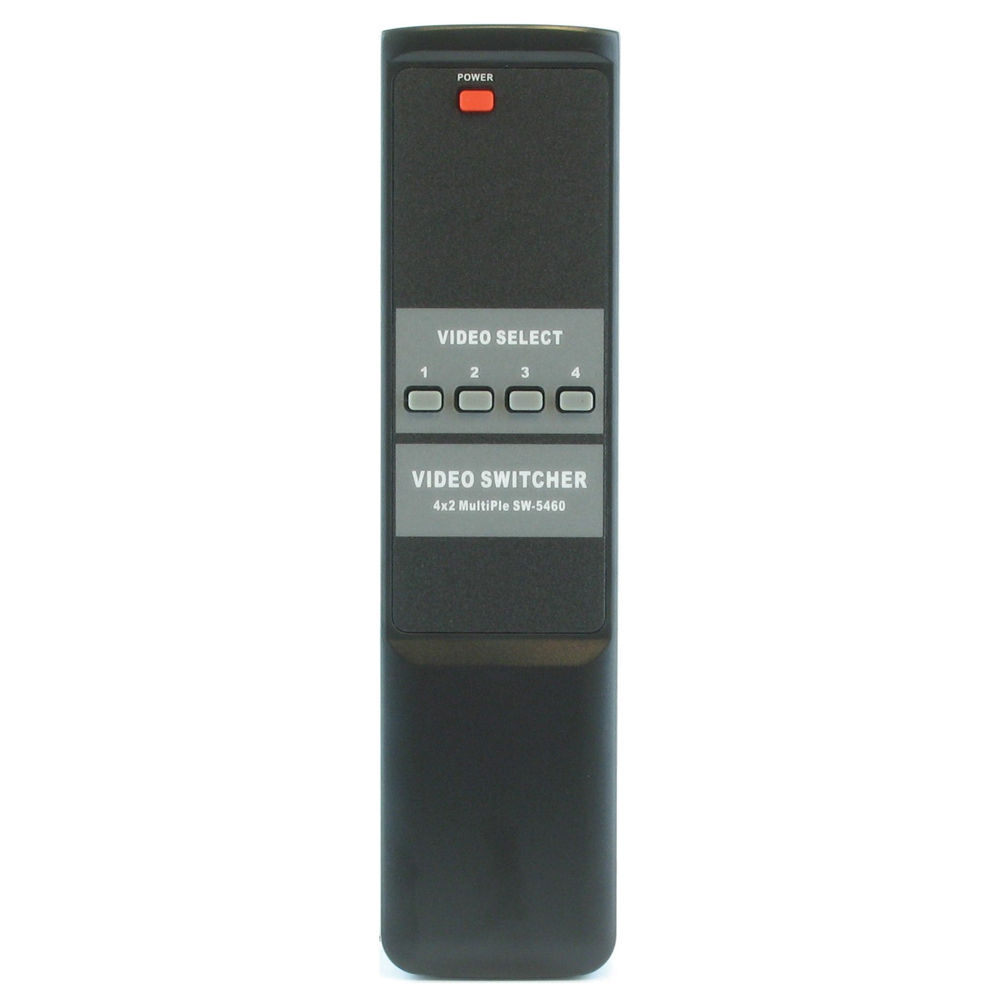

- IR Remote Control
- AC / DC Adapter (12VDC, @ 300 to 500mA)
- Limited 3-Year Manufacturer Warranty
Shinybow SB-5460 Specs
| Switcher | Type: 4 inputs to 2 outputs Component-Audio Router Switcher |

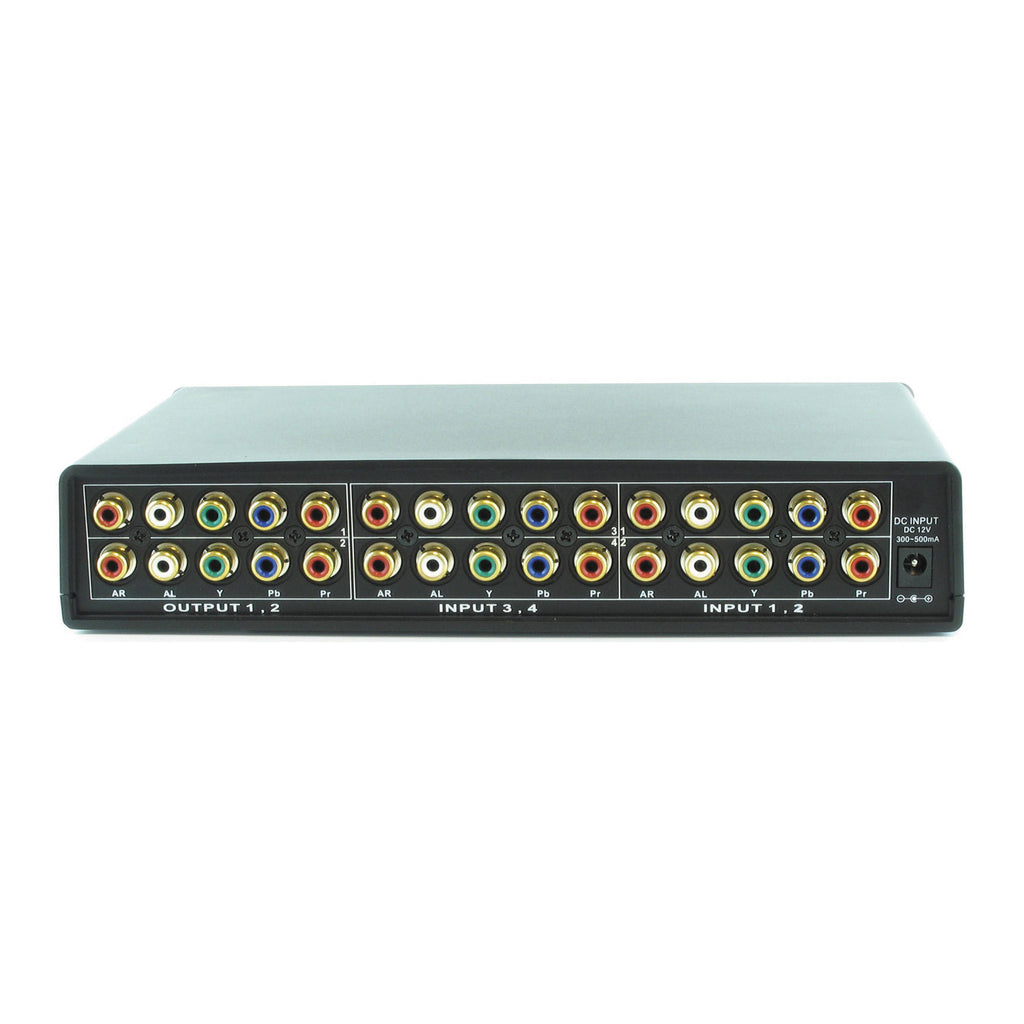

| Inputs | Video: 4 x Component (YPbPr): 1 Vpp, 75 ?, RCA socket Audio: 4 x Stereo Audio: L+R 5 Vpp, 47 k?, RCA socket |
| Outputs | Video: 2 x Component (YPbPr): 1 Vpp, 75 ?, RCA socket Audio: Stereo Audio: L+R 5 Vpp, 47 k?, RCA socket |
| Bandwidth | Video: 250 MHz, (-3 dB) 200 mVpp, 280 MHz, (-3 dB) 2 Vpp, R = 250 MHz, G = 250 MHz, B = 250 MHz, Audio = 60 MHz Audio: 60 MHz, (-3 dB) (Audio-Right = 60 MHz, Audio-Left = 60 MHz) |
| Distortion | Video: <1.2 dB Audio: <0.6 dB |
| Channel Isolation | >50 dB |
| Signal to Noise Ratio | >50 dB |
| Frequency Response | Audio: 20 Hz to 20 kHz |
| All Hostile Crosstalk | -84 dB @ 5 MHz, -54 dB @ 50 MHz Channel Crosstalk: -56 dB @ 100 MHz |
| Slew Rate | 1,000 V/us, G = +1.2 V, Step |
| Controls | IR Remote Controller (38 kHz), front panel selection buttons with LED readout |
| Voltage Input | 12 VDC @ 0.66 A |
| Safety Approvals | CE, FCC, RoHS (2002/95/EC) |
| Dimensions | 9.40 x 5.60 x 1.80" (238.76 x 142.24 x 45.72 mm) |
| Weight | Unit Only: Approximately 37 oz (1050 g) |
| Package Weight | 2.4 lb |
| Box Dimensions (LxWxH) | 11.6 x 10 x 2.9" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
