Description
Shinybow SB-5440 Overview

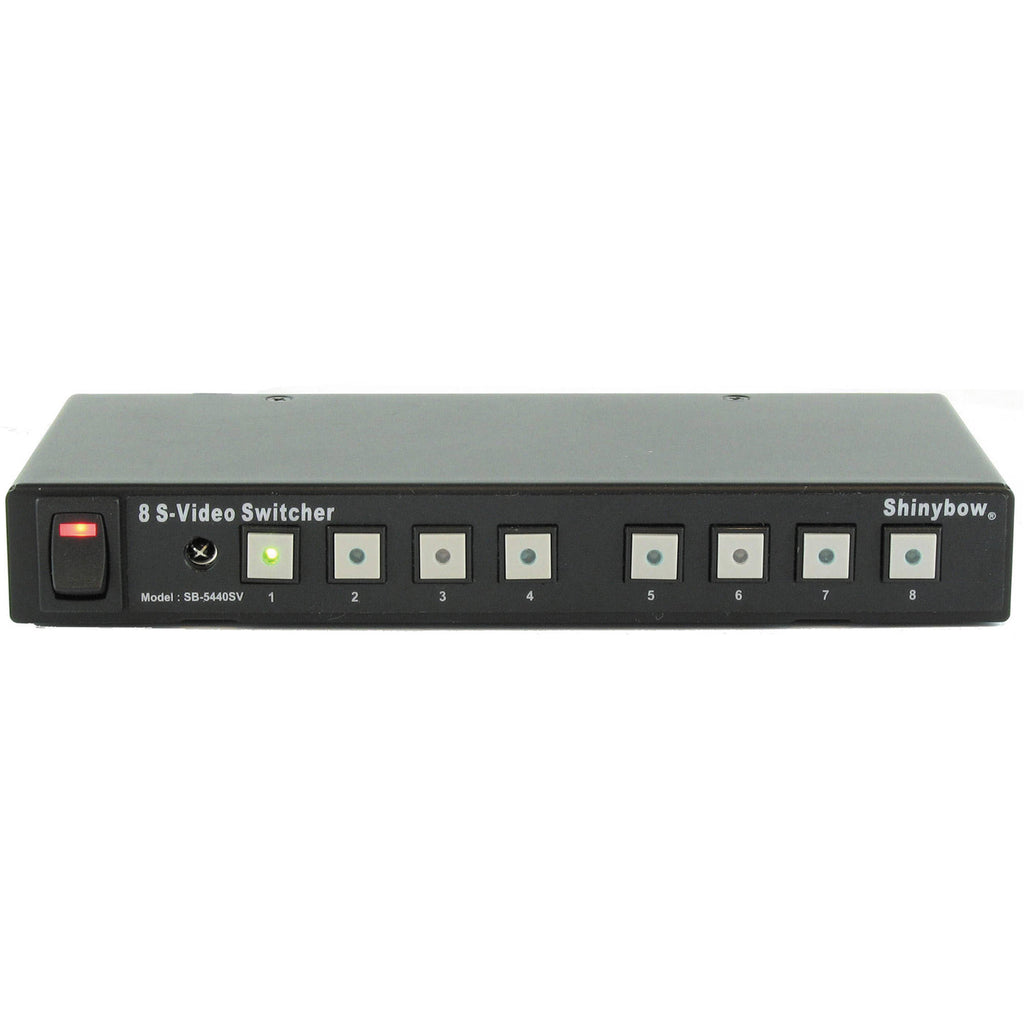

The Shinybow SB-5440SV 8 x 1 S-Video Selector Switcher is a high performance switcher with IR remote control. You can select either one of the 8 desired source to be routed to a connected TV, plasma screen, video projector, etc.
Supports 8 inputs to 1 output S-Video switcher
Control by front pushbuttons with LCD readout
Supports lower power consumption at full load under 500 mA
Ideal for home theater integration
Remote control
Easy to install and simple to operate
In the Box
- Shinybow SB-5440SV 8 x 1 S-Video Selector Switcher

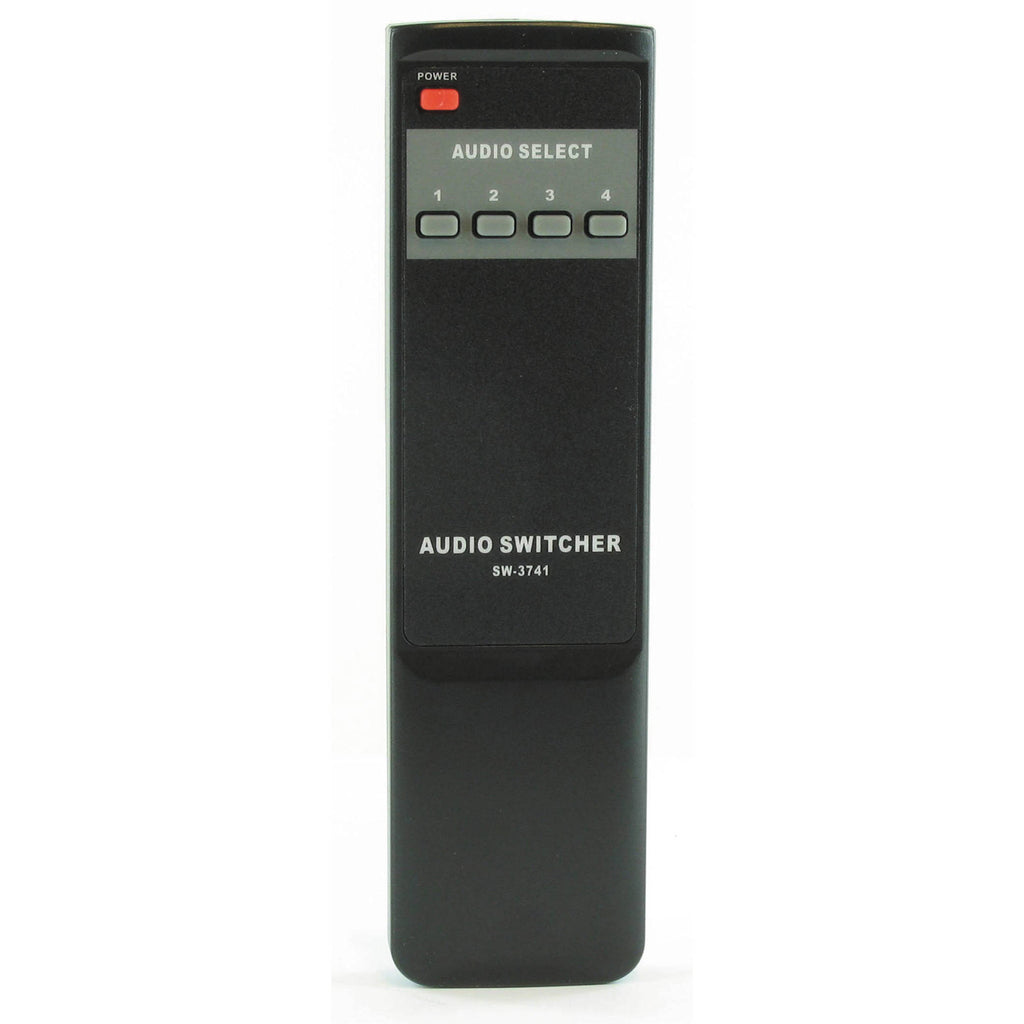

- IR Remote Control
- AC/DC Adapter (12 VDC, 300 mA)
- Limited 3-Year Manufacturer Warranty
Shinybow SB-5440 Specs

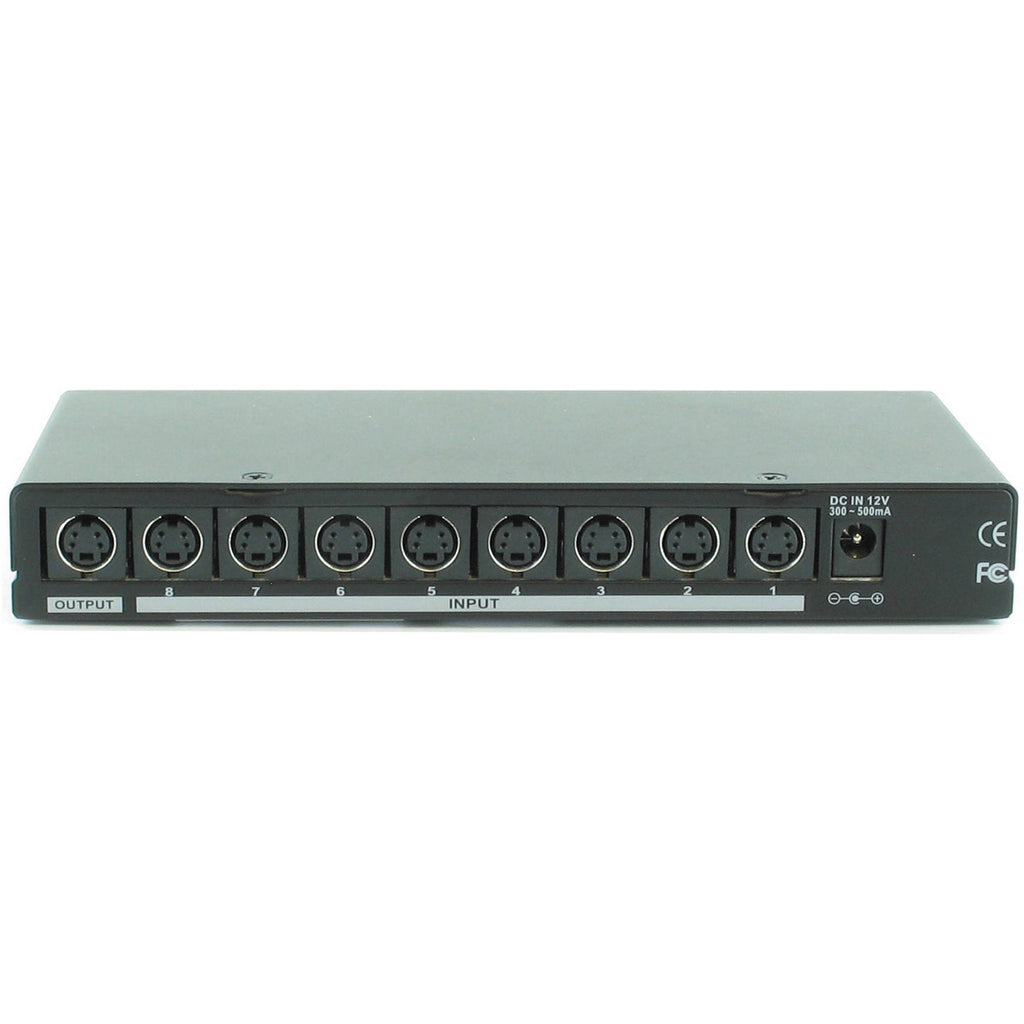

| Output | 1x S-Video female port |
| Function | Menu & IR Remote controller |
| Video Signal | S-Video (S-Video 4-pin connectors) |
| IR Frequency | 38 KHz |
| Distortion | Audio Distortion: <0 .5 dB |
| Channel Isolation | >60 dB, 6.5 dB Gain between any input and output |
| Signal to Noise Ratio | >60 dB |
| Video Crosstalk | >-55 dB at 5 MHz |
| In/Out Connections | Color-coded RCA female connectors |
| Power Consumption | 100 mA maximum |
| Power Source | 12 VDC @300 to 1000 mA |
| Scan Rates Accepted | 50 or 60 Hz |
| Enclosure Type | Metal: Wall mountable ear panels attached |
| Regulatory Approvals | CE, FCC, and RoHS (2002/95/EC) |
| Dimensions | 6.9 x 3.2 x 1.0" (17.5 x 8.1 x 2.5 cm) |
| Weight | 1.10 lb (0.49 kg) |
Packaging Info
| Package Weight | 14 lb |
| Box Dimensions (LxWxH) | 11 x 3 x 3" |
