Description

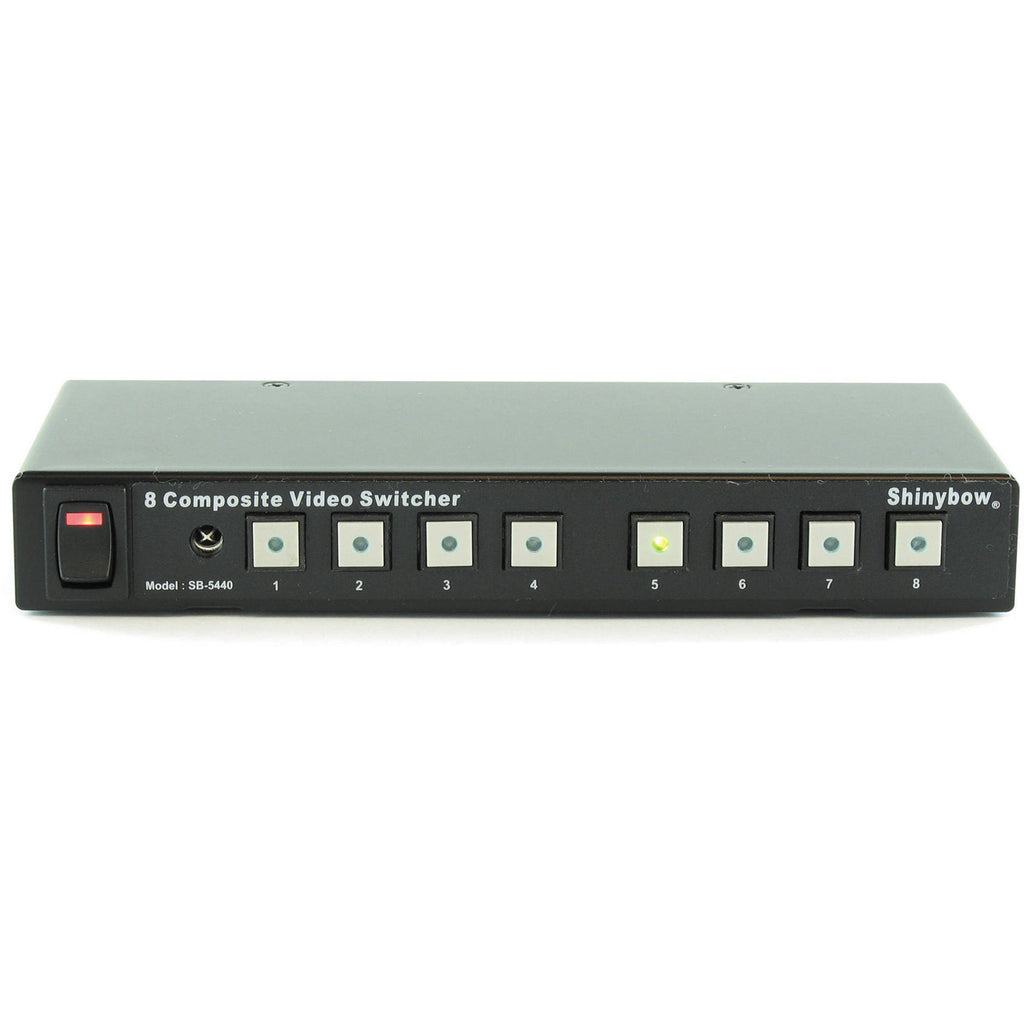

Shinybow SB-5440 Overview
The Shinybow SB-5440RCA 8 x 1 Composite Video Selector Switcher with IR Remote allows you to switch between 8 composite video inputs and 1 monitor with compatible output. This video switcher can be operated via an IR remote control (included) or manually with push buttons. This composite video (RCA) switch works with VCRs, camcorders, video game consoles, video CDs, DVDs, satellite receivers, and CAT5 set top boxes with composite video connectors.
Supports 8 inputs to 1 output
Front panel push button control with LCD readout
Supports lower power consumption at full load (under 500 mA)
Support for TV signals up to 1,000' (304.8 m) away
Easy to install and simple to operate
Black metal enclosure
In the Box
- Shinybow SB-5440RCA 8 x 1 Composite Video Selector Switcher with IR Remote
- IR Remote Control
- Users Guide
- AC/DC Adapter (12 VDC, 300 mA)
- Limited 3-Year Manufacturer Warranty
Shinybow SB-5440 Specs
| Video Signal | Composite Video (RCA connectors) |
| Input | 8x composite video |
| Output | 1x composite video |
| Functions | Select: Manual & IR remote controller |
| IR Frequency | 38 kHz |
| Video Bandwidth | >20 MHz (±0.5 dB) |
| Video Distortion | <0.5 dB |
| Channel Isolation | >60 dB |
| S/N Ratio | >60 dB |
| Video Crosstalk | >-60 dB |

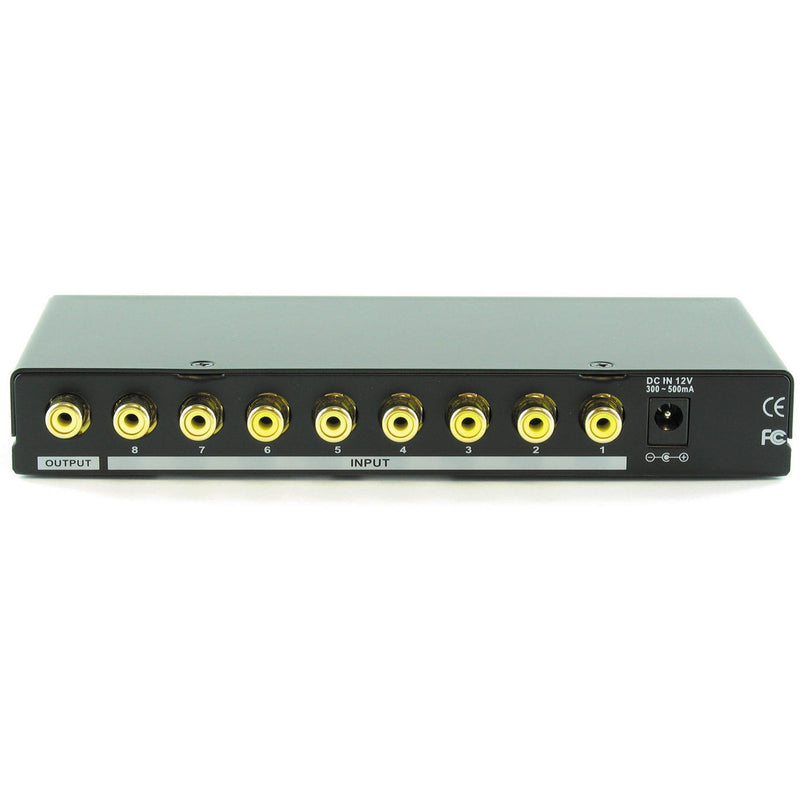

| Terminal | In/Out: Color-coded RCA female connectors |
| Enclosure Type | Metal |
| Power Consumption | 200 mA maximum |
| Power Source | 12 VDC @ 300 to 1000 mA |
| Regulatory Approvals | CE, FCC, and RoHS (2002/95/EC) |
| Dimensions | L x W x H: 6.9 x 3.2 x 1" (175 x 80 x 26 mm) |
Packaging Info
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 9.4 x 7.3 x 1.4" |
