Description
- IR Remote Control
The SB-5430 4 x 2 Composite/S-Video/Audio Routing Switcher with IR Remote Control from Shinybow is a 4-input to 2-output S-Video (Y/C), Composite Video and Stereo Audio (AR/AL) signal switching unit with a video bandwidth of 100 MHz.
With 4 individual inputs and 2 outputs, this signal router switcher enables you to route any input to any output, eliminating the need to move around S-Video, Video and Stereo Audio input and output cables. This router switcher is suitable for HD (High-Definition) TV with resolutions of 480p, 720p, 1080i, and 1080p.

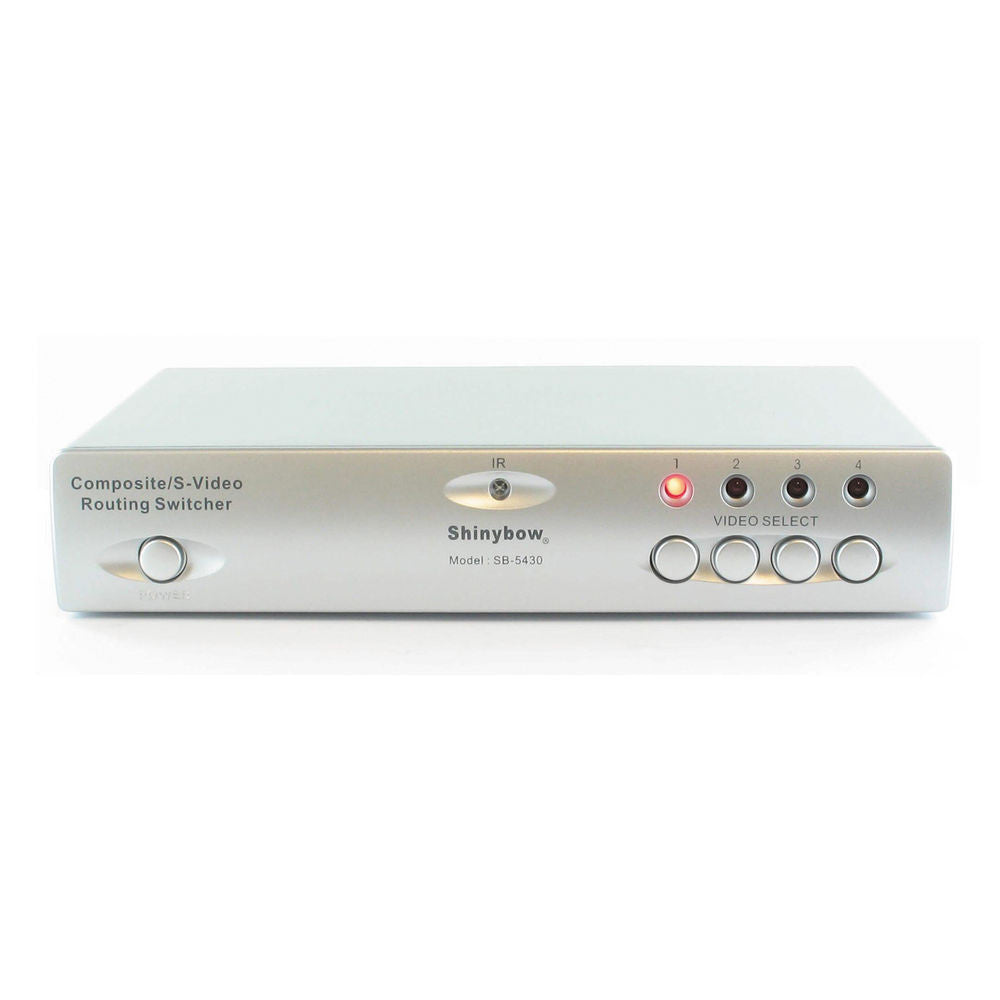

The unit�s control is provided via the front selection pushbuttons with LED readout or via the IR remote controller. It can also be rack mounted using 19� rack ears (part number #1U-300L, sold separately).
- Supports 4 inputs to 2 outputs
- Supports HDTV resolutions of 480i, 480p, 576p, 720p, 1080i, and 1080p
- Video bandwidth of 100 MHz (-3 dB), 200mVpp
- Scan rates accepted for 50 Hz or 60 Hz

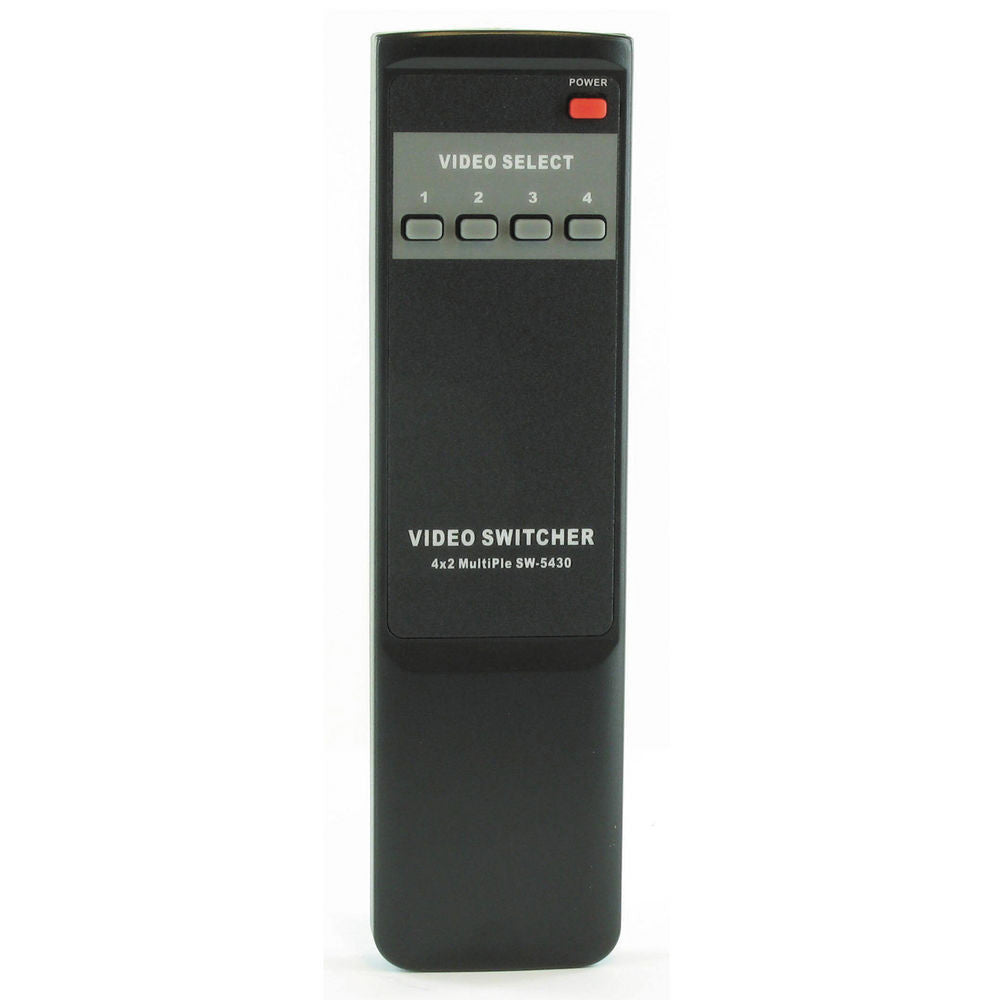

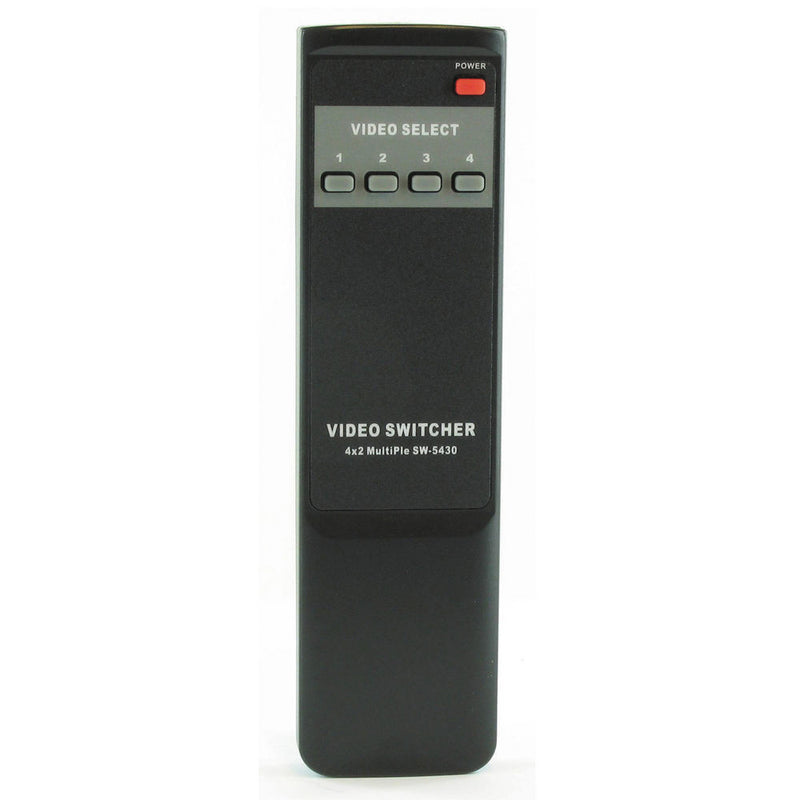

- Uses an IR Remote Control (frequency 38 kHz)
- Switches S-Video (Y/C), Composite and Stereo Audio (AR/AL) signals
- Suitable for full HD high-resolution video player devices and HDTV, LCD TV, Plasma TV, and HD monitor displays
- Features a direct selection and confirm via front pushbuttons with LED readout
- 19" 1 RU rack mountable
- Lower power consumption with full load under 250mA
- Power supply with a universal type 100 to 230VAC switch
- IR Remote Control
- AC / DC Adapter (12VDC, 300mA)
- Limited 3-Year Warranty
| Switcher | Type: 4 inputs to 2 outputs Component-Audio Router Switcher |

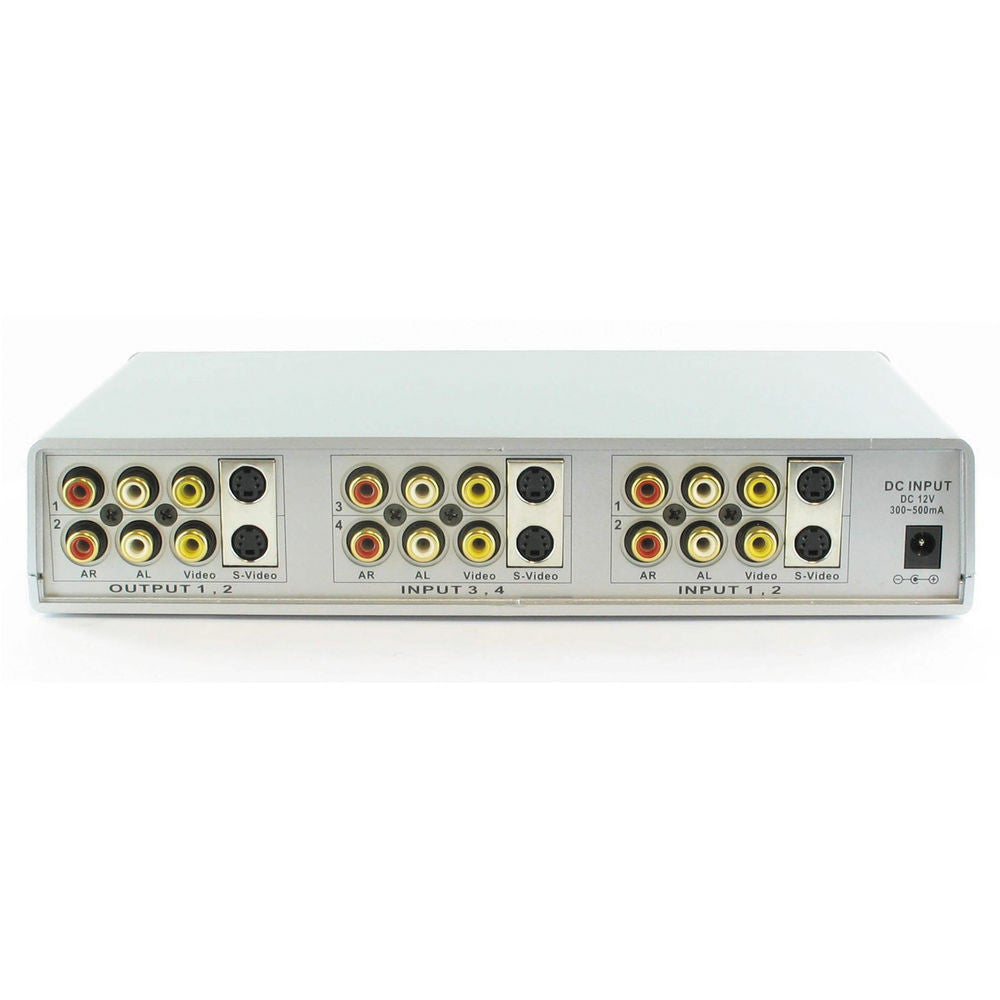

| Inputs | Video: 4 x Composite 0.5 to 2.0 Vpp, 75 ?, RCA socket 4 x S-Video (Y/C) 75 ?, Mini-DIN 4P socket Audio: 4 x Stereo Audio: L+R 5 Vpp, 47 k?, RCA socket |
| Outputs | Video: 2 x Composite 1 Vpp, 75 ?, RCA socket 2 x S-Video (Y/C) 75 ?, Mini-DIN 4P socket Audio: 2 x Stereo Audio: L+R 5 Vpp, 47k?, RCA socket |
| Bandwidth | Video: 100 MHz, (-3 dB) 2 Vpp Audio: 30 MHz, (-3 dB) (Audio-Right = 30 MHz, Audio-Left = 30 MHz) |
| Distortion | Video: <1.2 dB Audio: <0.6 dB |
| Channel Isolation | >50 dB |
| Signal to Noise Ratio | >50 dB |
| Frequency Response | Audio: 20 Hz to 20 kHz |
| All Hostile Crosstalk | -56 dB @ 5 MHz, -45 dB @ 50 MHz |
| Scan Rates Accepted | 50 Hz or 60 Hz |
| Frequency | Infrared: 38 kHz |
| Controls | Direct switch channel via front panel selection buttons with LED readout or via the IR Remote Control |
| Voltage Input | 12 VDC @ 0.42 A |
| Safety Approvals | CE, FCC, RoHS (2002/95/EC) |
| Dimensions (W x D x H) | 9.40 x 5.60 x 1.80" (238.76 x 142.24 x 45.72 mm) |
| Weight | 1.1 lb (0.5 kg) including the plastic case |
| Packaging Info | |
|---|---|
| Package Weight | 2.65 lb |
| Box Dimensions (LxWxH) | 11.3 x 10.0 x 3.0" |
