Description
Shinybow SB-3706SV Overview

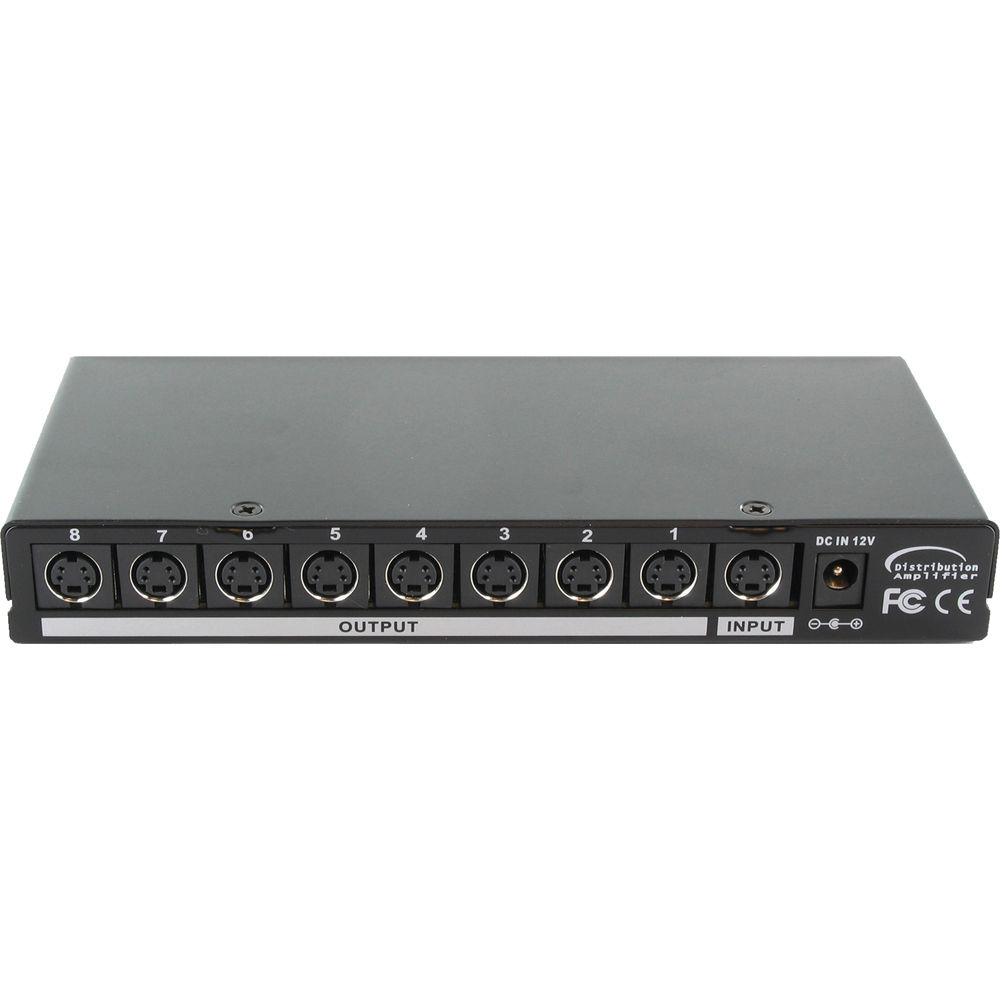

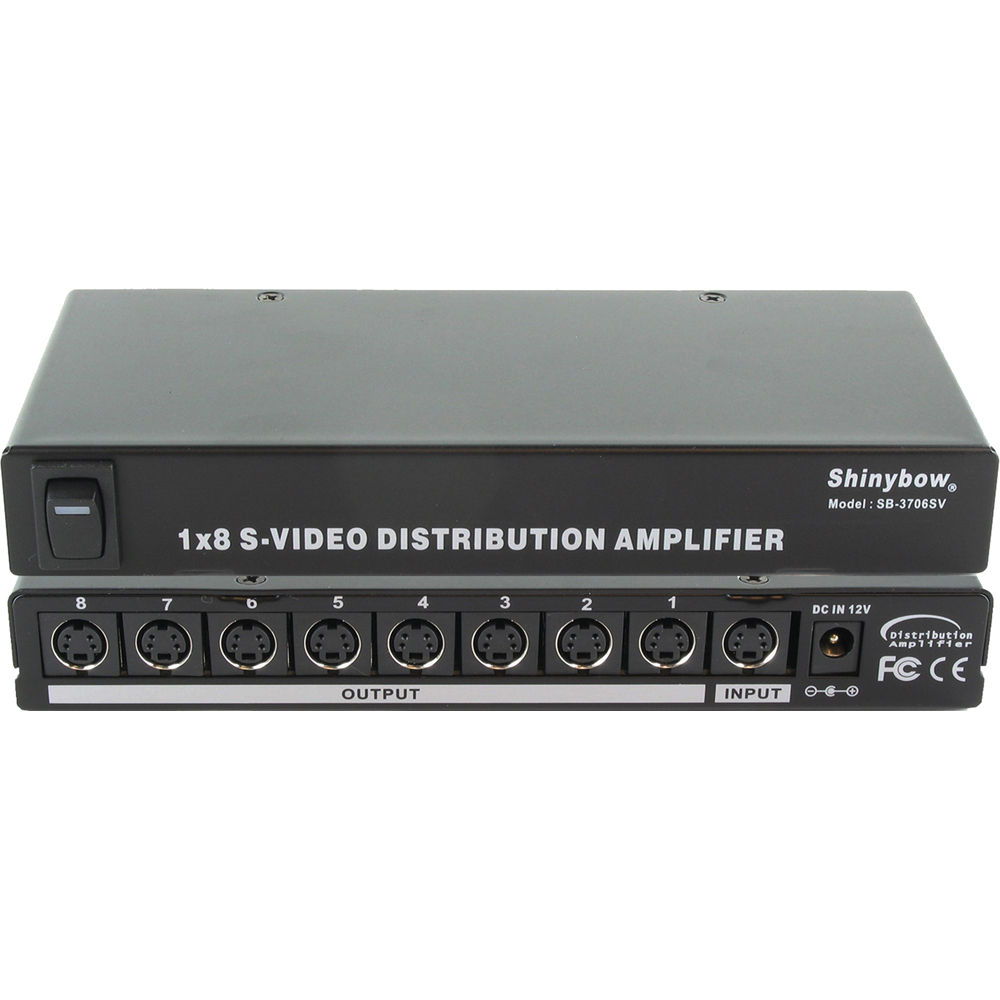

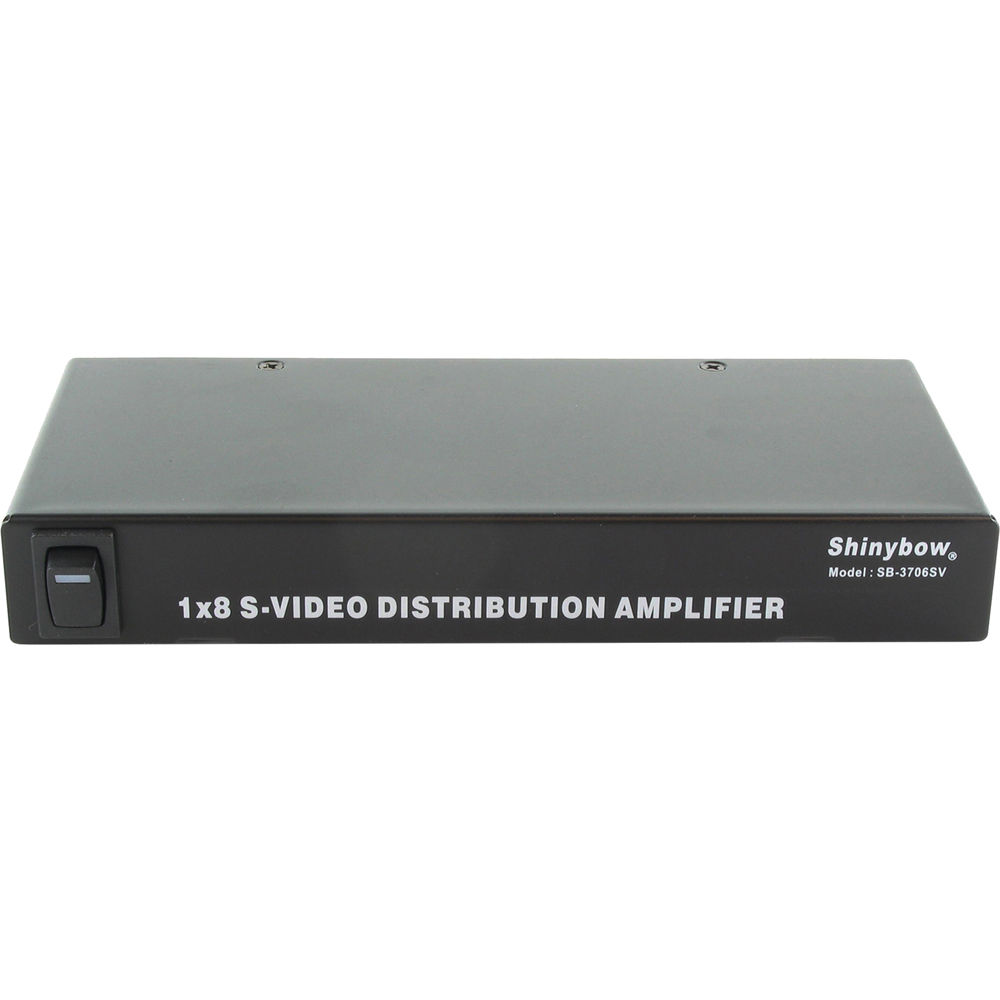

The Shinybow SB-3706SV 1 x 8 S-Video Distribution Amplifier is a 1 input to 8 outputs S-Video (Y/C) distribution amplifier and contains a video bandwidth of 80 MHz. This amplifier is wall mountable using the wall rack mount (sold separately). As it is a 1 to 8 signal distributor, the input can be routed to all 8 outputs. It eliminates the need to constantly move around S-Video input and output cables. This distribution amplifier is ideally suited for full HD (High-Definition) TVs with 480p, 720p 1080i, and 1080p resolutions, or display applications.
Support 1 x 8 S-Video (Y / C) Distribution Amplifier
Signals amplifier including S-Video (Y / C)
Terminator via Mini-Din 4-pin female connector
Supports HDTV with 480i, 480p, 576p, 720p, 1080i, and 1080p resolutions
Video Bandwidth: 80 MHz (-3 dB), 200 mVpp
Scan rates accepted for 50 or 60 Hz
Suitable for amplifier for high resolution video player device and HDTV, LCD TV, plasma TV, HD monitor displays
Enclosure Type: Wall rack mountable
Supports lower power consumed full load under 210 mA
Power supply offers a universal type 100 to 240 VAC switch
In the Box
- Shinybow SB-3706SV 1 x 8 S-Video Distribution Amplifier
- Limited 3-Year Manufacturer Warranty
Shinybow SB-3706SV Specs
| Switcher | Type: 1 input to 8 outputs S-Video Distribution Amplifier |
| Signals | Type: S-Video (Y / C) |
| Video Bandwidth | 80 MHz, (-3 dB) 2 Vpp |
| Slew Rate | 1,000 V/us, Fixed internal gain of 2 |
| Scan Rates Accepted | 50 or 60 Hz |
| Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) |
| Power Voltage Input | 12 VDC @ 0.66 A |
| Dimensions | 6.93 x 3.15 x 1" (176 x 80 x 25 mm) |
| Weight | 32.8 oz (930 g) with metal case |
Packaging Info
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 9.3 x 7.2 x 1.4" |
