Description
Shinybow SB-3702 Overview
Use the Shinybow SB-3702RCA 1 x 9 Distribution Amplifier to distribute composite video to multiple destinations via RCA cables. The single input on this compact unit can be routed to all nine outputs, eliminating the need to repatch cables among different display devices.

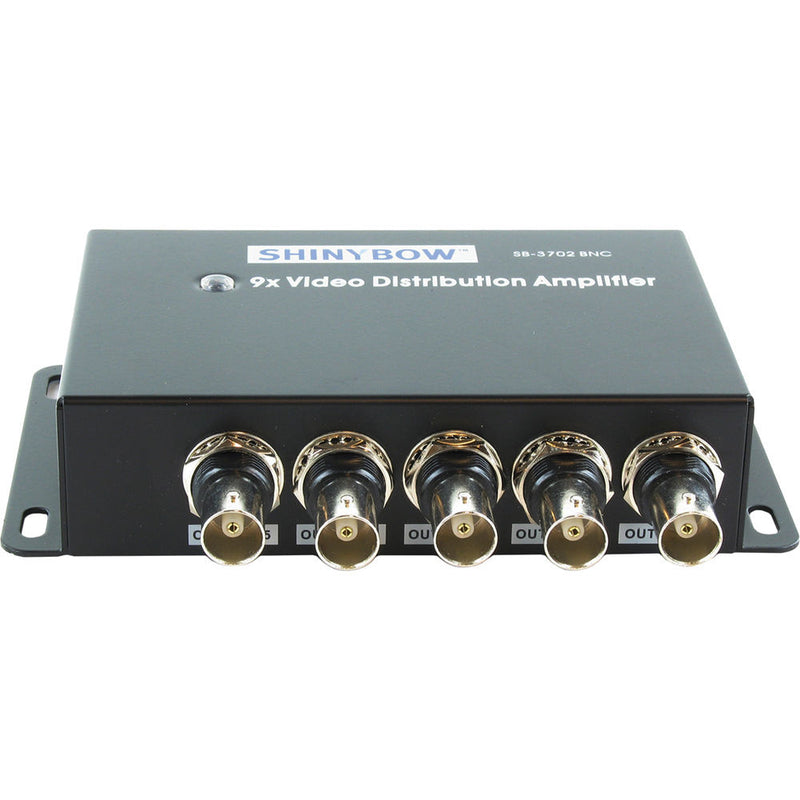

Featuring a video bandwidth greater than 320 MHz, this distributor is designed with five outputs on its front, and four outputs plus one input on its back panel. For a more permanent and secure installation, mounting tabs are provided on both sides of the unit's metal housing.
Features
Amplifier distributes one source to up to nine outputs via RCA connectors
Robust video bandwidth is greater than 320 MHz
Metal wall-mount housing has integrated mounting tabs
In the Box
- Shinybow SB-3702RCA 1 x 9 Composite Video Distribution Amplifier (RCA)
- AC Adapter (12V, 420mAh)
- Limited 3-Year Manufacturer Warranty
Shinybow SB-3702 Specs
| Amplifier Type | 1-input to 9-output composite video distribution amplifier |
| Inputs/Outputs | 1 x Input, 750 Ohms, 1 Vpp 9 x Outputs, 750 Ohms, 1 Vpp |
| Connectors | RCA |
| Video Signal Format | Composite video |
| Video Bandwidth | >320 MHz |
| Slew Rate | 5500 V/ms, 4 V step |
| Video Distortion | -66 dBc @ 20 MHz -75 dBc @ 20 MHz |
| Video Specifications | Gain Flatness: 0.1 dB to 75 MHz Differential Gain Error: 0.01%, RL=150% Differential Phase Error: 0.01%, RL=150% |
| Maximum Power Consumption | 500 mAh |
| Power Voltage Input | 12 VDC @ 420 mAh |
| Dimensions | 4.3 x 2.8 x 1" (110 x 70 x 25 mm) |
| Weight | 10.9 oz (0.31 kg) |
Packaging Info
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 12 x 7.5 x 3" |
