Description

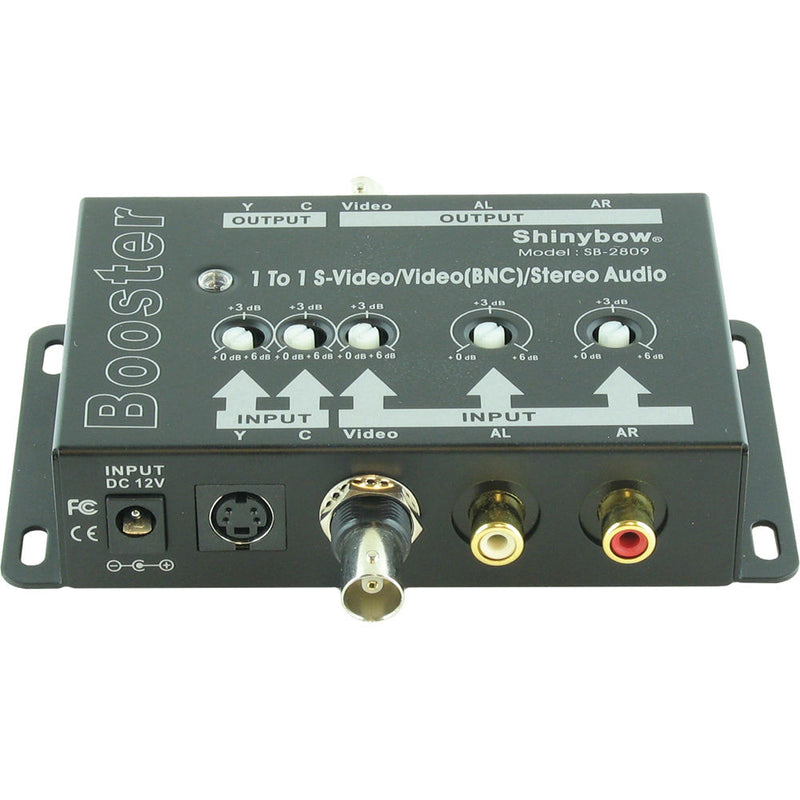

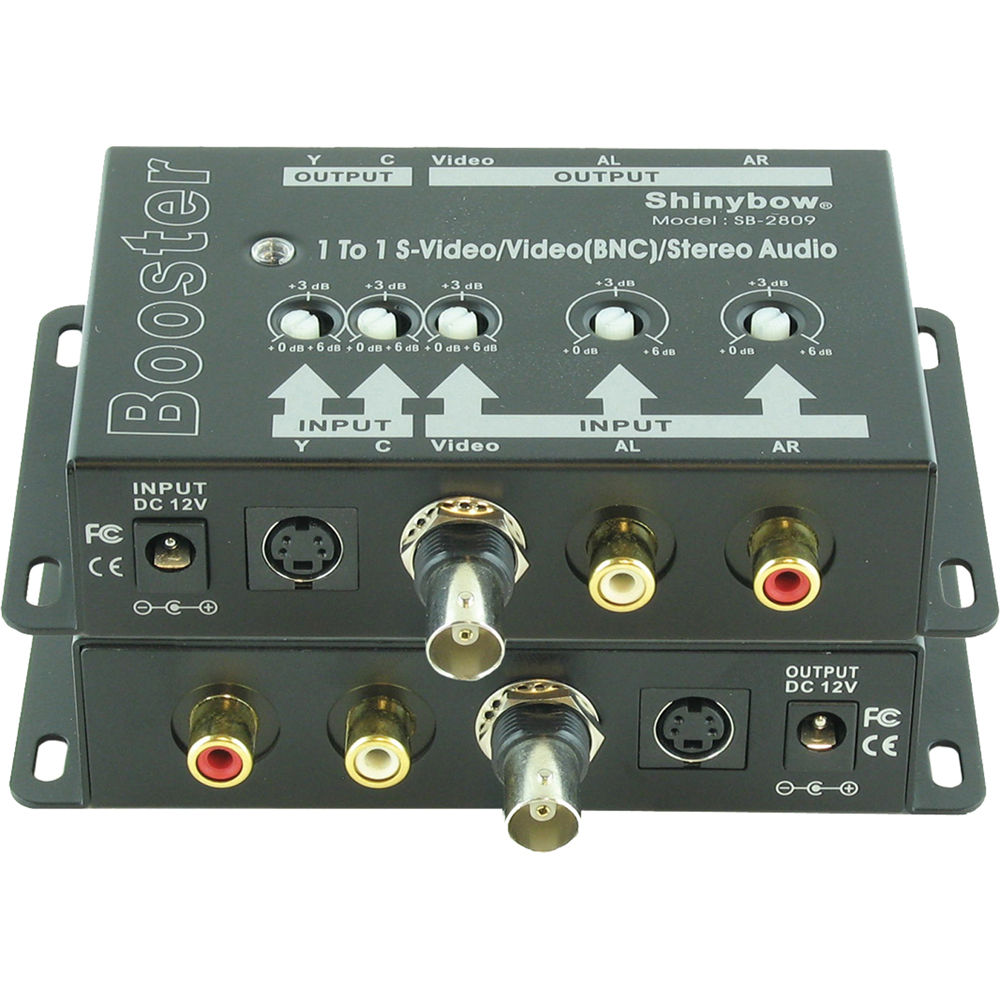

Shinybow SB-2809 Overview
The Shinybow SB-2809 1 x 1 S-Video / Composite Video and Stereo Audio Amplifier is designed to drive signals over a long distance. It provides signal amplification from 0 to 6 dB via an adjustable control. This is useful for distributing signals from any video source, including a high-resolution video source to a display monitor. You can use the S-Video and composite video simultaneously. Video signals can be distributed up to more than 300 to 1,000� (91.44 to 304.8 m) away. It is ideal for classrooms, trainings, conference halls, and retail outlets.
Adjustable gain control separate for S-Video, composite video, and audio
Surface mount tabs provided
In the Box
- Shinybow SB-2809 1 x 1 S-Video / Composite Video and Stereo Audio Amplifier
- User Guide
- AC/DC Adapter (12 VDC, 500 mA)
- Limited 3-Year Manufacturer Warranty
Shinybow SB-2809 Specs
| Input | S-video (Y / C) or composite video at 1 Vpp / 75 ? and stereo audio (AR / AL) signals |
| Output | S-video (Y / C) or composite video at 1 Vpp / 75 ? and stereo audio (AR / AL) signals |
| Video Bandwidth | 440 MHz, G= 2, 320 MHz, G = 10 |
| Setting Time | 10 ns to 0.1%, 2 V step, G = 2 |
| Low Distortion SFDR | Third order LNTERCEPT (3IP): -66 dBc @ 20 MHz Second Harmonic: -75 dBc @ 20 MHz Third Harmonic: 26 dBm @ 70 MHz, G = 10 |
| Gain Flatness | 0.1 dB to 75 MHz |
| Differential Gain Error | 0.01%, Rl = 150% |
| Differential Phase Error | 0.01%, Rl = 150% |
| Power | Consumed: 100 mA maximum |
| Power Source | 12 VDC @ 500 mA |
| Size | 4.09 x 2.83 x 1" (104 x 72 x 25 mm) |
Packaging Info
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 10 x 6.5 x 2.9" |
