Description

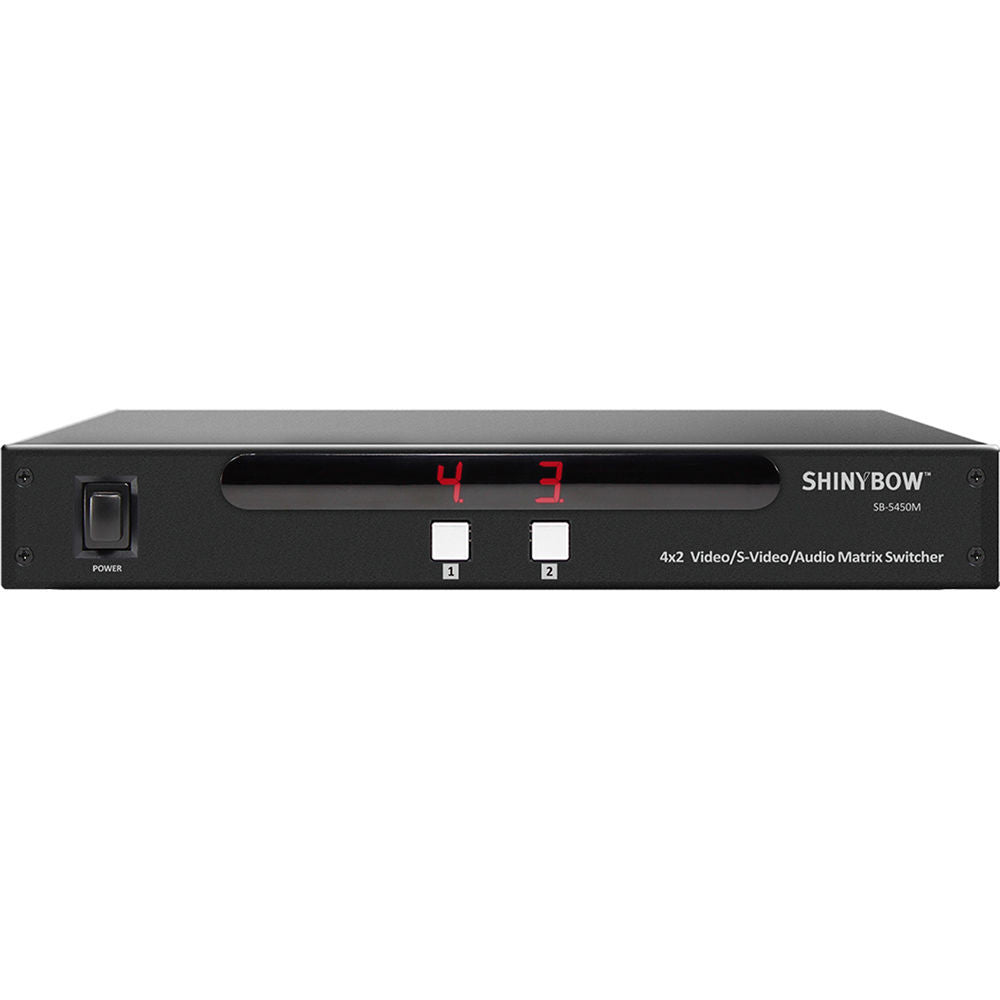

The SB-5450M 4x2 Composite/S-Video/Audio Matrix Routing Switcher from Shinybow supports resolutions up to 1080p and features four inputs and two outputs for S-Video, composite video, and stereo RCA audio. Because it is a matrix switcher, any of the inputs can be routed to any of the outputs, making it well suited for multi-display installations. It is 1 RU in height and is mountable in standard 19" racks using optional rack ears (sold separately). Control is provided via front selection push buttons with LED readout, or infrared remote controller.
- Key Features
-
- Matrix switcher with four inputs and two outputs

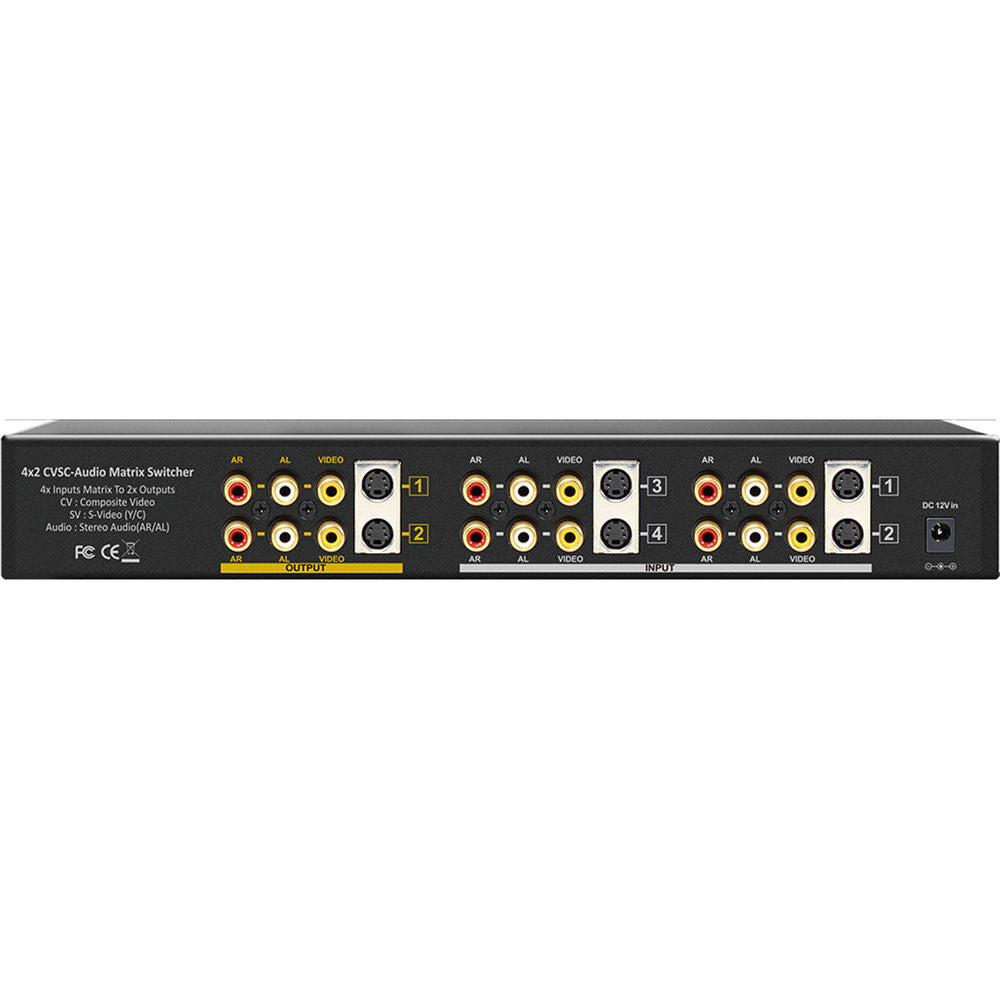

- Each input/output offers S-Video, composite RCA video, and stereo RCA audio (AR/AL) connections
- Supports 480i, 480p, 576p, 720p, 1080i, and 1080p TV resolutions
- 100 MHz (-3 dB), 200 mVpp video bandwidth
- 30 MHz audio bandwidth
- 20 Hz to 20 kHz audio frequency response
- Scan rates accepted for 50 Hz or 60 Hz
- IR remote control (38 kHz frequency)
- Front panel control via selection channel push buttons with LED readout
- Rack-mountable 1 RU with separately available rack ears
- Low power consumed; full load under 250mAh
- 100 to 240 VAC universal power supply included
| Inputs | Video: 4 x S-Video 4 x Composite RCA Audio: |
| Outputs | Video: 2 x S-Video 2 x Composite RCA Audio: |
| Video Bandwidth | 100 MHz, -3 dB, 2 Vpp |
| Audio Bandwidth | 30 MHz, -3 dB Audio-Right: 30 MHz / Audio-Left: 30 MHz |
| Audio Frequency Response | 20 Hz to 20 kHz |
| All Hostile Crosstalk | -56 dB at 5 MHz / -45 dB at 50 MHz |
| Scan Rates Accepted | 50 Hz or 60 Hz |
| IR Infrared Frequency | 38 kHz |
| Safety Approvals | CE, FCC, VCCI, Erp, WEEE |
| Power Voltage Input | 12 VDC, 1 A |
| Power Adapter | 100 to 240 VAC, 50/60 Hz |
| Dimensions | 12.0 x 6.1 x 1.7" (30.4 x 15.4 x 4.4 cm) |
| Weight | 3.1 lb (1.4 kg), with metal case |
| Packaging Info | |
|---|---|
| Package Weight | 4.85 lb |
| Box Dimensions (LxWxH) | 13.0 x 10.4 x 3.0" |
In the Box
Shinybow 4x2 Composite/S-Video/Audio Matrix Routing Switcher
- IR Remote Control
- RCA A/V Cable
- S-Video Cable
- Power Supply
- Limited 3-Year Warranty
