Description

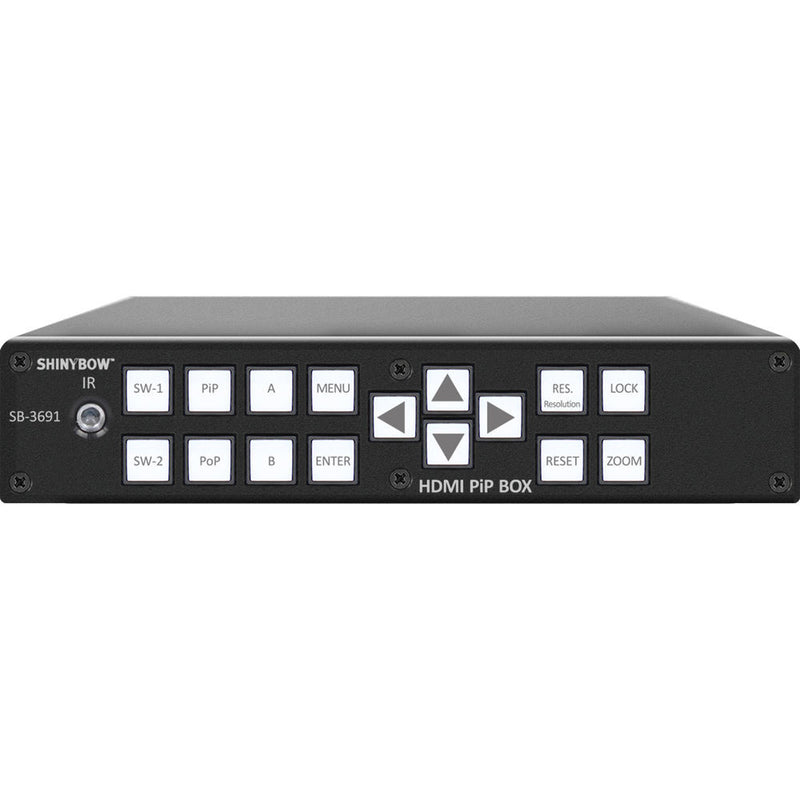

The SB-3691 2x1 HDMI PiP/PoP Selector Switch Scaler from Shinybow features two HDMI inputs and one HDMI output, with Picture-in-Picture (PiP) and Picture-Outside-Picture (POP), that can be easily configured and controlled. It supports video resolutions up to 1080p with a signal bandwidth of 165 MHz and a data rate up to 4.95 Gbps. Input resolutions can be scaled up to 1080p and scaled down to 480p, with five zoom management modes available. The switcher is fully HDMI 1.3 and HDCP 1.2 compliant, with CE and FCC certification. Control is provided via front panel buttons with LED display, RS-232, or an included wireless IR remote control. A menu system allows you to control image settings such as brightness, contrast, and saturation.
- Key Features
-
- Scaler with two HDMI inputs and one HDMI output
- Supports Picture-in-Picture (PiP) and Picture-Outside-Picture (POP)
- Link speeds up to 4.95 Gbps (link clock rate of 165 MHz), HDMI 1.3, and HDCP 1.2 compliant
- Digital video TMDS formats resolutions up to 1080p with Deep Color 36-bit
- Input Supports: two HDMI (480i/p to 1080p)
- HDMI 1080p 60 Hz output
- S/PDIF and stereo audio (AR/AL) outputs; audio output PCM two-channel support
- Zoom management can be selected between five modes
- 16 Control Buttons: SW1 / SW2 / PiP / POP / A / B / Menu / Enter / Resolution / Lock / Reset / Zoom / Up / Down / Right / Left
- Support menu for control of color, brightness, contrast, and saturation
- Downwscaling to 480p
- Upscaling to 1080p
- 98' Maximum cable distance for 1080p 60 Hz video
- IR Remote control frequency (38 kHz)
- User Interface Control: Front panel push button, IR wireless remote control, RS-232 interface control driver for Windows 95/98/2000/XP
- 100 to 240 VAC, 50/60 Hz power supply included
| Inputs | 2 x HDMI, Type A (HDMI or DVI source) |
| Outputs | 1 x HDMI, Type A 1 x S/PDIF 1 x Stereo audio (AR/AL) |
| HDMI Support | HDMI 1.3 Up to 1080p at 60 Hz, 36-bit Deep color |
| Video Bandwidth | Double Data Rates: 165 MHz Total 4.95 Gbps Bandwidth |
| Compliance | HDMI 1.3, HDCP 1.2 |
| Video Resolutions | 1080p, 1080i, 720p, 480p, 480i |
| Downscaling | Down to 480p |
| Upscaling | Up to 1080p |
| HDMI Signal Boost | Distances up to 98' (30 m) |
| Infrared Frequency | 38 kHz |
| Firmware Updates | Via RS-232 |
| Safety Approvals | CE, FCC, REACH |
| Power Supply | Output: 12 VDC Input: 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | 32 to 100°F (0 to 32°C) |
| Dimensions | 6.7 x 5.7 x 1.1" (17.0 x 14.5 x 2.9 cm) |
| Weight | 1.5 lb (0.68 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.3 lb |
| Box Dimensions (LxWxH) | 11.3 x 10.0 x 2.9" |
- IR Remote Control (SW-3691)
- Wall Mount Bracket
- RS-232 V36.01 Protocol Instructions
- Power Supply
- Limited 3-Year Warranty
