Description
Shinybow SB-565 Overview
Distribute a 4K video signal to two displays over longer distances with the 1x2 4K2K HDMI Distribution Amplifier from Shinybow. It supports up to Ultra HD 4K resolution and features a signal booster that lets you use up to 65 ft cables for the 4K signal, and up to 98 ft cables for 1080p.
You can also upscale 1080p to Ultra HD, and downscale Ultra HD to 1080p. Additionally, select from three EDID modes for audio/video compatibility across a wider variety of displays.
Key Features
- Distribute an HDMI signal to two displays
- Resolutions up to Ultra HD 4K
- 3D video support
- Up to 36-bit color depth
- HDMI signal booster (4K up to 65 ft; 1080p up to 98 ft)
- HDCP compliant
- Wall mount bracket included

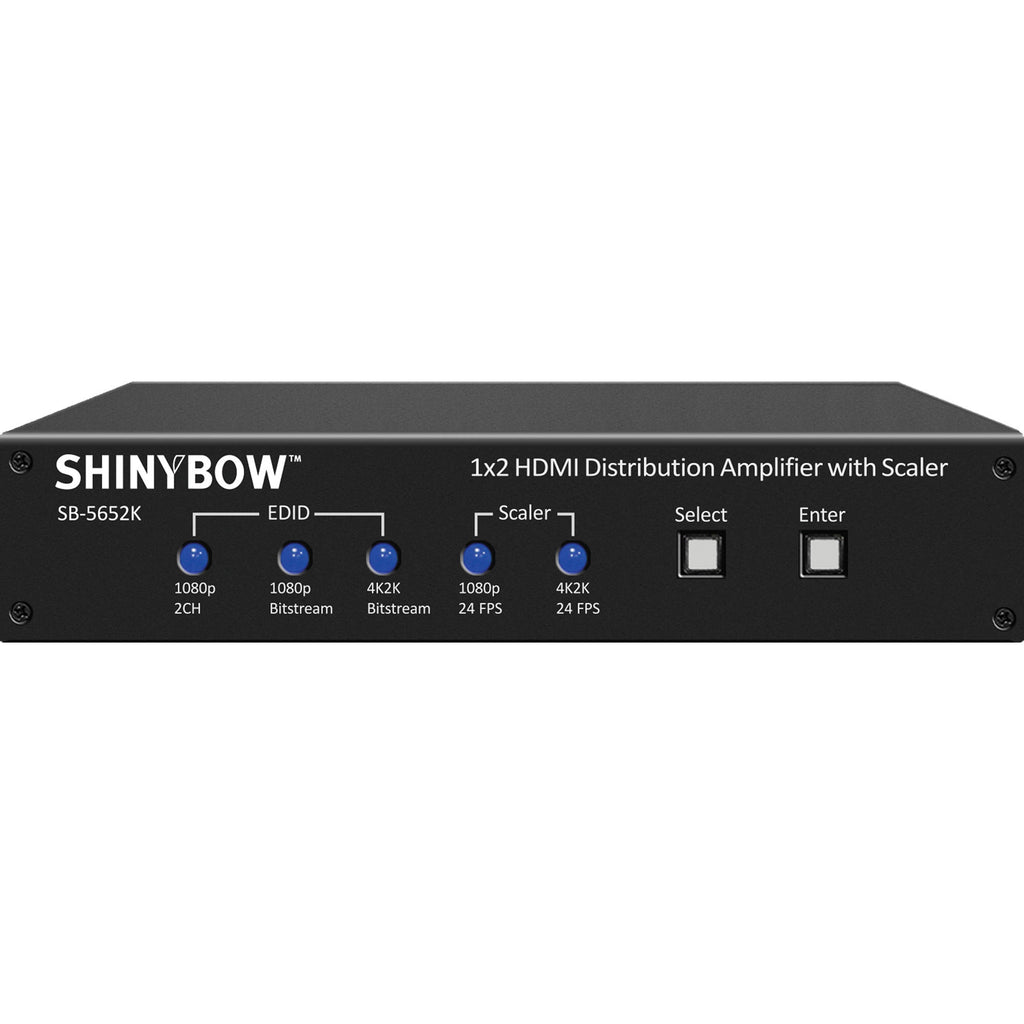

Embedded EDID Modes
- Mode 1: 1080p - 2-Ch
- Mode 2: 1080p - Bitstream
- Mode 3: 4K - Bitstream
In the Box
- Shinybow 1x2 4K2K HDMI Distribution Amplifier with Scaler
- Power Supply
- Wall Mount Bracket
- Limited 1-Year Manufacturer Warranty
Shinybow SB-565 Specs

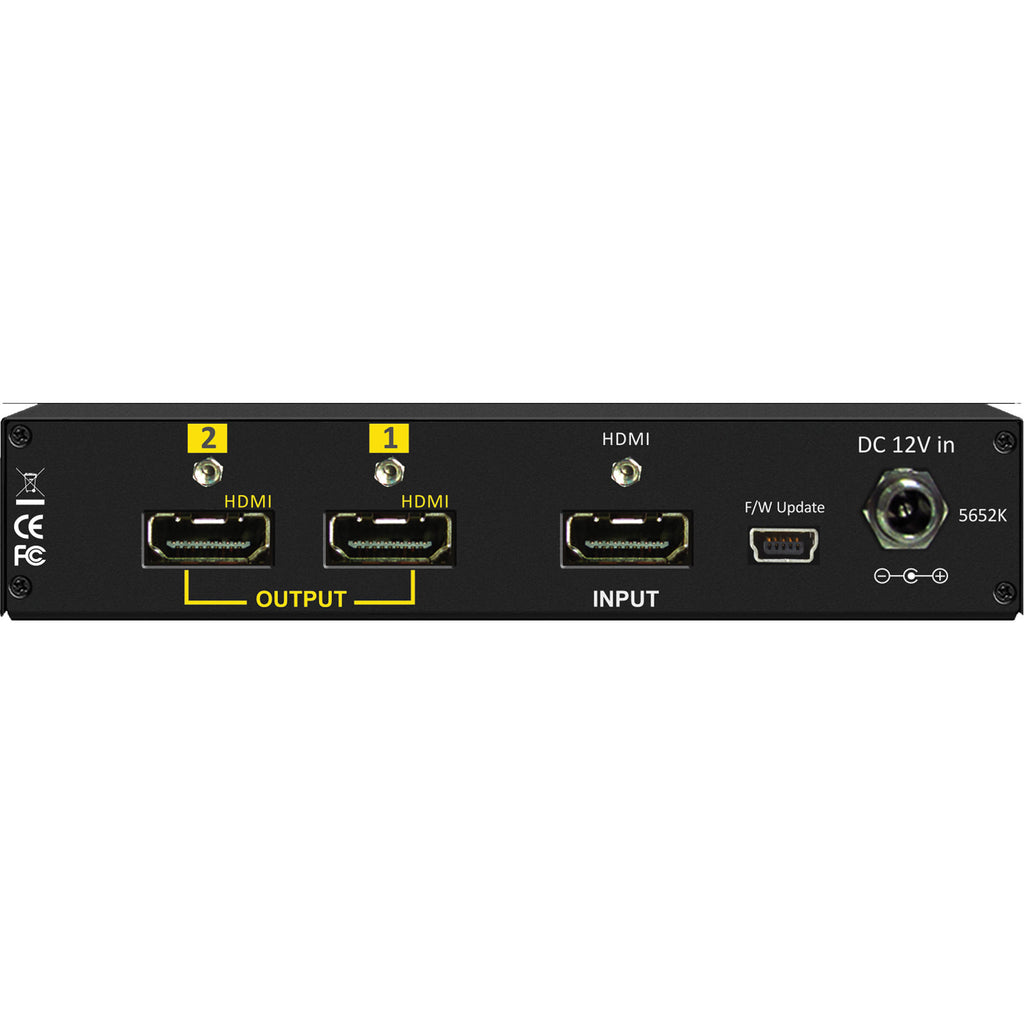

Interfaces
| Input | 1 x HDMI (HDMI 1.4a) |
| Output | 2 x HDMI (HDMI 1.4a) |
Standards
| HDCP Support | Version 2.2 |
| Audio Decoding | DTS Digital Surround, DTS-ES, DTS-HD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, PCM |
Transmission
| Max Transmission Distance | 1080p: 98' / 30 m UHD 4K: 65' / 20 m |
| Video Format | HDMI UHD 4K: 24 fps 1080p: 24 fps |
| PC Resolutions | 3840 x 2160 1920 x 1080 1280 x 720 640 x 480 |
| Audio Channels | 2.0-Channel 5.1-Channel 7.1-Channel |
| Bandwidth | 340 MHz |
Power
| Power Consumption | Power Supply: 12 VDC at 1 A |
Environmental
| Operating Temperature | 32 to 100°F / 0 to 32°C |
General
| Certifications | CE, FCC, REACH *as per Manufacturer |
| Dimensions | 5.0 x 3.1 x 1.0" / 12.7 x 7.9 x 2.5 cm |
| Weight | 1.65 lb / 0.65 kg |
Packaging Info
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 9.449 x 7.165 x 1.496" |
