Description
Shimbol MEMORY I PRO Overview
- 1Description
- 2
- 3
- 4HDMI and 3G-SDI Dual Interfaces
- 5Improved UI for Intuitive Control
- 63D LUT Import and Output
- 7Recording and Playback
- 8Custom RGB Settings
- 9Other Visual Assist Functions
- 10Included Accessories and Power Options
With upgraded features and user interface, the

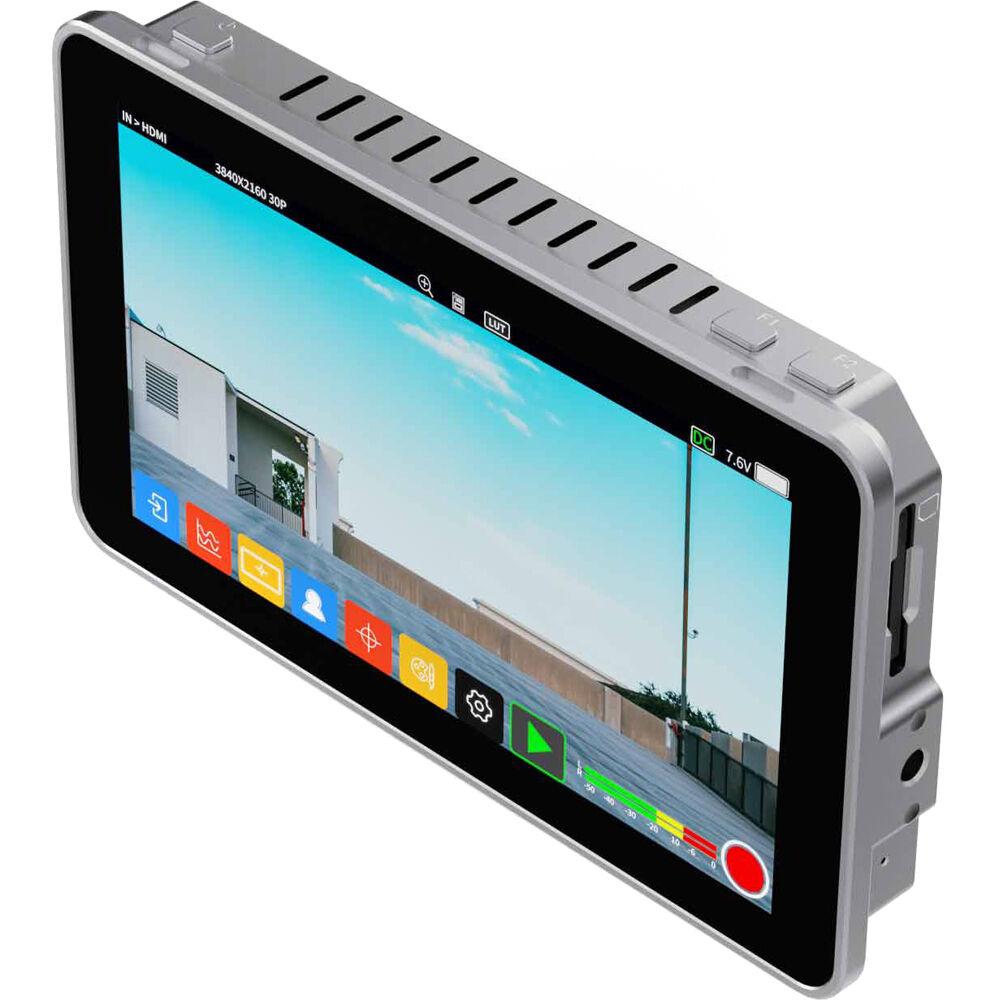

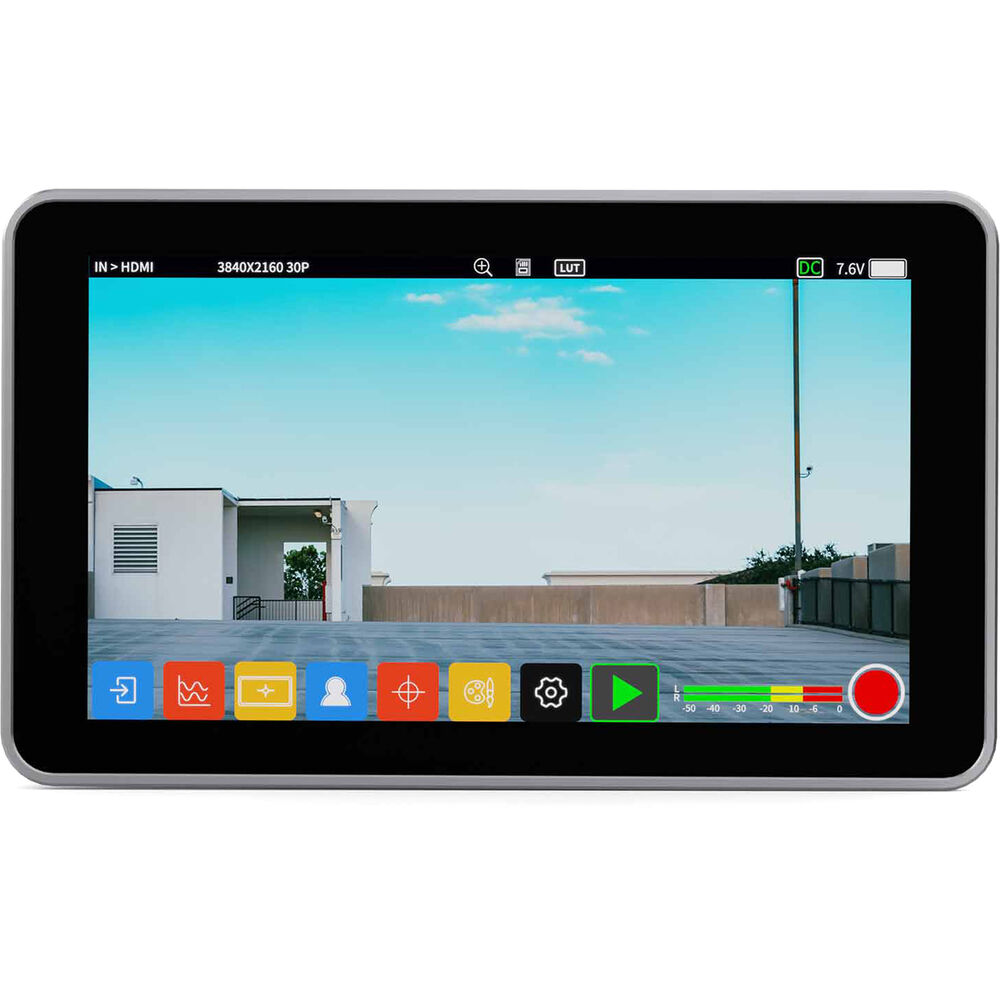

Memory I Pro 5.5" HDMI & 3G-SDI Touchscreen Recorder/Monitor from
Shimbol can record and view up to DCI 4K25 HDMI or 1080p60 3G-SDI video with applied custom 3D LUTs. The Pro monitor features a 5.5" 1920 x 1080 touchscreen display with a 178° viewing angle, 1200:1 contrast ratio, and 2000 cd/m² brightness for visibility even in bright sunlight. Its interface includes HDMI and 3G-SDI inputs and outputs, a USB-C port for debugging, a 3.5mm headphone jack for embedded audio, and an SD card slot for onboard recording. Multiple visual assist functions can be toggled with the improved UI and touchscreen control.
HDMI and 3G-SDI Dual Interfaces
- HDMI input/output, 3G-SDI input/output
- Supports up to DCI 4K25 HDMI video and 1080p60 3G-SDI video
- Convert 3G-SDI inputs to HDMI outputs
- Embed 3D LUT into your outputted video
Improved UI for Intuitive Control
New icons on the touchscreen display make for easier and quicker access to desired functions like scopes, recording functions, safe frames, playback, image flip, and other settings. This makes for smooth monitoring in the field.
3D LUT Import and Output
Upload custom 3D LUTs in .cube formats to the monitor or use presets to better visualize your final product while shooting on location. Output your video with the LUT attached to your inserted SD card and save time in post-production.
Recording and Playback
- Supports recording and playback with 3D LUTs
- Supports real-time HDMI and 3G-SDI recording
- Built-in player for internal review
- Optional bit rate recording
- SD card slot supports up to 1080p60 recording
- 32 to 256 GB cards supported, internal formatting
- MP4 file formats compatible with Da Vinci, iMovie, and other editing platforms
Custom RGB Settings
Customize your RGB settings for a refined screen display and color correction. Adjust parameters like RGB gain and offset.
Other Visual Assist Functions
- Focus your image in real-time, view focus peaking
- Updated high-precision waveform
- False color adjustment
- Masking with customized screen ratios
- Color temperature adjustment
Included Accessories and Power Options
- Power the Memory I Pro with its L-series battery plate and compatible NP-F970 battery. A DC input supports other external power supplies.
- A 1/4"-20 thread on the monitor allows you to mount it onto the included cold shoe mount, which can tilt the display for improved visibility.
- Other included accessories are an SD card, tempered screen protector, HDMI cable, and SDI cable.

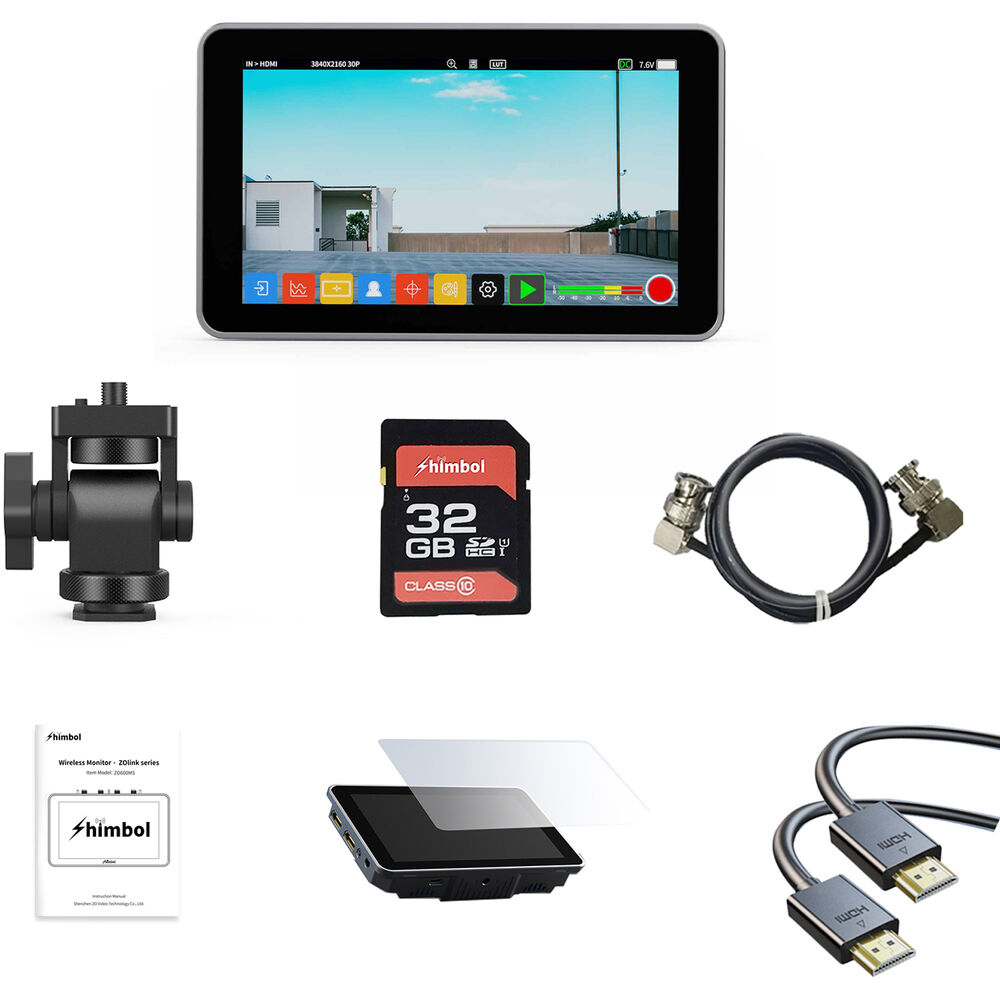

In the Box
- Shimbol Memory I Pro 5.5" 3D LUT HDMI & 3G-SDI Touchscreen Video Recorder/Monitor
- Cold Shoe Mount Adapter
- SD Card
- Tempered Screen Protector
- HDMI Cable
- SDI Cable
- Limited 14-Month Manufacturer Warranty
Not in the Box
- Essential Recording Media (Not Included)
Table of Contents
- Description
- HDMI and 3G-SDI Dual Interfaces
- Improved UI for Intuitive Control
- 3D LUT Import and Output
- Recording and Playback
- Custom RGB Settings
- Other Visual Assist Functions
- Included Accessories and Power Options
Shimbol MEMORY I PRO Specs
Key Specs
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Video I/O |
1x HDMI 1.4 Input
1x BNC (3G-SDI) Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Video Format |
HDMI
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Built-In Battery |
No
|
| Battery Type |
1x L-Series
|
| Power Consumption |
12 W
|
| Mounting |
2x 1/4"-20 Female
|
Display
| Panel Type |
LCD
|
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
400 ppi
|
| Image Controls |
Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Image Flip, Screen Markers, Waveform, Zebra
|
Inputs / Outputs
| Video I/O |
1x HDMI 1.4 Input
1x BNC (3G-SDI) Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel Input
|
| Other I/O |
1x USB-C (Firmware)
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Gamma Curve |
Rec709
|
| Timecode Support |
Yes
|
Recording
| Pulldown Conversion |
No
|
| Camera Trigger |
SDI, HDMI
|
| Pre-Roll Record |
No
|
| Encoding Formats |
Up to 1920 x 1080
H.264 at up to 60 fps |
Power
| DC Input Power |
6.5 to 16.8 VDC
|
| Built-In Battery |
No
|
| Battery Type |
1x L-Series
|
| Power Consumption |
12 W
|
Mounting
| Mounting |
2x 1/4"-20 Female
|
Environmental
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
General
| Material of Construction |
Aluminum
|
| Dimensions |
5.8 x 3.4 x 1" / 146.6 x 87.6 x 26.5 mm
|
| Weight |
11.3 oz / 320 g
|
Packaging Info
| Package Weight |
1.535 lb
|
| Box Dimensions (LxWxH) |
10.4 x 5.6 x 2"
|
