Description
Sharp SVIISOFT Overview
Use the SpectraView II Display Calibration Software from NEC in conjunction with compatible color sensors and NEC display monitors to ensure accurate display calibration. The software is compatible with a number of NEC displays and a variety of color sensors including Eye-One, ColorMunki, OptixXR, Spyder 2, and Spyder 3 sensors. The software supports multiple calibration sets, allowing you to quickly switch between two or more calibration settings based on your needs. The software is Windows and Mac OS compatible, and includes network support in Windows.
Automatic Calibration
SpectraView communicates with the display monitors using Display Data Channel - Command Interface (DDC/CI) which is a two-way communications link between the video graphics adapter and display monitor using the normal video signal cable. No extra cables are necessary. All adjustments to the monitor settings are done automatically using this communications link. It is not necessary to manually configure the monitor as all of the necessary settings are made by the software.
10- or 12-bit Internal Look Up Tables (LUTs)
Each LCD display monitor supported by SpectraView II features three internal-10 or 12-bit LUTs (depending on the model). These tables allow very precise adjustments to be made to the display's Tone Response Curve without reducing the number of displayable colors or introducing color banding artifacts.
Multiple Calibration Sets
Different display monitor calibrations can be instantly loaded allowing quick and easy switching between different calibration settings without the need to re-calibrate the display. Each time a calibration set is loaded, the necessary monitor settings and ICC/ColorSync profiles are automatically updated.
Informative
At the end of each display monitor calibration, an information window is displayed which shows the results of the calibration and includes a wealth of information about the display such as the measured color gamut, grayscale color tracking, Delta-E, and luminance values. Additional information about the display monitor such as the model name, serial number and the total number of hours that it has been in use are also displayed.
Calibration Status Validation
SpectraView will query each calibrated monitor to see if any controls have changed since the last calibration. If anything has changed, the previous calibrated state can be restored automatically.
Flexible
SpectraView provides many features and options that make it flexible enough to be used in a large variety of applications, including full DICOM support for medical imaging. The display luminance can be adjusted to either a specific value or to the maximum possible that the display can achieve.
Network Support (Windows Only)
SpectraView integrates with the NEC NaViSet Administrator network software (available separately) to provide remote network access and monitoring of display monitors. NaViSet Administrator is able to read, display, and log the current calibration settings and status of displays on a LAN. This feature is particularly useful for large installations where central monitoring and asset management is needed.
Monitor Locking
Once calibrated the OSD (On Screen Display) controls for the display monitors can be locked to prevent accidental or unauthorized adjustment which may invalidate the calibrated state of the monitor.
Monitor Profiling
After calibration, the display is automatically profiled and highly accurate ICC/ColorSync color profiles are generated and automatically registered with the Color Management System. These profiles use the Bradford Chromaticity Adaptation matrix.

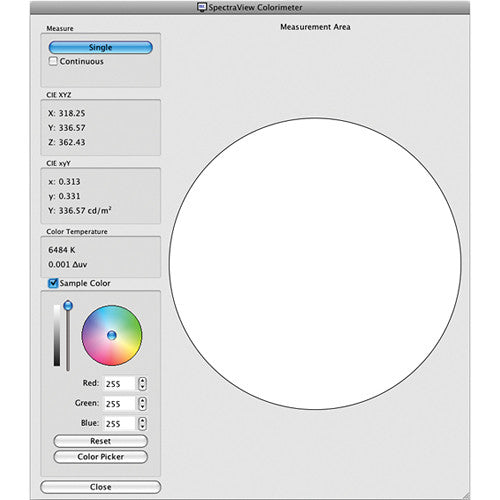

Colorimeter Function
The software features a Colorimeter function which allows direct measurements to be taken by the color sensor and the results displayed in a variety of different formats.
Ambient Light Measurement Function
Allows measurements to be taken of the ambient light of the viewing environment surrounding the display monitor. This is useful in determining the optimal viewing conditions for the display monitor so that the ambient light level and color do not influence the viewing of images on the screen.
UPC: 805736014211
Items Included
- Sharp SpectraView II Display Calibration Software
Additional Resources
No additional resources available
Sharp SVIISOFT Specs
| Supported Hardware |
SpectraView II supports the following NEC display monitor models:
LCD1980FXI-BK LCD1980SXI LCD1990SX-BK LCD1990SX-BK-R LCD1990SXI LCD1990SXI-BK LCD1990SXI-BK-R LCD1990SXI-R LCD1990SXP LCD1990SXP-BK LCD2090UXI LCD2090UXI-1 LCD2090UXI-1-R LCD2090UXI-BK LCD2090UXI-BK-1 LCD2090UXI-BK-1-R LCD2090UXI-BK-SV LCD2090UXI-BK-SV-R LCD2180UX-BK LCD2180UX-BK-SV LCD2190UXI LCD2190UXI-BK-SV LCD2190UXI-BK-SV-R LCD2490W2-BK-SV LCD2490W2-BK-SV-R LCD2490WUXI2-BK LCD2490WUXI2-BK-R LCD2690W2-BK-SV LCD2690W2-BK-SV-R LCD2690WUXI2-BK LCD2690WUXI2-BK-R LCD2690WUXI-BK LCD3090W-BK-SV LCD3090W-BK-SV-R LCD4020-2-AV LCD4020-2-AVT LCD4020-2-IT LCD4620-2-AV LCD4620-2-AVT LCD4620-2-IT LCD4620-2-TVX LCD5220-AV LCD5220-AV-R LCD5220-AVT LCD5220-AVT-R LCD5220-IT LCD5220-TVX LCD6520L-BK-AV LCD6520L-BK-AV-R LCD6520L-BK-AVT LCD6520L-BK-AVT-R LCD6520P-BK-AV LCD6520P-BK-AV-R M401 M40-2-AV M40B-AV M40B-AV-R M40B-AVT M40B-AVT-R M40-IT M461 M46-2-AV M46-2-AV-R M46-2-AVT M46-2-AVT-R M46-AV M46-AV-R M46-AVT M46-AVT-R M46B-AV M46B-AV-R M46B-AVT M46B-AVT-R M46-IT M46-IT-R M521 P221W-BK P221W-BK-SV P232W-BK P232W-BK-R P232W-BK-SV P232W-BK-SV-R P241W-BK P241W-BK-SV P242W-BK-SV P401 P401-AVT P401-AVT-R P401-R P401-TMX4D P461 P461-AVT P461-AVT-R P461-R P461-TMX4D P521 P521-AVT P521-AVT-R P521-R P521-TMX4D P551 P551-AVT P551-AVT-R P551-R P701 P701-AVT P701-AVT-R P701-R PA231W-BK PA231W-BK-R PA231W-BK-SV PA231W-BK-SV-R PA241W-BK PA241W-BK-R PA241W-BK-SV PA241W-BK-SV-R PA271W-BK PA271W-BK-R PA271W-BK-SV PA271W-BK-SV-R PA301W-BK PA301W-BK-SV S401 S401-AVT S401-AVT-R S401-R S461 S461-AVT S461-AVT-R S461-R S521 S521-AVT S521-AVT-R S521-R X431BT X431BT-R X461HB X461HB-R X461UN X461UN-R X461UNV X461UNV-R X461UNV-TMX4D |
System Requirements
| Mac OS |
Apple macOS X v10.13 or higher. SpectraView V1.1.38 is a 64-Bit App and Requires Mac OS X 10.10 or Higher. A Legacy 32-Bit App Version of V1.1.38 is Available for Download if Support for Mac OS X 10.7-10.9 or the X-Rite i1Display V2 Sensor is Required.
Graphics Adapter: All Apple Standard Video Graphics Cards Including Most Newer PowerBooks. Digital (DVI) Output is Highly Recommended. Video Color Depth: At least 24-Bit Color (Millions of Colors). Video Resolution: Display Native Resolution Highly Recommended (1280 x 1024, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200 or 2560 x 1600 Depending on Monitor) Supported Color Sensors:
At least One Available USB Port for Color Sensor.
|
| Windows |
Operating System: Windows 2000, XP, XP x64, Server 2003, Vista and Vista x64, Windows 7 and Windows 7 x64.
Video Graphics Adapter: Most recent ATI, Nvidia, Matrox, S3 Graphics, and Intel graphics adapters. Digital (DVI) output is Highly Recommended. Video Color Depth: At least 24-Bit Color. Video Resolution: Display Native Resolution Highly Recommended (1280 x 1024, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200 or 2560 x 1600 Depending on Monitor) Supported Color Sensors:
At least One Available USB Port for Color Sensor. |
Packaging Info
| Package Weight |
0.05 lb
|
| Box Dimensions (LxWxH) |
7.5 x 5.3 x 0.6"
|
