Description
Sharp PN-UN3V Overview
Create indoor video wall displays with accurate, controllable color using the Sharp PN-UN553V 55" Full HD Video Wall Monitor. This 500-nit bright, ADS LCD panel is factory calibrated for brightness intensity, gamma, uniformity, white point, and RGB for an easy out-of-the-box experience. With a thin, less than 3mm, bezel-to-bezel width and 24/7 operability, the PN-UN553V is well suited for video wall and digital signage applications requiring exceptional color.
Consistent Color with SpectraView Engine
Pre-calibrated for luminance, white point, gamma, and uniformity, every PN-UN display features SpectraView Engine Technology and is ready to go, right out of the box. Want deeper control? Through the SpectraView Engine, dial in white point with adjustments of 100k, select brightness based on luminance level, or even input your own CIE color coordinates, giving users capabilities like never before. Additionally, backlight stabilization keeps your visuals looking fresh longer. All of these features are specifically engineered to give you the best visual quality for an extended duration.
TileMatrix with HDMI & DisplayPort Daisy Chain
Designed for everything from digital signage and control rooms to lobby installations and broadcast setups, these displays are ready to scale. The PN-UN553V supports video walls up to 10x10 with built-in TileMatrix tech. These displays are built to handle 4K content input and seamlessly pass it along through both HDMI and DisplayPort out connections. That means your entire video wall can shine in stunning Ultra HD, with no external processors needed. With TileMatrix, you can scale content up to 4x the native resolution of a single screen, delivering crystal-clear visuals across your whole setup.
Smart Multi-Display Setup
With Auto TileMatrix and Auto ID, setting up your video wall is basically effortless. Just configure the layout on the first display, and it automatically syncs and scales content across the rest, no manual adjustments needed. Auto IP Addressing makes network setup just as easy. Assign a static IP to the first display, hit go, and the rest of the screens in the LAN daisy chain assign themselves. It's plug, play, and perfectly synced.
Durable & Reliable for Constant Use
Monitoring and managing the temperature of each display is crucial to securing reliability and longevity. An industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics, and fan-based technology allows for 24/7 operation and protects your display investment.
Without heat management, the displays placed higher on a wall will sustain a hotter temperature than the screens below. This damaging heat will lower the picture quality and life expectancy of the product. However, Sharp's advanced heat management ensures heat dissipation for a more uniform overall wall temperature. Integrated cooling fans automatically turn on and stay on when high internal temperatures are detected. These will stay on until the heat is properly dissipated and the display remains under proper temperature thresholds.
Total Control with NaViSet Administrator
Remotely manage all your Sharp or NEC displays from a single, centralized dashboard using NaViSet Administrator 2. Perfect for multi-display setups, this free tool lets you monitor status, automate tasks, generate reports, and make on-demand changes from anywhere. Want even more power? Upgrade to the Server Edition for enhanced features and full remote access across your ecosystem.
Additional Details
- AMX support
- Ethernet and RS-232 control and communication
- Automated email alert function
- NEC firmware update tool
- Display browser control
- HDR support (PQ, HLG, HDR10)
- OSD rotation for portrait orientation
- OPS compatible
- PJ Link support

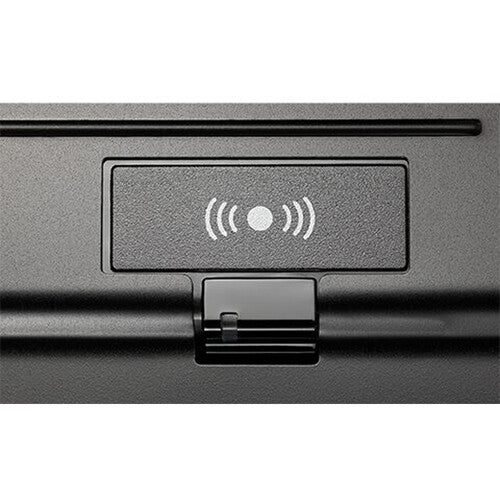

- Optional human sensor (KT-RC3, sold separately)
Items Included
- Sharp PN-UN553V 55" Full HD Video Wall Monitor
- Power Cord (9.8')
- DisplayPort Cable (6.5')
- HDMI Cable (6.5')
- LAN Cable
- SD Card Cover
- Clamp for Power Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Sharp PN-UN3V Specs
Key Specs
| Display Size |
54.6"
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
500 nits / cd/m2
|
| Touchscreen |
No
|
| A/V Inputs |
2x HDMI 2.0
2x DisplayPort 1.2 1x DVI-D 1x DE-15/DB-15 (VGA) 2x 1/8" / 3.5 mm (Analog Audio) |
| USB I/O |
1x USB-B (Unspecified Version) [Touchscreen Control]
4x USB-A (Unspecified Version) |
| Ethernet I/O |
2x RJ45
|
| Built-In Speakers |
No
|
| Media Card Reader |
1x microSD (Unspecified Type)
|
Display
| Display Size |
54.6"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
500 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
Yes: HDR10/Hybrid Log Gamma
|
| Contrast Ratio |
1100:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors
|
| Color Gamut |
72% NTSC
|
| Viewing Angle (H x V) |
178 x 178?
|
| Finish |
Anti-Glare
|
Surface
| Touchscreen |
No
|
Video
| TV Tuner |
No
|
Connectivity

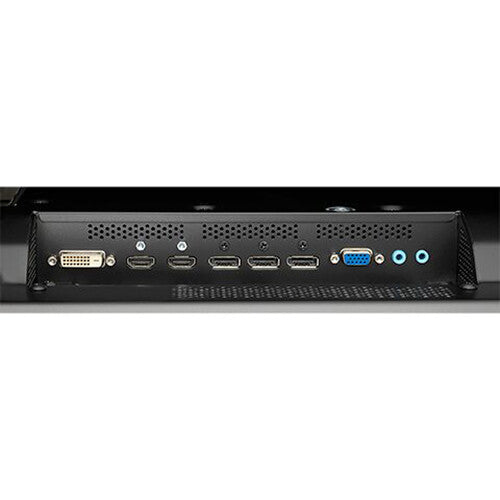

| A/V Inputs |
2x HDMI 2.0
2x DisplayPort 1.2 1x DVI-D 1x DE-15/DB-15 (VGA) 2x 1/8" / 3.5 mm (Analog Audio) |

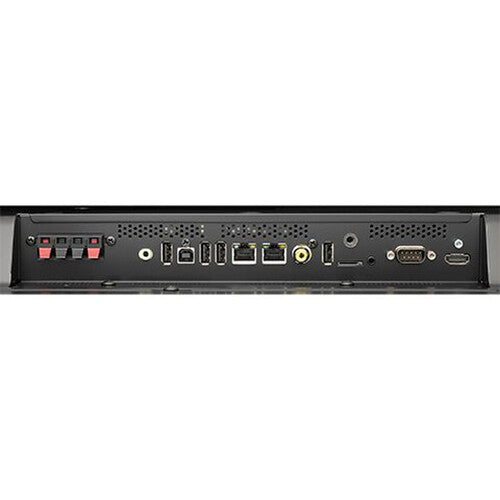

| A/V Outputs |
1x HDMI
1x DisplayPort Daisy Chain 1x 1/8" / 3.5 mm (Analog Audio) 1x Speaker Terminal (Analog Audio) |
| HDCP Support |
Yes
|
| USB I/O |
1x USB-B (Unspecified Version) [Touchscreen Control]
4x USB-A (Unspecified Version) |
| Ethernet I/O |
2x RJ45
|
| NFC |
No
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| OPS/Expansion Slots |
Yes: 1
|
| Ambient Light Sensor |
Yes
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Smart TV |
No
|
| Media Card Reader |
1x microSD (Unspecified Type)
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Maximum: 140.0 W
Standby: < 2.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 80% Humidity
|
| Certifications |
CEC, ENERGY STAR 8.0
|
| VESA Mounting-Hole Pattern |
400 x 400 mm
|
| Environmental Resistance |
No
|
| Impact Resistance |
No
|
| Bezel Thickness |
1.8 mm (Top/Left)
1.1 mm (Bottom/Right) |
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
47.7 x 26.9 x 4.2" / 1212.7 x 683.5 x 106.4 mm
|
| Weight |
63.1 lb / 28.6 kg
|
