Description
Sharp PN-LC2 Overview

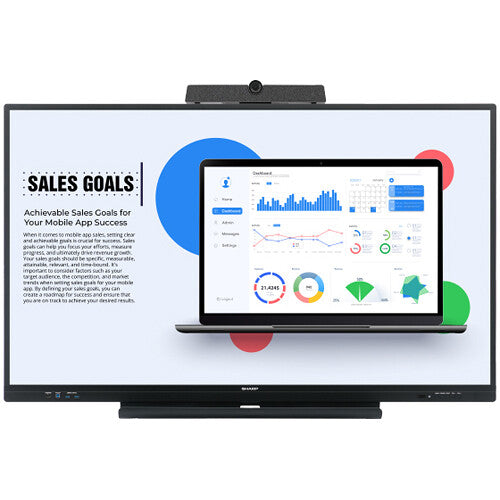

Enjoy UHD 4K resolution and an intuitive Pen-on-Paper interactive experience with the Sharp PN-LC862 AQUOS BOARD 86" UHD 4K Touchscreen Commercial Monitor. Featuring integrated, smart collaboration tools, the PN-LC862 is designed for busy office environments, boardrooms, classrooms, and training sessions that require quick, responsive operation. Easily connect a wide variety of devices via USB-C, HDMI, DisplayPort, OPS, and VGA inputs with built-in annotation and USB-B touch control possible on all sources. In addition to the built-in applications, network control and smart applications are available with a wired Ethernet connection or add Wi-Fi and Bluetooth with the included adapter.
Additional Features
- 20-point IR PrecisionTouch screen technology
- Built-in SoC controller with Arm Cortex A55 quad-core processor
- Built-in whiteboard application for quick meeting notes
- Integrated USB media player
- Wired network connection
- LAN control capable
- Wireless LAN and Bluetooth with included adapter
- SHARP pen software included to create on-screen annotations and graphics
- SHARP touch viewer software provides easy manipulation of multiple file types
- OPS compliant epansion slot
- HDMI CEC
- Built-in 15W stereo speakers
UPC: 074000067233
In the Box
- Sharp PN-LC862 AQUOS BOARD 86" UHD 4K Touchscreen Commercial Monitor
- AC Power Cord
- Remote Control
- 2 x AAA Battery for Remote
- USB Cable
- Wireless Adapter
- 2 x Touch Pen
- Pen Tray
- 4 x Tray Mounting Screw
- Camera Mount
- 2 x Screw for Camera Mount
- 3 x Cable Clamp
- Blank Sticker to Cover Sharp Logo
- Limited 5-Year Manufacturer Warranty
Sharp PN-LC2 Specs
Key Specs
| Display Size |
85.6"
|
| Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Touchscreen Technology |
Infrared (IR)
|
| Inputs |
Front:
1x HDMI Rear: 2x HDMI 1x DisplayPort 1.2 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Composite) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Rear:
1x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 4.2
*Via Included Adapter |
| USB I/O |
Front:
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Control) 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear: 1x USB-C Unspecified Version (Audio/Photo/Video/Touchscreen Control/Power/DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Control) 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) |
| Ethernet I/O |
Rear: 1x RJ45 Gigabit Ethernet
|
| Other I/O |
Rear:
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 15 W
|
| Media Card Reader |
No
|
Display
| Display Size |
85.6"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Lighting System |
Direct LED
|
| Contrast Ratio |
1200:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
74.61 x 41.97" / 1895.04 x 1065.96 mm
|
| Horizontal Frequency |
31.5 to 135 kHz
|
| Vertical Frequency |
24 to 70 Hz
|
| Dot Pitch |
0.372 x 0.372 mm
|
| Pixels Per Inch (ppi) |
51 ppi
|
Surface
| Touchscreen Technology |
Infrared (IR)
|
| Multi-Touch Points |
20
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
Front:
1x HDMI Rear: 2x HDMI 1x DisplayPort 1.2 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Composite) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Rear:
1x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| HDCP Support |
Yes, Version 2.3
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 4.2
*Via Included Adapter |
| USB I/O |
Front:
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Control) 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear: 1x USB-C Unspecified Version (Audio/Photo/Video/Touchscreen Control/Power/DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Control) 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) |
| Ethernet I/O |
Rear: 1x RJ45 Gigabit Ethernet
|
| Other I/O |
Rear:
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Number of OPS/Expansion Slots |
1
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 15 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
Yes
|
| CPU |
Quad-Core: Cortex A55
|
| Storage |
16 GB
|
| RAM |
4 GB
|
| OS Compatibility |
Windows 10 or Later
macOS 10.15 or Later Chrome OS 87 or Later |
| Mobile App Compatible |
Yes, Adapter Required (Included): Android & iOS
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Video File Types |
3GP, ASF, AVI, FLV, H.263, H.264/AVC, H.265/HEVC, MKV, MOV, MPEG, MPEG2, MPEG4, TS, VOB, VP8, VP9, WEBM
|
| Supported Audio File Types |
AAC, MP3, OGG
|
| Supported Photo File Types |
BMP, JPEG, JPG, PNG
|
| Supported Document File Types |
DAT, PDF
|
Environmental
| Operating Temperature |
41 to 95°F / 5 to 35°C
|
| Operating Humidity |
20 to 80%
|
Electrical
| Power Consumption |
Maximum: 500.0 W
Typical: 260.0 W Standby: 0.5 W |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Mounting-Hole Pattern |
800 x 600 mm
|
| IK Rating |
No
|
| Lock Slot |
No
|
| Bezel Thickness |
21.9 mm (Right/Top/Left)
53.2 mm (Bottom) |
| Duty Cycle |
16 Hours / 7 Days
|
| Dimensions |
77.5 x 46.1 x 3.4" / 1967.9 x 1170.2 x 87.1 mm
|
| Weight |
143.3 lb / 65.0 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
