Description
Sharp E018I Overview
The NEC E Series 162" Full HD dvLED All-in-One Video Wall Kit provides cost-conscious customers with detailed LED imaging without compromising service and support. This 162" Full HD video wall is designed to deliver a seamless LED display for boardrooms, auditoriums, and retail and education environments. The front-serviceable design allows easy access and quick maintenance, even in hard-to-reach places. NEC offers full planning and design, installation, and post-installation maintenance support, ensuring a tailored solution for your unique situation.
Additional Features
- Kit includes everything needed for an LED installation, including LED modules, power bar, LED controller, mounting structure, overframe kit, and spare parts

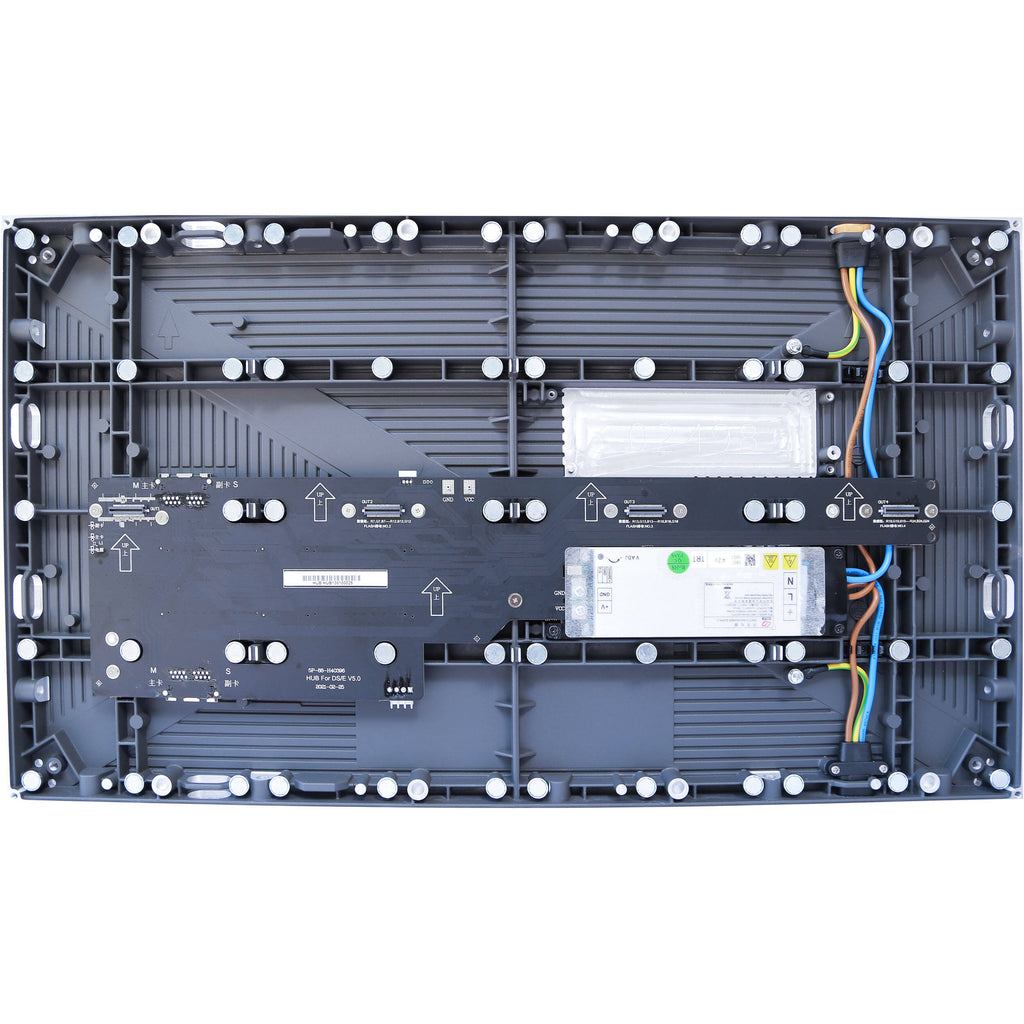

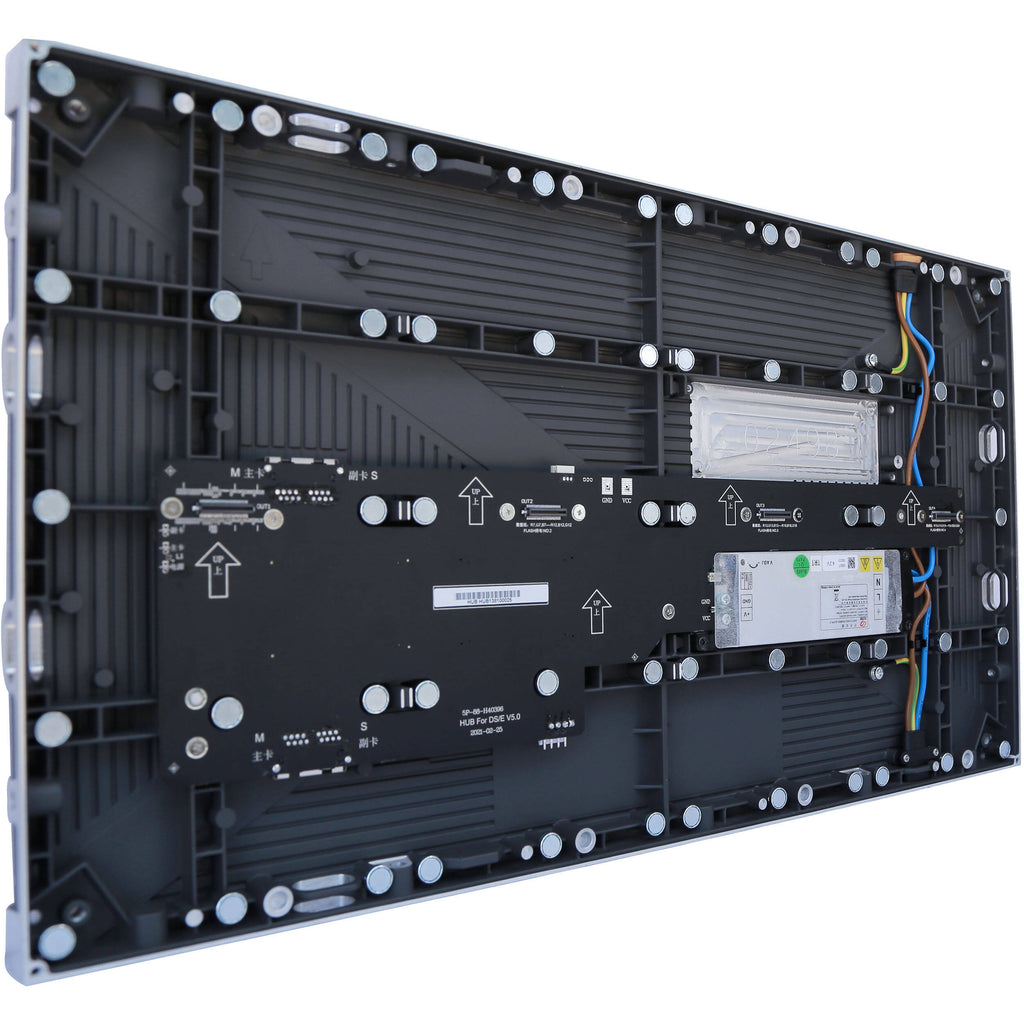

- Front serviceable modules allowing for installation in difficult-to-access areas
- Pixel cards are hot-swappable and can be replaced without turning off the display
- Thin and lightweight design allows for greater installation flexibility and meets ADA requirements
Items Included
- Sharp E Series 162" Full HD dvLED All-in-One Video Wall Kit
- Controller
- Overframe Kit
- Pixel Card Removal Tool
- Starter Bar
- Spare Parts Kit
- Wall Mount
- Limited 2-Year Manufacturer Warranty
Additional Resources
Sharp E018I Specs
Key Specs
| Display Size |
162"
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
880 nits / cd/m2
|
| Inputs |
1x BNC (3G-SDI)
1x DVI-D 1x HDMI |
| Outputs |
No
|
| USB I/O |
No
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
Display
| Display Size |
162"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
16:9
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
880 nits / cd/m2
|
| Contrast Ratio |
5000:1
|
| Refresh Rate |
60 Hz
|
| Color Support |
281 Trillion Colors (16-Bit)
|
| Viewing Angle (H x V) |
140 x 140°
|
| Screen Area |
141.7 x 79.7" / 3600 x 2025 mm
|
Connectivity
| Inputs |
1x BNC (3G-SDI)
1x DVI-D 1x HDMI |
| Outputs |
No
|
| HDCP Support |
Yes
|
| Wireless |
No
|
| USB I/O |
No
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
No
|
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Electrical
| Power Consumption |
Maximum: 4500.0 W
Operational: 1548.0 W |
General
| Operating Conditions |
-4 to 104°F / -20 to 40°C at 10 to 80% Humidity
|
| Storage Conditions |
-4 to 113°F / -20 to 45°C at 10 to 85% Humidity
|
| Certifications |
UL, VCCI (Class A), FCC Class A, RoHS
|
| Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
100000 Hours
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Bezel Thickness |
Bezel Less
|
| Dimensions |
142.2 x 83.9 x 1.1" / 3612 x 2131 x 29 mm (without Stand)
|
| Weight |
373.0 lb / 169.2 kg (without Stand)
|
