Description

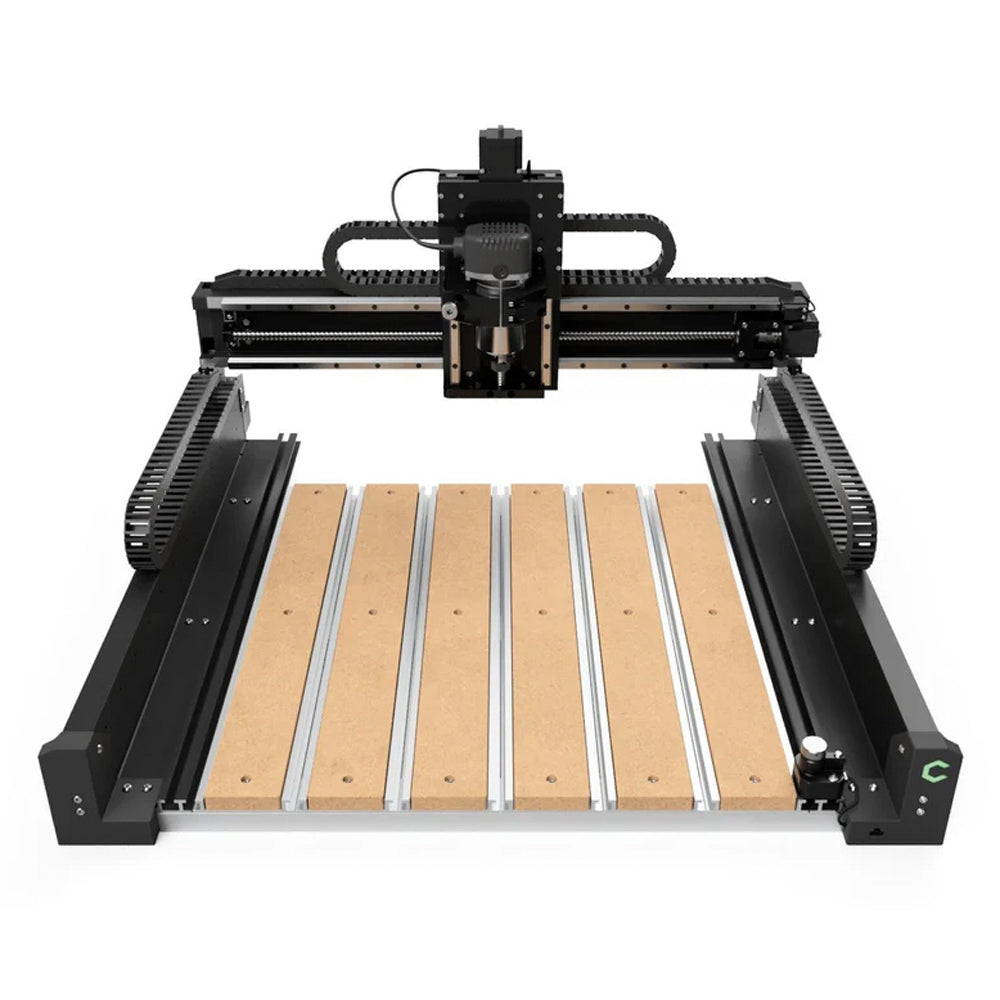

Shapeoko 5.1 Pro uses hardened linear rails and ballscrews for increased productivity and accuracy. It was built to run all day, every day, giving you maximum productivity and profit. The Shapeoko is a desktop, 3-axis CNC Machine kit that allows you to create your 2D and 3D designs out of non-ferrous metals, hardwoods, and plastics. This specific model features a 2ft. by 2ft. bed.
Features & Specs
- Ballscrew X/Y: 16mm diameter, 20mm pitch with custom wiper
- Ballscrew Z: 16mm diameter, 10mm pitch
- Linear Rails: HG-15
- Homing Switches: Inductive sensors with Dual Y homing
- Ballscrew Accuracy: +/- 50um per 300mm
- Step Length X/Y: .012mm
- Step Length Z: .006mm
- Spindle Mount: 65mm Diameter
- Total Z Travel: 6.1 in
- Total Z Travel (With Sweepy Pro): 5.51 in
- Clearance from table to Z axis with Hybrid Table: 4 in
- Clearance from table to Z axis without Hybrid Table: 5 in
- Gantry Shift distance for joinery: 3.15 in
- T-Slot Spacing: 4.04 in Center-to-center
- Voltage: 110V or 220V, auto-switching
- Amperage: 4A (Machine Only)
- AC Plug: IEC C14 connector to NEMA 5-15P (Standard US plug)
- Machine Travel: 24.53 in(X) x 24.53 in(Y)

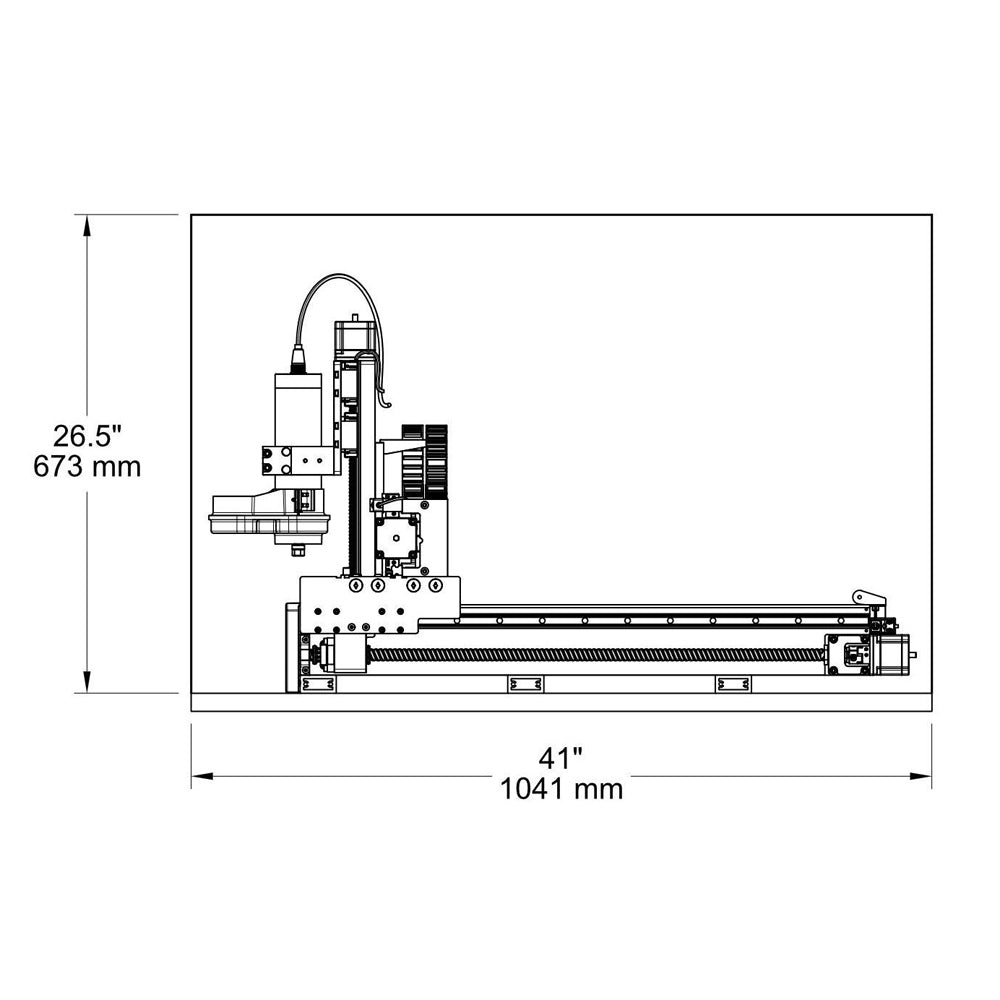

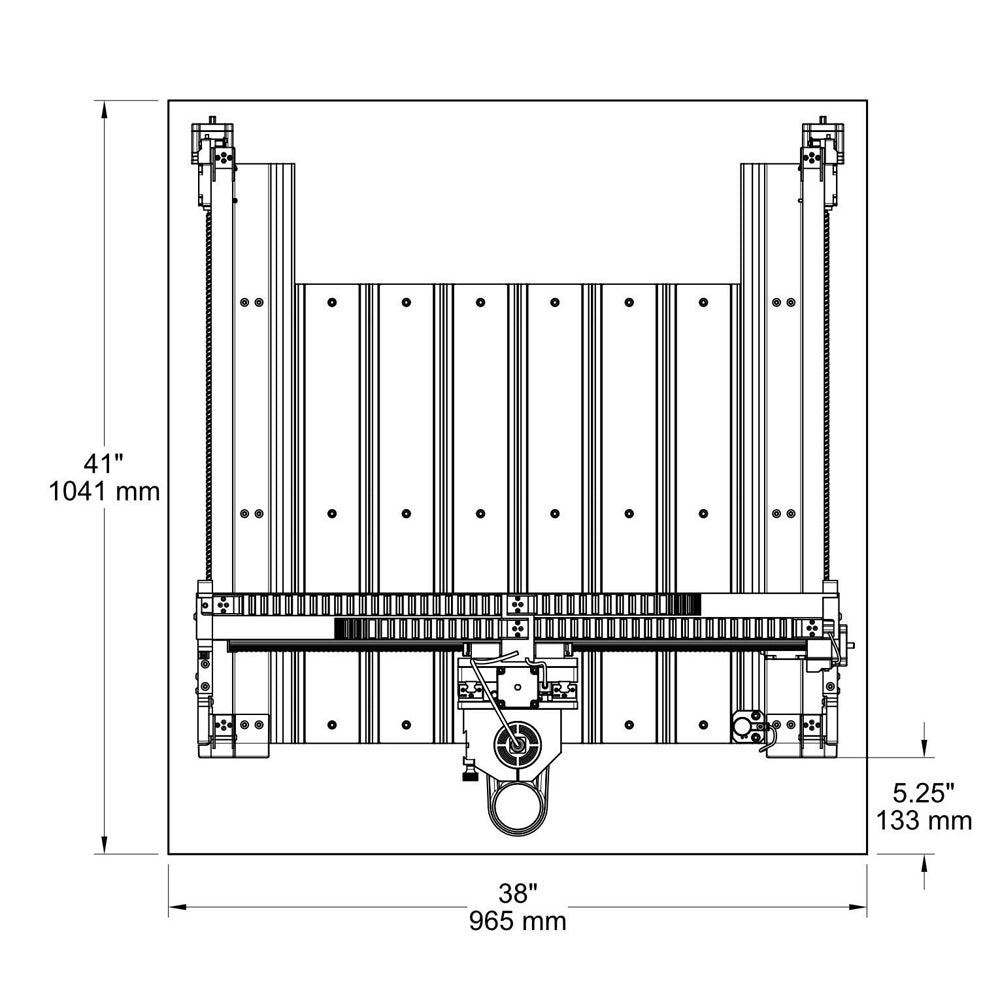

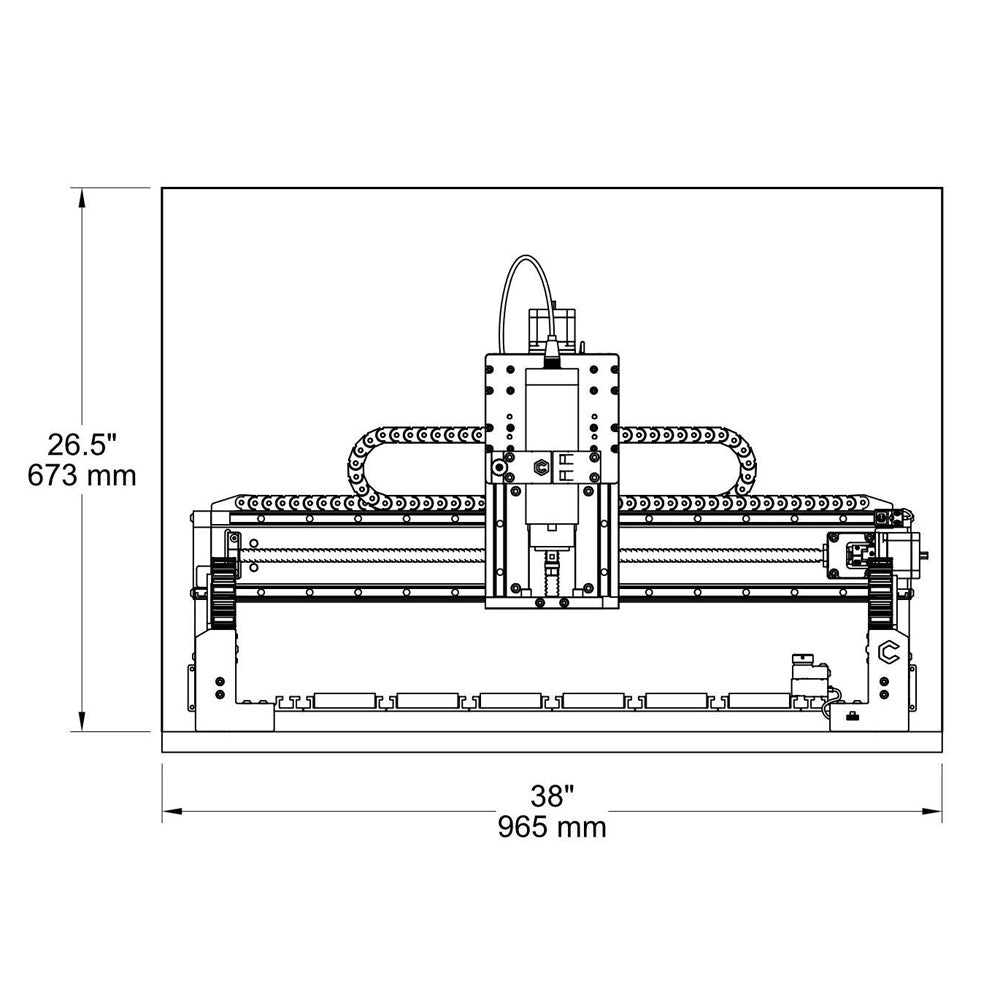

- Machine Footprint: 35.5 in(X) x 35 in(Y) x 21 in(Z)
- Shipping Box 1: 36 in x 15 in x 12 in, 60lbs
- Shipping Box 2: 37 in x 12 in x 17 in, 60lbs
- Computer Requirements:Windows:
- Windows 10 or 11, 64-bit (Intel or AMD)
- OSX: OS/X 10.14 or higher
Features & Specs
- Ballscrew X/Y: 16mm diameter, 20mm pitch with custom wiper
- Ballscrew Z: 16mm diameter, 10mm pitch
- Linear Rails: HG-15
- Homing Switches: Inductive sensors with Dual Y homing
- Ballscrew Accuracy: +/- 50um per 300mm
- Step Length X/Y: .012mm
- Step Length Z: .006mm
- Spindle Mount: 65mm Diameter
- Total Z Travel: 6.1 in
- Total Z Travel (With Sweepy Pro): 5.51 in
- Clearance from table to Z axis with Hybrid Table: 4 in
- Clearance from table to Z axis without Hybrid Table: 5 in
- Gantry Shift distance for joinery: 3.15 in
- T-Slot Spacing: 4.04 in Center-to-center
- Voltage: 110V or 220V, auto-switching
- Amperage: 4A (Machine Only)
- AC Plug: IEC C14 connector to NEMA 5-15P (Standard US plug)
- Machine Travel: 24.53 in(X) x 24.53 in(Y)
- Machine Footprint: 35.5 in(X) x 35 in(Y) x 21 in(Z)
- Shipping Box 1: 36 in x 15 in x 12 in, 60lbs
- Shipping Box 2: 37 in x 12 in x 17 in, 60lbs
- Computer Requirements:Windows:
- Windows 10 or 11, 64-bit (Intel or AMD)
- OSX: OS/X 10.14 or higher
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 556248.0 |
| 3-5 | ₹ 550572.0 |
| 5-10 | ₹ 539220.0 |
| 10+ | ₹ 527868.0 |
Bulk discount will be automatically applied during checkout based on quantity.
