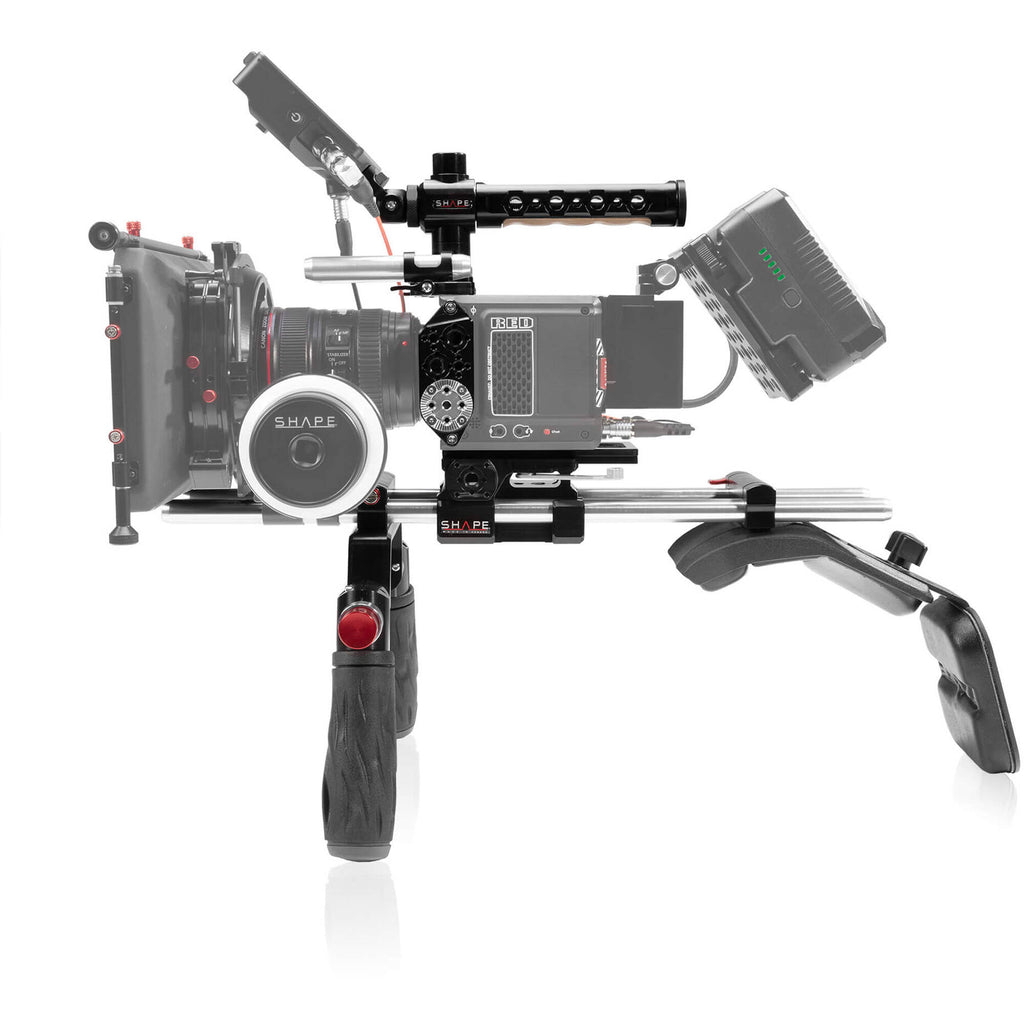

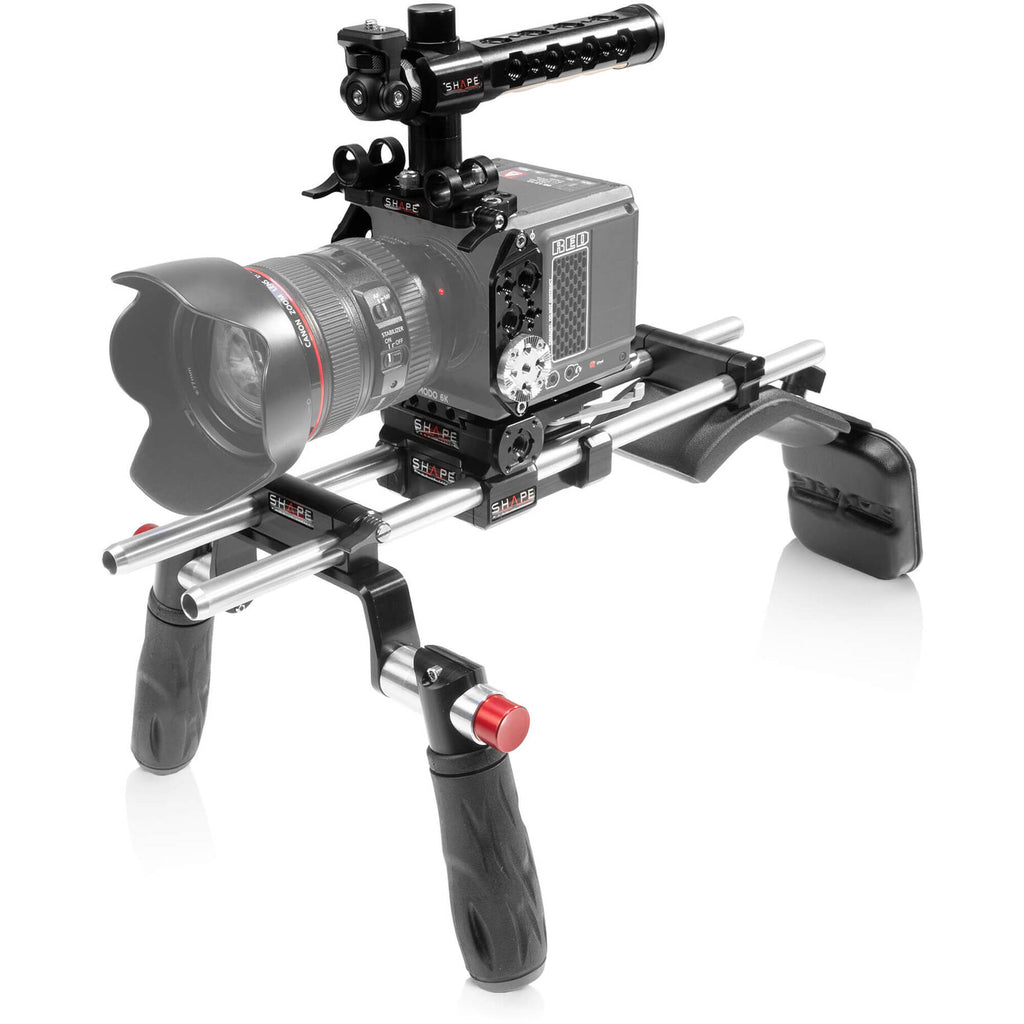

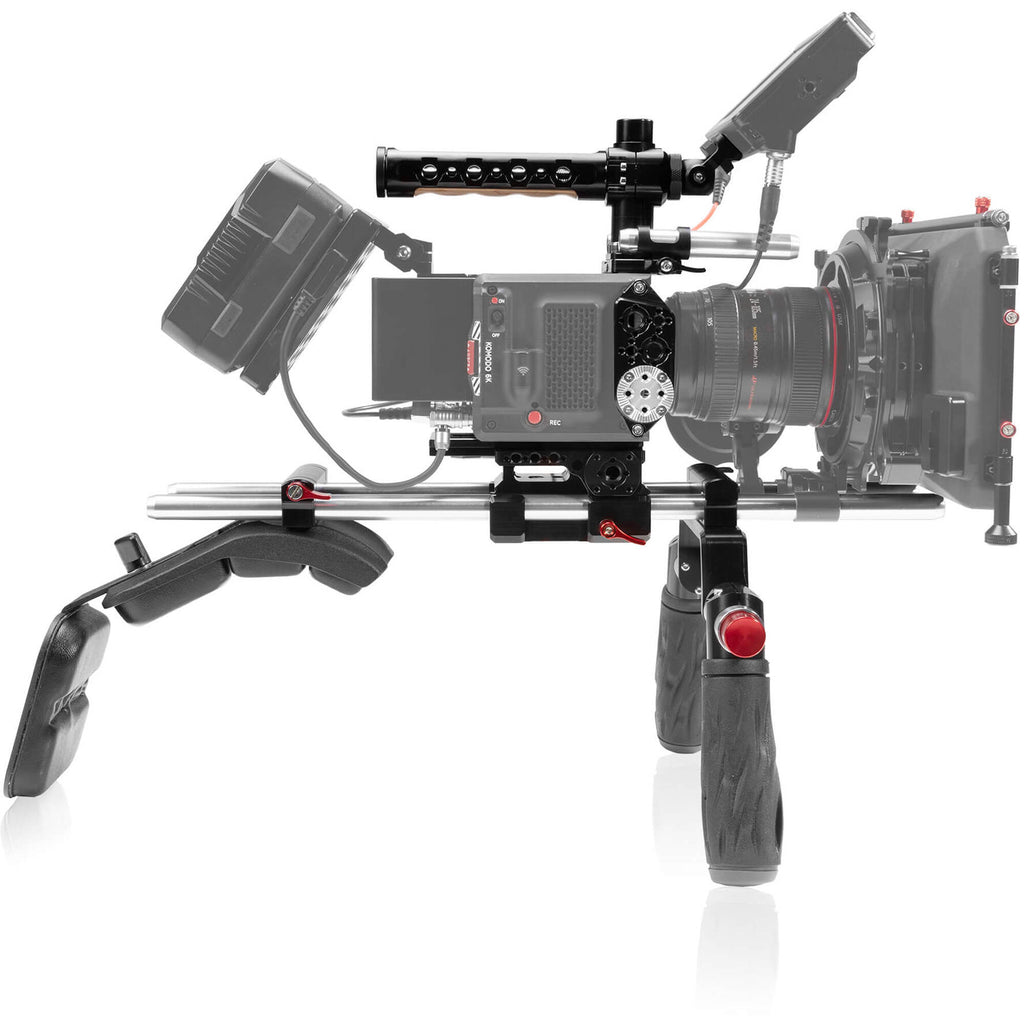

SHAPE Shoulder Mount System for RED KOMODO

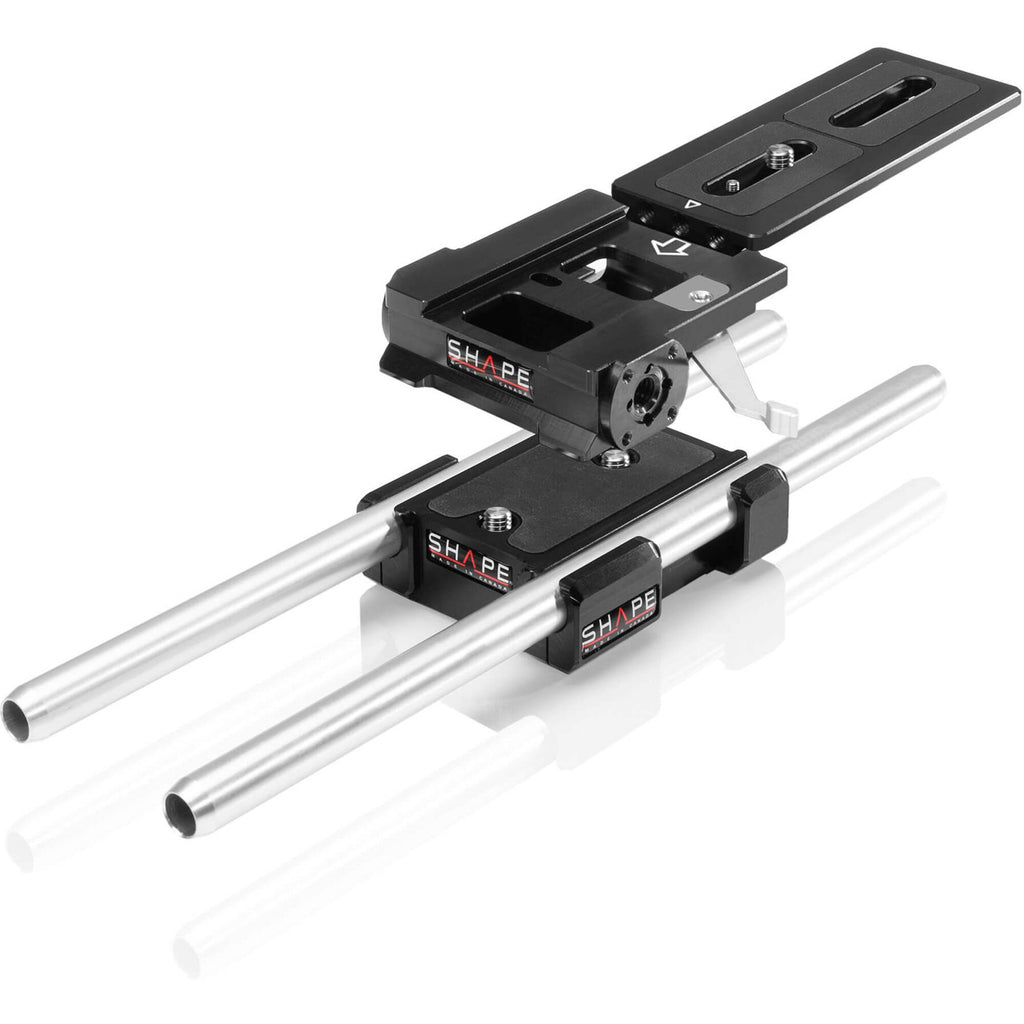

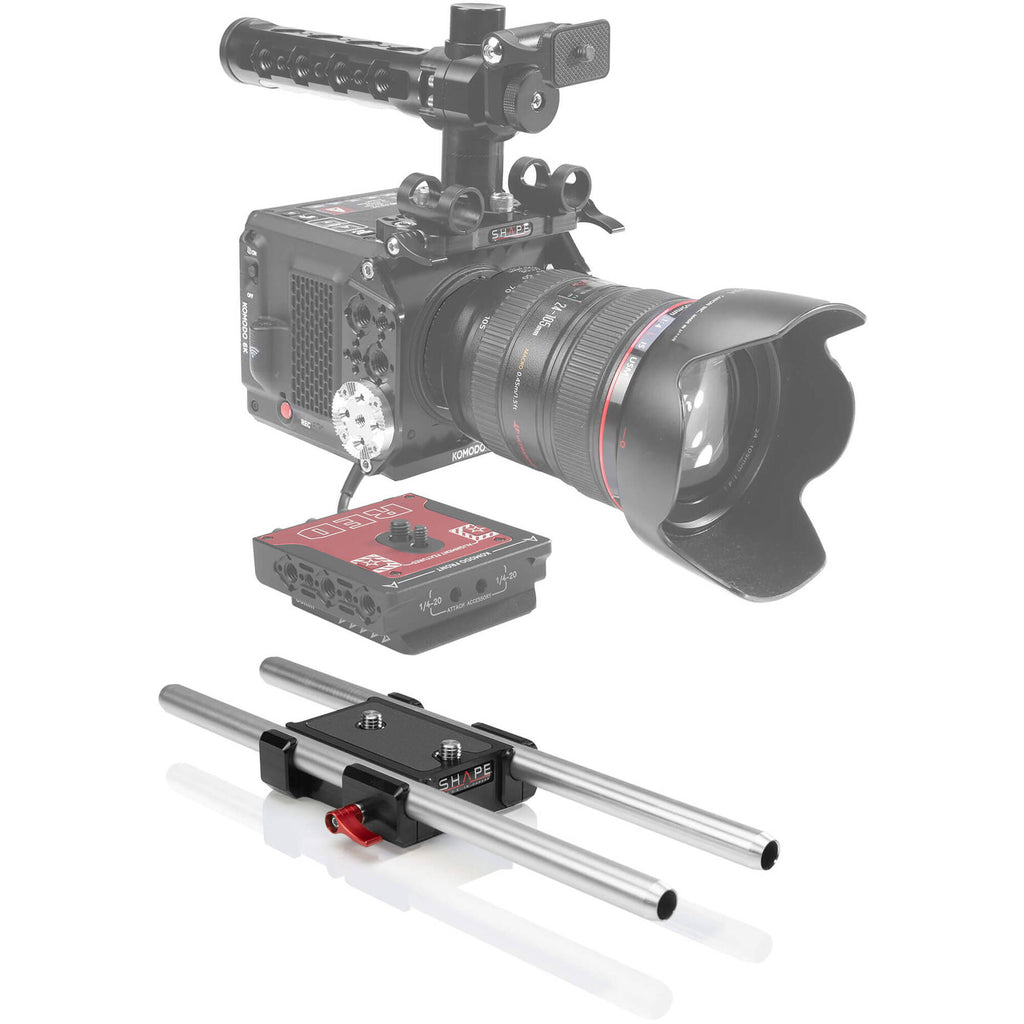

The SHAPE 15mm Lightweight Baseplate for RED KOMODO is a flexible system designed so you can easily swap your camera between a lightweight Ronin 2 gimbal system and a tripod-mounted system without having to swap baseplates. It features a dovetail plate, an adapter plate, and a lightweight baseplate with rod clamps. The dovetail adapter mounts onto the 15mm lightweight baseplate, and the dovetail plate mounts on your camera enabling you to move between your gimbal and your tripod.

The adapter plate features two 3/8"-16 threaded mounting holes with ARRI-style anti-twist divots, one on each side of the plate, that accept a variety of accessories as well as optional SHAPE ARRI-style rosette inserts for attaching handgrips for handheld use. The lightweight baseplate mounts on your tripod/tripod plate via 1/4"-20 and 3/8"-16 threaded holes, and it has integrated 15mm LWS rod clamps for the included aluminum rods.

Add flexible carrying and improved accessory mounting, while protecting your RED KOMODO cinema camera with this SHAPE Camera Cage with Top Handle for RED KOMODO. The top handle features SHAPE's well-known push-button release system, which is fast, secure, and won't slow down your shoot. The top handle also features a tilting bracket suitable for adding a monitor, light, or even a microphone to your rig, keeping your rig light and compact by avoiding additional accessory mounting equipment.

The durable 3-piece cage is built around the top plate that you mount on your KOMODO, and this allows you to mount the side riser panels and the included 15mm rod clamps. Once mounted on your camera, you've created a sturdy external cage that provides accessory mounting holes, as well as ARRI-compatible rosettes on each side for mounting optional grips to help you when handholding the rather boxy camera.

The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal.

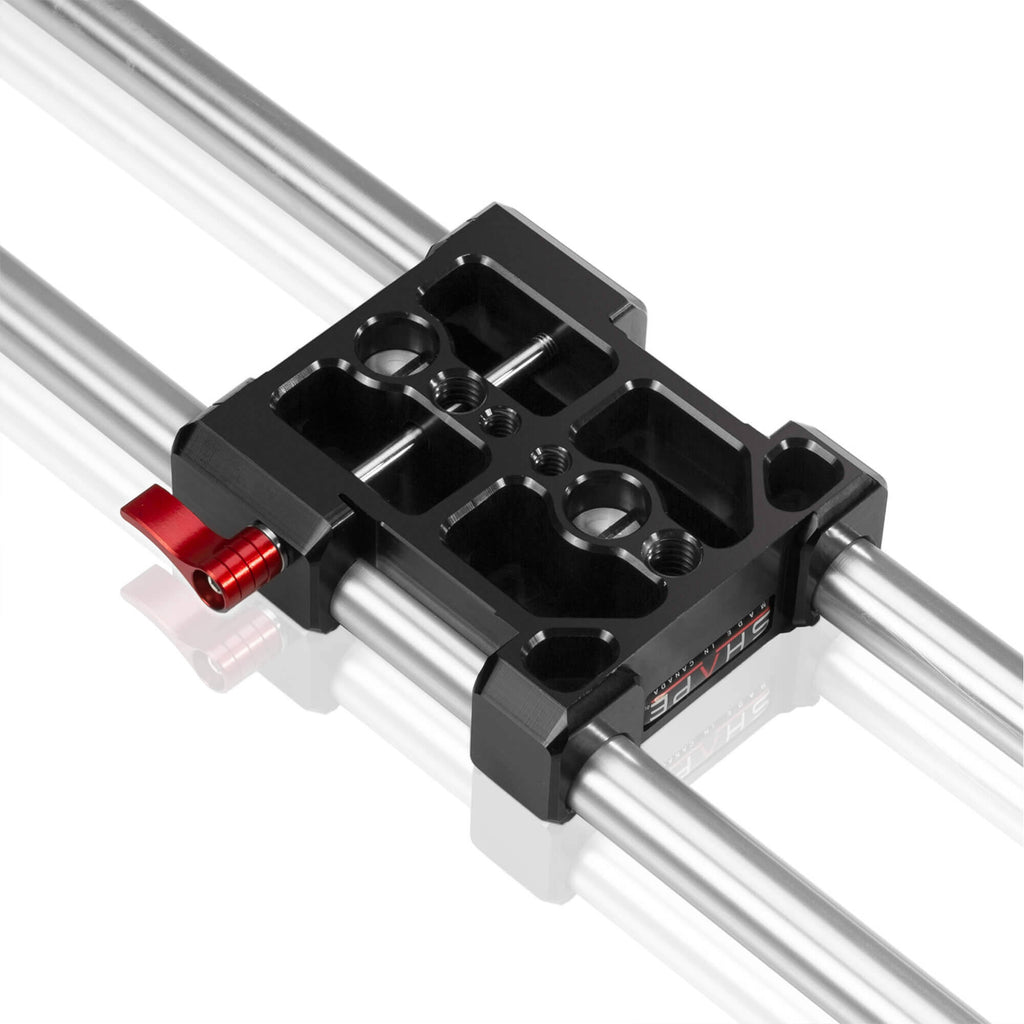

Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

Quick Handle

Rod Block

The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.

The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference � up to 2" vertically and 360° horizontally.

These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.

SHAPE 15mm Lightweight Baseplate for RED KOMODO Specs
