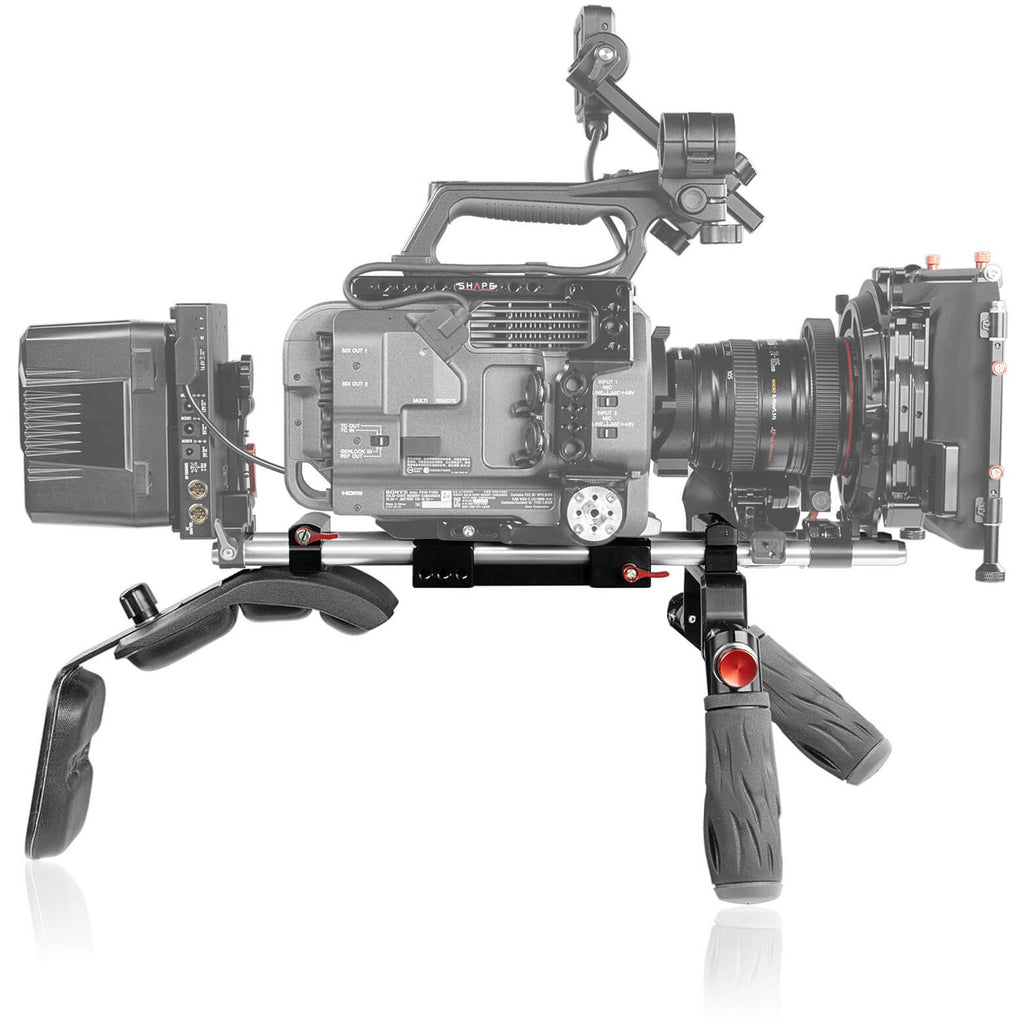

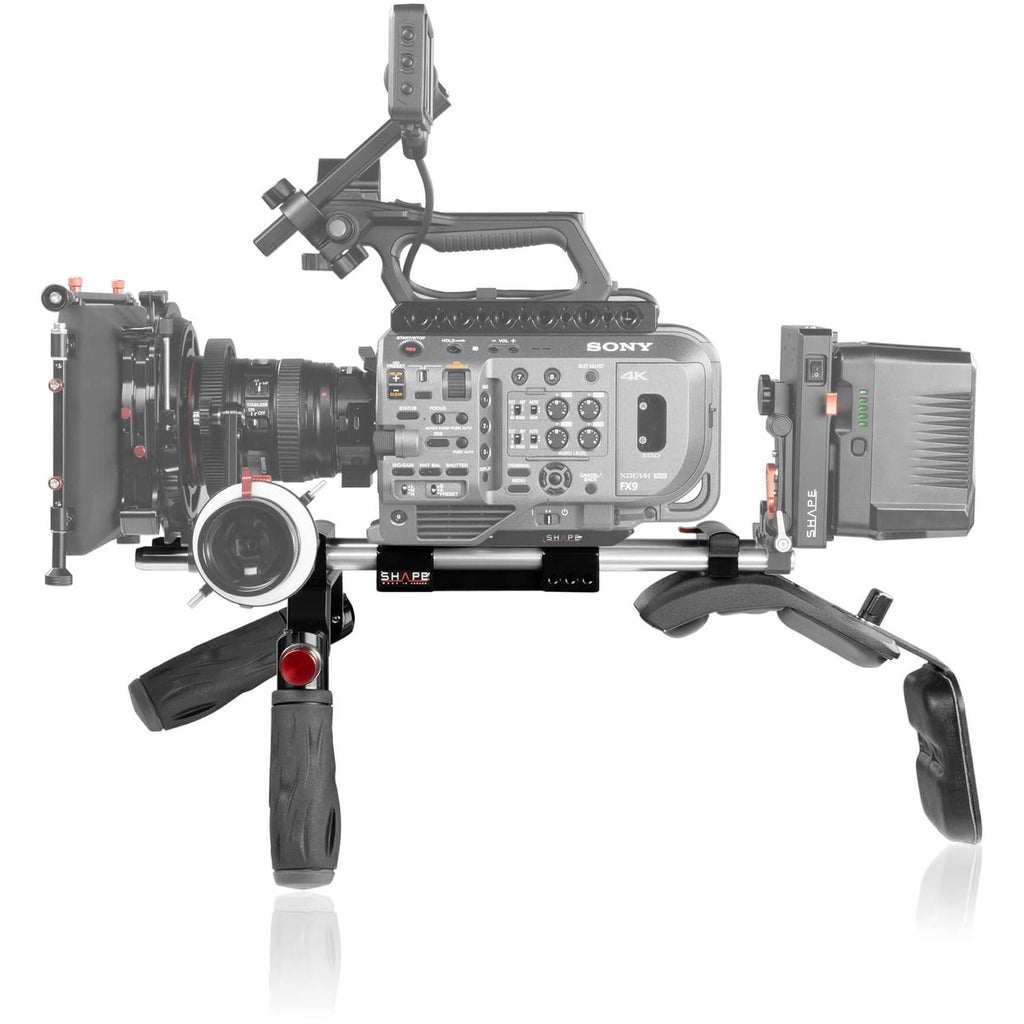

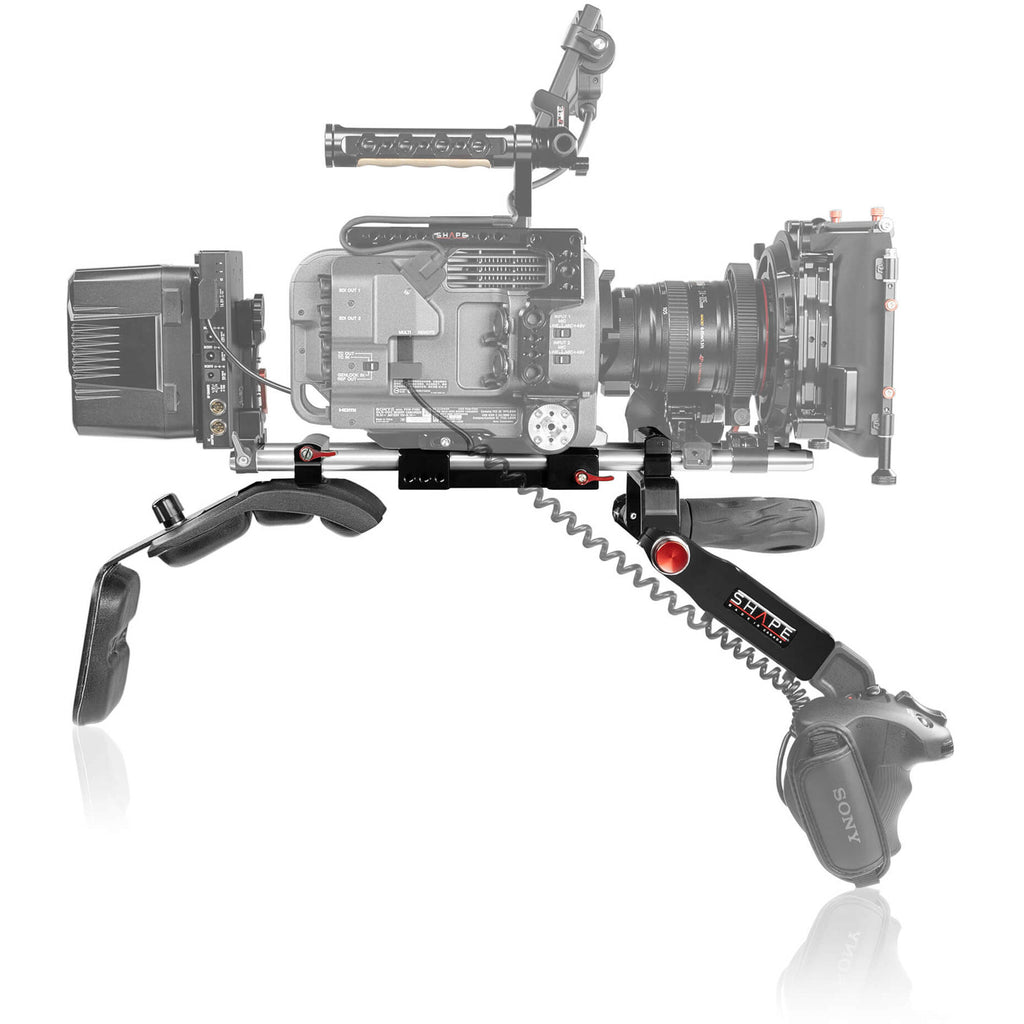

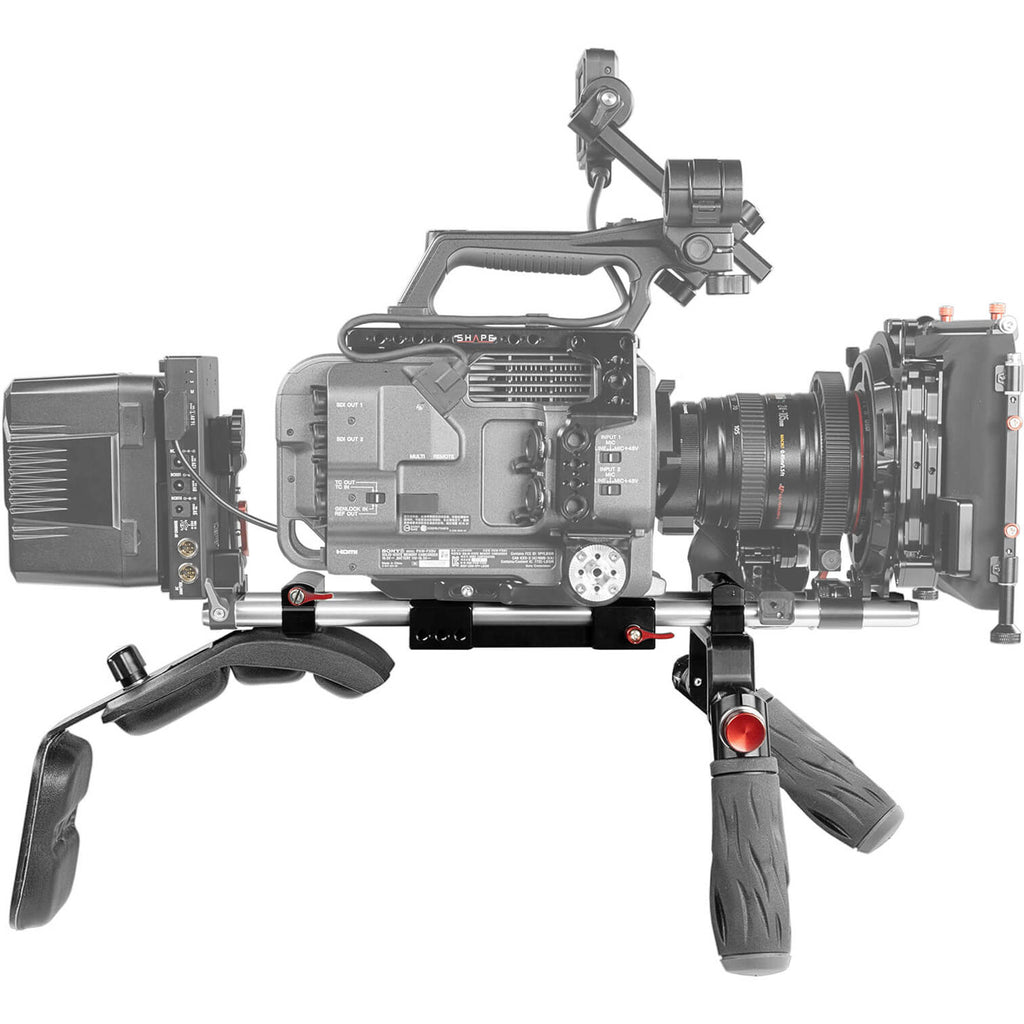

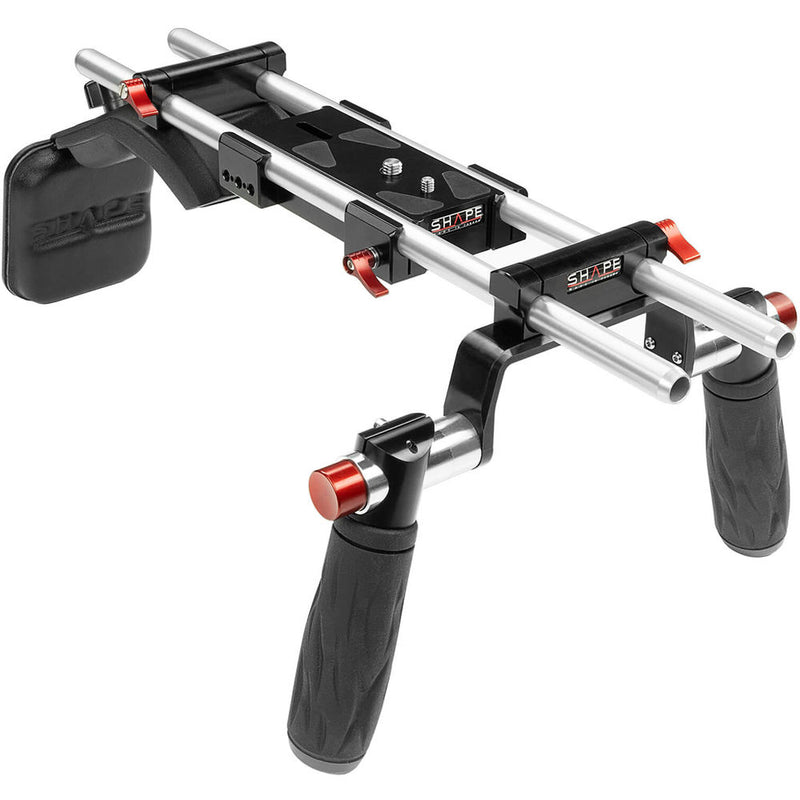

Lightweight Baseplate for FX9Dual Handgrips with 15mm Rod BlockShoulder Pad with Back Pad18" Long 15mm Rods The Shoulder Mount from SHAPE is an adjustable, lightweight, and compact 15mm LWS shoulder mount rig designed for the Sony PXW-FX9 camera. The rig is built around the baseplate and a set of four 8" 15mm rods, and it includes quick release handgrips, a shoulder pad, and a back pad.
The baseplate can be used to mount your camera or additional baseplate, there are tripod mounting threads underneath, and the 18" long 15mm rods pass through the baseplate. For shoulder-mounted shooting, handles and a shoulder pad are included to mount onto the front and back of the rods. The handles feature rosettes and SHAPE's patented spring-loaded push-button technology that lets you quickly adjust the angle of the grips on the fly with just the push of your thumb. For additional support and comfort, a back pad is also included that attaches to the rear of the shoulder pad.
Please see the links below for more information on the components of this bundle.

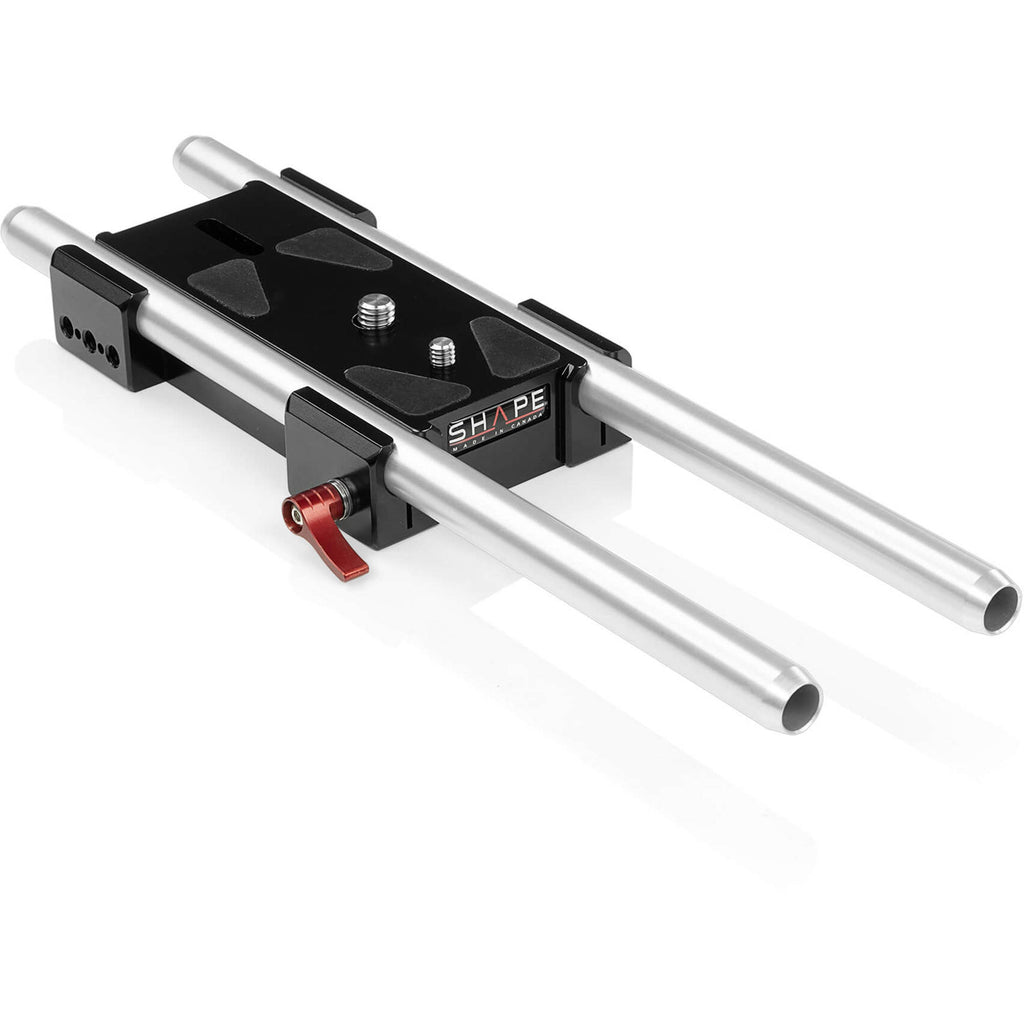

SHAPE 15mm Lightweight Baseplate for Sony PXW-FX9

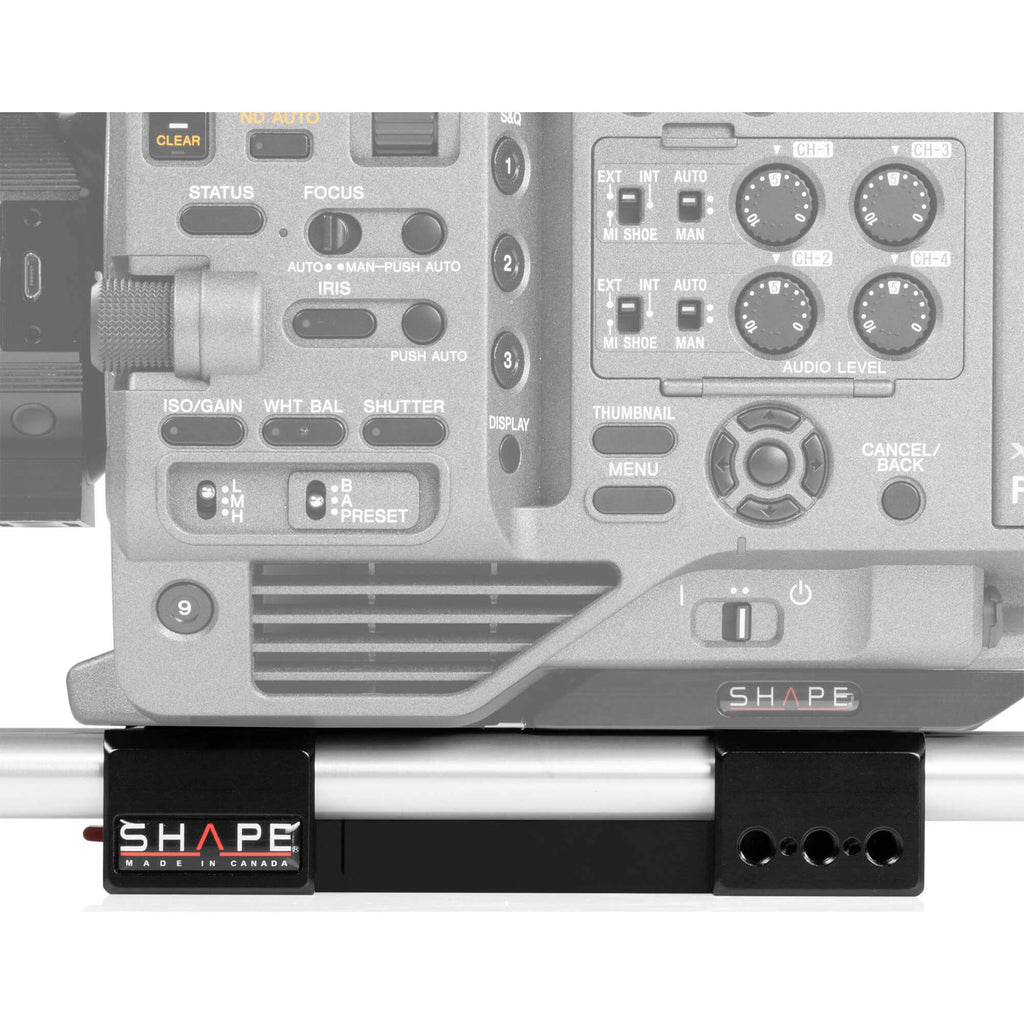

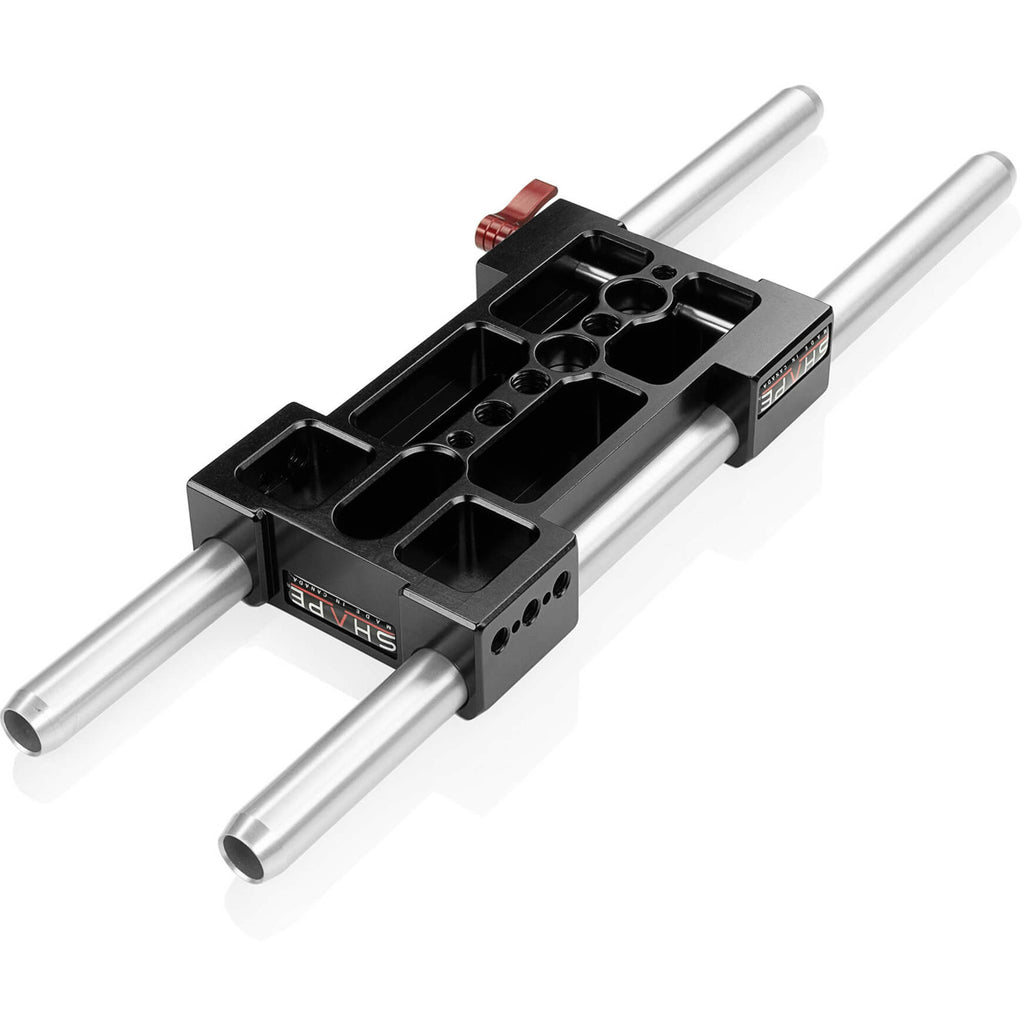

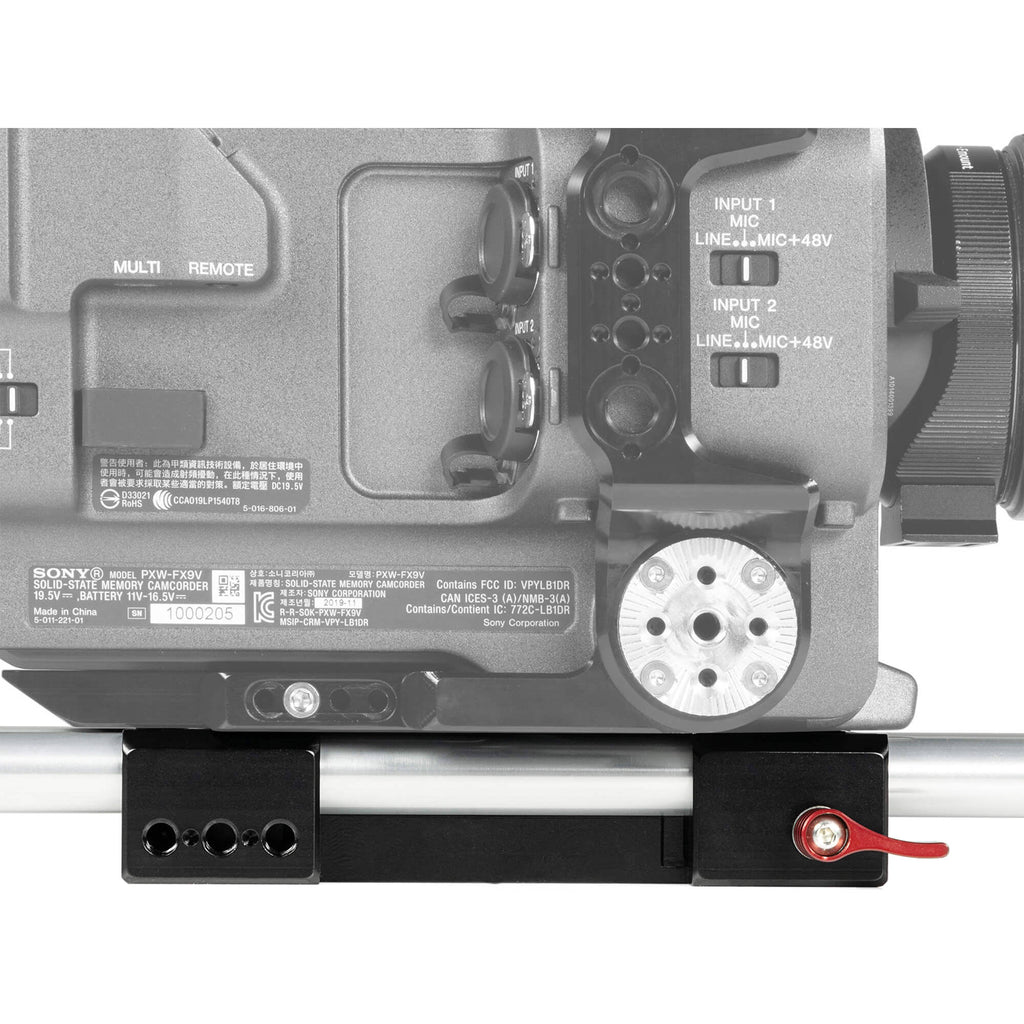

This 15mm Lightweight Baseplate from SHAPE is designed to support the Sony PXW-FX9 camera. The aluminum baseplate features 1/4"-20 and 3/8"-16 screws to secure your camera to the plate, and there are mounting holes underneath to mount the baseplate on a plate or tripod.
The baseplate includes a pair of 12" 15mm rods that insert through the length of the baseplate and are secured with a locking thumbscrew. There are rubber pads on the top of the plate to protect your camera from scratches and prevent twisting.
Rod Block Attaches underneath the camera via 3/8"-16 and 1/4"-20 screws Locking thumbscrews to reposition the 15mm rods Four rubber pads at the top of the base protect and securely hold your FX9 camera Multiple threaded holes to mount baseplate on a tripod, shoulder rig, gimbal, or drone UPC: 629266009895 SHAPE Quick Handle + Rod Block

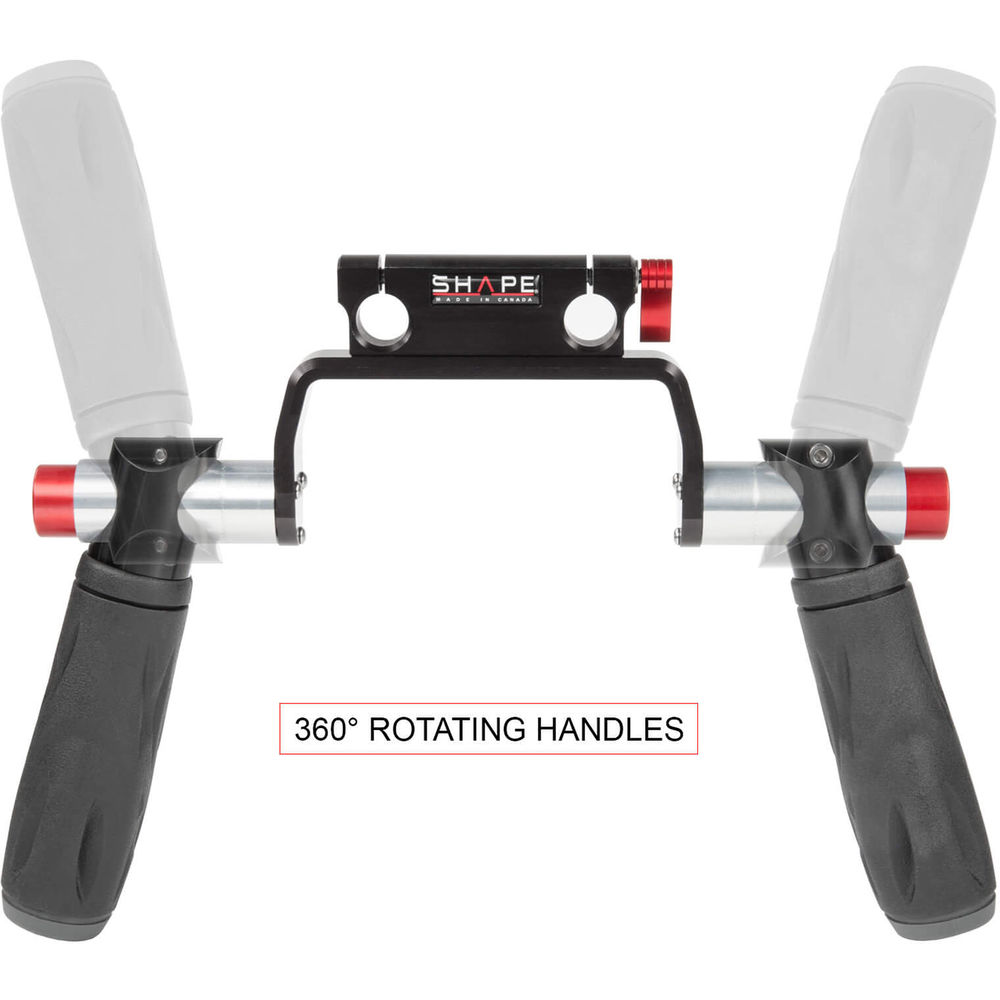

The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal.
Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle Provides professional video stabilization with 2 handles Each handle offers 360° individual rotation Offers easy attachment/removal Rod Block Composed of anodized aluminum Offers composite camera support for all 15mm rods Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob With 2 screw-threaded holes, the Rod Block provides for attachment of components UPC: 629266000793 SHAPE Mini Composite Shoulder Pad

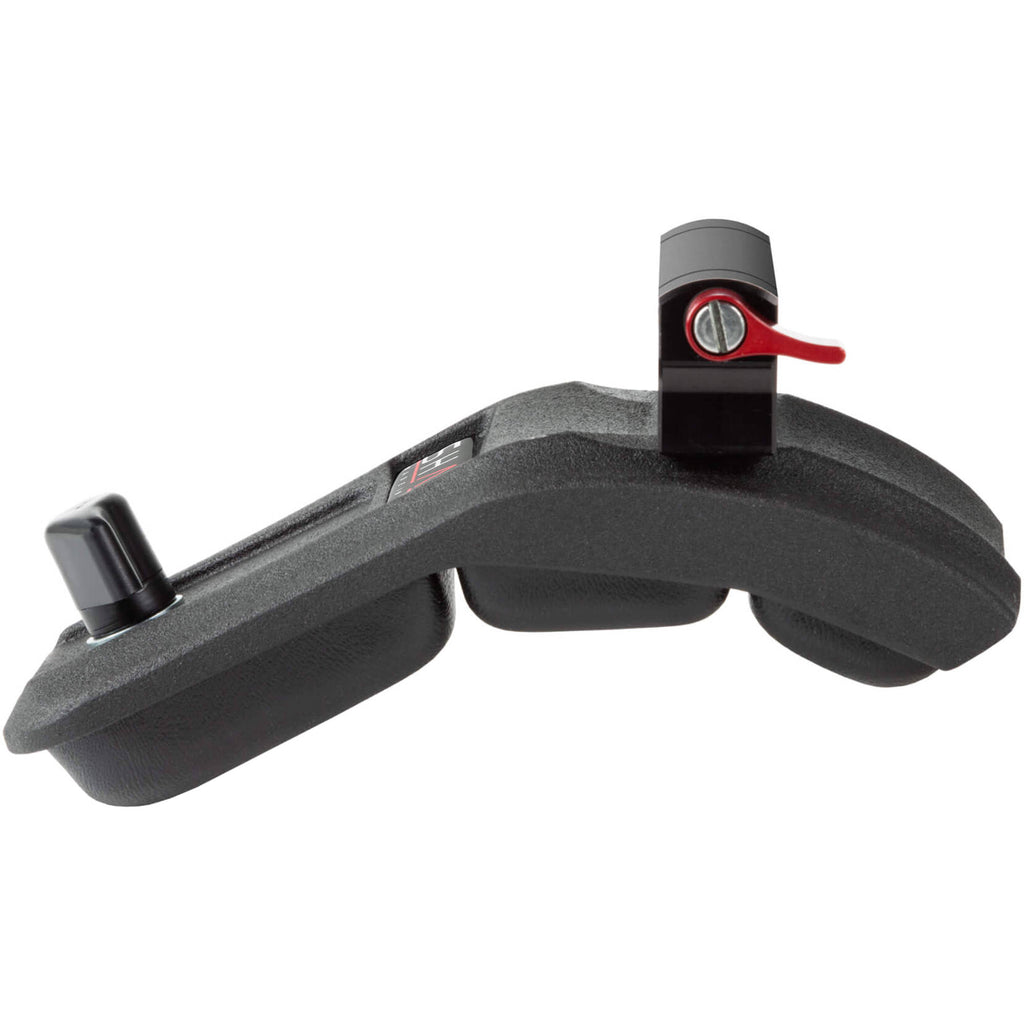

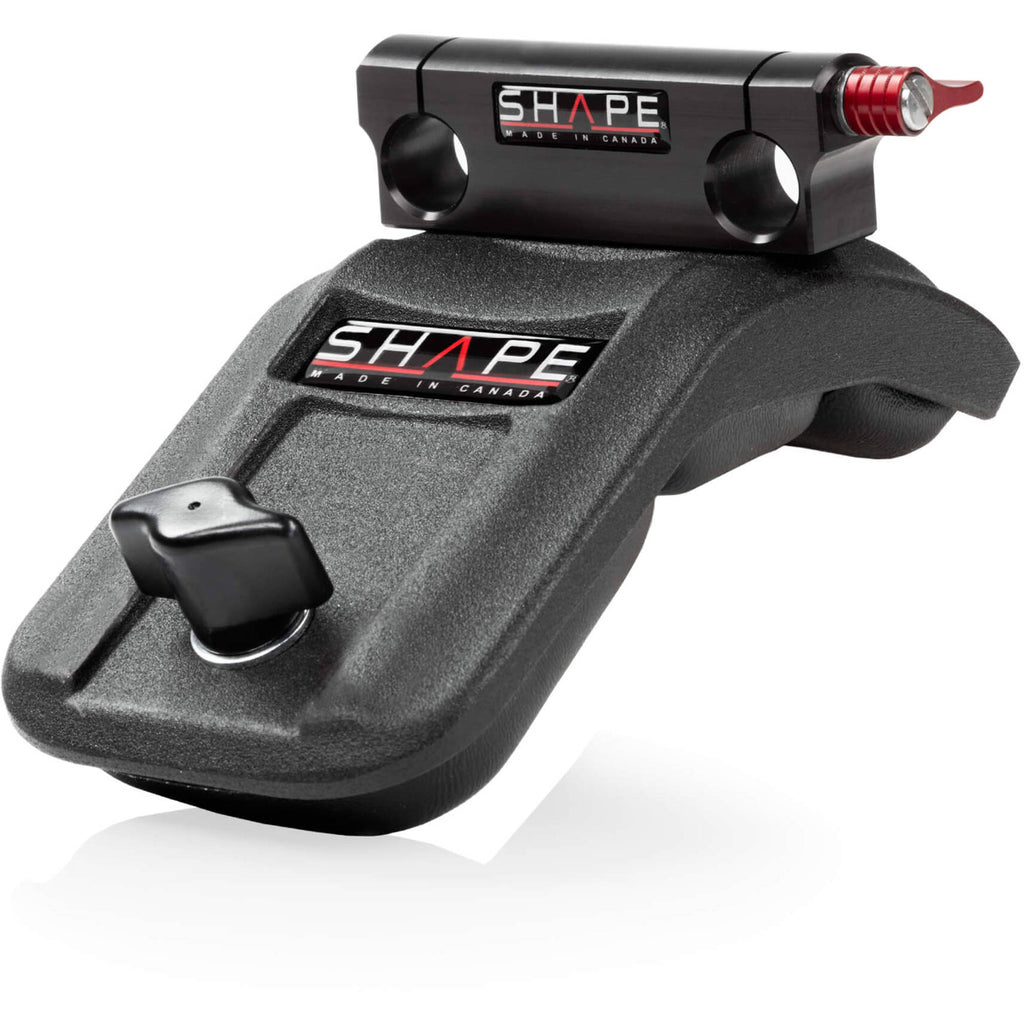

The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.
UPC: 629266000830 SHAPE Back Pad

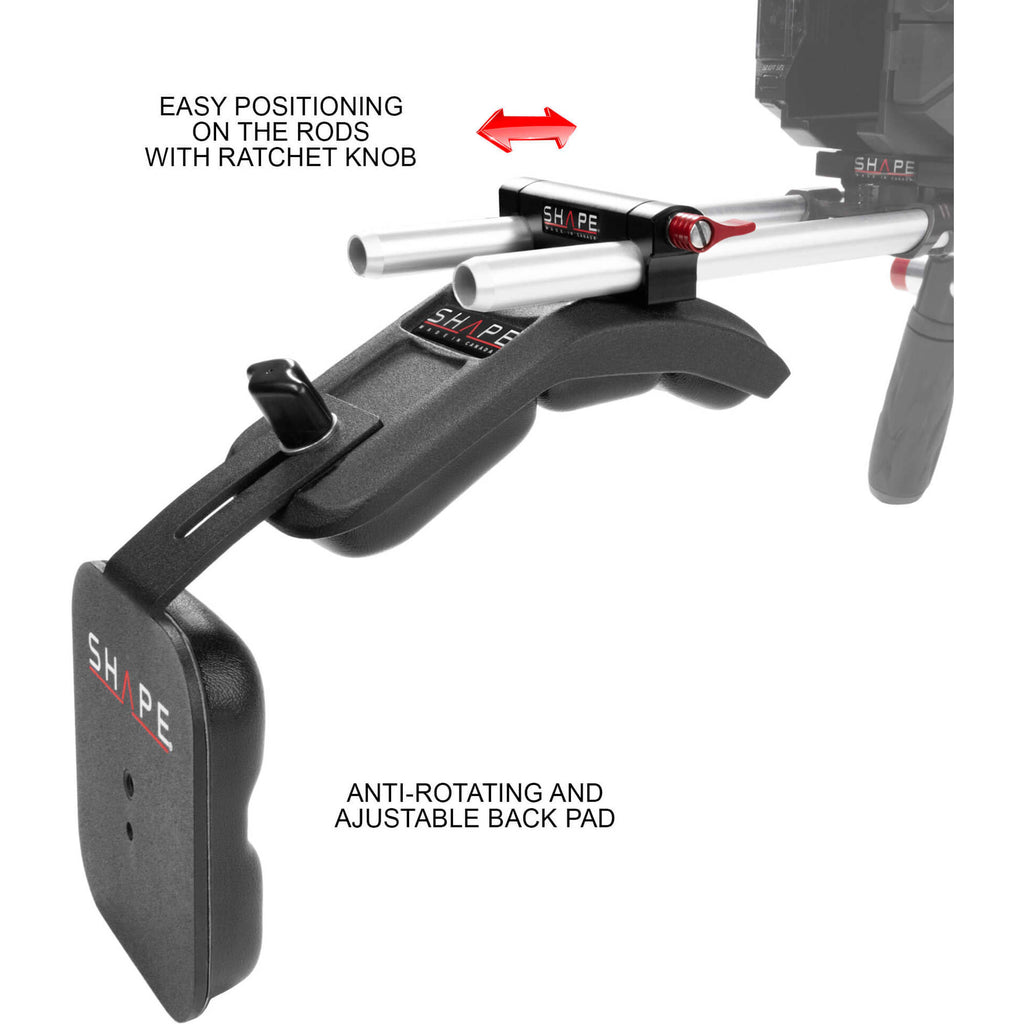

The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference � up to 2" vertically and 360° horizontally.
Compatible Support Series
- Composite
- Cameleon
- Sumo
- Spider

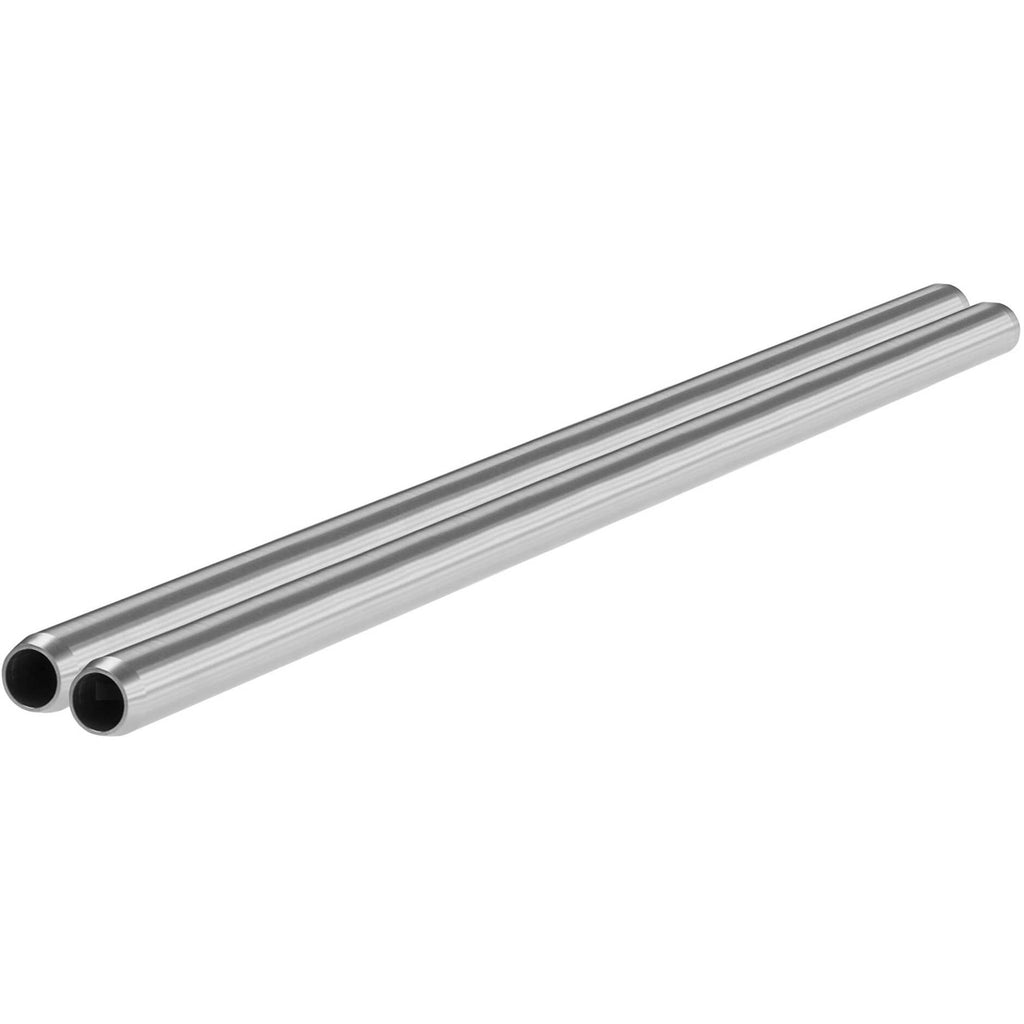

UPC: 629266001202 SHAPE 15mm Rods (18", Pair)
These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
Rod Block Pair of aluminum support rods for 15mm rod clamps. 18" long rods with chamfered ends that guide the rod into an available rod clamp, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp. UPC: 629266002223
Support Type | Baseplate |
Grip Type | None |
Camera Compatibility | Sony PXW-FX9 |
Rod Standard | 15 mm LWS / 60 mm Spacing |
Included Rods | 2 x 12" / 30.48 cm 15 mm Rod |
Accessory Mounting | Base: 2 x 1/4"-20 Thread, 3 x 3/8"-16 Thread |
Camera Mounting | 1/4"-20 Screw, 3/8"-16 Screw |
Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread |
Rosettes | None |
Construction | Aluminum, Rubber |
Dimensions | Not Specified by Manufacturer |
Weight | 1.12 lb / 510 g |
Package Weight | 1.415 lb |
Box Dimensions (LxWxH) | 12.7 x 4.3 x 2.3" |
Package Weight | 1.985 lb |
Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" |
Package Weight | 0.9 lb |
Box Dimensions (LxWxH) | 6.5 x 4.3 x 3.4" |
Material of Construction | Anodized aluminum |
Adjustments | Up/Down: 2" (5 cm) Right/Left: 360° |
Weight | 0.5 lbs (0.2 kg) |
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.5" |
Diameter | 15mm |
Length | 18" (45.7 cm) |
Weight | 0.4 lb (181.4 g) |
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 18.5 x 2.992 x 0.236" |
In the Box
- SHAPE 15mm Lightweight Baseplate for Sony PXW-FX9
- 2 x 15mm Rod (12")
- Limited Lifetime Warranty
- SHAPE Quick Handle + Rod Block
- SHAPE Mini Composite Shoulder Pad
- SHAPE Rod Block
- SHAPE Camera Screw Knob (1/4"-20)
- Lifetime Warranty
- SHAPE Back Pad
- Limited Lifetime Warranty
- SHAPE 15mm Rods (18", Pair)
- Limited Lifetime Warranty
