Description
SHAPE FX6KIT Overview
- 1Description
- 2SHAPE Push-Button Viewfinder Mount for Sony FX6
- 3SHAPE Single Handle with ARRI Rosette
- 4SHAPE Follow Focus Pro
- 5SHAPE 2-Stage 4 x 4" Matte Box

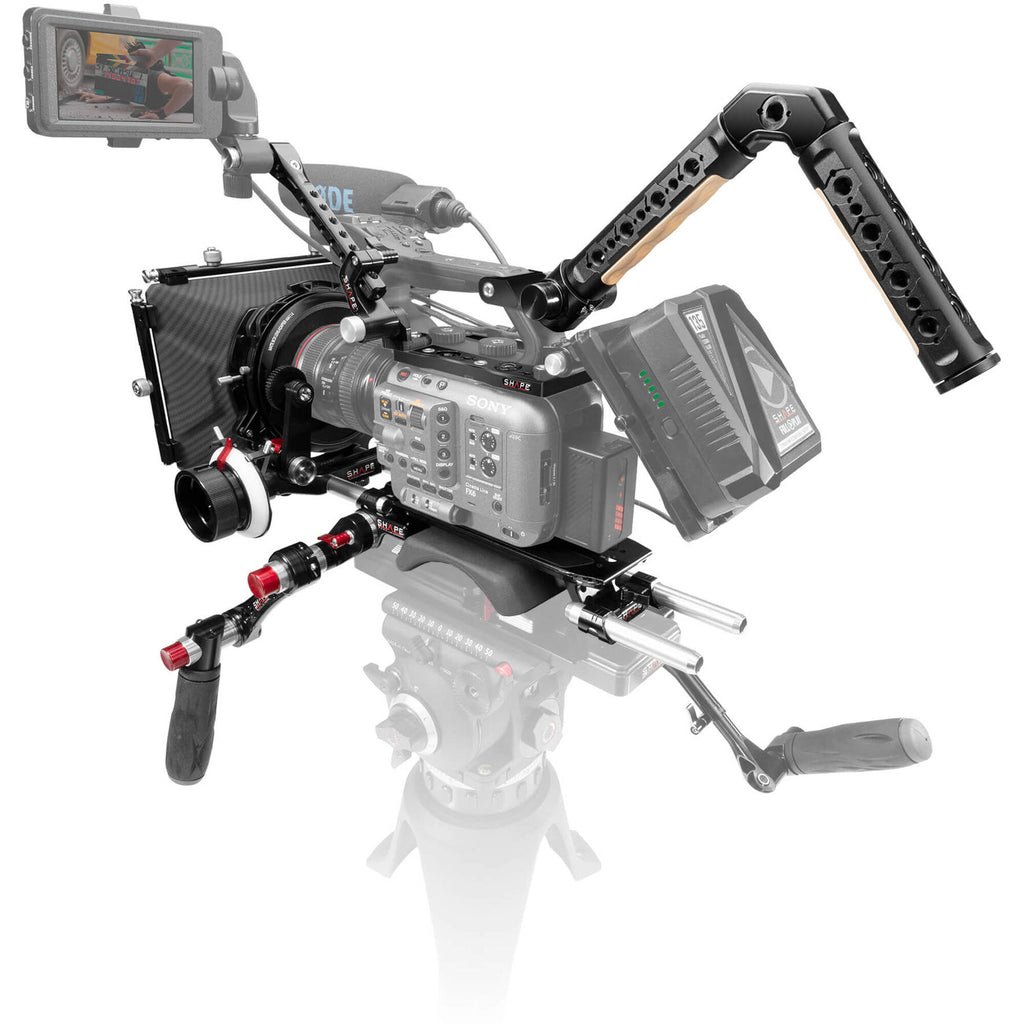

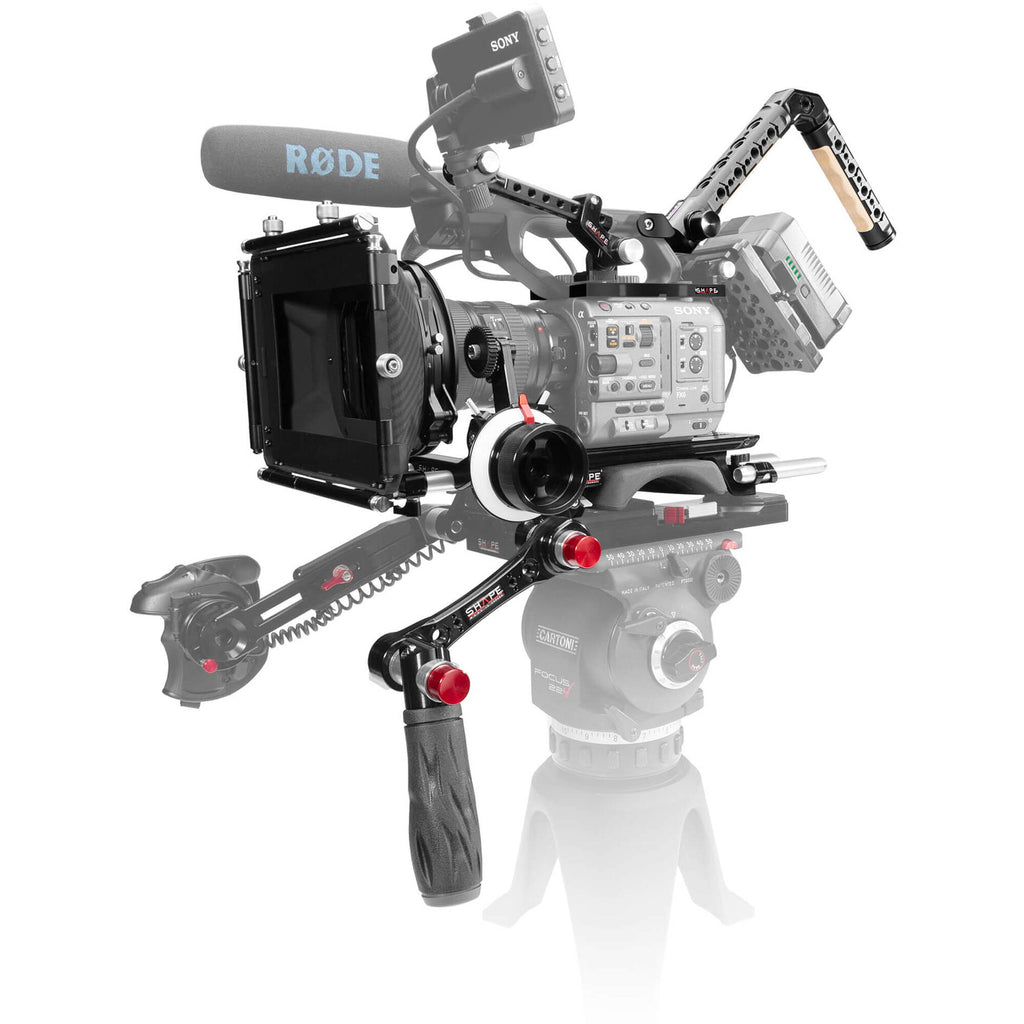

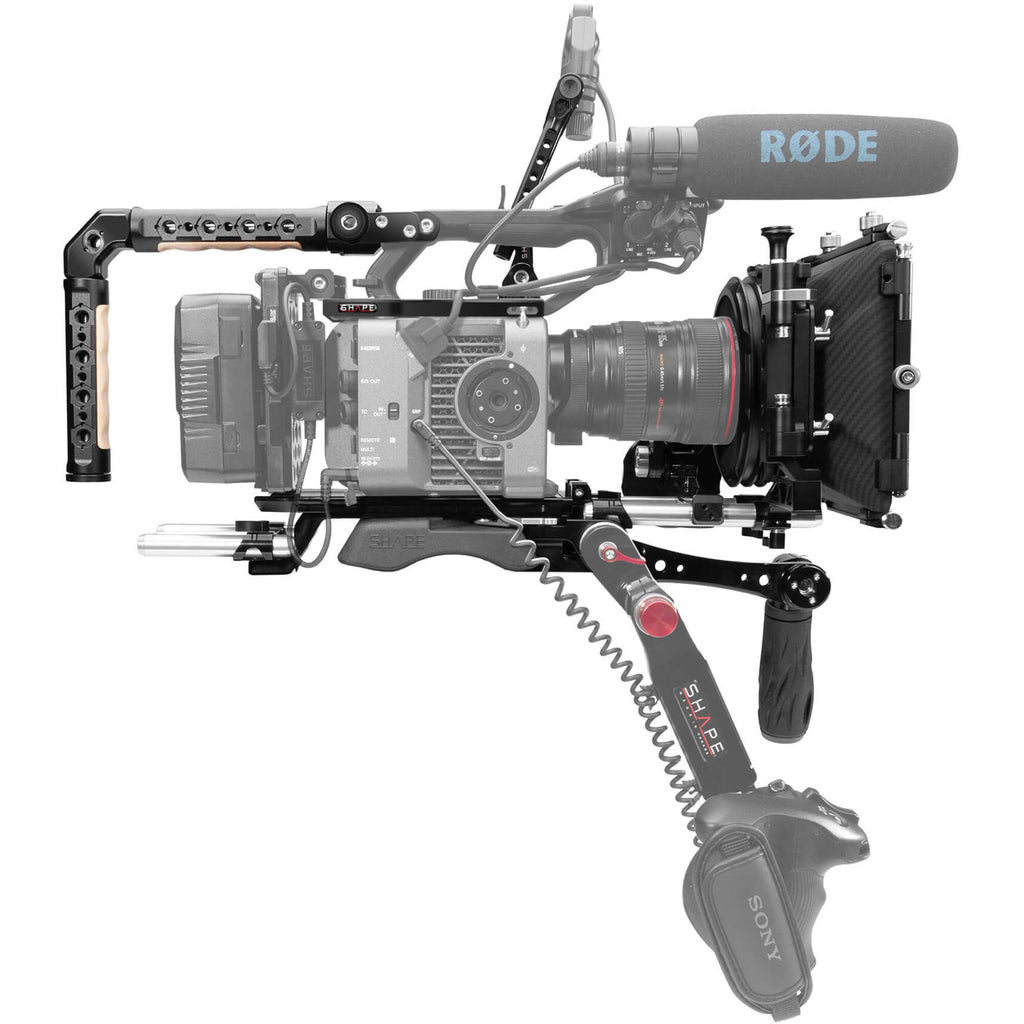

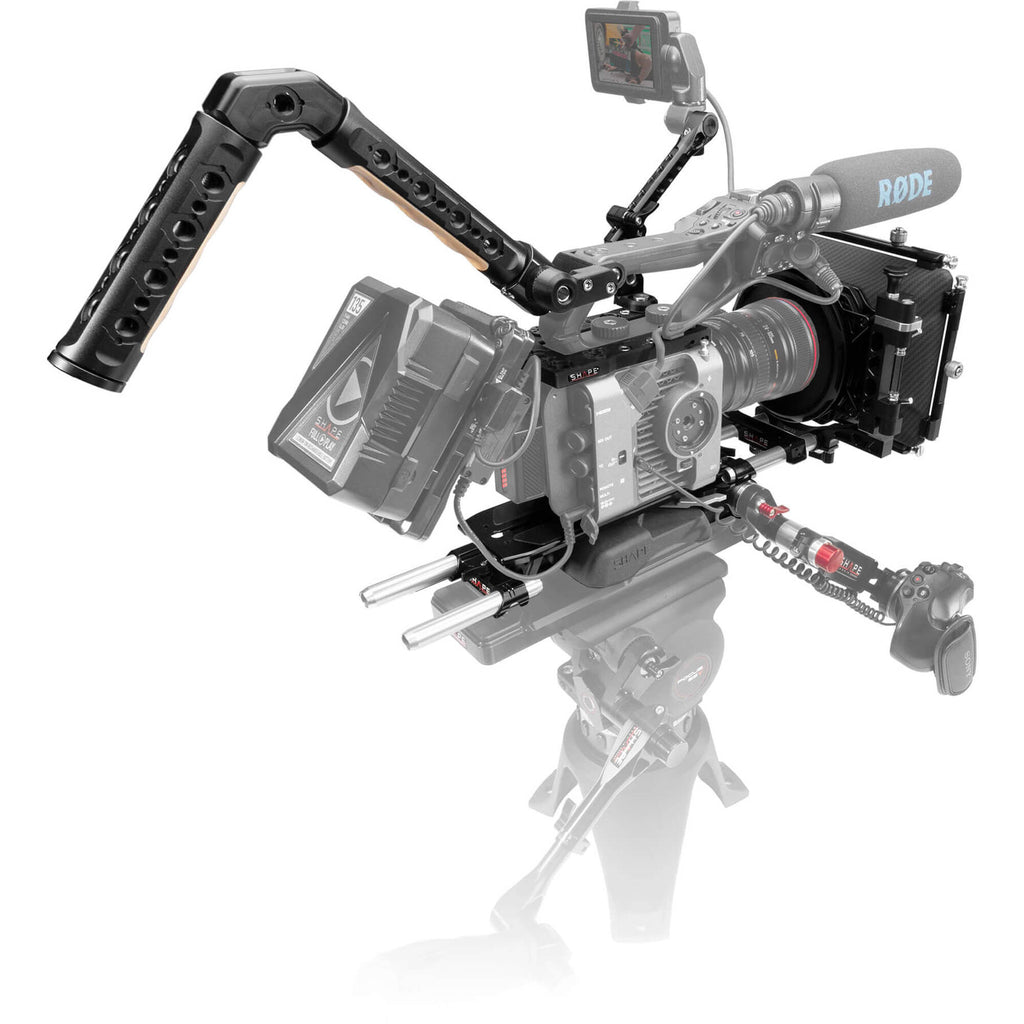

Add accessories and handheld functionality to your Sony FX6 camera with this Pro Shoulder Rig Kit from SHAPE. This extensive kit includes a shoulder mount baseplate with 15mm rod system, an articulating rosette handle, a viewfinder bracket, a 4 x 4" matte box kit, and a follow focus pro.
The baseplate includes an integrated shoulder mount that allows you to convert your tripod-mounted camera into a handheld shoulder rig. The 15mm rods allow you to mount additional accessories, as well as the included 4 x 4" matte box and the follow focus pro. The handle attaches to the baseplate rosette and can rotate and articulate for the most comfortable position. The top plate provides numerous mounting threads and fits around your original FX6 top handle, and the viewfinder bracket attaches to the front of the top plate.
SHAPE Push-Button Viewfinder Mount for Sony FX6
Relocate your original Sony FX6 LCD or add a viewfinder with this Push-Button Viewfinder Mount from SHAPE. The mount is designed to work seamlessly with your FX6 and its LCD viewfinder with support rods included with the camera. It features two points of articulation, SHAPE's push-button release system, and a spring-loaded locking lever for adjusting your viewfinder.
The integrated 15mm rod features a large push-button release for forward and backward articulation, and it provides a spring-loaded locking lever that allows you to adjust the vertical height of the LCD viewfinder. Pressing the push-button release, you can rotate the viewfinder 360°, allowing you to place the viewfinder in the most comfortable position.
Compatibility
SHAPE Single Handle with ARRI Rosette
The Single Handle with ARRI Rosette from SHAPE features SHAPE's quick-lock button technology. The handle can rotate on a 360° axis. The handle and arm can be rotated by pushing the red button. Once the button is released, the handle is secured firmly in place.
The Quick Handle Rosette features a stainless steel locking mechanism for more durability. Providing a solid grip, the handle fits perfectly on the SHAPE baseplate series, including the BP0001 and BP0007 Quick-Release Baseplates, and the Dovetail System thanks to the precision of the ARRI rosette sockets. The handle is removable with one knob screw. It is constructed from CNC machined, high-quality aircraft grade aluminum parts, which are hard anodized for a resistant finish and assembled with stainless steel screws to prevent rusting.
SHAPE Follow Focus Pro
The SHAPE Follow Focus Pro mounts on 15mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. The unit snaps onto 15mm rods, allowing for quick attachment, removal, and re-positioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth - depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.
- Snap-on 15mm rod attachment
- Adjustable arm
- Two 0.8 pitch aluminum gears included: 28 teeth and 43 teeth
- Interchangeable gear position
- Adjustable hard stops
- Removable marking disc
- Industry standard accessory port
- CNC machined aluminum parts
SHAPE 2-Stage 4 x 4" Matte Box
The SHAPE 2-Stage 4 x 4" Matte Box accepts lenses with up to a 100mm front outside diameter. It mounts to 15mm LWS rods and utilizes a swing-away design, which lets you perform quick lens changes without having to remove the matte box from your rods. You can adjust the height of the matte box in relation to the rods, which comes in handy when your lens center to rod center height is slightly off from the standard.
Two rotating filter stages support the use of 4x4" filters. The matte box comes with a top flag (eyebrow), side flags, six matte box donuts in 65, 77, 85, 88, 100, and 105mm sizes, and elastic donut.
In the Box
- SHAPE Baseplate with Top Plate Kit for Sony FX6
- SHAPE Top Plate for Sony FX6
- SHAPE REVOLT VCT Universal Baseplate
- SHAPE 15mm Aluminum Rods (Pair, 8")
- SHAPE 15mm Aluminum Rods (Pair, 4")
- SHAPE Push-Button Viewfinder Mount for Sony FX6
- Limited Lifetime Warranty
- SHAPE Single Handle with ARRI Rosette
- Limited Lifetime Warranty
- SHAPE Follow Focus Pro
- SHAPE 0.8 Pitch 28 Teeth Aluminum Gear for Follow Focus Pro
- SHAPE 0.8 Pitch 43 Teeth Aluminum Gear for Follow Focus Pro
- Limited Lifetime Warranty
- SHAPE 2-Stage 4 x 4" Matte Box
- 2 x Filter Tray (4 x 4")
- French Flag
- 2 x Side Wing
- 6 x Matte Box Ring
- Nun's Knickers
- Limited Lifetime Warranty
- Description
- SHAPE Push-Button Viewfinder Mount for Sony FX6
- SHAPE Single Handle with ARRI Rosette
- SHAPE Follow Focus Pro
- SHAPE 2-Stage 4 x 4" Matte Box
SHAPE Push-Button Viewfinder Mount for Sony FX6 Specs
| Material of Construction | Aluminum |
| Rod Standard | 15 mm |
| Dimensions | 5.75 x 3.5 x 2" / 14.61 x 8.81 x 5.08 cm |
| Weight | 6.3 oz / 180 g |
| Package Weight | 0.63 lb |
| Box Dimensions (LxWxH) | 8.7 x 5.3 x 2.3" |
SHAPE Single Handle with ARRI Rosette Specs
| Package Weight | 0.895 lb |
| Box Dimensions (LxWxH) | 8.75 x 5.3 x 2.3" |
SHAPE Follow Focus Pro Specs
| Included Drive Gear | 0.8 MOD |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Number of Sides | Single-Sided |
| Built-In Hardstops | 2, Fixed |
| Witness/Index Mark | Yes |
| Marking Disk | Yes |
| Switchable Handwheel Speed | No |
| Gear Material | Aluminum |
| Dimensions | 7.63 x 5 x 3" / 19.37 x 12.7 x 7.62 cm |
| Weight | 1.4 lb / 0.6 kg |
| Package Weight | 1.385 lb |
| Box Dimensions (LxWxH) | 9.7 x 4.6 x 3.4" |
SHAPE 2-Stage 4 x 4" Matte Box Specs
| Filter Stages | 2 x Rotating Stage (4 x 4") |
| Lens Compatibility | 105 mm Opening |
| Rod Standard | 15 mm LWS / 60 mm Spacing (Slide-On) |
| Swing-Away | Yes |
| Flags | 1 x Top Flag 2 x Side Flag |
| Material |
