Description
SHAPE KOROD Overview

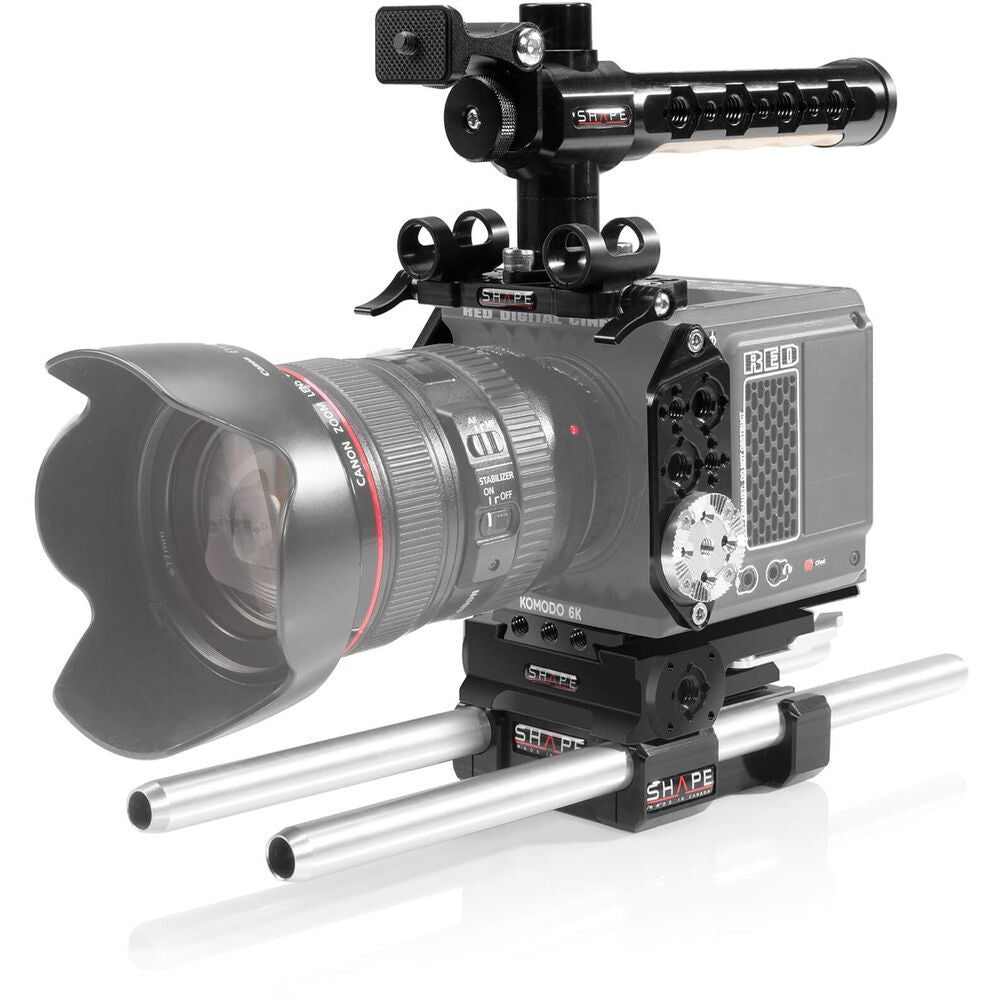

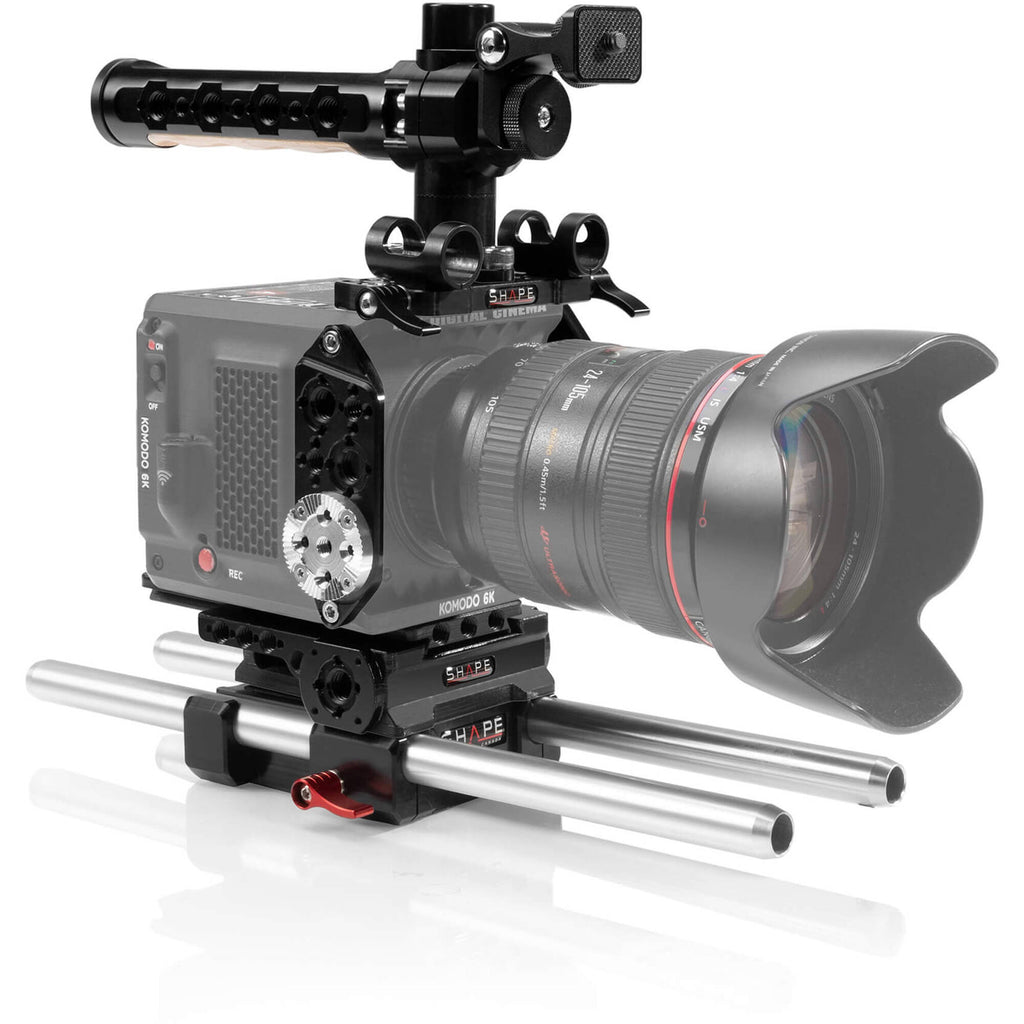

Wrap your RED KOMODO in a protective cage that adds accessory mounting, as well as an LWS 15mm baseplate system with this SHAPE Full Camera Cage with 15mm LW Rod System for RED KOMODO. The top handle features SHAPE's well-known push-button release system, which is fast, secure, and won't slow down your shoot. The top handle also features a tilting bracket suitable for adding a monitor, light, or even a microphone to your rig, keeping your rig light and compact by avoiding additional accessory mounting equipment.
The durable 3-piece cage is built around the top plate that you mount on your KOMODO, and this allows you to mount the side riser panels and the included 15mm rod clamps. Once mounted on your camera you've created a sturdy external cage that provides accessory mounting holes, as well as ARRI-compatible rosettes on each side for mounting optional grips to help you when handholding the rather boxy camera. The included baseplate system allows you to mount your camera onto a tripod and then swap it back and forth between a Ronin 2 Gimbal, leaving the rods mounted on your tripod, quickly and without using tools.
SHAPE Camera Cage with Top Handle for RED KOMODO

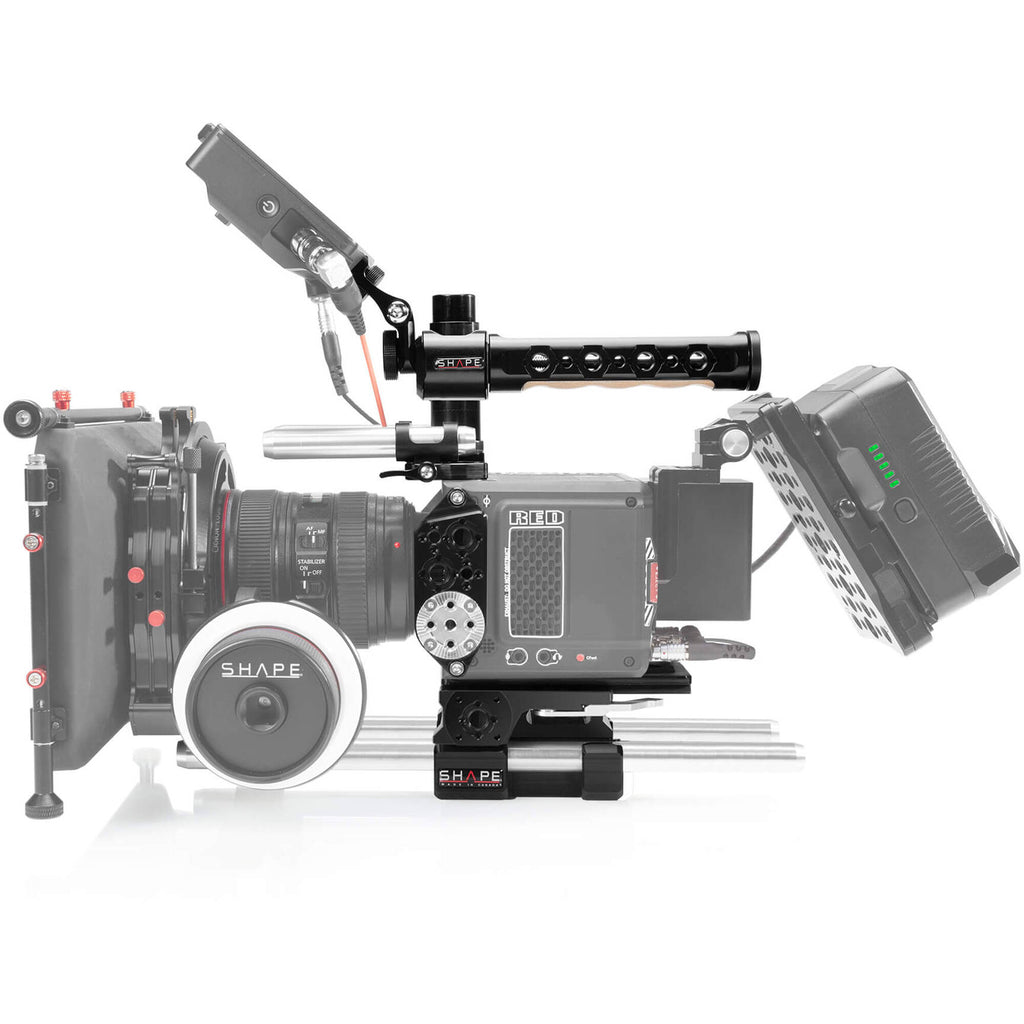

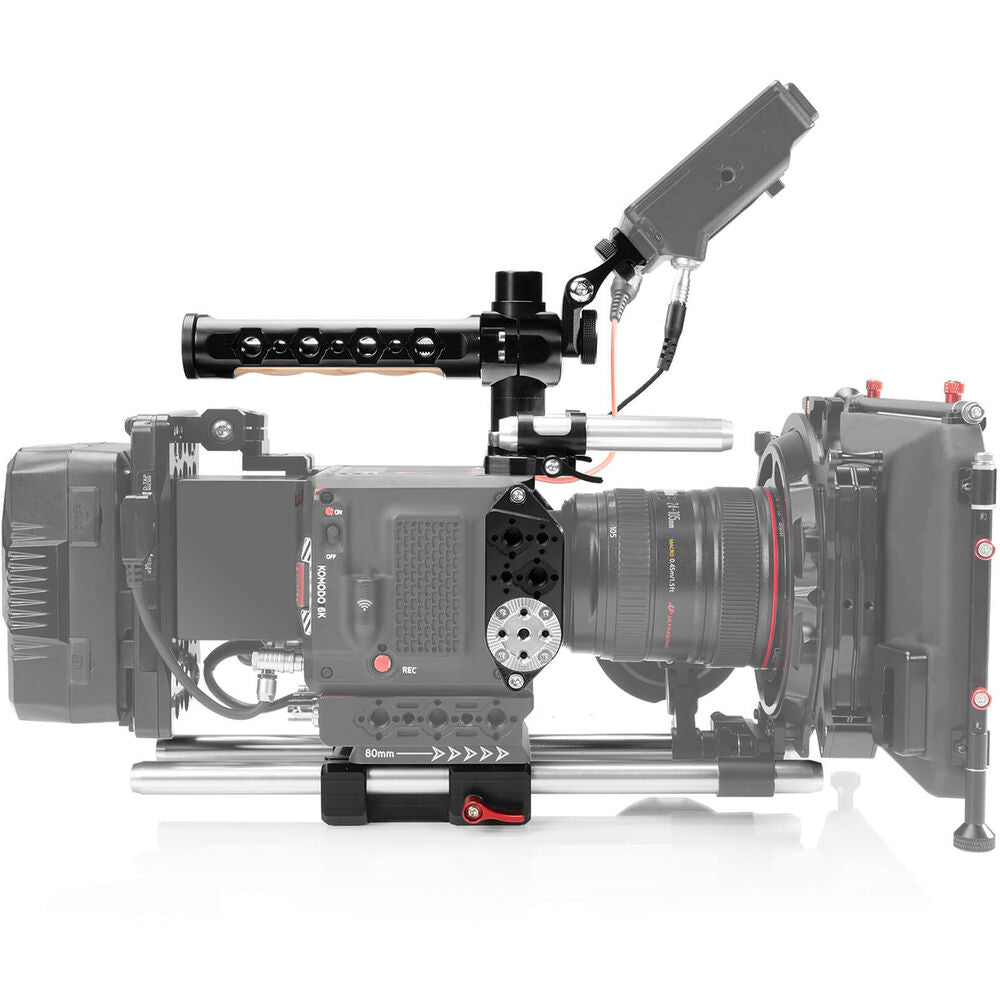

Add flexible carrying and improved accessory mounting, while protecting your RED KOMODO cinema camera with this SHAPE Camera Cage with Top Handle for RED KOMODO. The top handle features SHAPE's well-known push-button release system, which is fast, secure, and won't slow down your shoot. The top handle also features a tilting bracket suitable for adding a monitor, light, or even a microphone to your rig, keeping your rig light and compact by avoiding additional accessory mounting equipment.
The durable 3-piece cage is built around the top plate that you mount on your KOMODO, and this allows you to mount the side riser panels and the included 15mm rod clamps. Once mounted on your camera, you've created a sturdy external cage that provides accessory mounting holes, as well as ARRI-compatible rosettes on each side for mounting optional grips to help you when handholding the rather boxy camera.
Rod Block
The Top Handle
- Mounts on your cage
- Utilizes the push-button release system that allows you to adjust the orientation using a single hand
- Adjustments can be made on the fly, without stopping the shoot to loosen, adjust, and then tighten levers
- Press the release button, adjust the position, and release the button
- A removable bracket slides into the cold shoe on the front of the top handle and allows you to mount accessories up to 4.4 pounds
- The top handle offers nine 1/4"-20 threaded mounting holes and twelve 3/8"-16 mounting holes with anti-twist divots
- It features aluminum construction with a strip of maple wood for comfort
Cage
Accessorize
Accessory Mounting on the Cage
- Multiple 1/4"-20 accessory mounting threads for attaching a variety of available accessories, such as articulating arms.
- Additional 1/4"-20 and 3/8"-16 threaded holes with ARRI-style anti-twist divots allow you to attach accessories that stay secure and won't unexpectedly twist, which usually happens at the worst moment, ruining the shot.
- Two individual 15mm spring-loaded rod clamps can be mounted on the cage for adding rod-mounted accessories.
Rod Clamps
SHAPE 15mm Lightweight Baseplate for RED KOMODO

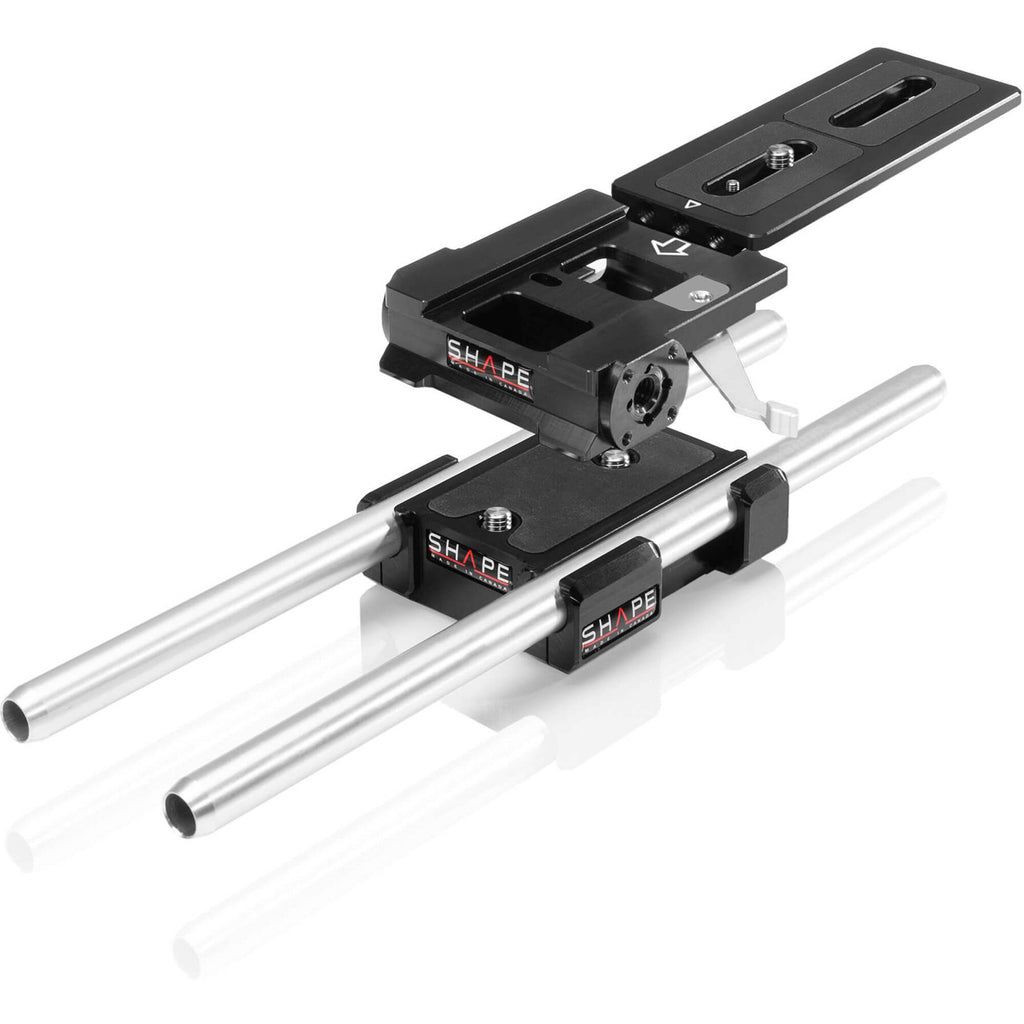

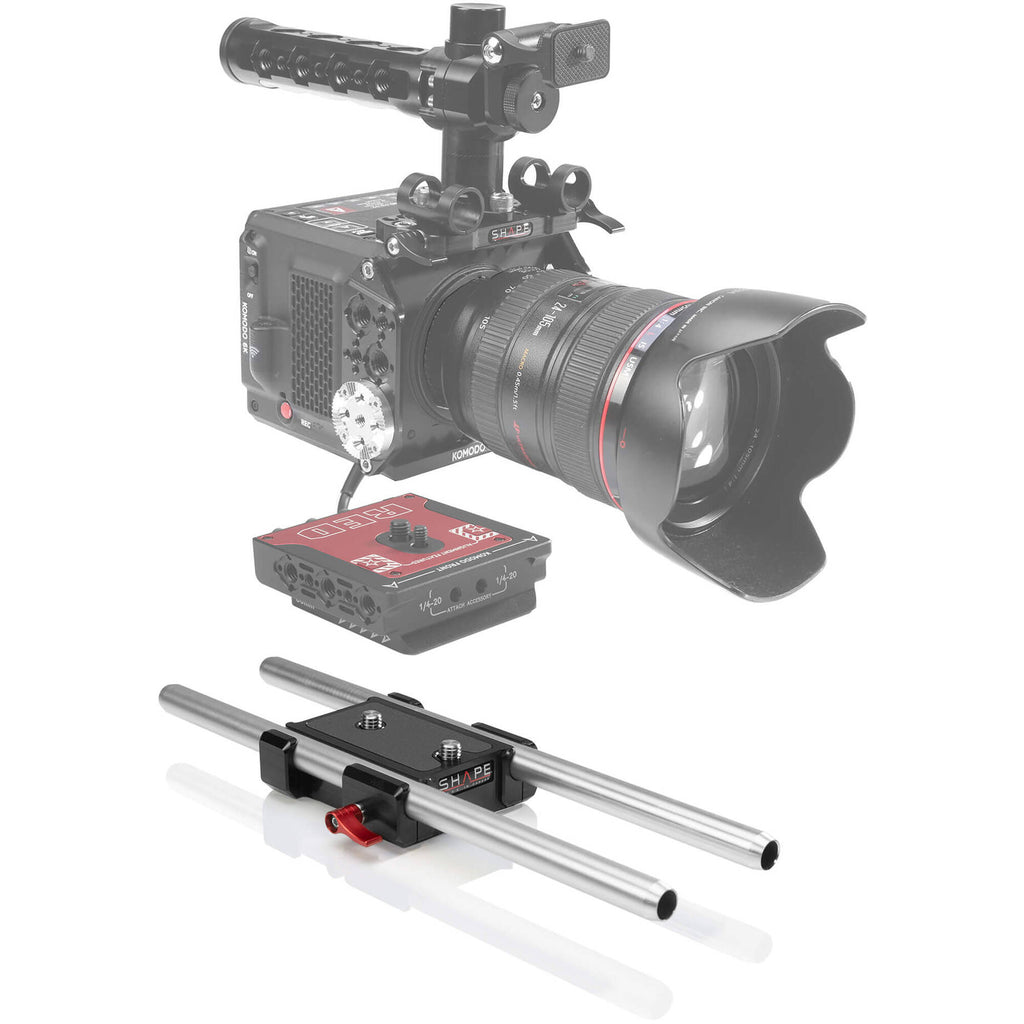

The SHAPE 15mm Lightweight Baseplate for RED KOMODO is a flexible system designed so you can easily swap your camera between a lightweight Ronin 2 gimbal system and a tripod-mounted system without having to swap baseplates. It features a dovetail plate, an adapter plate, and a lightweight baseplate with rod clamps. The dovetail adapter mounts onto the 15mm lightweight baseplate, and the dovetail plate mounts on your camera enabling you to move between your gimbal and your tripod.
The adapter plate features two 3/8"-16 threaded mounting holes with ARRI-style anti-twist divots, one on each side of the plate, that accept a variety of accessories as well as optional SHAPE ARRI-style rosette inserts for attaching handgrips for handheld use. The lightweight baseplate mounts on your tripod/tripod plate via 1/4"-20 and 3/8"-16 threaded holes, and it has integrated 15mm LWS rod clamps for the included aluminum rods.
Rod Block
Compatibility
DJI Ronin 2
Mounting
- The baseplate mounts onto your tripod
- The dovetail plate slides into the dovetail adapter, which mounts on the baseplate
- The dovetail plate is compatible with the DJI Ronin 2, and it allows you to move quickly between the gimbal and baseplate setup
In the Box
- SHAPE Camera Cage with Top Handle for RED KOMODO
- Top Handle with Tilting Bracket
- Top Plate
- 2 x Side Riser Plate with ARRI Rosette
- 2 x SHAPE 15mm LW Clamp for Top Handle Grip
- 2 x 1/4"-20 Socket Head Cap Screw
- 4 x M4 Screw
- 3mm Allen Key
- 3/16" Allen Key
- Limited Lifetime Warranty
- SHAPE 15mm Lightweight Baseplate for RED KOMODO
- 15mm LWS Baseplate
- Adapter Plate
- Dovetail Plate
- SHAPE 15mm Aluminum Rods (Pair, 12")
- Limited Lifetime Warranty
SHAPE Camera Cage with Top Handle for RED KOMODO Specs
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | Cage, Top: 9 x 1/4"-20 Thread, 4 x Anti-Twist 1/4"-20 Thread, 1 x Anti-Twist 3/8"-16 Thread Cage, Sides: 4 x Anti-Twist 1/4"-20 Thread, 4 x Anti-Twist 3/8"-16 Thread Top Handle, Top: 3 x 1/4"-20 Thread, 4 x Anti-Twist 3/8"-16 Thread Top Handle, Sides: 6 x 1/4"-20 Thread, 8 x ARRI Anti-Twist 3/8"-16 Thread |
| Rod Ports | 2 x 15 mm Rod Port |
| Shoe Mounting | Top Handle, Front: 1 x Cold Shoe |
| Rosettes | Cage, Sides: 2 x ARRI Rosette w/ M6 Thread |
| Support Type | Cage |
| Grip Type | Topside Handgrip |
| Camera Compatibility | RED KOMODO |
| Construction | Aluminum, Wood |
| Dimensions | 7.6 x 7.2 x 4.4" / 19.3 x 18.3 x 11.2 cm |
| Weight | 1.38 lb / 0.63 kg |
| Package Weight | 1.685 lb |
| Box Dimensions (LxWxH) | 9.7 x 4.4 x 3.3" |
SHAPE 15mm Lightweight Baseplate for RED KOMODO Specs
| Support Type | Baseplate, Rod Support System |
| Grip Type | None |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Included Rods | 2 x 12" / 30.5 cm 15 mm Aluminum Rod |
| Battery Plate Type | None |
| Accessory Mounting | Baseplate, Sides: 2 x ARRI Anti-Twist 3/8"-16 Thread |
| Camera Mounting | 1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting | Baseplate: 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports | Baseplate, Front: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | Not Specified by Manufacturer |
| Construction | Aluminum |
| Dimensions | 12 x 3.75 x 2.5" / 30.5 x 9.53 x 6.3 cm |
| Weight | 1.56 lb / 0.71 kg |
| Package Weight | 1.825 lb |
| Box Dimensions (LxWxH) | 12.7 x 4.3 x 2.3" |
