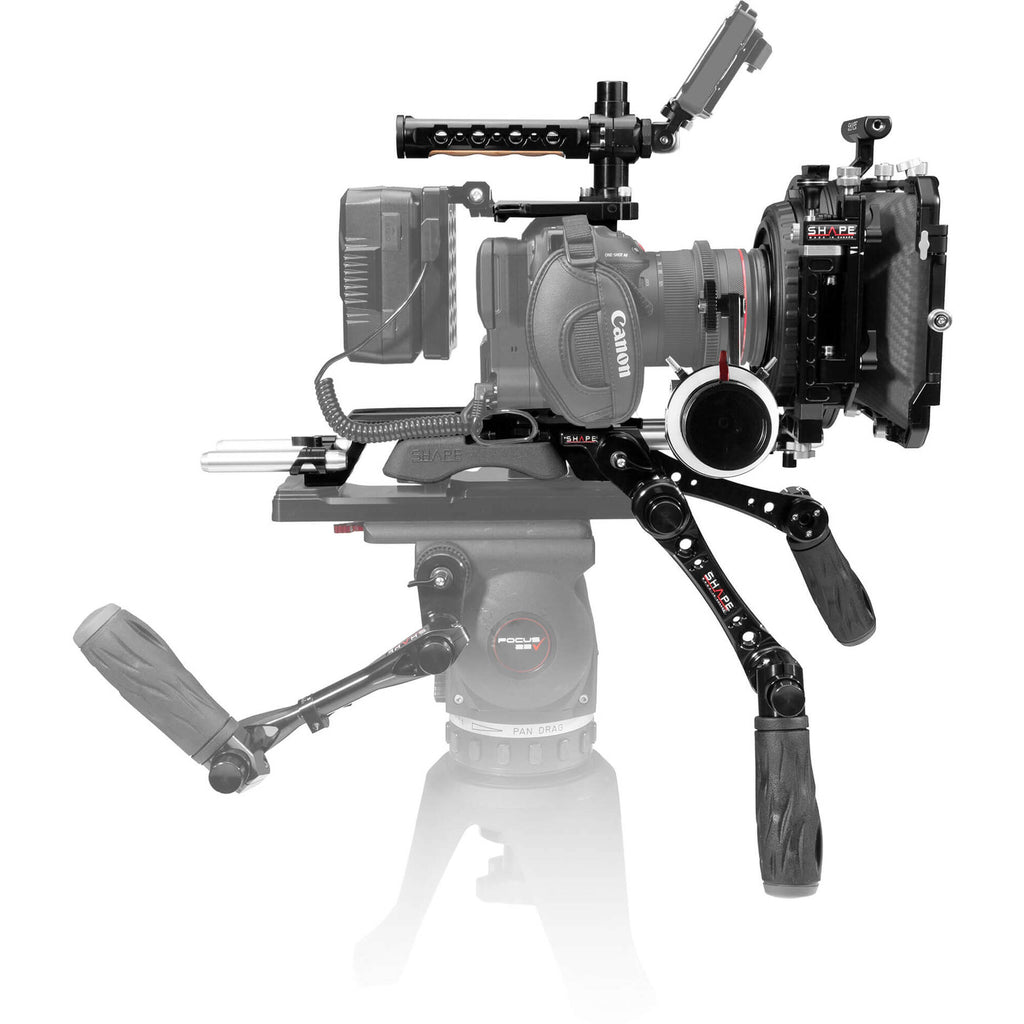

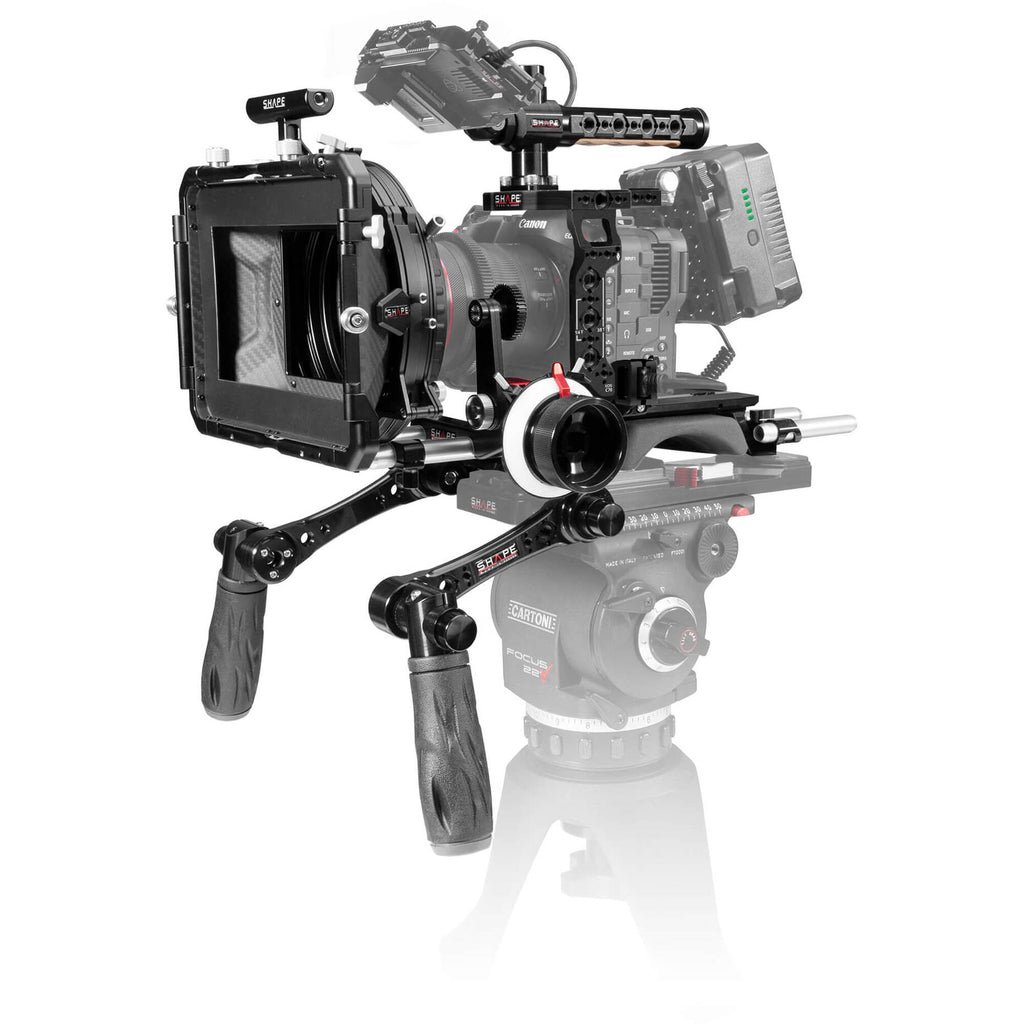

SHAPE Canon C70 Camera Cage Shoulder Rig with Matte Box & Follow Focus

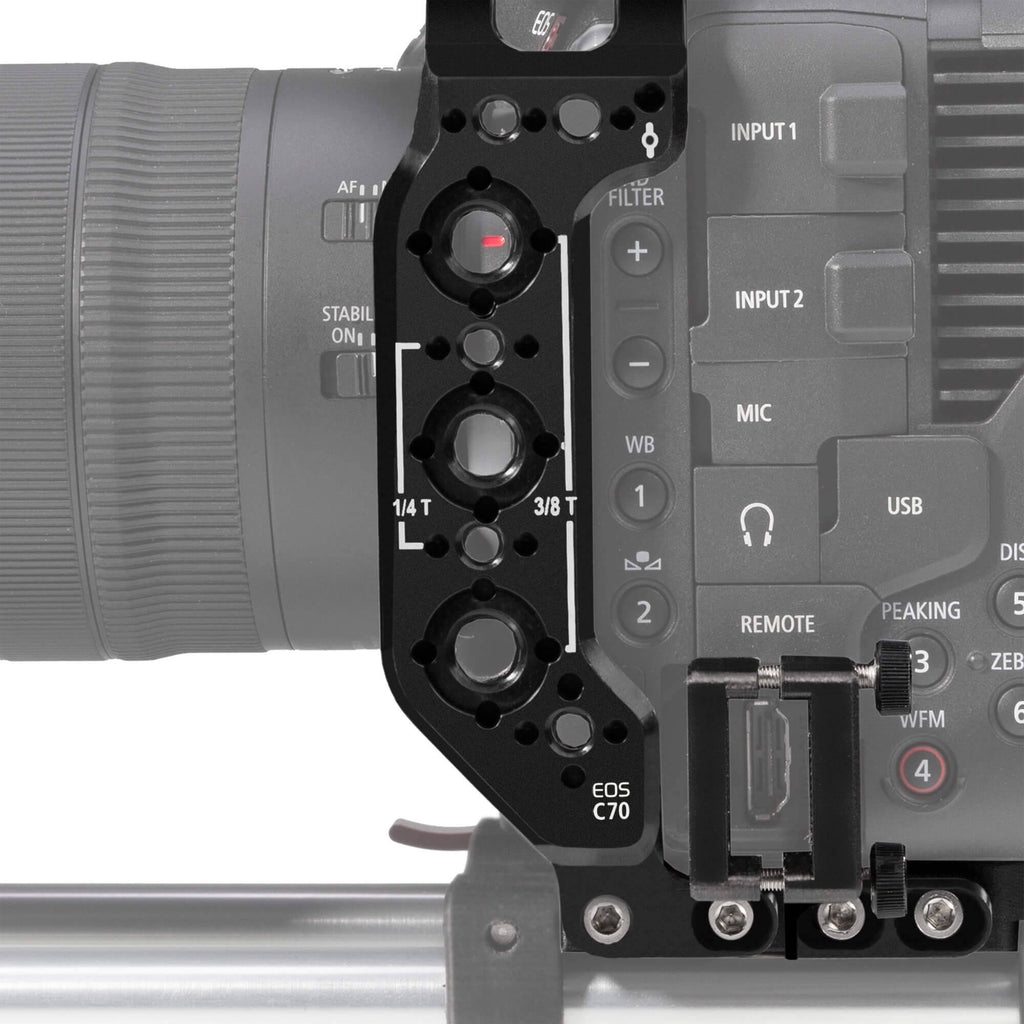

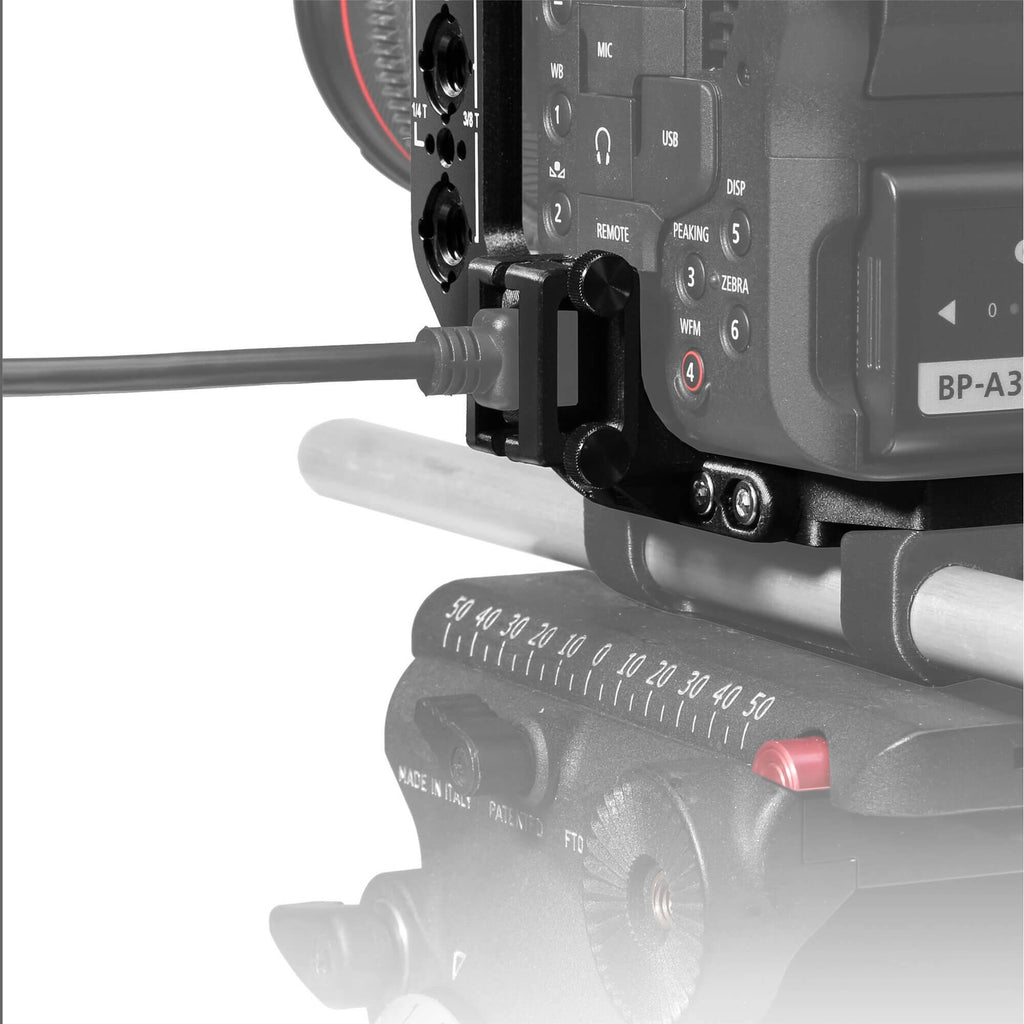

The Canon C70 Camera Cage from SHAPE features a top, bottom, and left-side plate, leaving the right side open so the camera's handgrip can be used. The top plate supports the native C70 top handle and mic holder, the latter via a built-in offset shoe mount. An HDMI clamp is also included and attaches to the side to secure your HDMI cable.

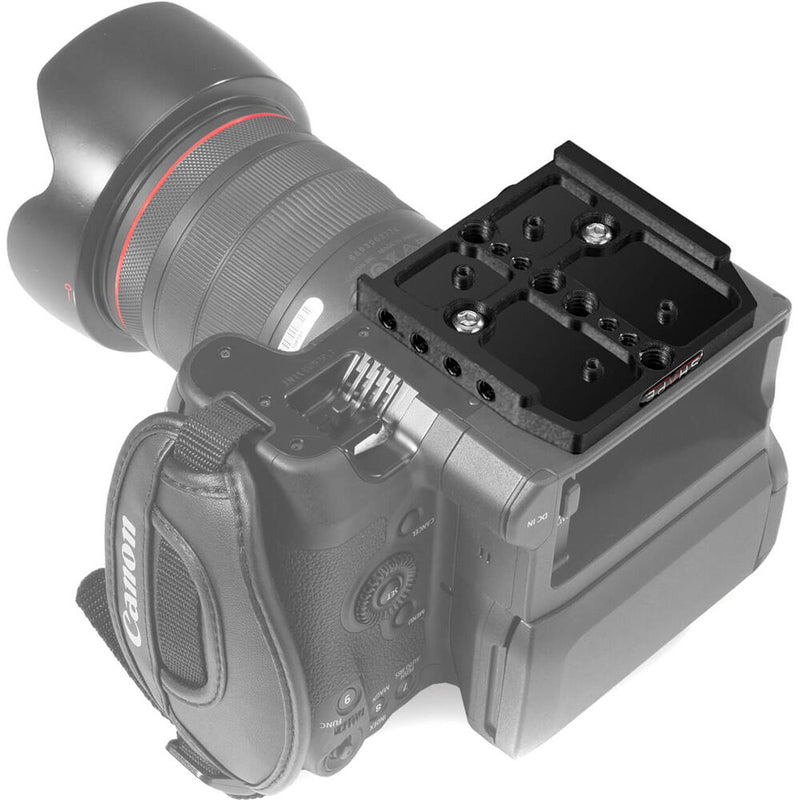

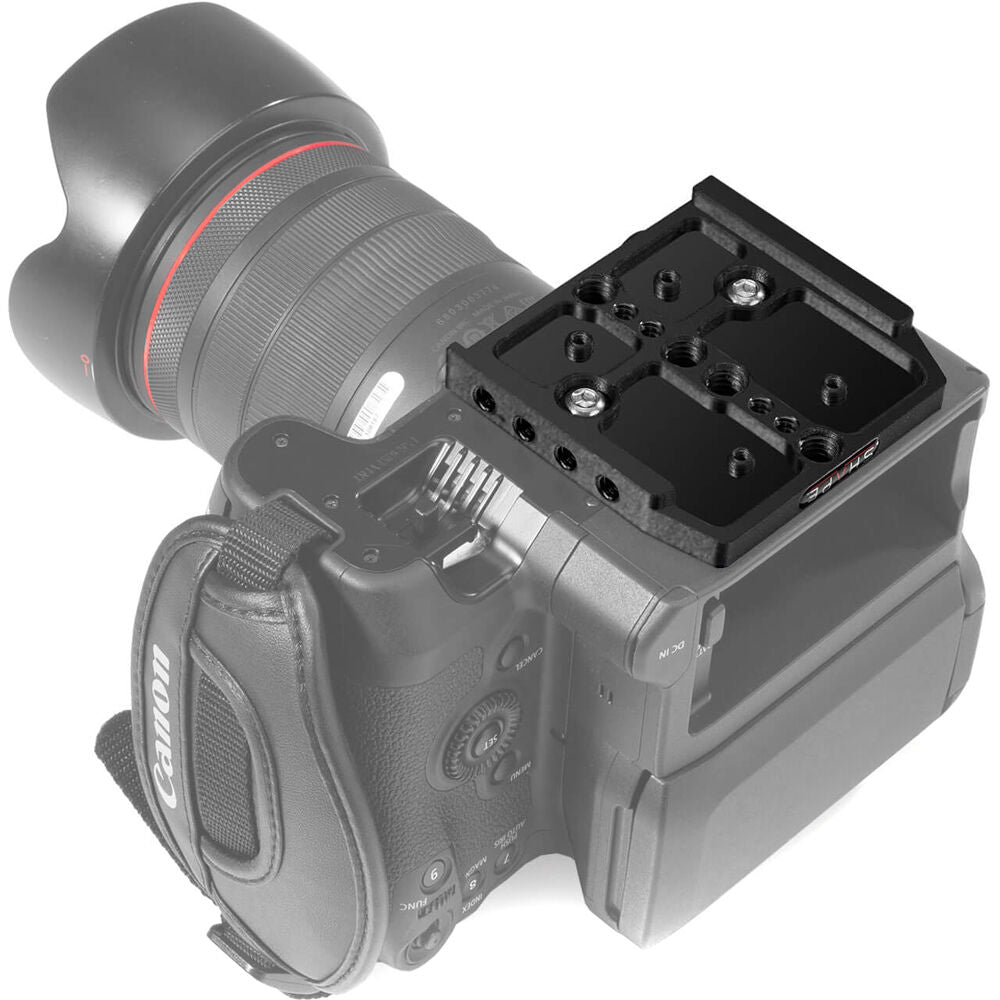

The cage offers standard and anti-twist 1/4"-20 and 3/8"-16 accessory mounts all around, and multiple 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. The bottom plate is rubber padded for safer attachment of your camera.

The SHAPE Compact Revolt Shoulder Baseplate is a lightweight baseplate suitable for use by neophytes and professionals alike. Made from CNC-machined aluminum, the baseplate is made to withstand the rigors of the production day. The shoulder pad allows it to sit comfortably on your shoulder. The top of the baseplate features two rubber strips to protect your camera. It incorporates two ARRI-compatible rosettes for attaching handle accessories. The top of the baseplate features a 3.5"-long slot that enables adjusting your camera's position for balance adjustments.

Front and rear 15mm LWS rod clamps enable you to mount the included 8 and 4" pairs of rods to support you lens accessories in front, and power/monitoring accessories in the rear. An included 3mm Allen Key allows you to adjust the rod clamps, and the rear rod clamp is removable and attaches to the Revolt Shoulder Baseplate by two M4 screws. On the bottom of the baseplate is a V-lock plate that is compatible with most VCT baseplates. The V-lock plate has both a 1/4"-20 and 3/8"-16 threaded mounting hole.

The SHAPE Follow Focus Pro mounts on 15mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. The unit snaps onto 15mm rods, allowing for quick attachment, removal, and re-positioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth - depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

Add filters and light control to your camera rig with the 4 x 5.6 Carbon Fiber Swing-Away Matte Box Set from SHAPE. The lightweight matte box features a 2-stage, 4 x 5.65" 360° rotating filter system and can be mounted on any standard 15mm LWS or 19mm studio rod systems.

The two rotating filter stages allow you to insert 4 x 5.65" filters, such as polarizing or graduated ND, and independently rotate them 360° to find just the right look. An 82mm filter ring is also included to utilize round filters. The large 143mm opening provides easy access and the 114mm ARRI-style rubber bellows opening is compatible with standard cine lens sizes. Four lens adapters are included to attach 80, 95, 104, and 114mm telephoto lenses to the matte box. The 15mm LWS and 19mm studio rod adapters are height-adjustable to match the size of your lens.

A top flag and two side flags are included to prevent unwanted flare, and a top handle with five threaded holes allows you to mount additional accessories such as lights, extension arms, and adapter shoes. The entire system is built on a hinge so you can easily swing the matte box away for lens and filter changes.

All the components are packed in a formfitting foam that can be transferred to a carry case of your choice.

The black SHAPE Compact Quick Handle ARRI Rosette consists of a left- and right-hand articulating arm with rubber handgrip. Each arm features a rosette with an M6 metric screw for attaching the handle to cameras and baseplates with ARRI rosettes. Each handle features two points of articulation actuated with SHAPE's patented quick-lock buttons.

The arms attach via the rosettes allowing you to select the attachment angle. Each arm also has two each 1/4"-20 and 3/8"-16 threaded mounting holes with anti-twist indents for attaching accessories. The quick-lock buttons are located at the articulation points, one towards your baseplate and the other controlling the angle of the rubber handgrip.

Add a monitor or other accessory to your camera or rig with this aluminum Friction Swivel and Tilt Mount from SHAPE. This convenient accessory mounts directly on a shoe mount and allows for the attachment of a full array of video accessories with a 1/4"-20 thread such as a microphone, light, or monitor.

Accessories attach via the 1/4"-20 screw thread on top, and the bottom features a shoe adapter. The shoe mount allows swivel and tilt operation, and the friction design allows the mount to be adjusted by hand. The side screws can be tightened with the included Allen wrench to adjust the friction when mounting heavier loads.

SHAPE Canon C70 Camera Cage Specs
