| ₹ 180940.0 includes GST and import duties. | |
| B2B customers can avail ₹ 27593.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
SHAPE KOMOBR Overview
- 1Description
- 2SHAPE Camera Cage with Top Handle for RED KOMODO
- 3SHAPE Compact Quick Handle ARRI Rosette (Black)
- 4SHAPE Compact Revolt Shoulder Baseplate
- 5SHAPE 15mm Aluminum Rods (Pair, 8")
- 6SHAPE 15mm Aluminum Rods (Pair, 4")

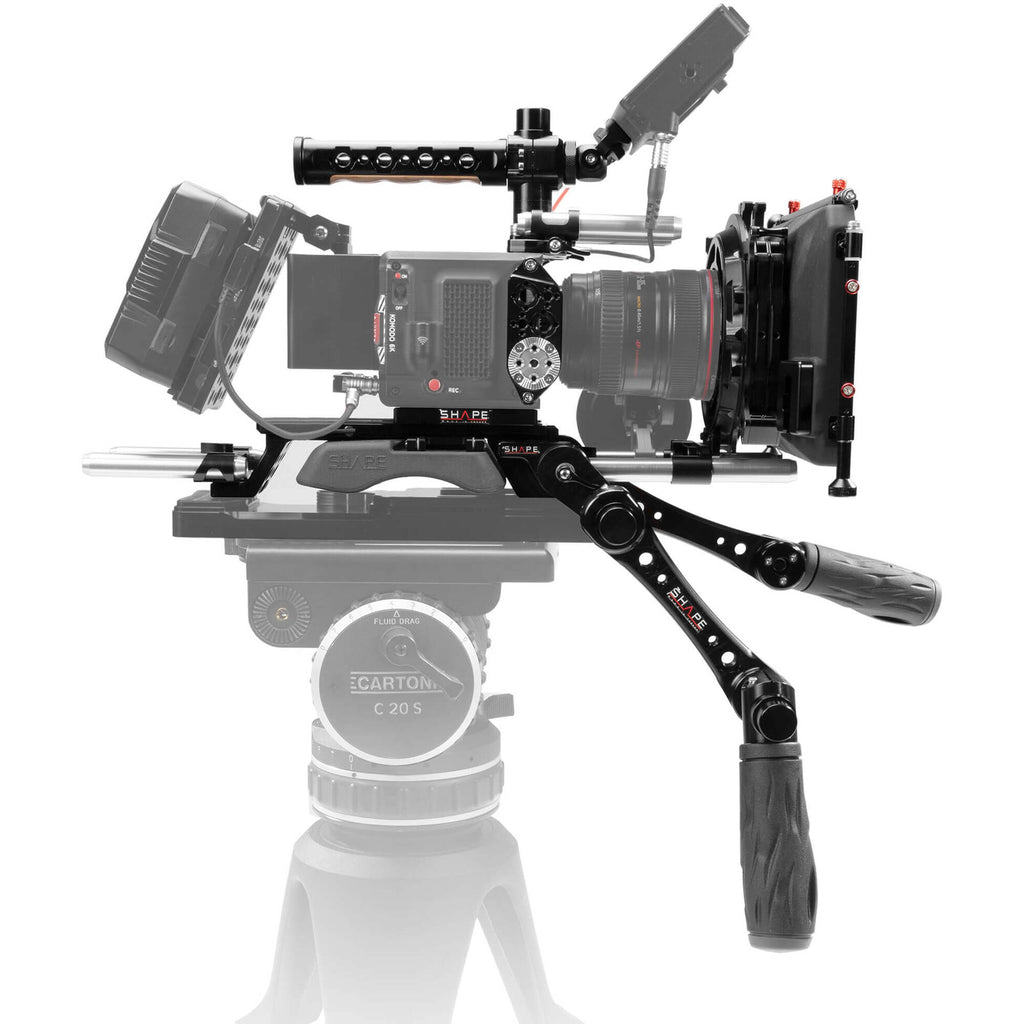

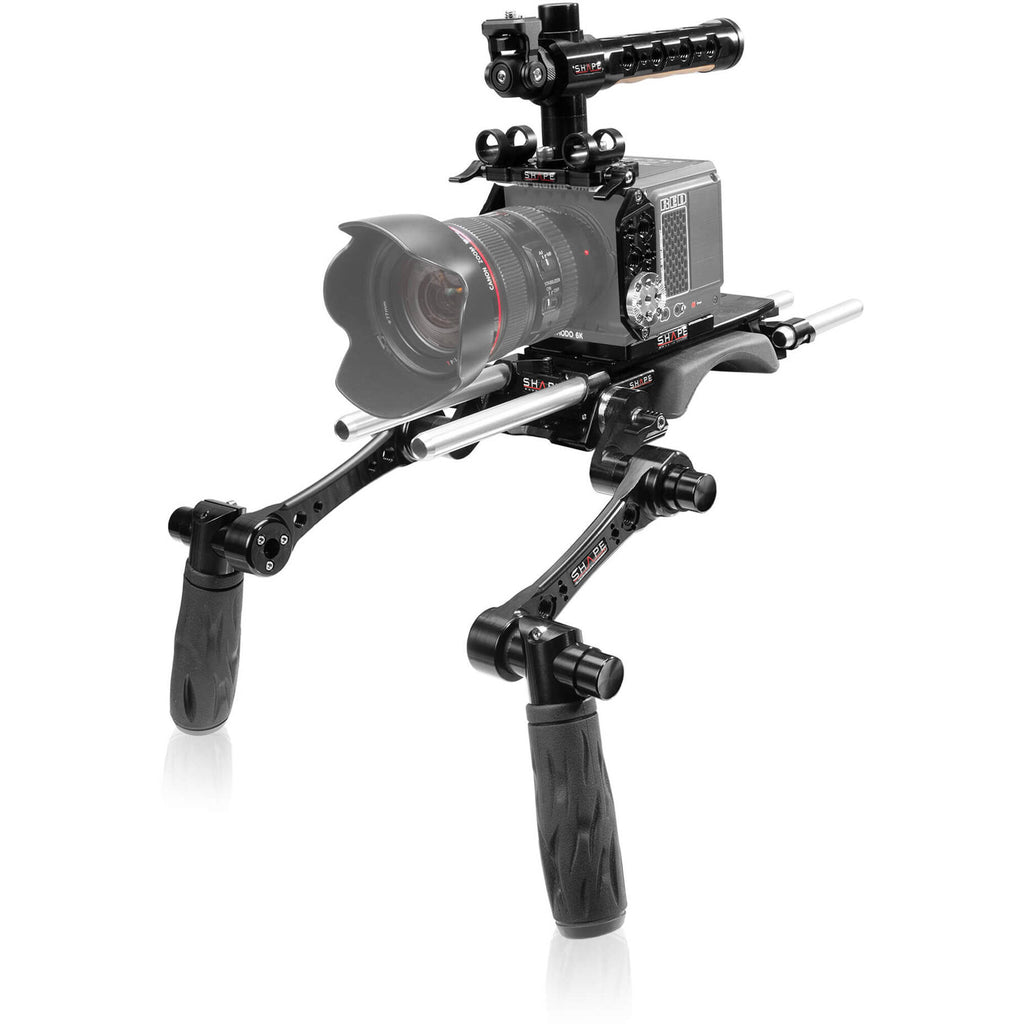

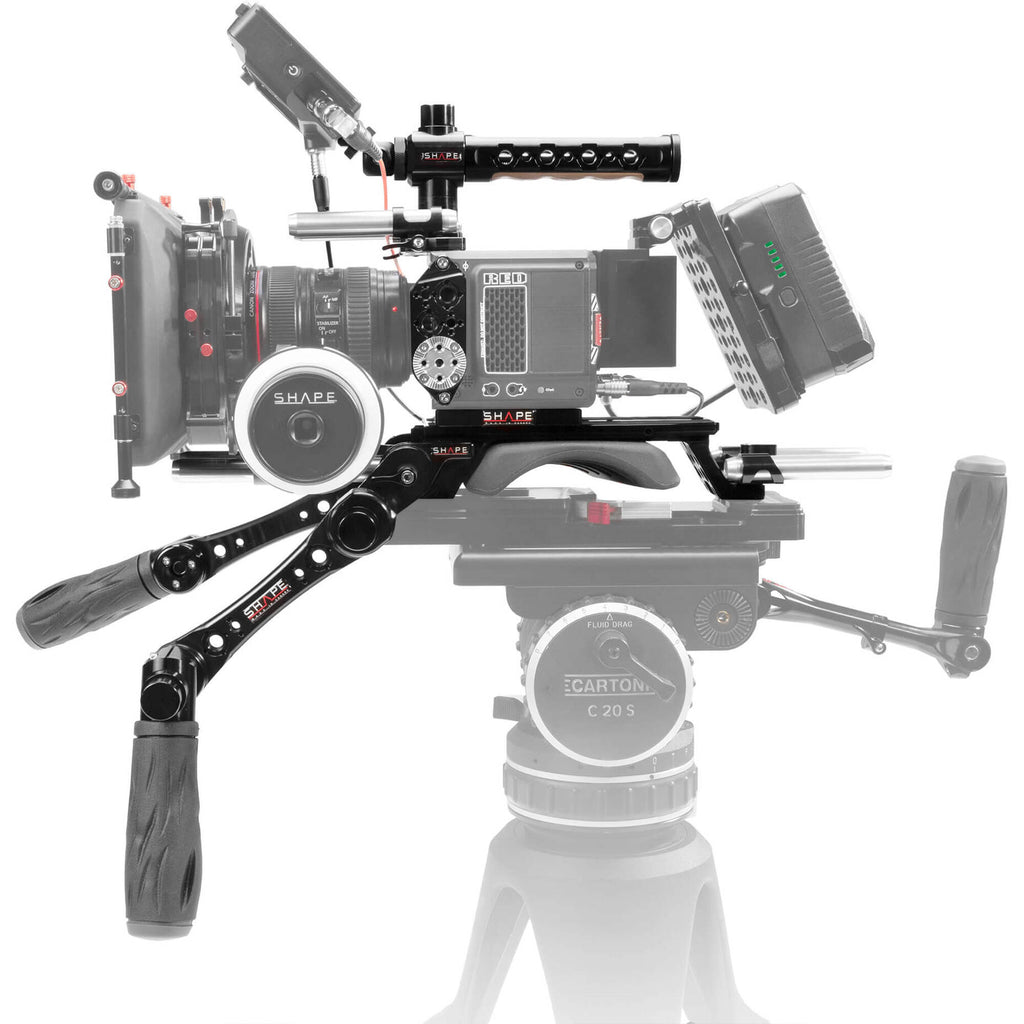

Turn your RED KOMODO cinema camera into an ergonomic shoulder-mounted camera system with this SHAPE Camera Cage, Top Handle & Shoulder Baseplate with Handgrips Kit for RED KOMODO. The cage is the centerpiece, wrapping your camera in an external shell that allows you to attach accessories without straining the camera. The included top handle mounts on the cage, it is easy to adjust, and features multiple 1/4"-20 and 3/8"-16 mounting holes, as well as a tilting bracket suitable for adding accessories.
The Compact Revolt Shoulder Baseplate is designed to take your camera and rig from a tripod with a VCT mounting system (not included) to your shoulder without having to break down your rig. Rounding out this kit and making for comfortable handholding are the left- and right-side handgrips with built-in extensions. These rubber-coated grips feature ARRI-style rosettes that attach to the baseplate and have two points of articulation, using the push-button adjustment system that allows for fast, secure, and one-handed adjustments.
SHAPE Camera Cage with Top Handle for RED KOMODO
Add flexible carrying and improved accessory mounting, while protecting your RED KOMODO cinema camera with this SHAPE Camera Cage with Top Handle for RED KOMODO. The top handle features SHAPE's well-known push-button release system, which is fast, secure, and won't slow down your shoot. The top handle also features a tilting bracket suitable for adding a monitor, light, or even a microphone to your rig, keeping your rig light and compact by avoiding additional accessory mounting equipment.

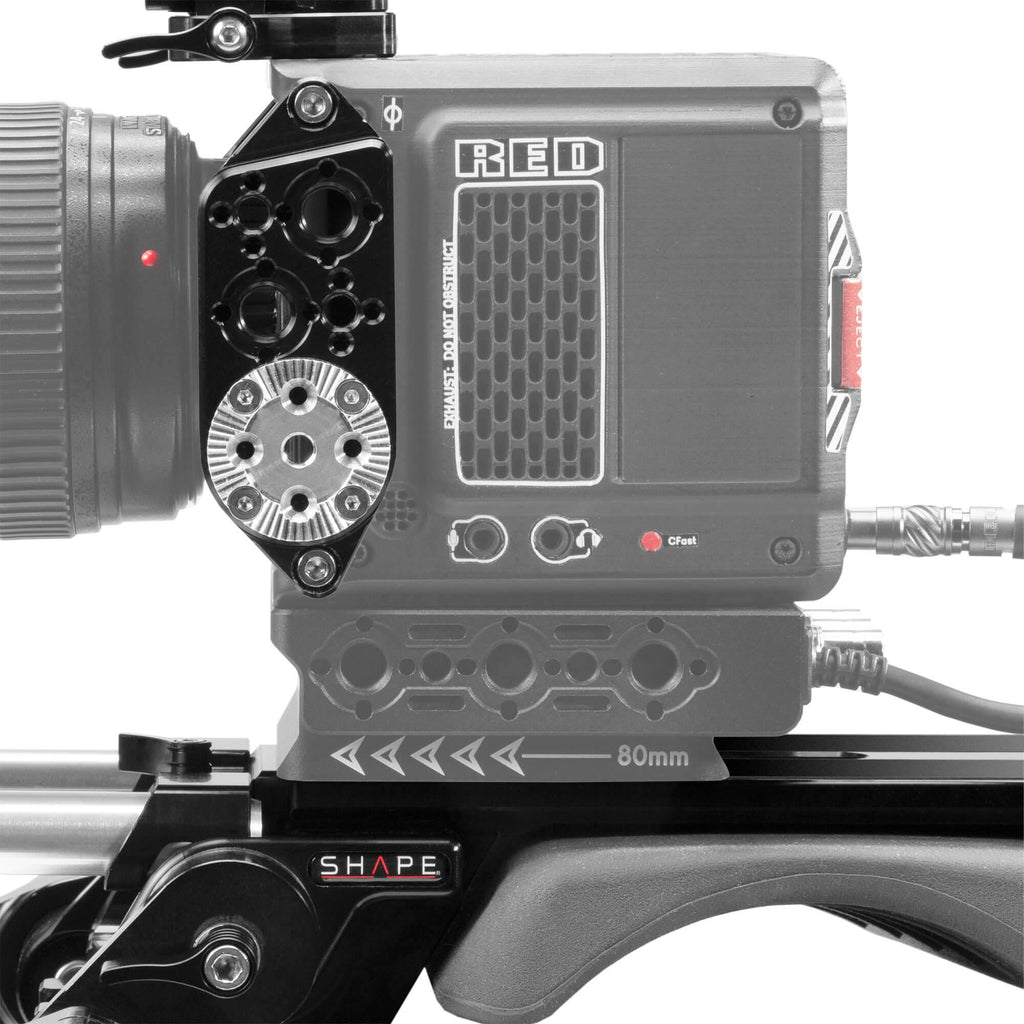

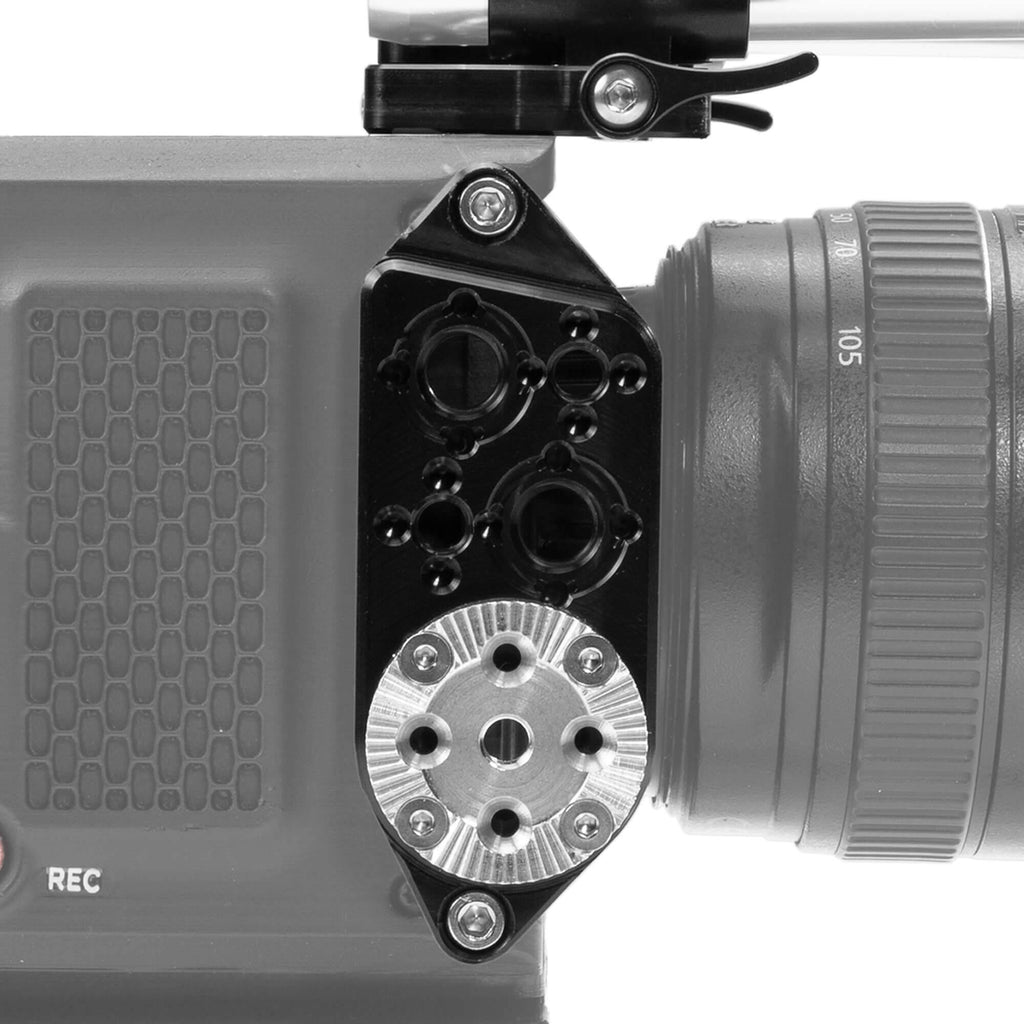

The durable 3-piece cage is built around the top plate that you mount on your KOMODO, and this allows you to mount the side riser panels and the included 15mm rod clamps. Once mounted on your camera, you've created a sturdy external cage that provides accessory mounting holes, as well as ARRI-compatible rosettes on each side for mounting optional grips to help you when handholding the rather boxy camera.
Rod Block
The Top Handle
- Mounts on your cage
- Utilizes the push-button release system that allows you to adjust the orientation using a single hand
- Adjustments can be made on the fly, without stopping the shoot to loosen, adjust, and then tighten levers
- Press the release button, adjust the position, and release the button
- A removable bracket slides into the cold shoe on the front of the top handle and allows you to mount accessories up to 4.4 pounds
- The top handle offers nine 1/4"-20 threaded mounting holes and twelve 3/8"-16 mounting holes with anti-twist divots
- It features aluminum construction with a strip of maple wood for comfort
Cage
Accessorize
Accessory Mounting on the Cage
- Multiple 1/4"-20 accessory mounting threads for attaching a variety of available accessories, such as articulating arms.
- Additional 1/4"-20 and 3/8"-16 threaded holes with ARRI-style anti-twist divots allow you to attach accessories that stay secure and won't unexpectedly twist, which usually happens at the worst moment, ruining the shot.
- Two individual 15mm spring-loaded rod clamps can be mounted on the cage for adding rod-mounted accessories.
Rod Clamps
SHAPE Compact Quick Handle ARRI Rosette (Black)
The black SHAPE Compact Quick Handle ARRI Rosette consists of a left- and right-hand articulating arm with rubber handgrip. Each arm features a rosette with an M6 metric screw for attaching the handle to cameras and baseplates with ARRI rosettes. Each handle features two points of articulation actuated with SHAPE's patented quick-lock buttons.
The arms attach via the rosettes allowing you to select the attachment angle. Each arm also has two each 1/4"-20 and 3/8"-16 threaded mounting holes with anti-twist indents for attaching accessories. The quick-lock buttons are located at the articulation points, one towards your baseplate and the other controlling the angle of the rubber handgrip.

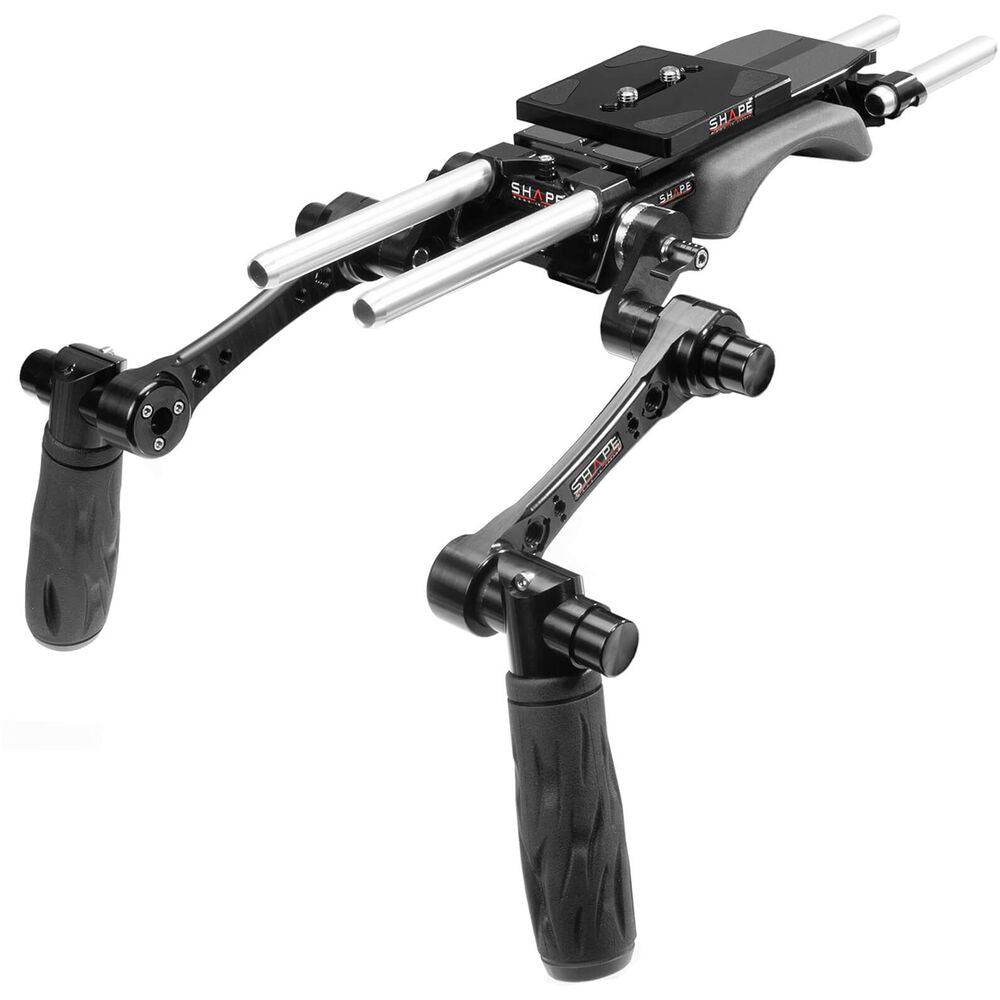

SHAPE Compact Revolt Shoulder Baseplate
The SHAPE Compact Revolt Shoulder Baseplate is a lightweight baseplate suitable for use by neophytes and professionals alike. Made from CNC-machined aluminum, the baseplate is made to withstand the rigors of the production day. The shoulder pad allows it to sit comfortably on your shoulder. The top of the baseplate features two rubber strips to protect your camera. It incorporates two ARRI-compatible rosettes for attaching handle accessories. The top of the baseplate features a 3.5"-long slot that enables adjusting your camera's position for balance adjustments.
Front and rear 15mm LWS rod clamps enable you to mount the included 8 and 4" pairs of rods to support you lens accessories in front, and power/monitoring accessories in the rear. An included 3mm Allen Key allows you to adjust the rod clamps, and the rear rod clamp is removable and attaches to the Revolt Shoulder Baseplate by two M4 screws. On the bottom of the baseplate is a V-lock plate that is compatible with most VCT baseplates. The V-lock plate has both a 1/4"-20 and 3/8"-16 threaded mounting hole.
SHAPE 15mm Aluminum Rods (Pair, 8")
This pair of Shape 15mm Aluminum Rods (8") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 8 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.
SHAPE 15mm Aluminum Rods (Pair, 4")
This pair of Shape 15mm Aluminum Rods (4") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.
In the Box
- SHAPE Camera Cage with Top Handle for RED KOMODO
- Top Handle with Tilting Bracket
- Top Plate
- 2 x Side Riser Plate with ARRI Rosette
- 2 x SHAPE 15mm LW Clamp for Top Handle Grip
- 2 x 1/4"-20 Socket Head Cap Screw
- 4 x M4 Screw
- 3mm Allen Key
- 3/16" Allen Key
- Limited Lifetime Warranty
- SHAPE Compact Quick Handle ARRI Rosette (Black)
- 2 x Quick Handle Rosette
- 2 x M6 Metric Screw
- Limited Lifetime Warranty
- SHAPE Compact Revolt Shoulder Baseplate
- SHAPE Replacement Pad for REVOLT VCT Universal Baseplate
- SHAPE 15mm Aluminum Rods (Pair, 8")
- SHAPE 15mm Aluminum Rods (Pair, 4")
- 2 x 1/4"-20 Screw
- 2 x 3/8"-16 Screw
- 3mm Allen Wrench
- Limited Lifetime Warranty
- SHAPE 15mm Aluminum Rods (Pair, 8")
- Limited Lifetime Warranty
- SHAPE 15mm Aluminum Rods (Pair, 4")
- Limited Lifetime Warranty
- Description
- SHAPE Camera Cage with Top Handle for RED KOMODO
- SHAPE Compact Quick Handle ARRI Rosette (Black)
- SHAPE Compact Revolt Shoulder Baseplate
- SHAPE 15mm Aluminum Rods (Pair, 8")
- SHAPE 15mm Aluminum Rods (Pair, 4")
SHAPE Camera Cage with Top Handle for RED KOMODO Specs
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | Cage, Top: 9 x 1/4"-20 Thread, 4 x Anti-Twist 1/4"-20 Thread, 1 x Anti-Twist 3/8"-16 Thread Cage, Sides: 4 x Anti-Twist 1/4"-20 Thread, 4 x Anti-Twist 3/8"-16 Thread Top Handle, Top: 3 x 1/4"-20 Thread, 4 x Anti-Twist 3/8"-16 Thread Top Handle, Sides: 6 x 1/4"-20 Thread, 8 x ARRI Anti-Twist 3/8"-16 Thread |
| Rod Ports | 2 x 15 mm Rod Port |
| Shoe Mounting | Top Handle, Front: 1 x Cold Shoe |
| Rosettes | Cage, Sides: 2 x ARRI Rosette w/ M6 Thread |
| Support Type | Cage |
| Grip Type | Topside Handgrip |
| Camera Compatibility | RED KOMODO |
| Construction | Aluminum, Wood |
| Dimensions | 7.6 x 7.2 x 4.4" / 19.3 x 18.3 x 11.2 cm |
| Weight | 1.38 lb / 0.63 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 177321.2 |
| 3-5 | ₹ 175511.8 |
| 5-10 | ₹ 171893.0 |
| 10+ | ₹ 168274.2 |
Bulk discount will be automatically applied during checkout based on quantity.
