SHAPE Camera Cage Kit with Baseplate, Top Handle & EVF Mount for Sony PXW-FX9

Lightweight Cage for Sony PXW-FX9

1/4"-20 & 3/8"-16 Mounting Threads

15mm Rods, Top Handle, EVF Mount

Bottom Threads to Mount on Tripod or Rig

SHAPE - Sony FX9 Cage - FX9CAGE

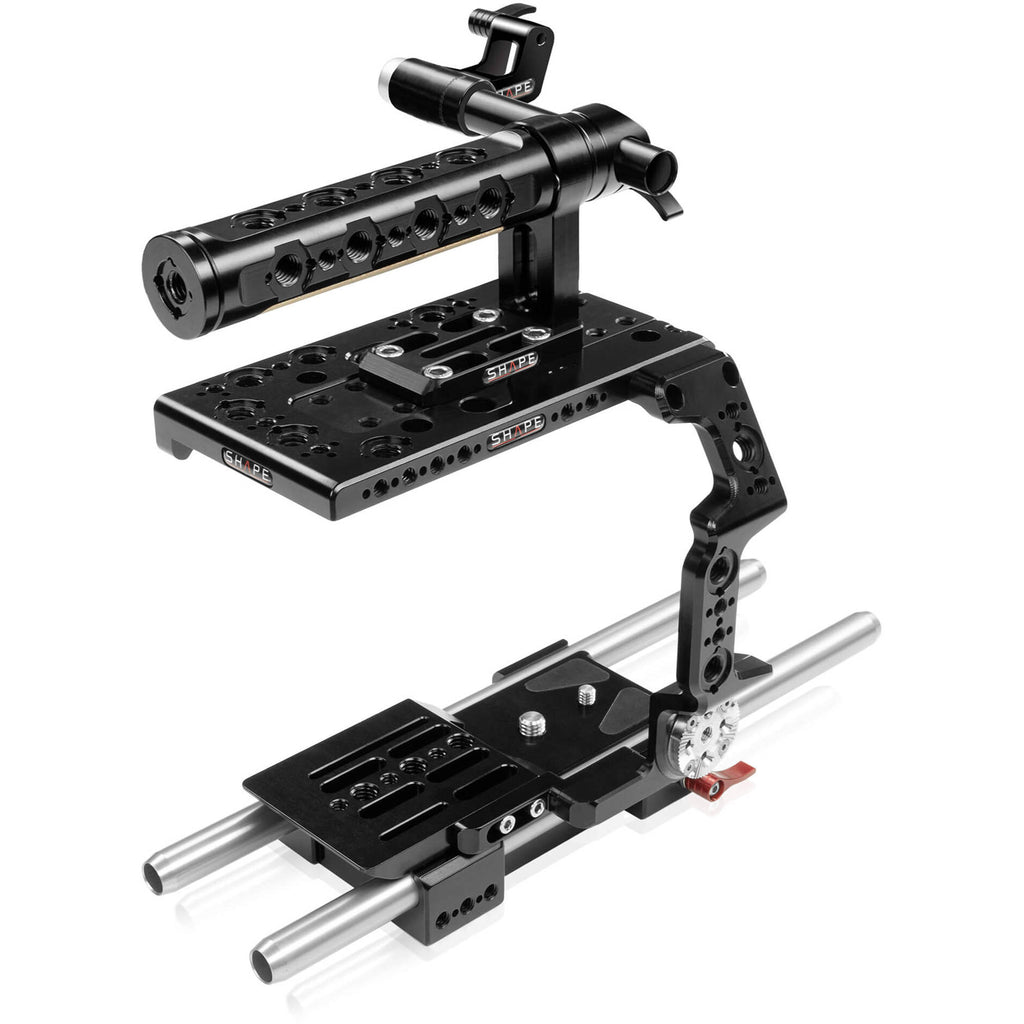

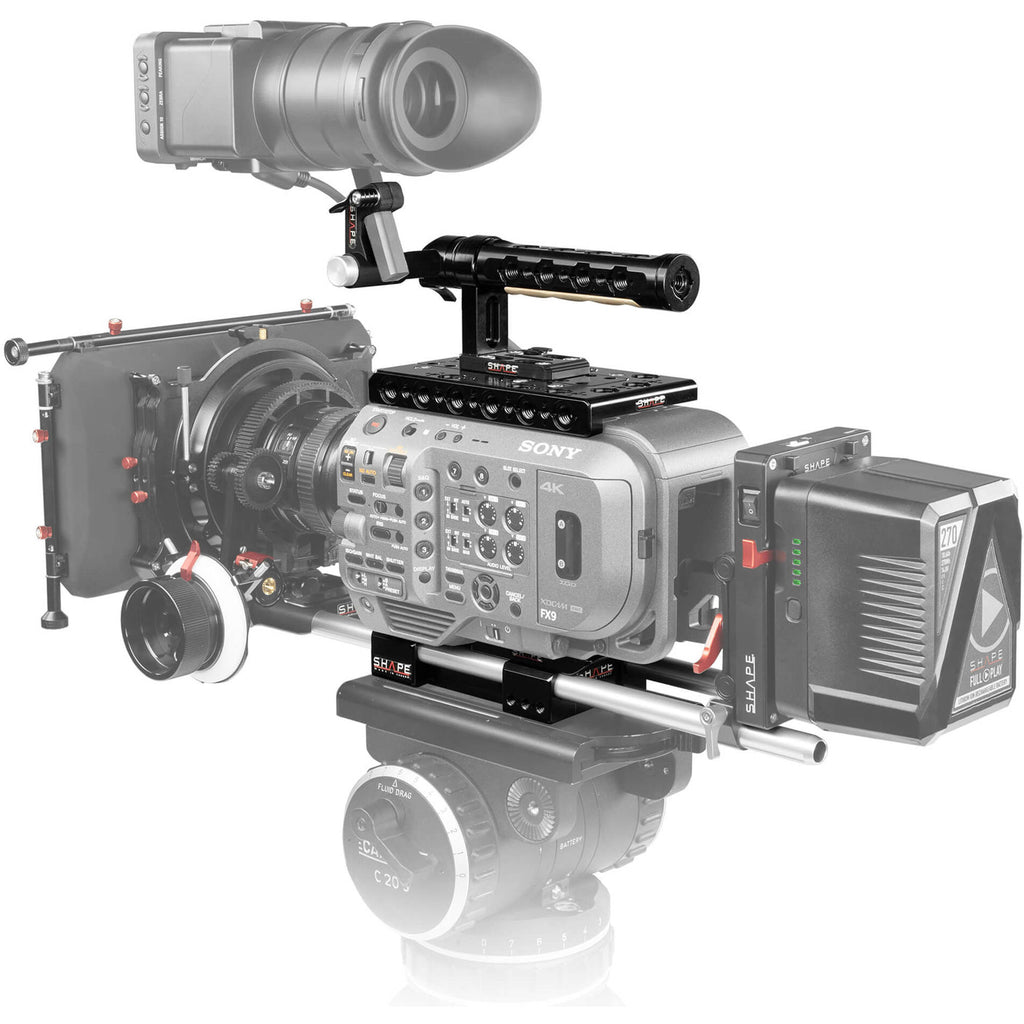

This Camera Cage Kit with Baseplate, Top Handle & EVF Mount from SHAPE is designed to support the Sony PXW-FX9 camera. The kit includes a camera cage, a baseplate, a pair of 15mm rods, a top handle, and an EVF mount.

The aluminum cage and baseplate feature 1/4"-20, 3/8"-16, and ARRI-style accessory threads to secure your camera and accessories, and the cage also features a rosette for a handle or extension arm. The cheese-style top handle features multiple accessory threads, and the EVF mount attaches to the front of the top handle. The baseplate includes a pair of 15mm rods that are 12" long and insert through the length of the baseplate, and they're secured with a locking thumbscrew.

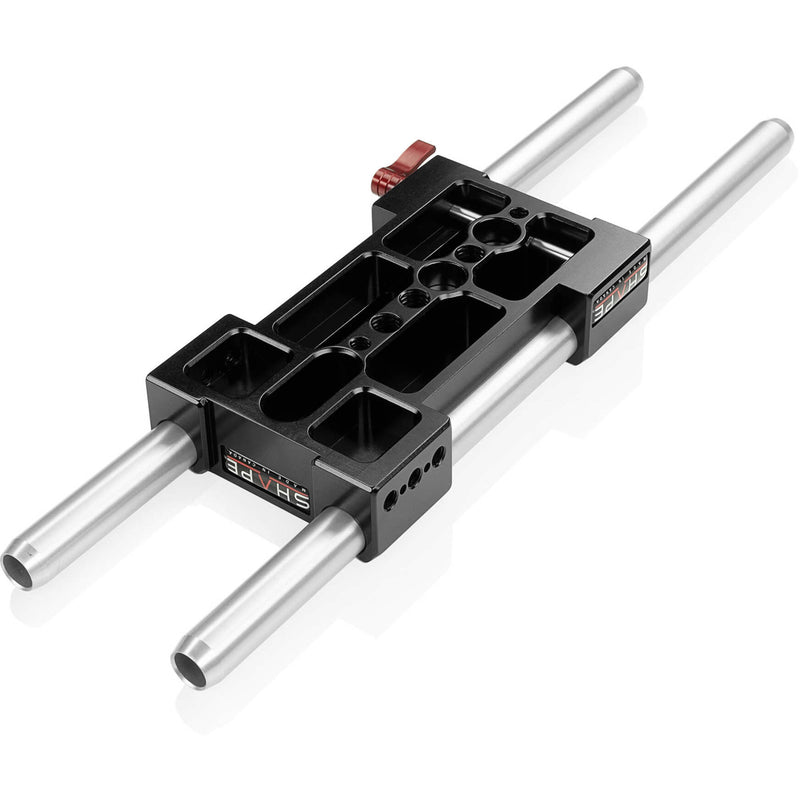

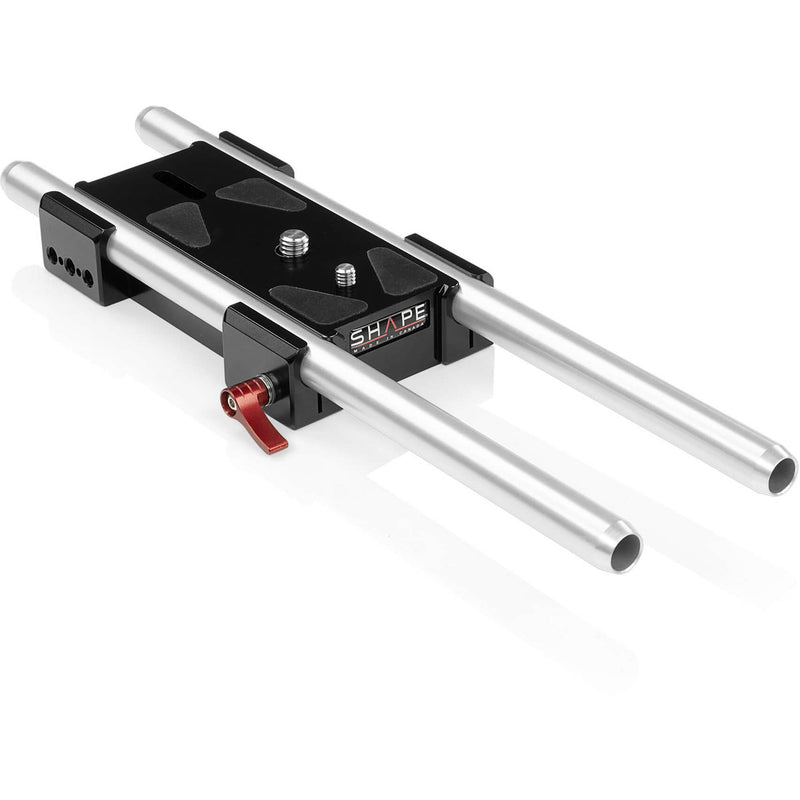

SHAPE 15mm Lightweight Baseplate for Sony PXW-FX9

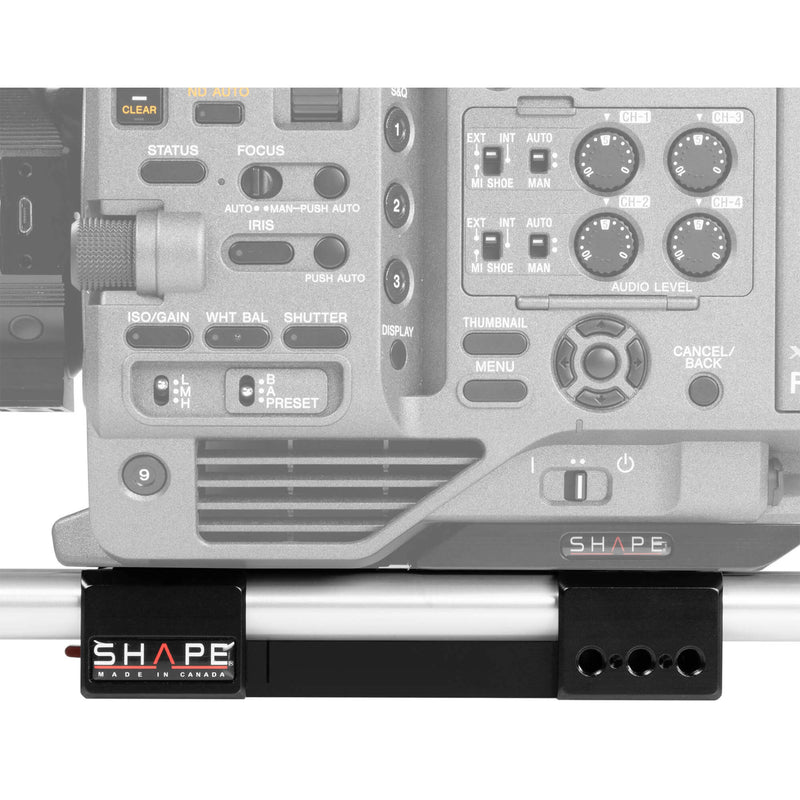

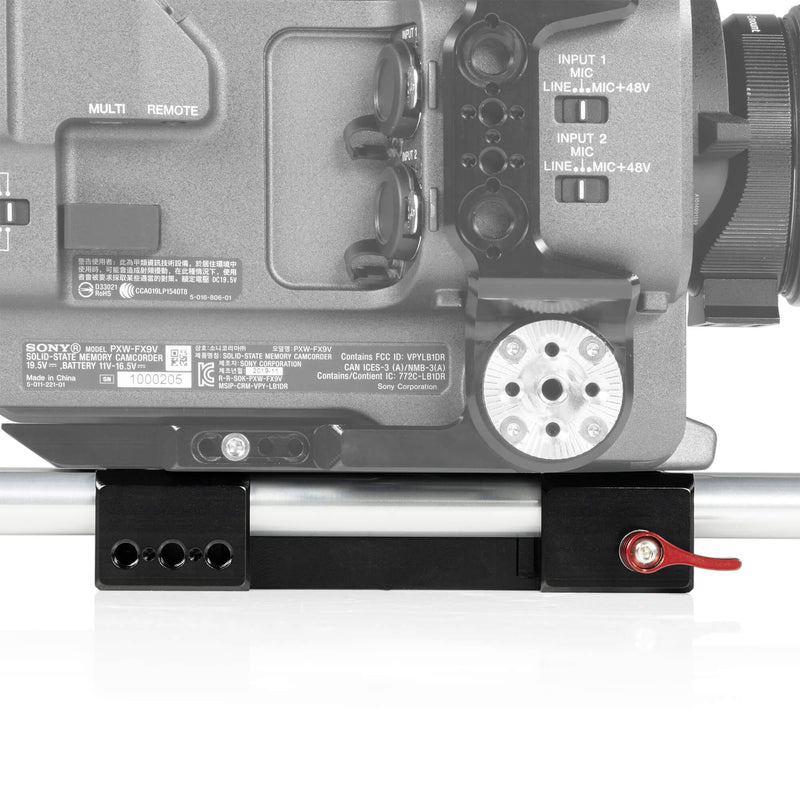

This 15mm Lightweight Baseplate from SHAPE is designed to support the Sony PXW-FX9 camera. The aluminum baseplate features 1/4"-20 and 3/8"-16 screws to secure your camera to the plate, and there are mounting holes underneath to mount the baseplate on a plate or tripod.

The baseplate includes a pair of 12" 15mm rods that insert through the length of the baseplate and are secured with a locking thumbscrew. There are rubber pads on the top of the plate to protect your camera from scratches and prevent twisting.

Attaches underneath the camera via 3/8"-16 and 1/4"-20 screws Locking thumbscrews to reposition the 15mm rods Four rubber pads at the top of the base protect and securely hold your FX9 camera Multiple threaded holes to mount baseplate on a tripod, shoulder rig, gimbal, or drone UPC: 629266009895 SHAPE Camera Cage for Sony FX9 Camera

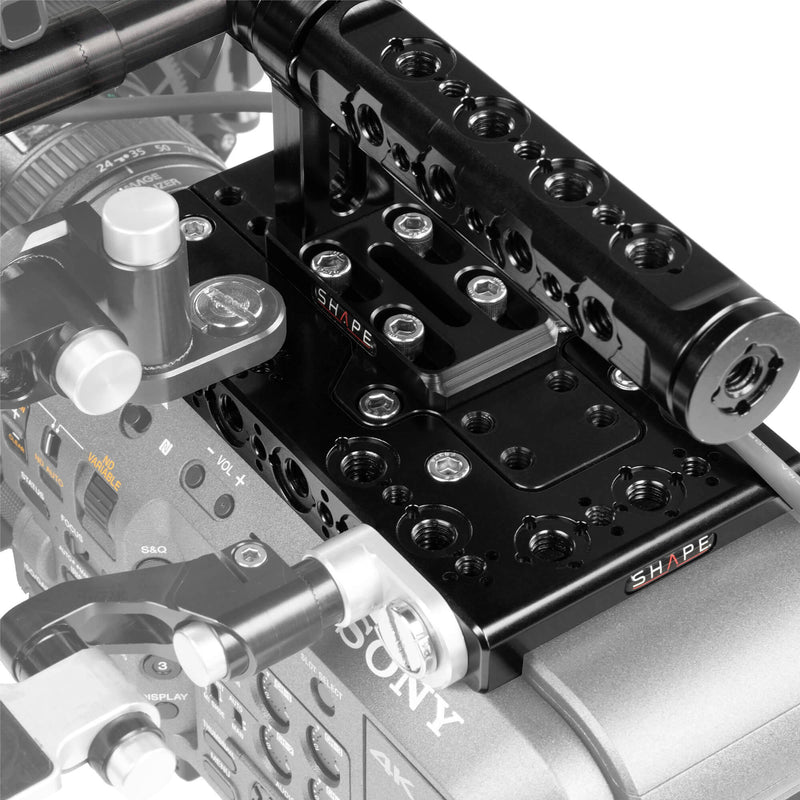

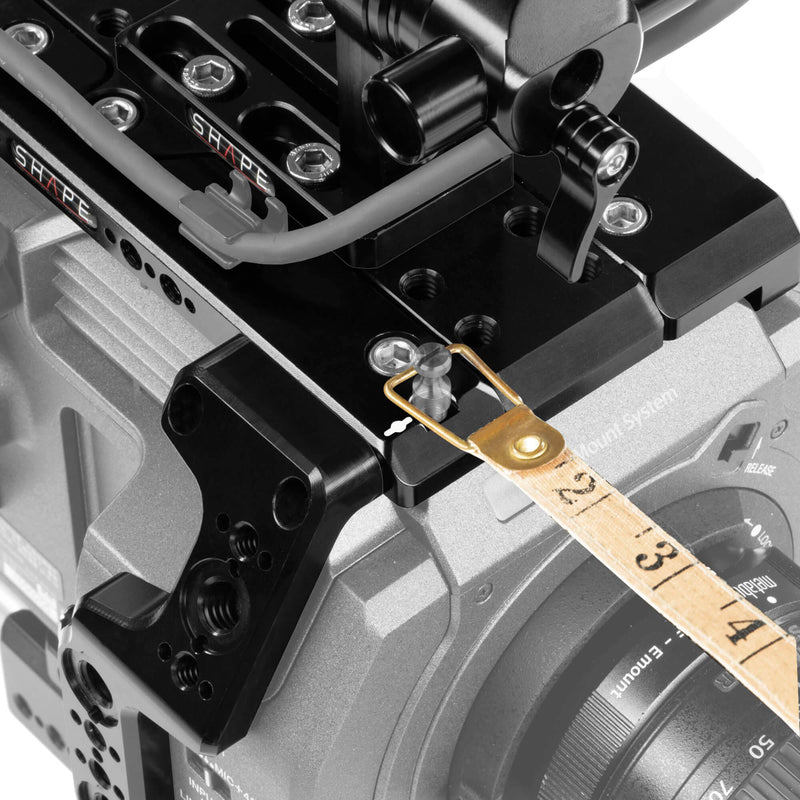

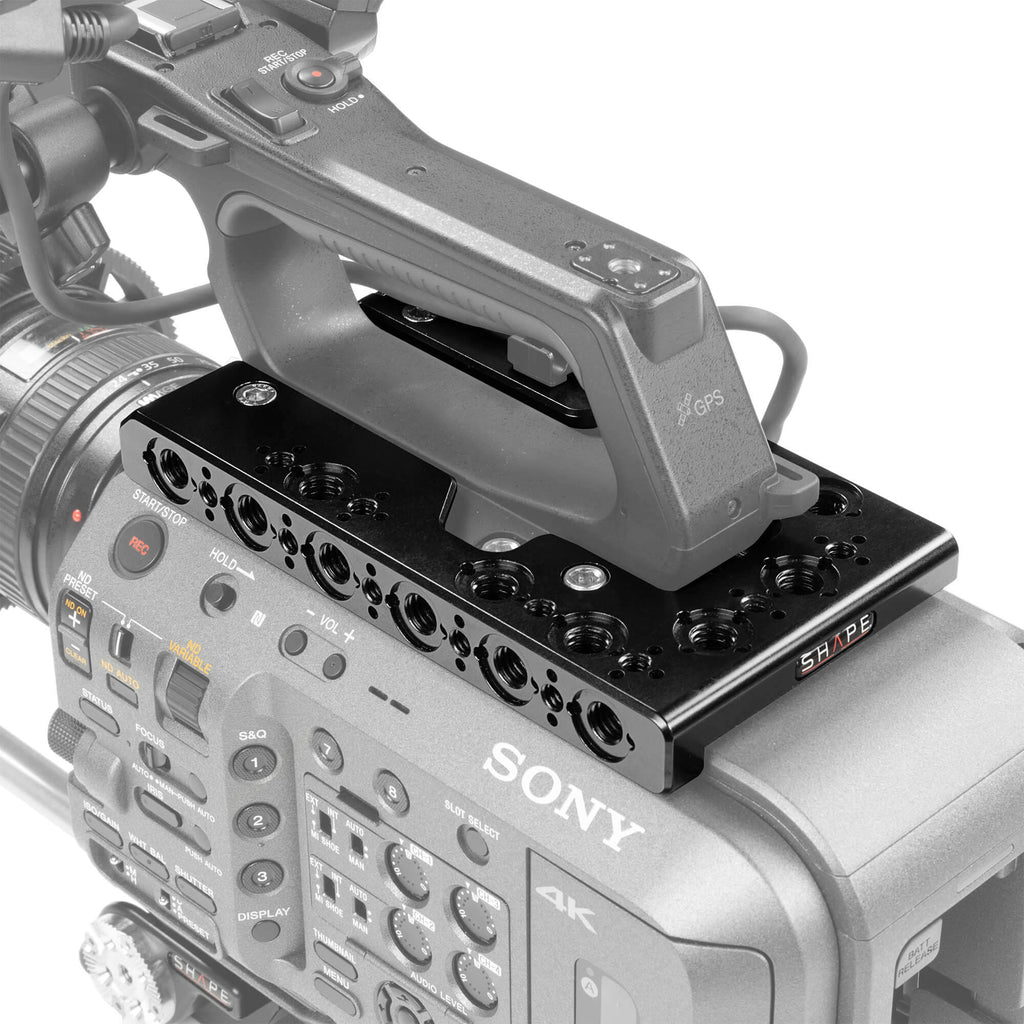

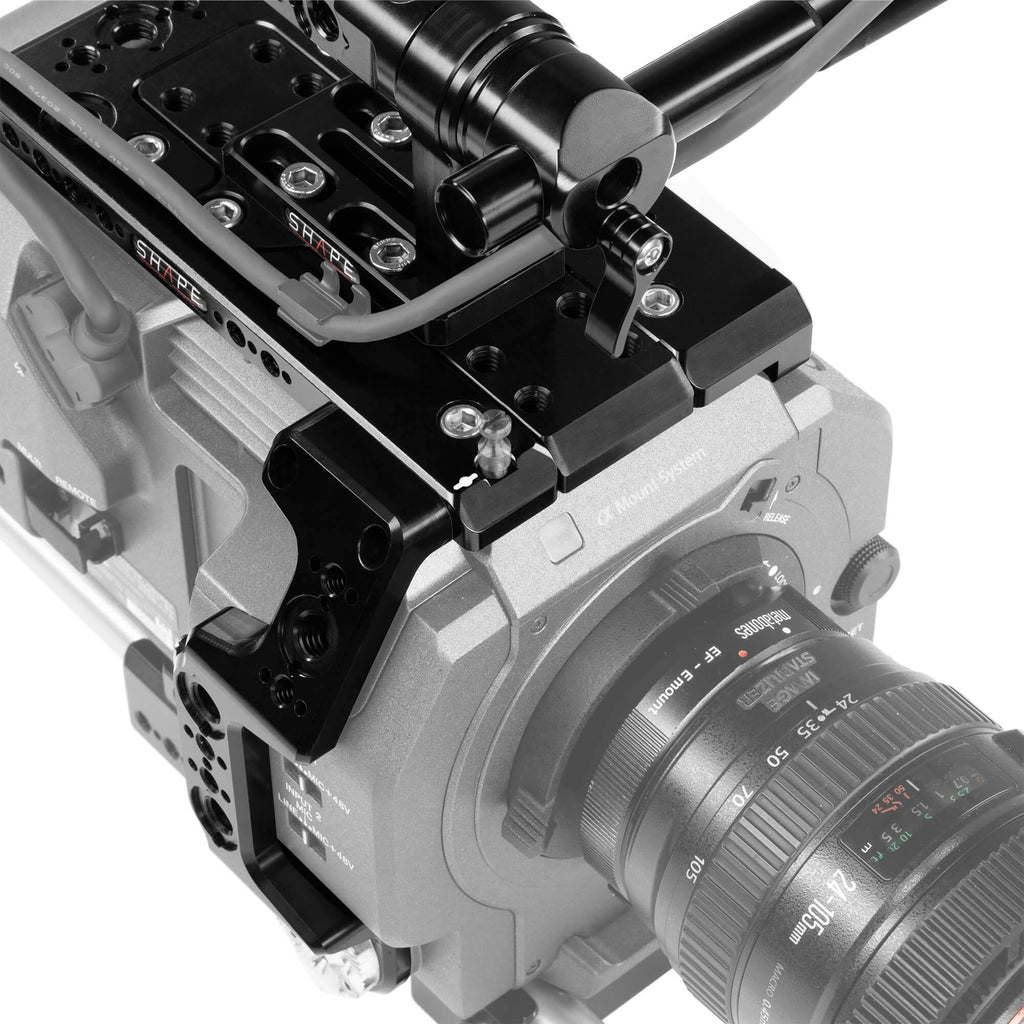

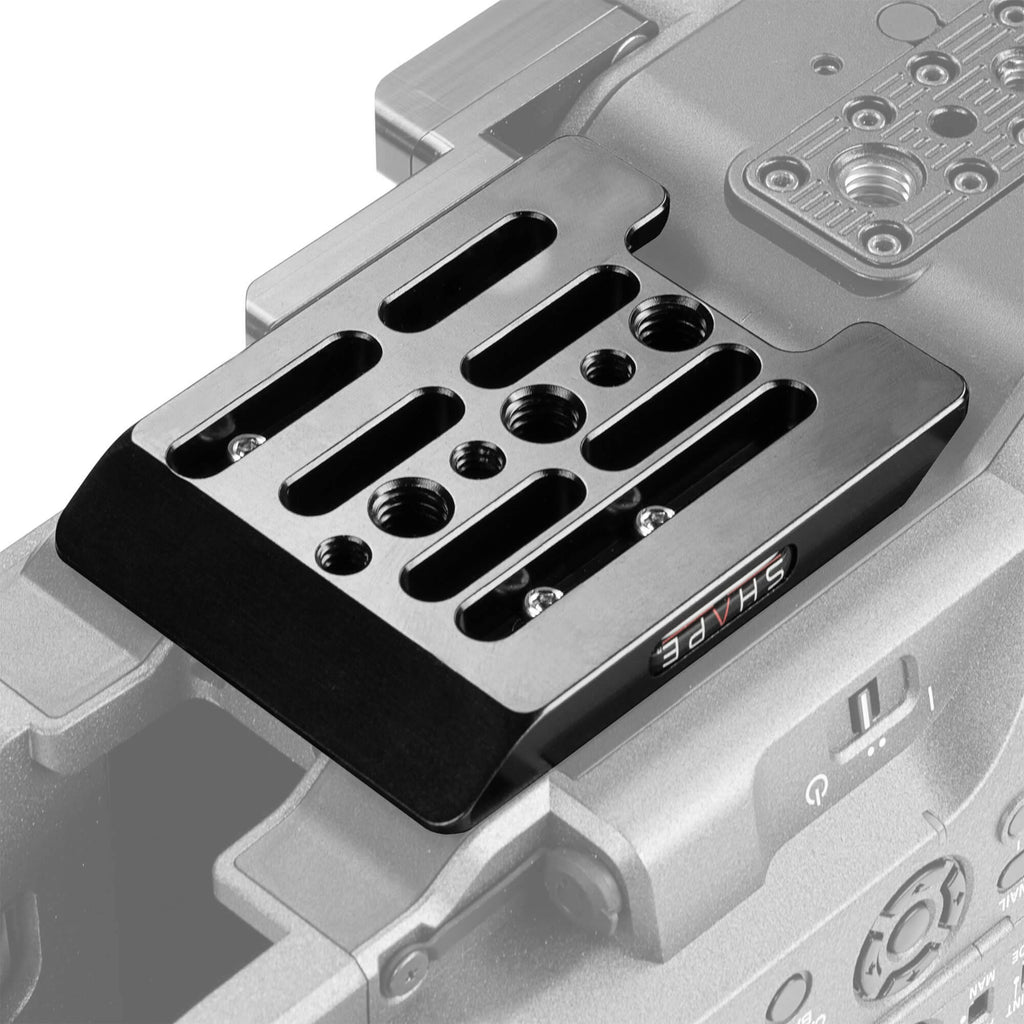

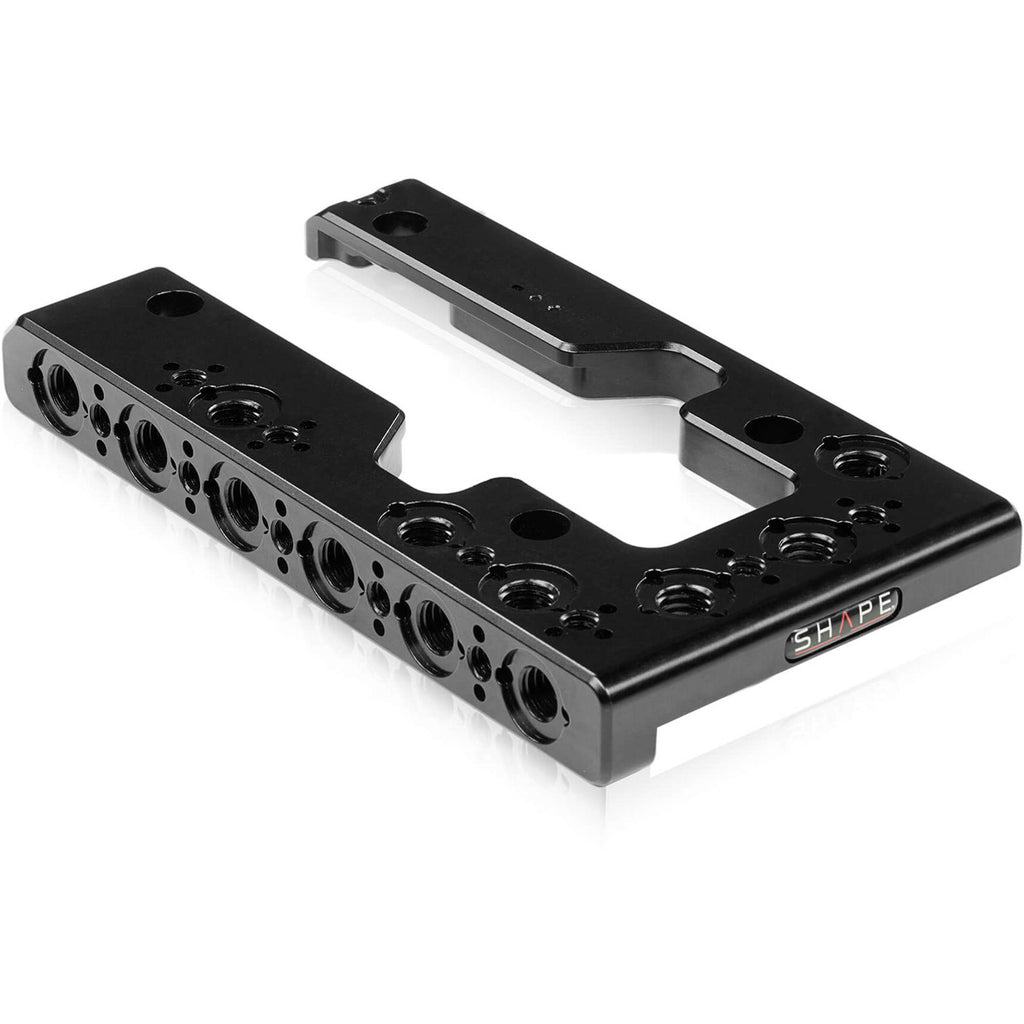

Add accessories to your Sony PXW-FX9 camera with this Camera Cage from SHAPE . It features a cheese-style top plate, side rail, and baseplate. The FX9 mounts onto the cage using the baseplate and top plate with integrated mounting screws.

The cage incorporates 1/4"-20 and 3/8"-16 threaded mounting holes ARRI-style accessory threads, and an ARRI-style rosette for a separately available handle or an extension arm.

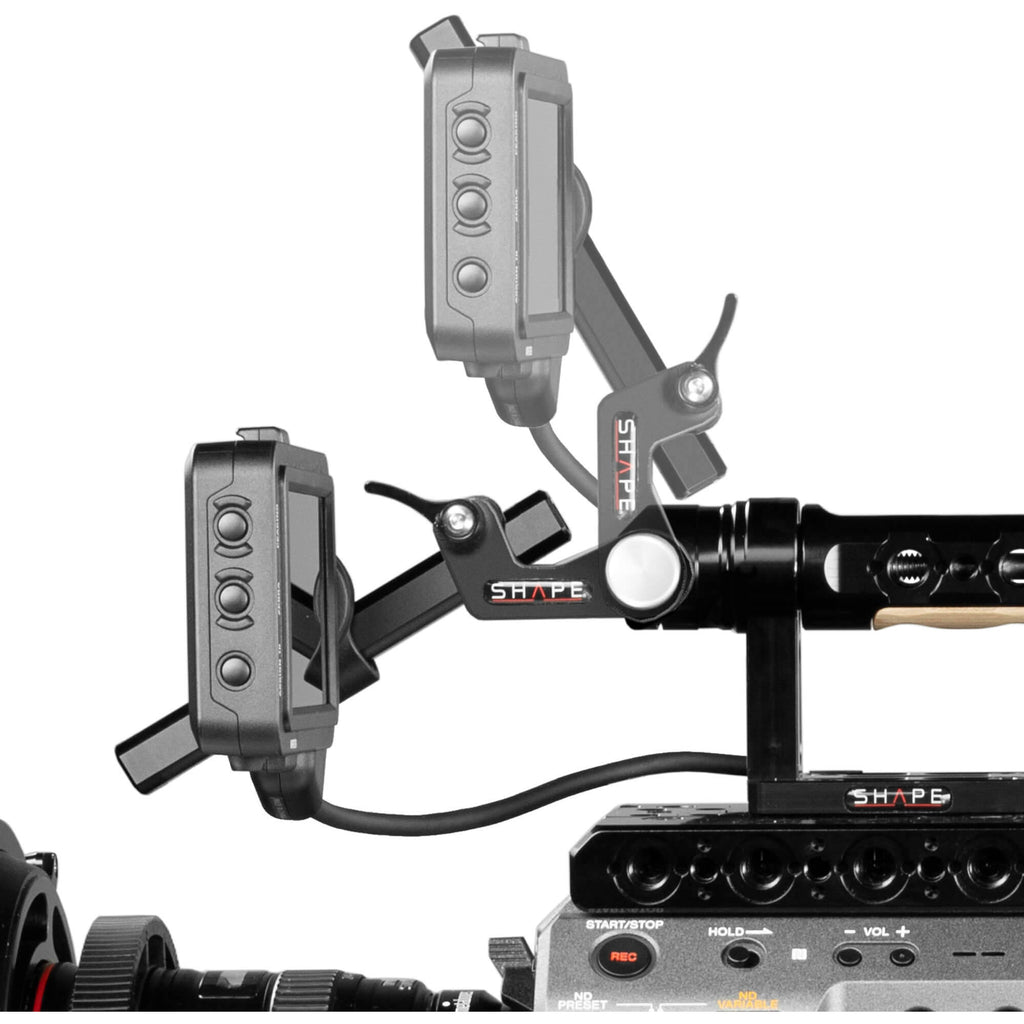

UPC: 629266009819 SHAPE Push-Button Viewfinder Mount for Sony FX9 Camera

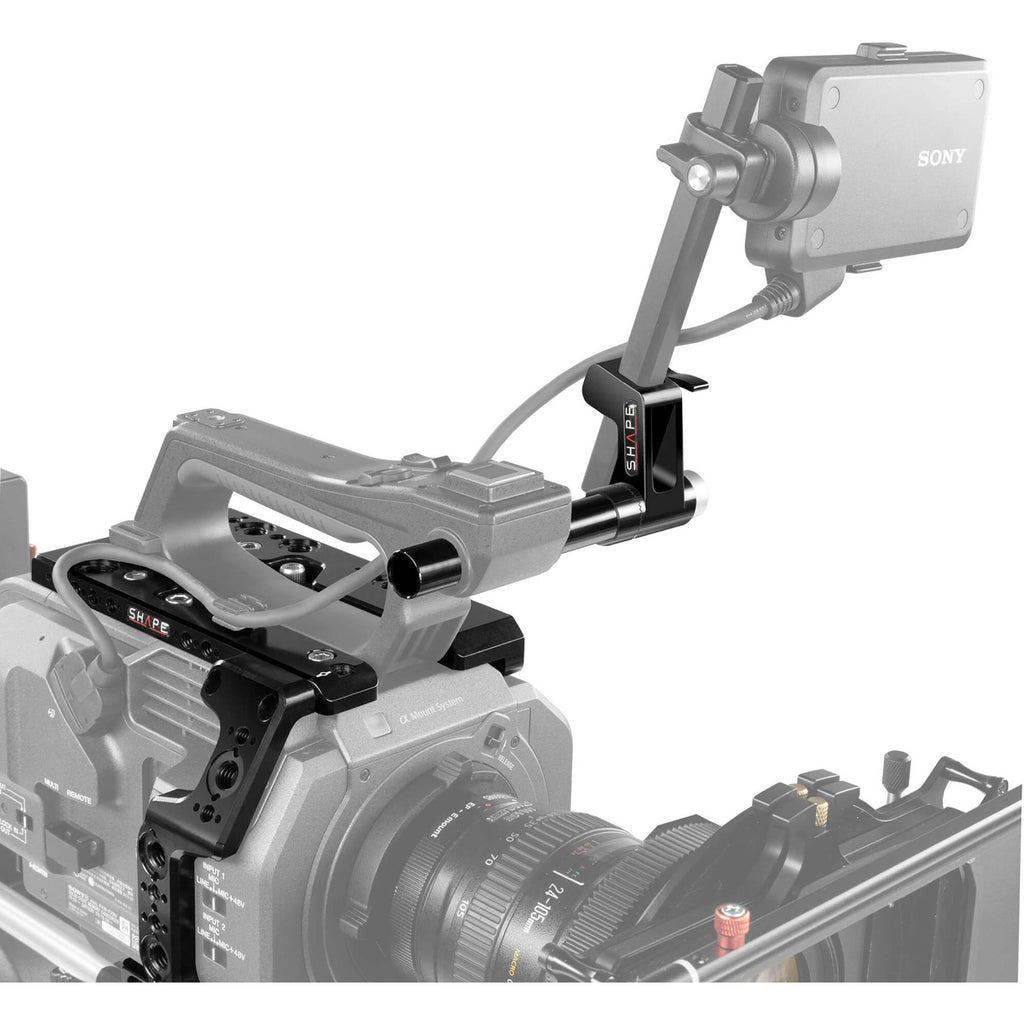

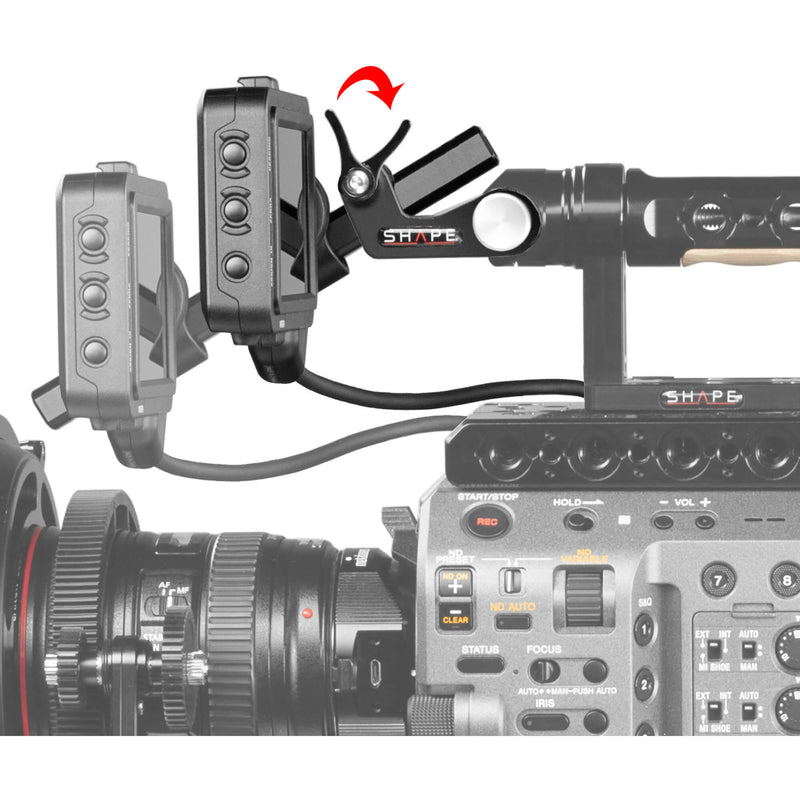

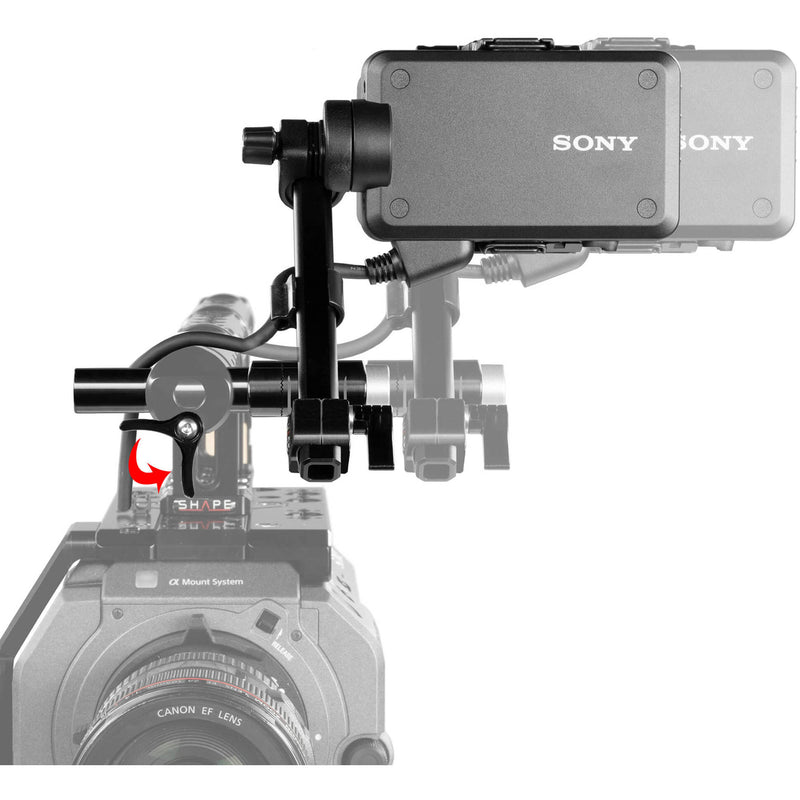

The SHAPE Push-Button Viewfinder Mount for Sony FX9 Camera is designed to work seamlessly with your FX9 and in conjunction with the LCD viewfinder and support rods included with the camera. CNC-machined from aluminum for a balance between strength and weight, the Push-Button Viewfinder Mount features two points of articulation, SHAPE's push-button release system, and a spring-loaded locking lever for adjusting your viewfinder. The push button is approximately three-quarters of an inch in diameter, for your comfort.

The Push-Button Viewfinder Mount is designed with a 15mm rod that incorporates a large push-button release for forward and backward articulation. It provides a spring-loaded locking lever that allows you to adjust the vertical height of the LCD viewfinder. Pressing the push-button release, you can rotate the viewfinder 360°, allowing you to place the viewfinder in the most comfortable position for your use.

The viewfinder mount incorporates a 15mm mounting rod that interfaces with the top handle of the FX9 camera It features a spring-loaded locking lever that accepts the square viewfinder mounting rod that comes with your camera UPC: 629266009918

Support Type	Baseplate
Grip Type	None
Camera Compatibility	Sony PXW-FX9

Rod Standard	15 mm LWS / 60 mm Spacing
Included Rods	2 x 12" / 30.48 cm 15 mm Rod
Accessory Mounting	Base: 2 x 1/4"-20 Thread, 3 x 3/8"-16 Thread
Camera Mounting	1/4"-20 Screw, 3/8"-16 Screw
Tripod Mounting	1/4"-20 Thread, 3/8"-16 Thread
Rosettes	None

Construction	Aluminum, Rubber
Dimensions	Not Specified by Manufacturer
Weight	1.12 lb / 510 g

Package Weight	1.415 lb
Box Dimensions (LxWxH)	12.7 x 4.3 x 2.3"

Accessory Mounting	Top: 6 x ARRI Anti-Twist 3/8"-16 Thread, 5 x Anti-Twist 1/4"-20 Thread, 1 x 1/4"-20 Thread Side: 6 x ARRI Anti-Twist 3/8"-16 Thread, 5 x Anti-Twist 1/4"-20 Thread, 6 x Anti-Twist 3/8"-16 Thread Base: 3 x 3/8"-16 Thread, 3 x 1/4"-20 Thread
Tripod Mounting	1/4"-20 Thread, 3/8"-16 Thread
Rosettes	Side: 1 x ARRI Rosette w/ M6 Thread

Support Type	Cage
Grip Type	None
Camera Compatibility	Sony PXW-FX9
Construction	Aluminum
Dimensions	Not Specified by Manufacturer
Weight	1.17 lb / 530 g

Package Weight	1.365 lb
Box Dimensions (LxWxH)	9.7 x 4.4 x 3.4"

Material of Construction	CNC-Machined Aluminum
Dimensions	5.13 x 2 x 1" / 13.03 x 5.08 x 2.54 cm
Weight	2.82 oz / 80 g

Package Weight	0.195 lb
Box Dimensions (LxWxH)	11.1 x 7.15 x 1.95"
