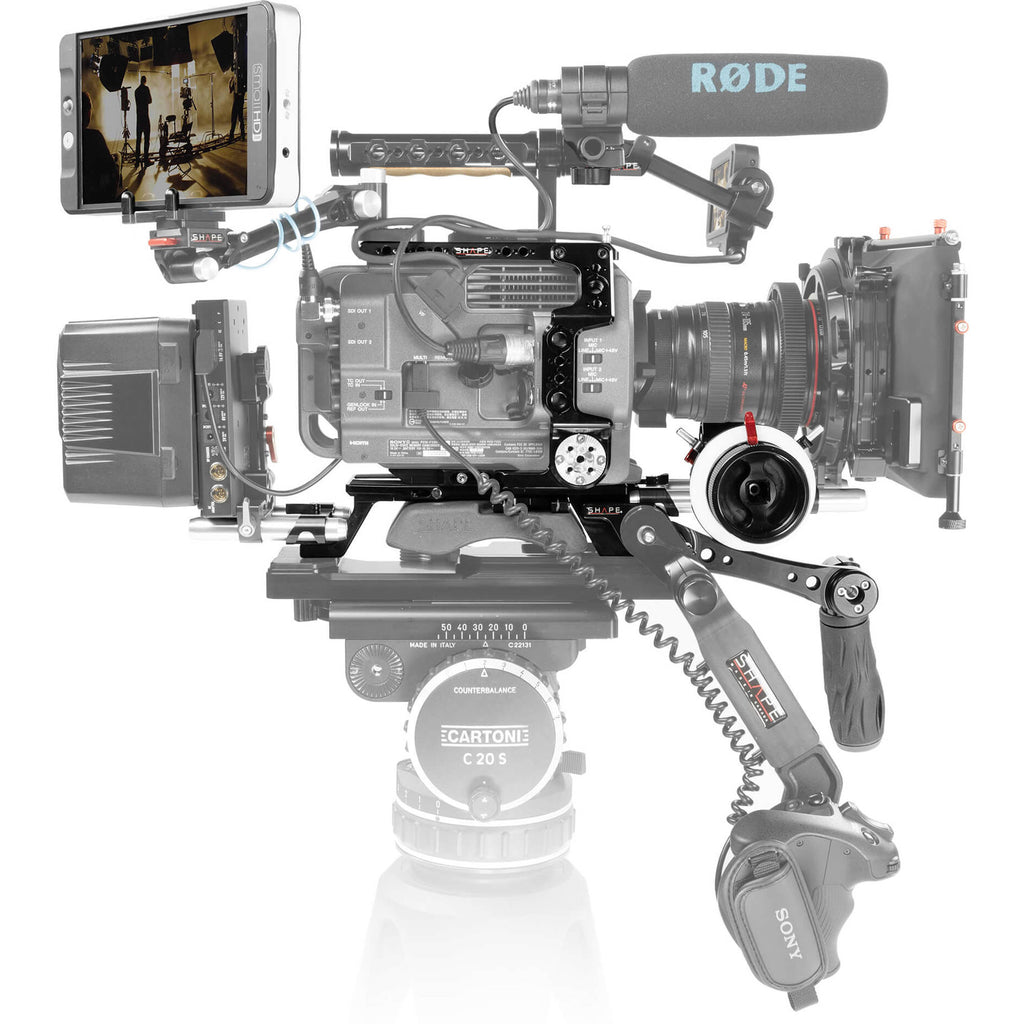

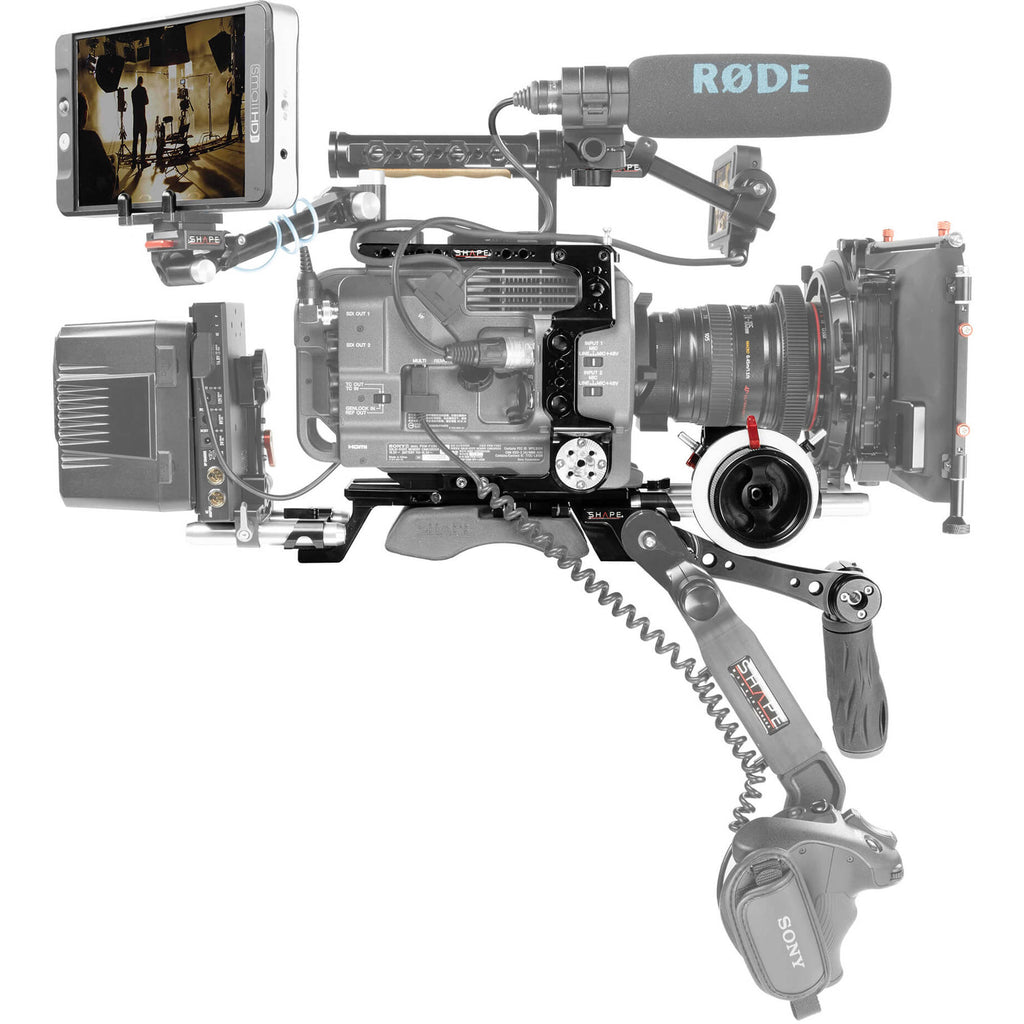

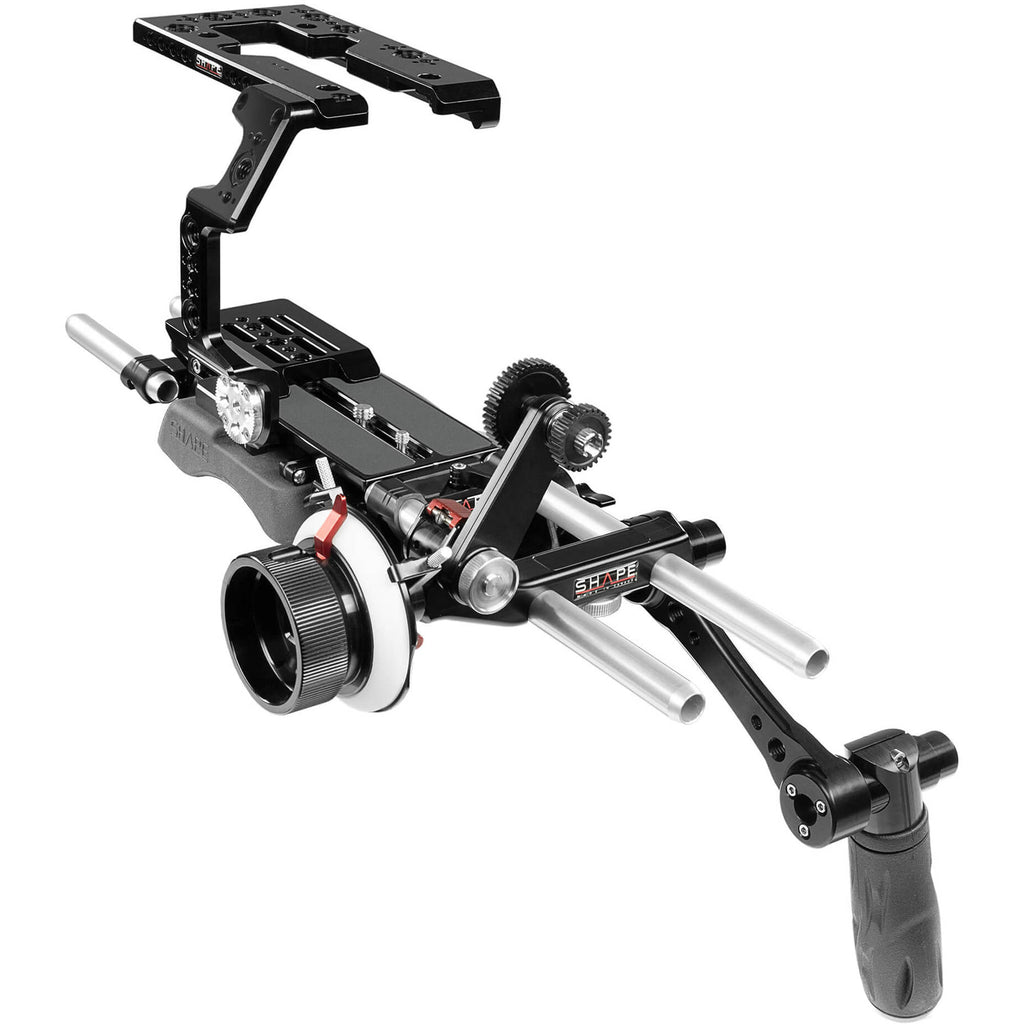

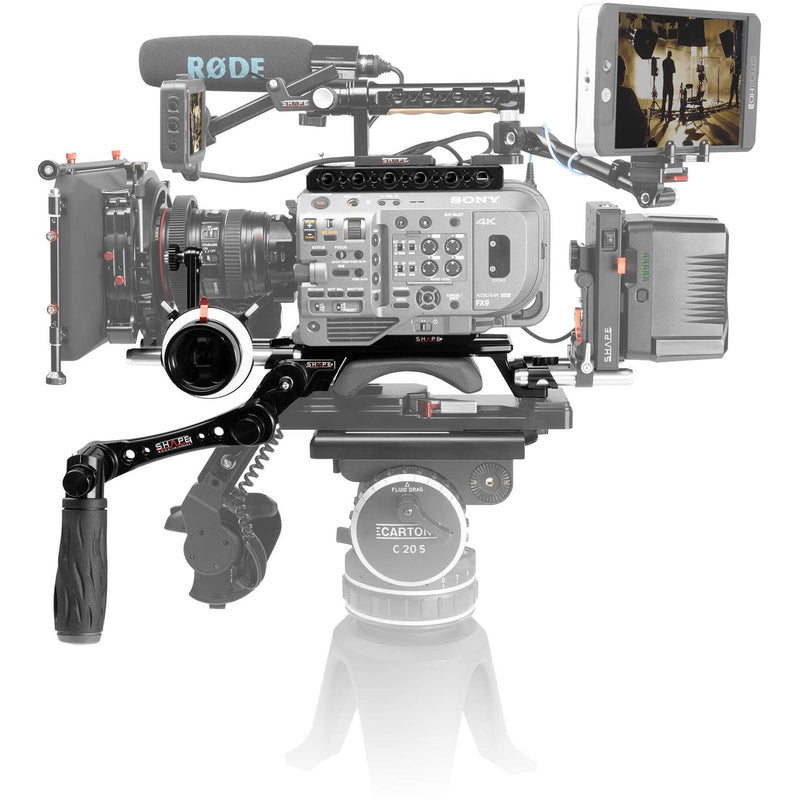

VCT-Compatible V-Lock PlateRear Insert Plate, Follow Focus ProFX9 Camera Cage, Handle with Rosette15mm Rod System, Shoulder Mount Add accessories and handheld functionality to your Sony PXW-FX9 camera with this Camera Cage Kit with Baseplate and Follow Focus Pro from SHAPE . This kit includes a V-lock baseplate with 15mm rod system, a camera cage, a rear insert plate, a rosette handle, and a follow focus pro.
The baseplate includes an integrated shoulder mount that allows you to convert your tripod-mounted camera into a handheld shoulder rig. The 15mm rods allow you to mount additional accessories as well as the follow focus pro. The handle attaches to the baseplate and can rotate using the rosette joint for the most comfortable position.

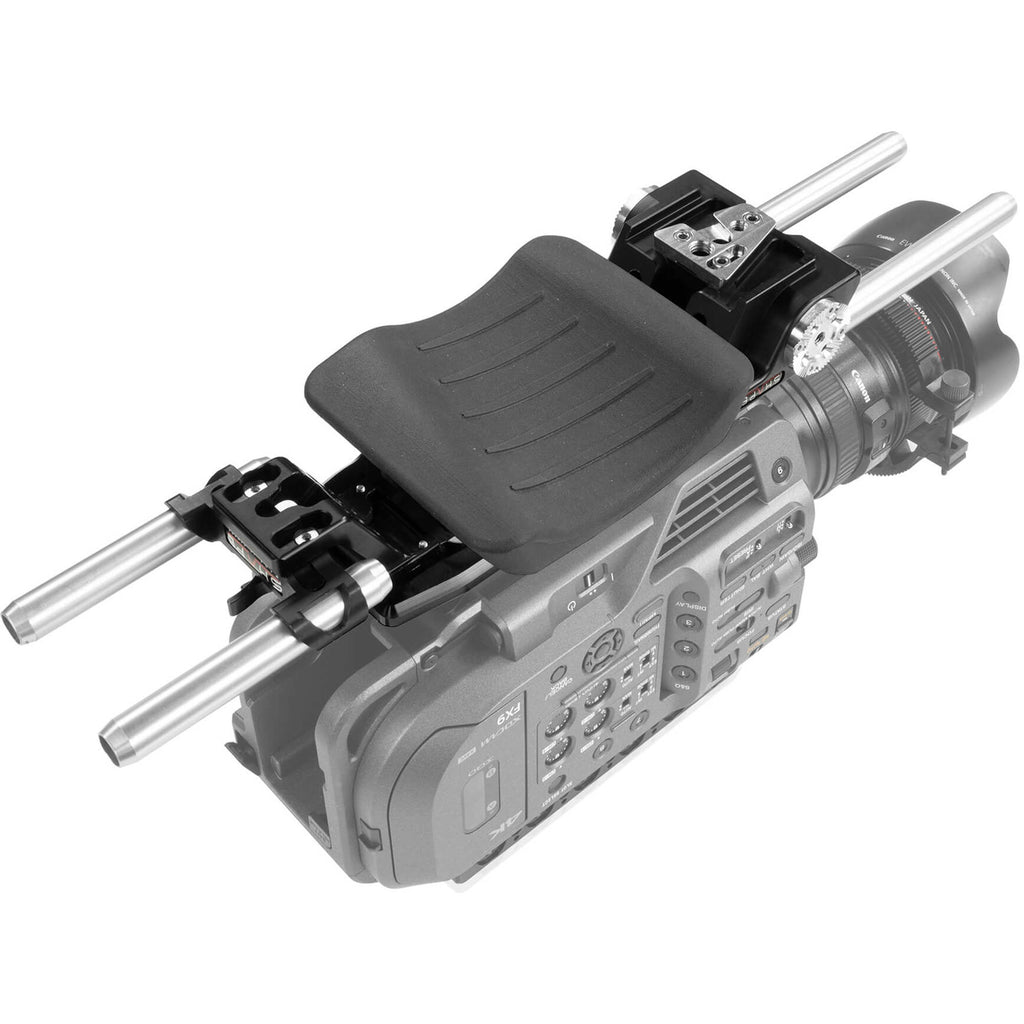

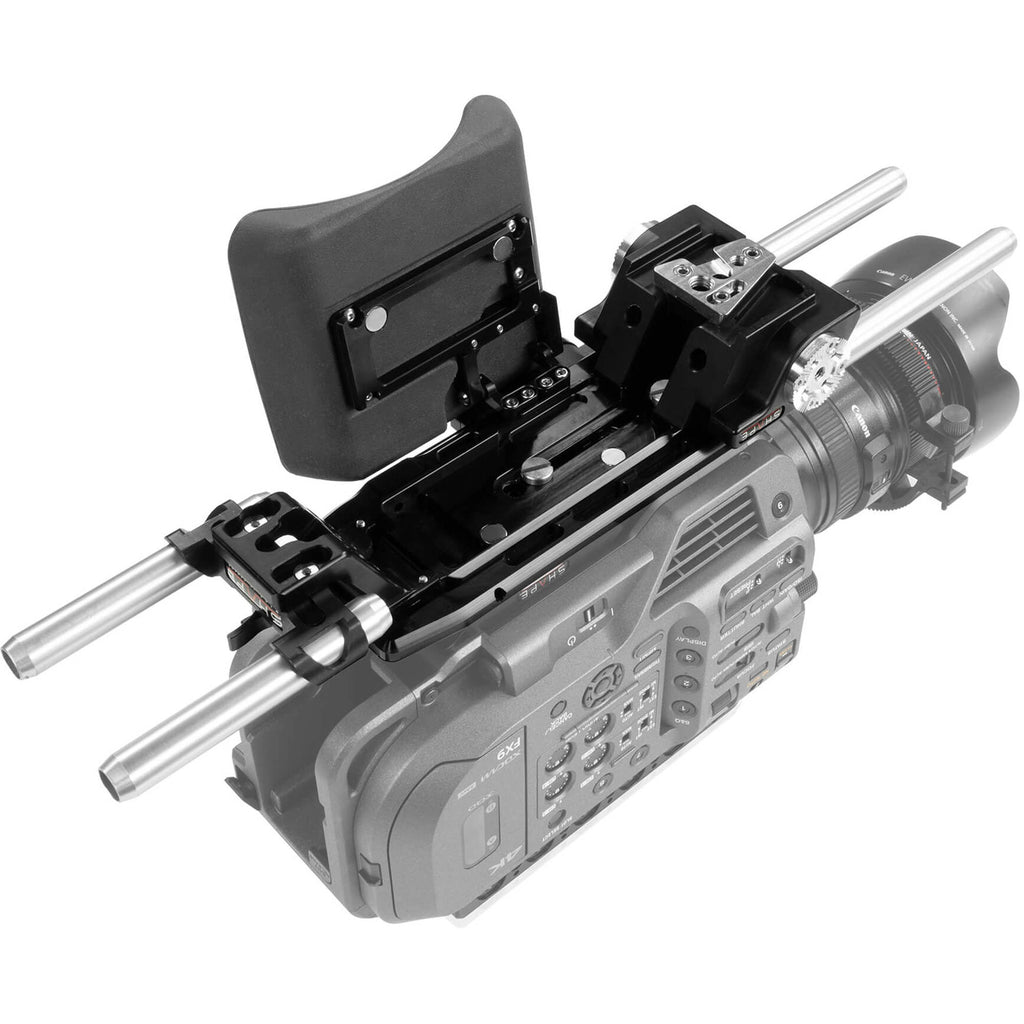

SHAPE Compact Revolt Shoulder Baseplate

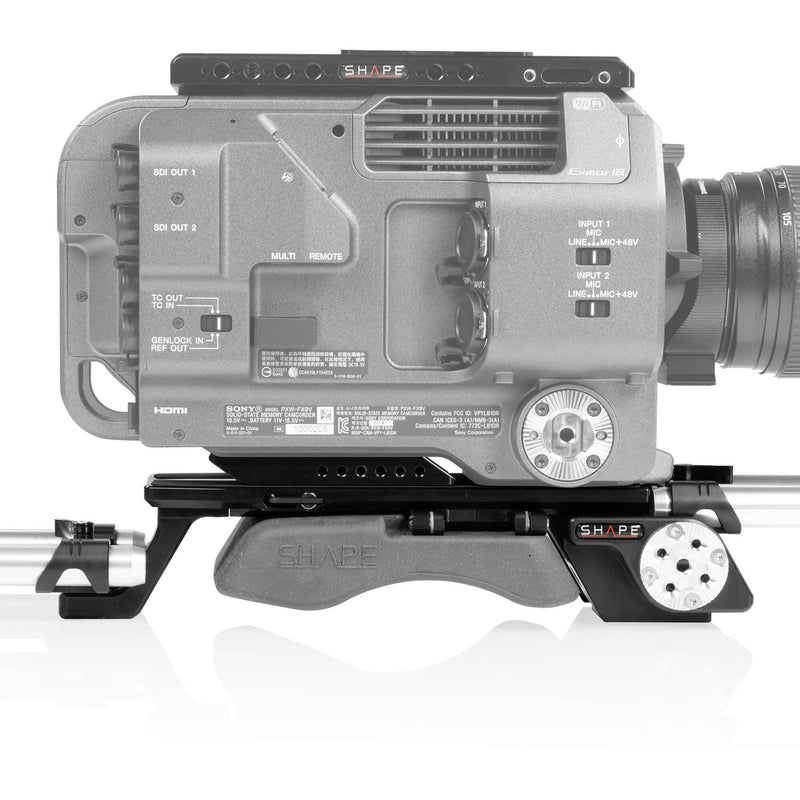

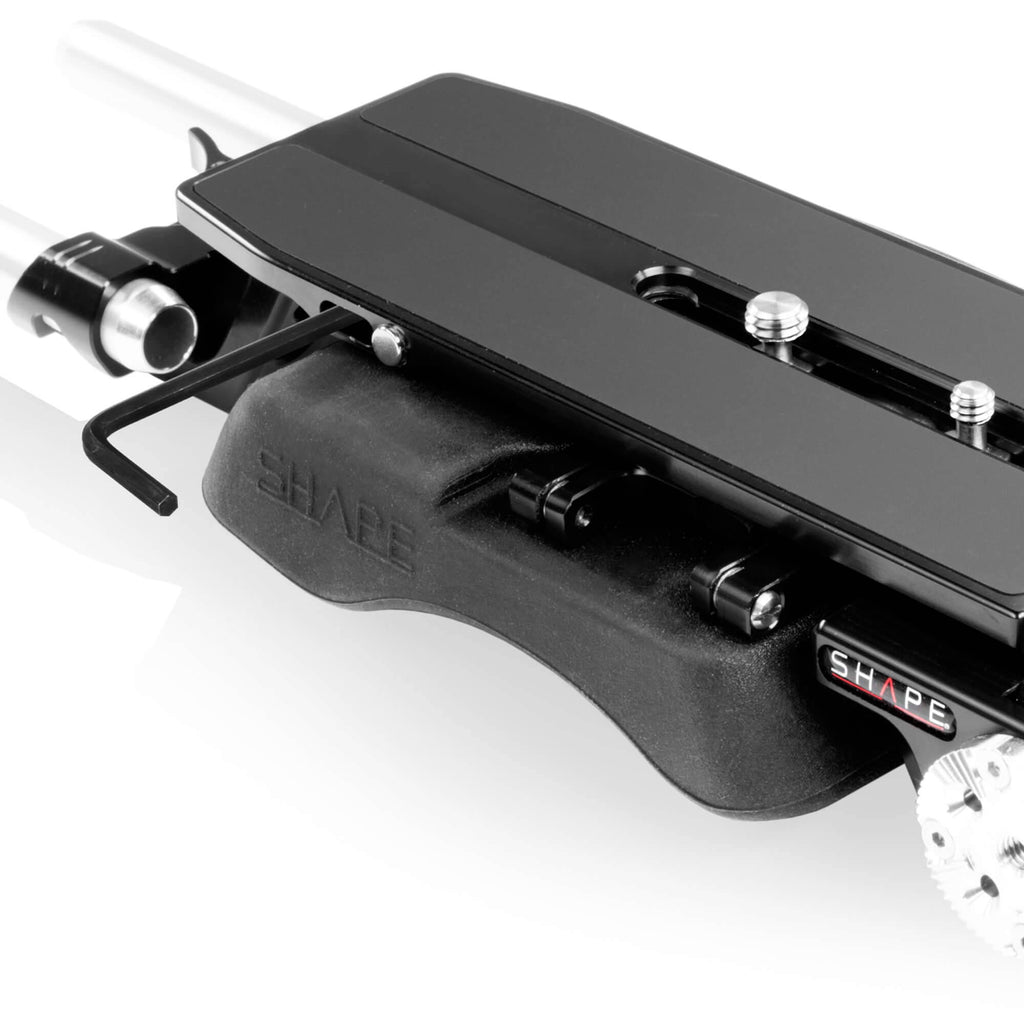

The SHAPE Compact Revolt Shoulder Baseplate is a lightweight baseplate suitable for use by neophytes and professionals alike. Made from CNC-machined aluminum, the baseplate is made to withstand the rigors of the production day. The shoulder pad allows it to sit comfortably on your shoulder. The top of the baseplate features two rubber strips to protect your camera. It incorporates two ARRI-compatible rosettes for attaching handle accessories. The top of the baseplate features a 3.5"-long slot that enables adjusting your camera's position for balance adjustments.
Front and rear 15mm LWS rod clamps enable you to mount the included 8 and 4" pairs of rods to support you lens accessories in front, and power/monitoring accessories in the rear. An included 3mm Allen Key allows you to adjust the rod clamps, and the rear rod clamp is removable and attaches to the Revolt Shoulder Baseplate by two M4 screws. On the bottom of the baseplate is a V-lock plate that is compatible with most VCT baseplates. The V-lock plate has both a 1/4"-20 and 3/8"-16 threaded mounting hole.

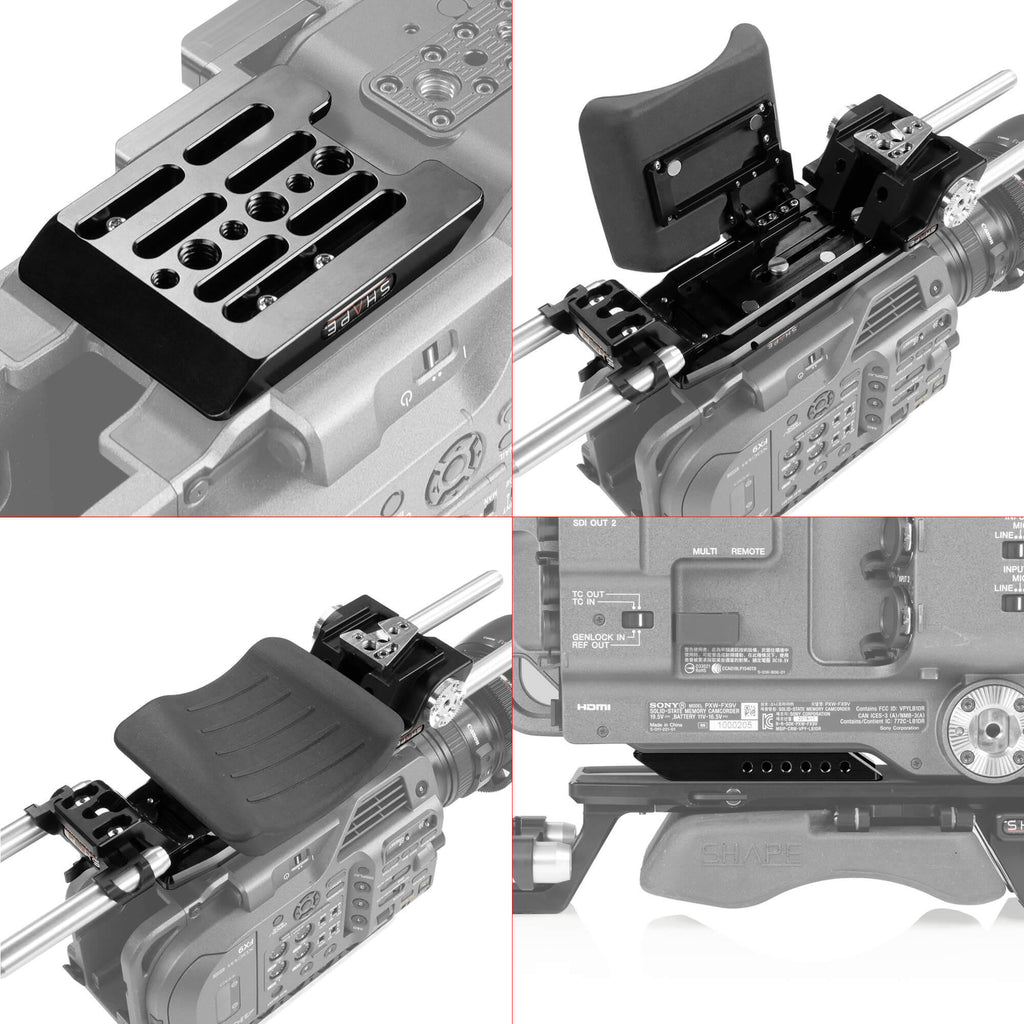

The ARRI-compatible rosettes feature M6 threading Front and rear 15mm rod clamps have spring-loaded locking levers Slip-free gel shoulder pad The shoulder plate is equipped with 1/4-20 and 3/8-16 threaded holes, allowing extra screws to be stored, and a magnet is provided at the back to attach the included Allen key Designed with a standard V-lock plate that is compatible with most VCT tripod plates Includes both 4 and 8" 15mm support rod pairs Camera platform tilts on hinges to allow access to the camera tie-down screws, and it is held in place by powerful magnets that hold the plate closed UPC: 629266009338 SHAPE Camera Cage for Sony FX9 Camera

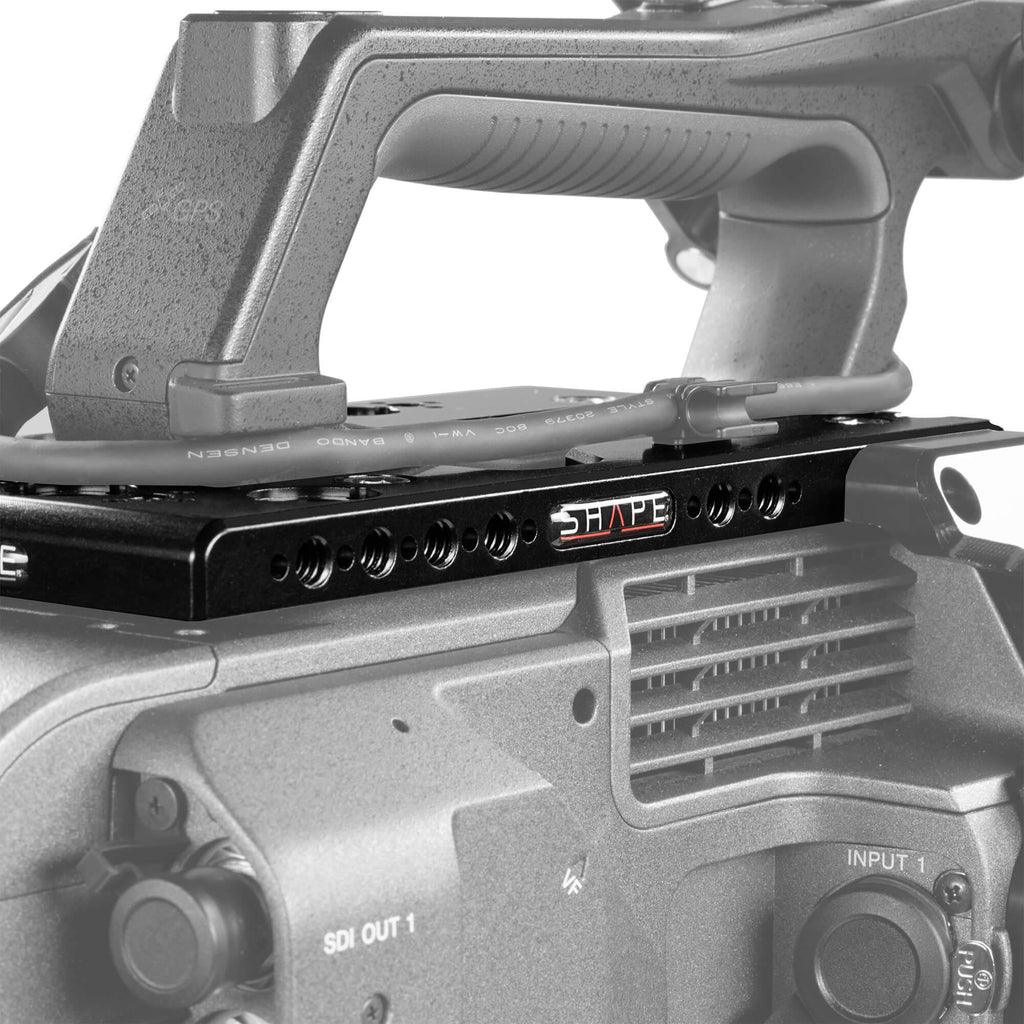

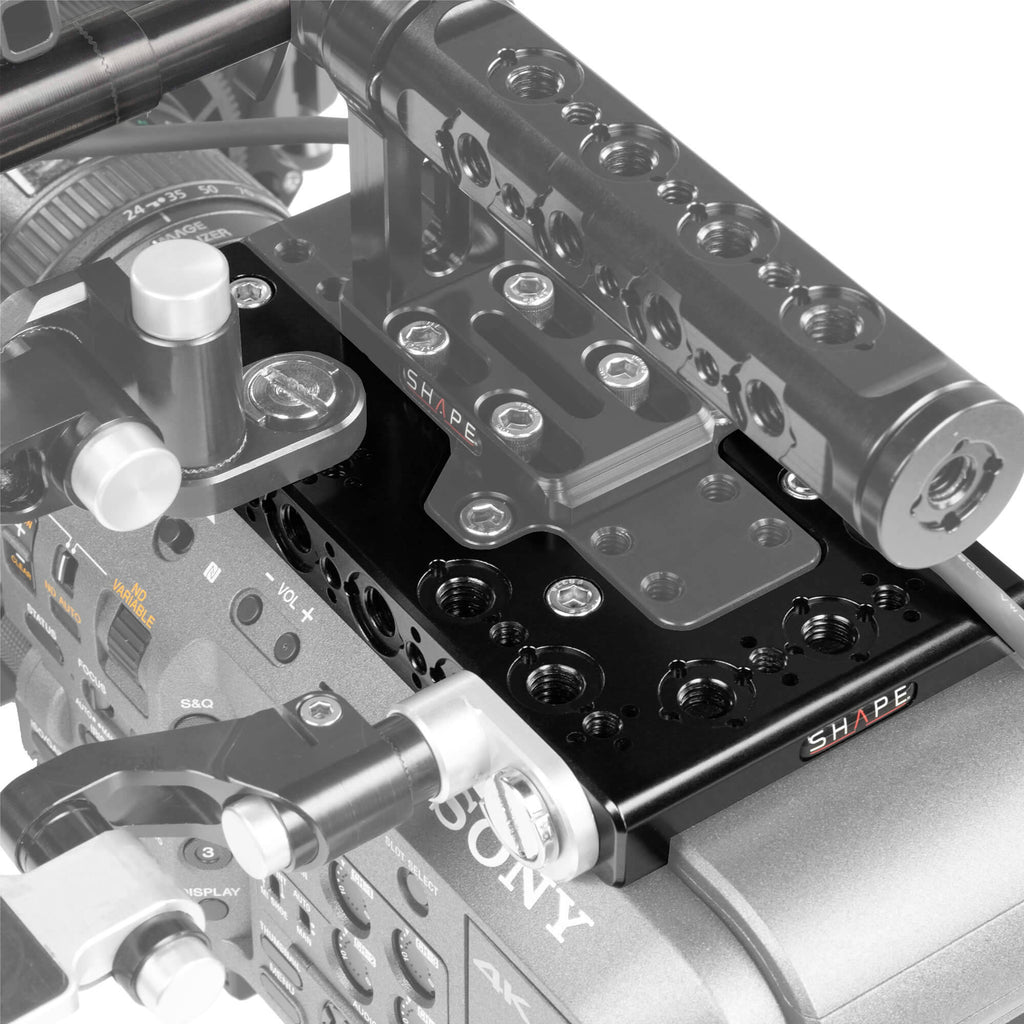

Add accessories to your Sony PXW-FX9 camera with this Camera Cage from SHAPE . It features a cheese-style top plate, side rail, and baseplate. The FX9 mounts onto the cage using the baseplate and top plate with integrated mounting screws.
The cage incorporates 1/4"-20 and 3/8"-16 threaded mounting holes ARRI-style accessory threads, and an ARRI-style rosette for a separately available handle or an extension arm.
UPC: 629266009819 SHAPE Rear Insert Plate for Sony PXW-FX9 Camera
The Rear Insert Plate from SHAPE is designed for use with the Sony PXW-FX9 camera to support the rear of the camera when mounted on a baseplate. The plate mounts onto the camera body via two included screws and provides support when the camera is used with a separately available SHAPE baseplate.
UPC: 629266009932 SHAPE Follow Focus Pro

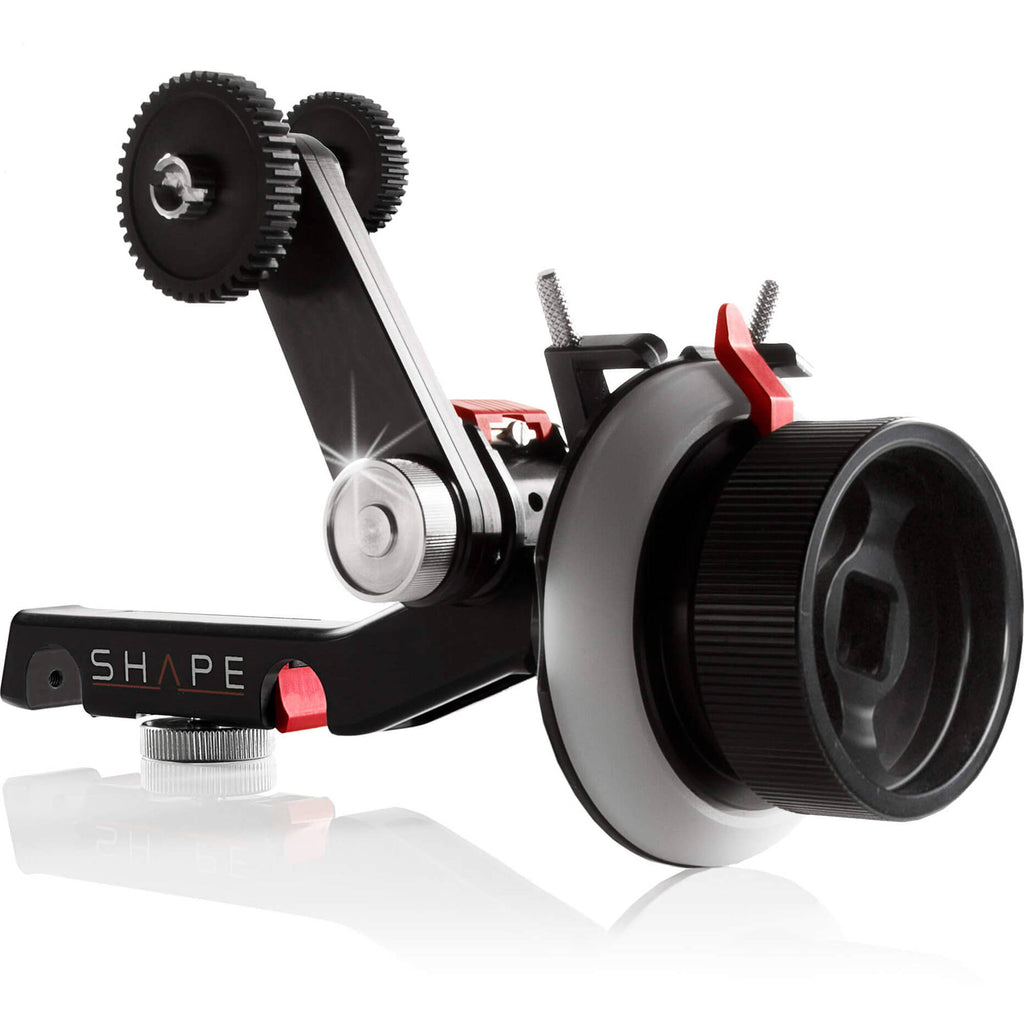

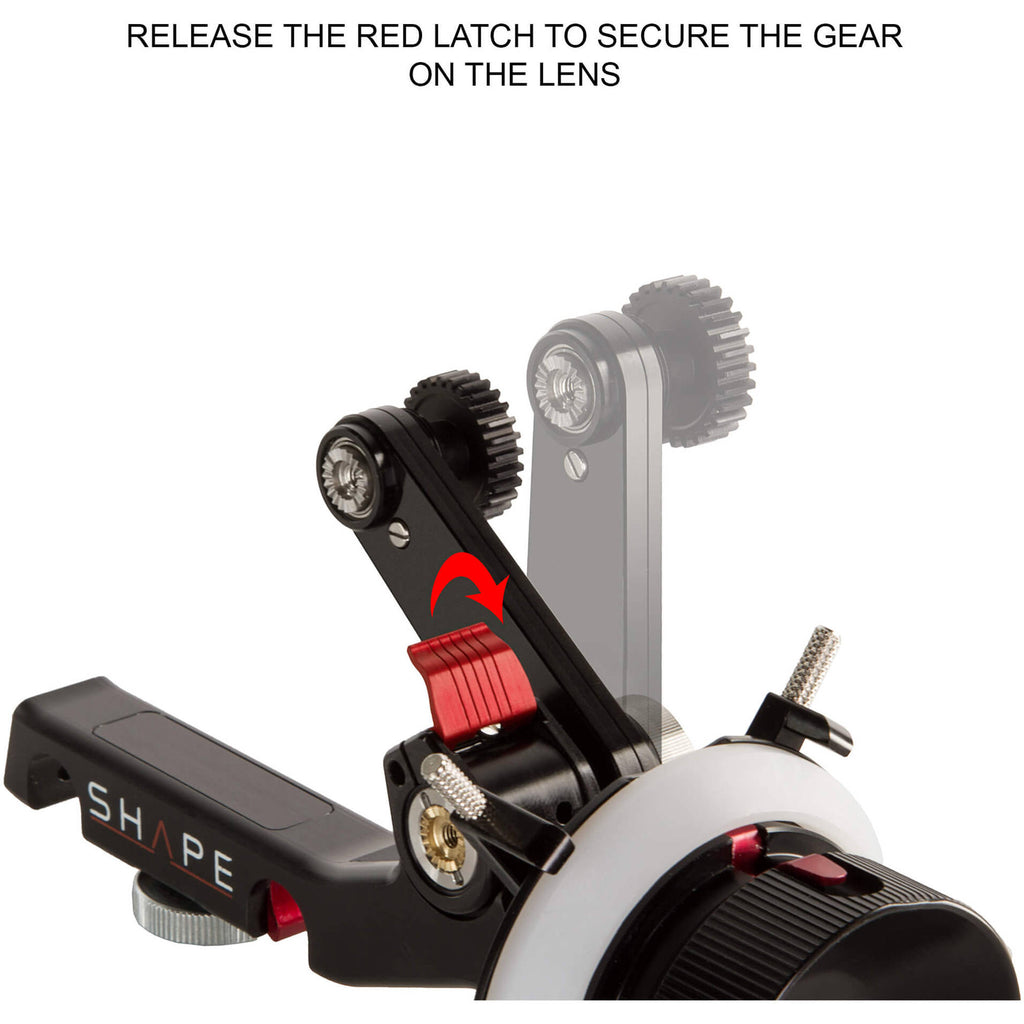

The SHAPE Follow Focus Pro mounts on 15mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. The unit snaps onto 15mm rods, allowing for quick attachment, removal, and re-positioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth - depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.
- Snap-on 15mm rod attachment
- Adjustable arm

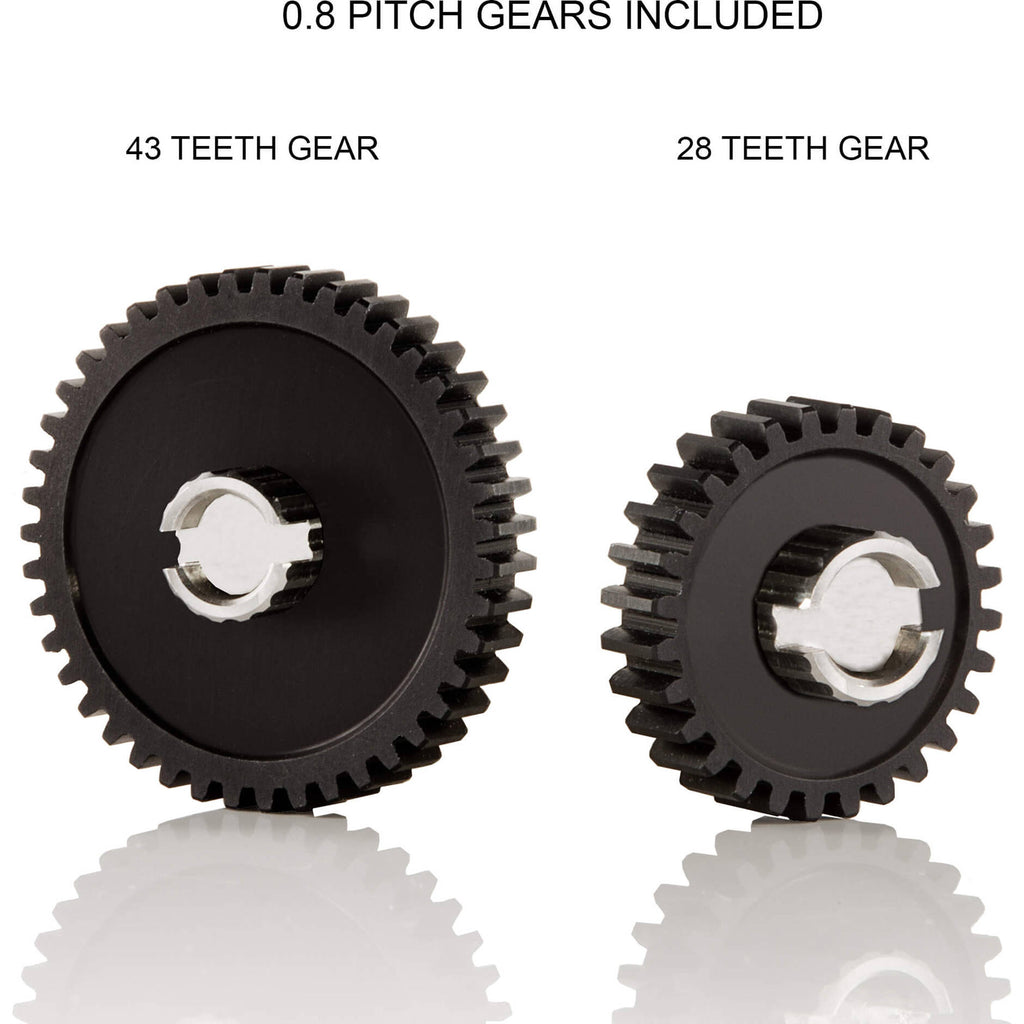

- Two 0.8 pitch aluminum gears included: 28 teeth and 43 teeth

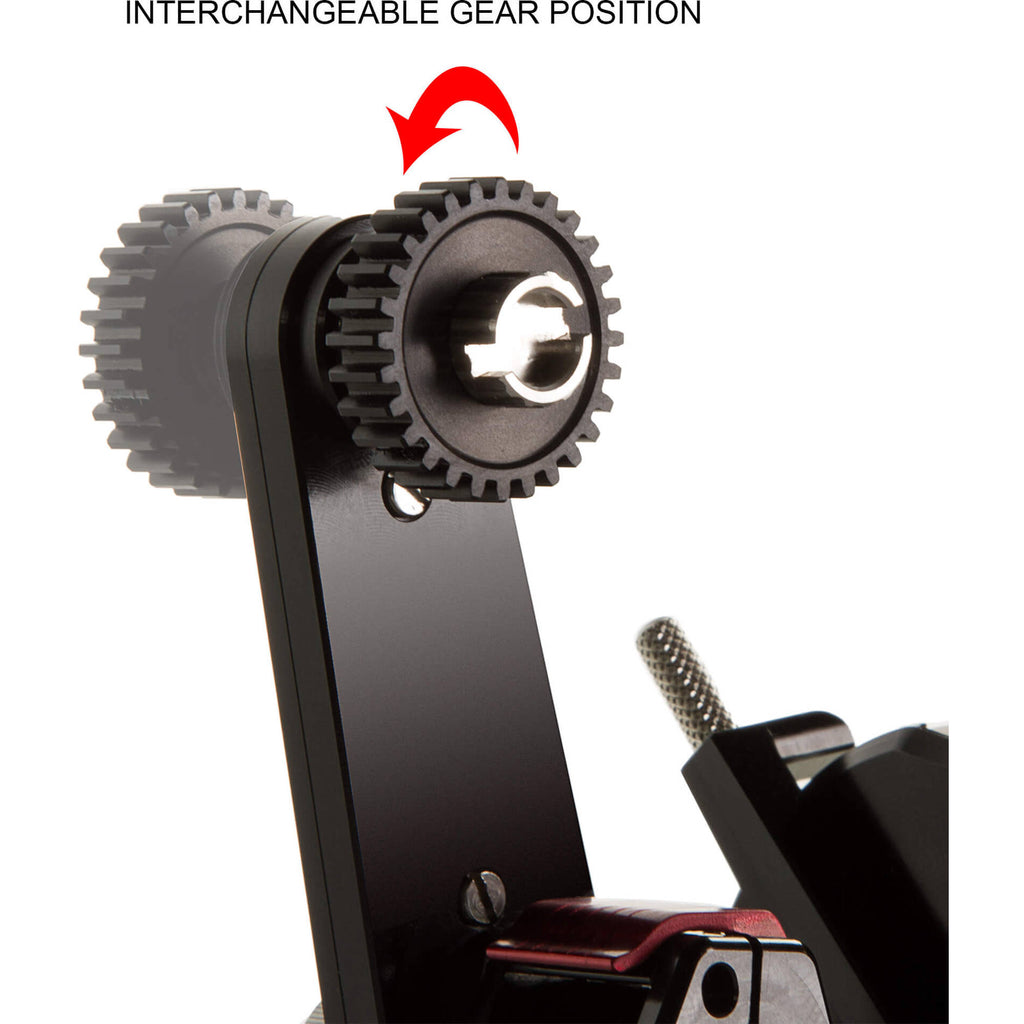

- Interchangeable gear position
- Adjustable hard stops
- Removable marking disc
- Industry standard accessory port
- CNC machined aluminum parts

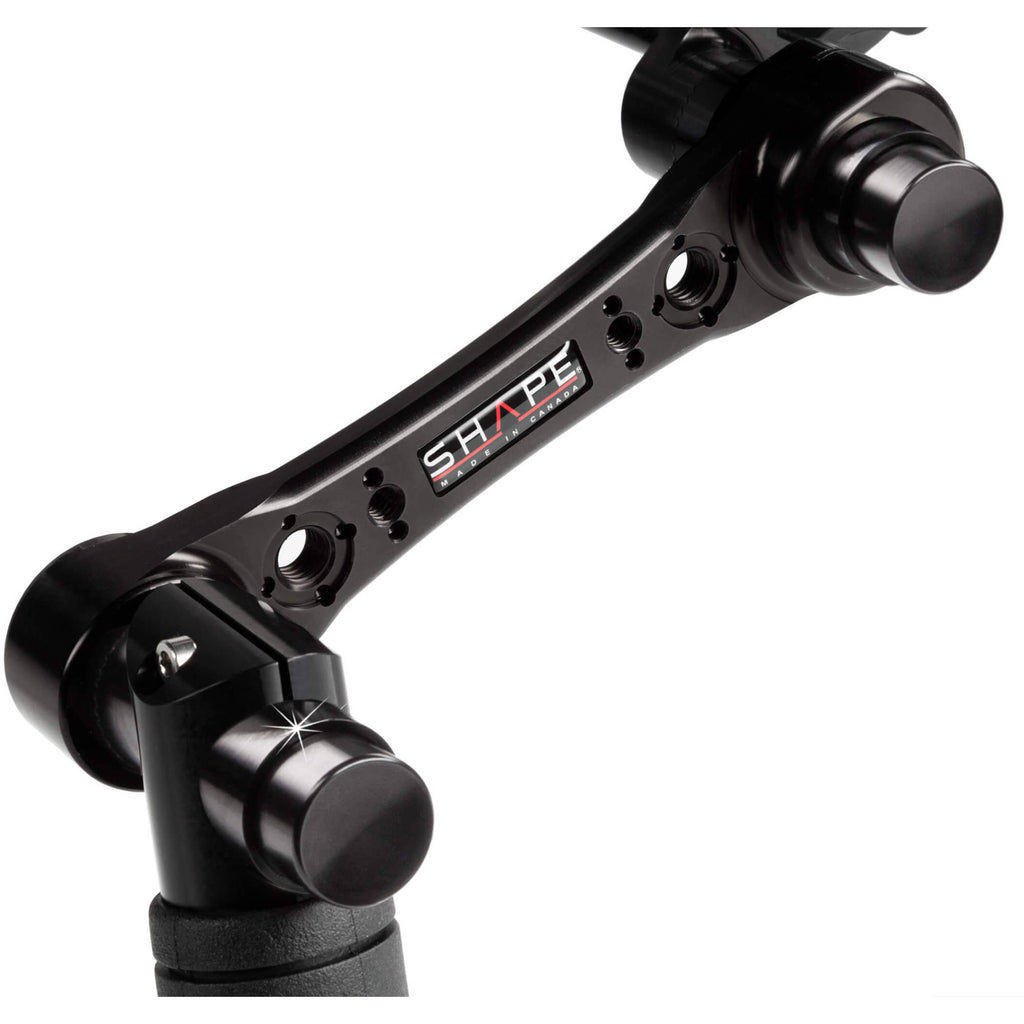

UPC: 629266002360 SHAPE Single Handle with ARRI Rosette

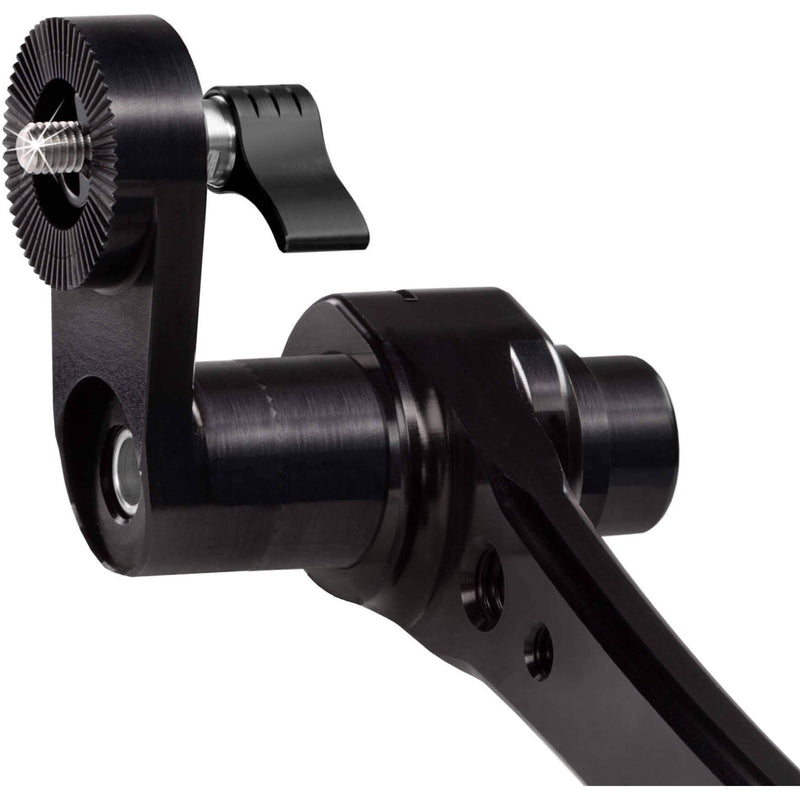

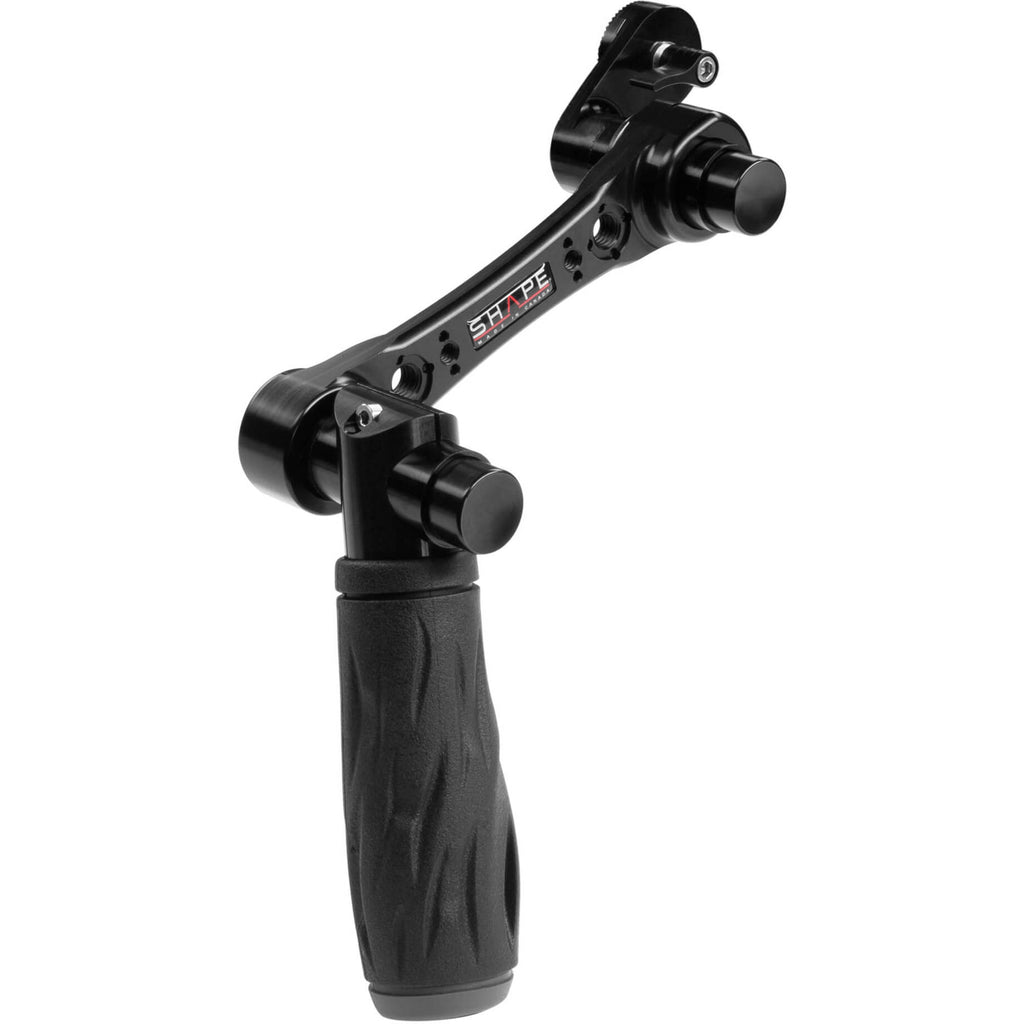

The Single Handle with ARRI Rosette from SHAPE features SHAPE's quick-lock button technology. The handle can rotate on a 360° axis. The handle and arm can be rotated by pushing the red button. Once the button is released, the handle is secured firmly in place.
The Quick Handle Rosette features a stainless steel locking mechanism for more durability. Providing a solid grip, the handle fits perfectly on the SHAPE baseplate series, including the BP0001 and BP0007 Quick-Release Baseplates, and the Dovetail System thanks to the precision of the ARRI rosette sockets. The handle is removable with one knob screw. It is constructed from CNC machined, high-quality aircraft grade aluminum parts, which are hard anodized for a resistant finish and assembled with stainless steel screws to prevent rusting.
SHAPE Quick Handle, push-button technology Single red knob for fast and easy adjustment Individual rotation on a 360° axis Great grip, stability, and precision CNC machined parts Anodized aluminum for resistance Stainless steel locking mechanism for durability UPC: 629266000885
| Support Type | Shoulder Support |
| Grip Type | Grip Required (Not Included) |
| Camera Compatibility | Universal |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Camera Mounting | 1/4"-20 Screw, 3/8"-16 Screw |
| Rosettes | Sides: 2 x ARRI Rosette w/ M6 Thread |
| Construction | Aluminum |
| Dimensions | 10 x 4.5 x 2" / 25.4 x 11.43 x 5.08 cm |
| Weight | 2.1 lb / 0.9 kg |
| Package Weight | 2.815 lb |
| Box Dimensions (LxWxH) | 14.75 x 5.85 x 4.7" |
| Accessory Mounting | Top: 6 x ARRI Anti-Twist 3/8"-16 Thread, 5 x Anti-Twist 1/4"-20 Thread, 1 x 1/4"-20 Thread
Side: 6 x ARRI Anti-Twist 3/8"-16 Thread, 5 x Anti-Twist 1/4"-20 Thread, 6 x Anti-Twist 3/8"-16 Thread
Base: 3 x 3/8"-16 Thread, 3 x 1/4"-20 Thread |
| Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread |
| Rosettes | Side: 1 x ARRI Rosette w/ M6 Thread |
| Support Type | Cage |
| Grip Type | None |
| Camera Compatibility | Sony PXW-FX9 |
| Construction | Aluminum |
| Dimensions | Not Specified by Manufacturer |
| Weight | 1.17 lb / 530 g |
| Package Weight | 1.365 lb |
| Box Dimensions (LxWxH) | 9.7 x 4.4 x 3.4" |
| Material of Construction | Aluminum |
| Dimensions | Not Specified by Manufacturer |
| Weight | 3.84 oz / 109 g |
| Package Weight | 0.245 lb |
| Box Dimensions (LxWxH) | 6.8 x 6 x 0.85" |
| Included Drive Gear | 0.8 MOD |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Number of Sides | Single-Sided |
| Built-In Hardstops | 2, Fixed |
| Witness/Index Mark | Yes |
| Marking Disk | Yes |
| Switchable Handwheel Speed | No |
| Gear Material | Aluminum |
| Dimensions | 7.63 x 5 x 3" / 19.37 x 12.7 x 7.62 cm |
| Weight | 1.4 lb / 0.6 kg |
| Package Weight | 1.385 lb |
| Box Dimensions (LxWxH) | 9.7 x 4.6 x 3.4" |
| Package Weight | 0.895 lb |
| Box Dimensions (LxWxH) | 8.75 x 5.3 x 2.3" |
In the Box
- SHAPE Compact Revolt Shoulder Baseplate
- SHAPE Replacement Pad for REVOLT VCT Universal Baseplate
- SHAPE 15mm Aluminum Rods (Pair, 8")
- SHAPE 15mm Aluminum Rods (Pair, 4")
- 2 x 1/4"-20 Screw
- 2 x 3/8"-16 Screw
- 3mm Allen Wrench
- Limited Lifetime Warranty
- SHAPE Camera Cage for Sony FX9 Camera
- Limited Lifetime Warranty
- SHAPE Rear Insert Plate for Sony PXW-FX9 Camera
- 2 x Mounting Screw
- Allen Wrench
- Limited Lifetime Warranty
- SHAPE Follow Focus Pro
- SHAPE 0.8 Pitch 28 Teeth Aluminum Gear for Follow Focus Pro
- SHAPE 0.8 Pitch 43 Teeth Aluminum Gear for Follow Focus Pro
- Limited Lifetime Warranty
- SHAPE Single Handle with ARRI Rosette
- Limited Lifetime Warranty
