SHAPE FX6ROD Overview
Sony FX6 kits & handheld solutions

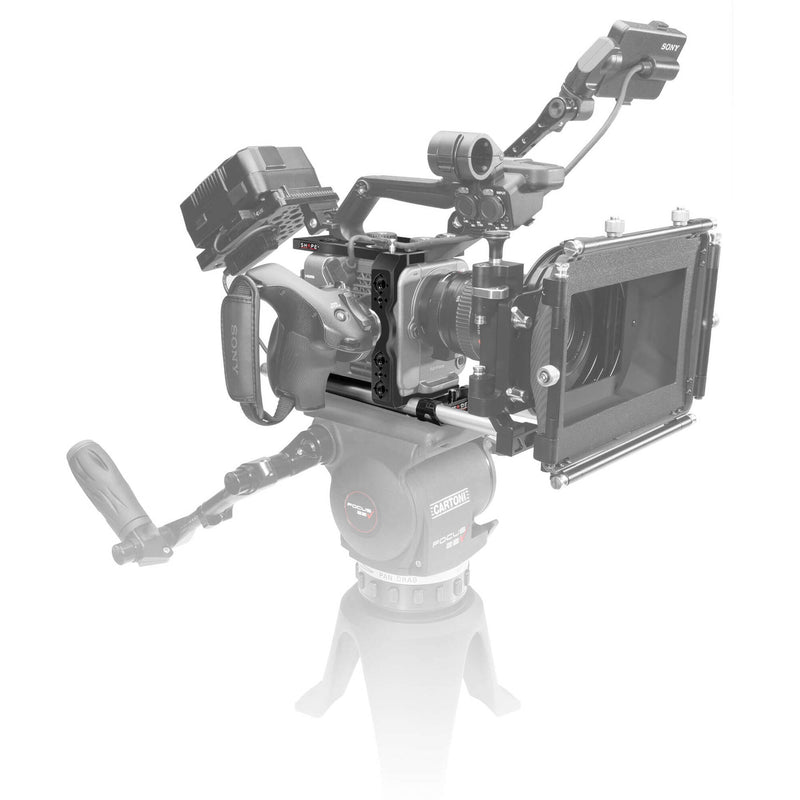

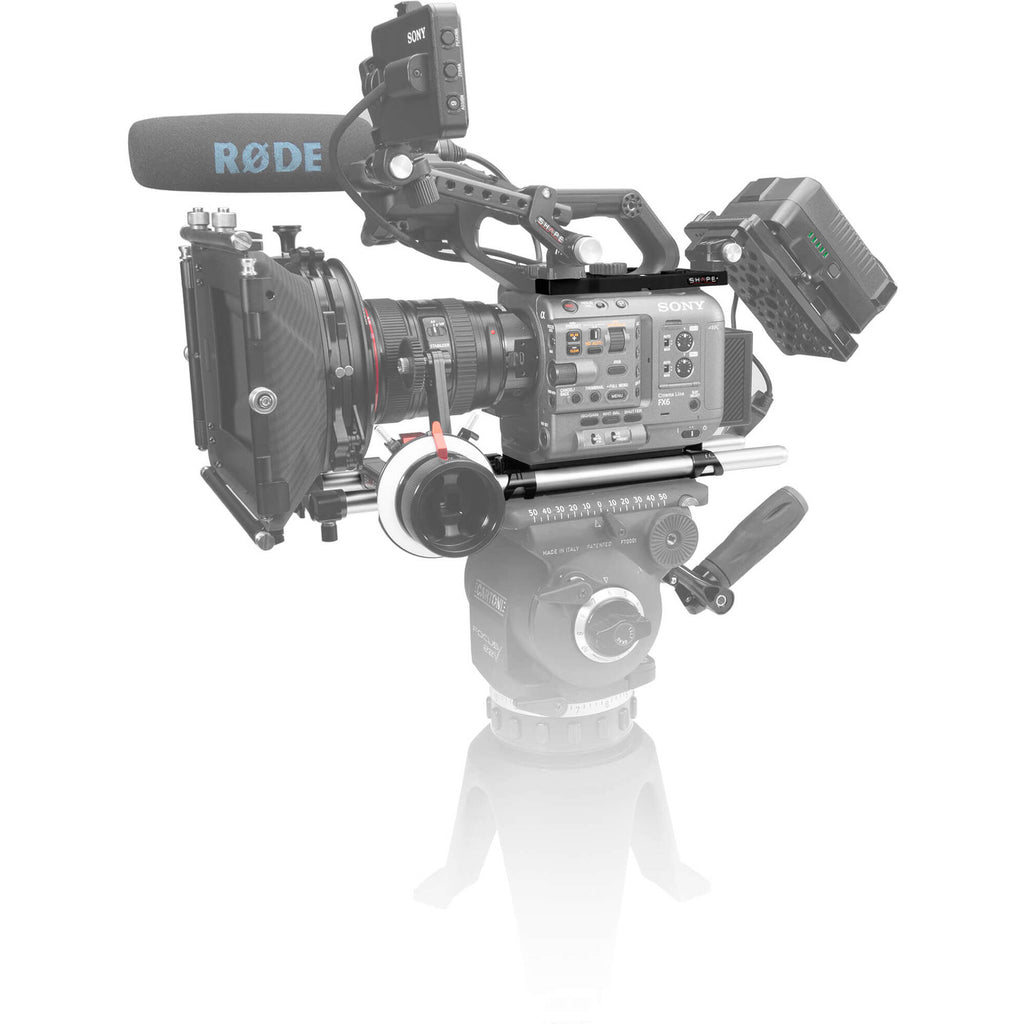

Add a 15mm lightweight support to your Sony FX6 camera rig with this Camera Cage and 15mm LWS Baseplate from SHAPE. The rig includes a baseplate, removable 15mm rod clamps, a camera cage, and two 12" long 15mm rods.
The aluminum baseplate features 1/4"-20 and 3/8"-16 screws to secure the camera cage to the plate, and there are mounting holes underneath to mount the baseplate on a plate or tripod. The camera mounts onto the cage using the included camera screws, and it provides numerous 1/4"-20 and 3/8"-16 threads and a rosette on the side plate to add an optional handle. The included pair of 12" 15mm rods insert through the length of the baseplate and are secured with a locking thumbscrew.
SHAPE 15mm Lightweight Baseplate for Sony FX6
Add 15mm LWS rods to support the Sony FX6 camera and add accessories with this 15mm Lightweight Baseplate from SHAPE. The aluminum baseplate features removable 15mm rod clamps on the front and back, and it secures your camera to the plate using 1/4"-20 and 3/8"-16 screws.
There are multiple 1/4"-20 and 3/8"-16 mounting threads underneath to mount your rig on a plate or tripod. The baseplate includes a pair of 12" 15mm rods that insert through the length of the baseplate and are secured with a locking thumbscrew.
Mounts the FX6 camera via 3/8"-16 and 1/4"-20 screws
Locking thumbscrews to reposition or remove the front and rear 15mm rod clamps
Multiple 1/4"-20 and 3/8"-16 threads to mount baseplate onto a tripod, shoulder rig, or gimbal
![]()
UPC: 629266102510
SHAPE Camera Cage for Sony FX6

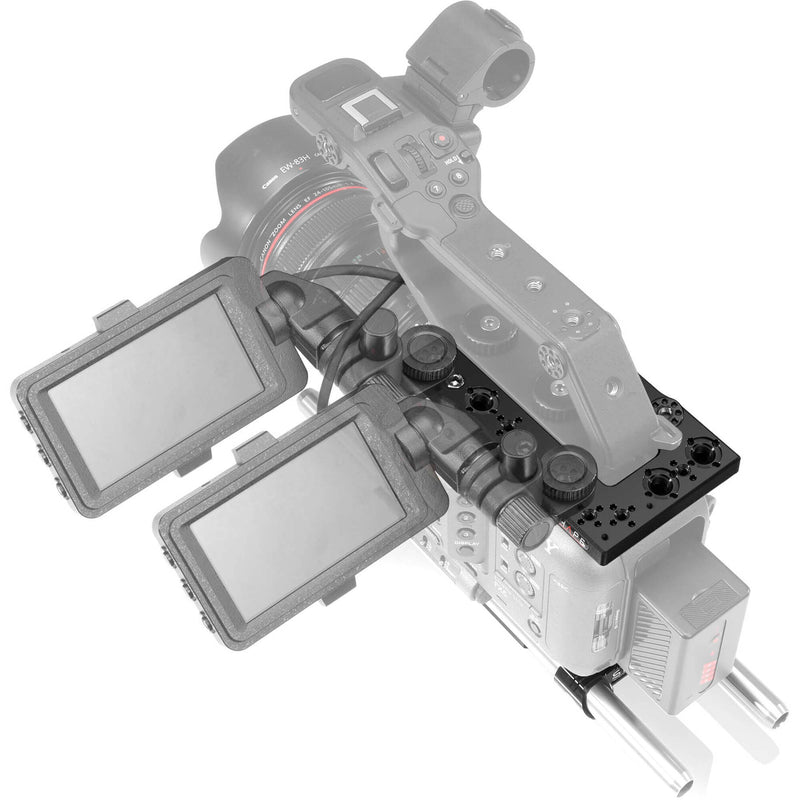

Protect your Sony FX6 camera and add accessories such as a light, monitor, and a side handgrip with this Camera Cage from SHAPE. The cage features a cheese-style top plate, side rail, and baseplate. The FX6 mounts onto the cage using the baseplate and top plate using the four included mounting screws on top and 1/4"-20 and 3/8"-16 camera screws on the bottom to prevent twisting.
The durable aluminum cage incorporates 1/4"-20 and 3/8"-16 mounting threads, 3/8"-16 and 1/4"-20 ARRI-style anti-twist threads, and an ARRI-style rosette on the side plate for a separately available handle or an extension arm.
![]()
UPC: 629266102527
In the Box
- SHAPE 15mm Lightweight Baseplate for Sony FX6
- SHAPE 15mm Aluminum Rods (Pair, 12")
- 2 x 15mm Rod Clamp
- Limited Lifetime Warranty
- SHAPE Camera Cage for Sony FX6
- 4 x Screw
- Limited Lifetime Warranty
SHAPE 15mm Lightweight Baseplate for Sony FX6 Specs
| Support Type |
Baseplate, Rod Support System |
| Grip Type |
None |
| Camera Compatibility |
Sony FX6 |
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing |
| Included Rods |
2 x 12" / 30.48 cm 15 mm Aluminum Rod |
| Battery Plate Type |
None |
| Accessory Mounting |
None |
| Camera Mounting |
1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting |
Baseplate: 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports |
Baseplate, Front: 2 x 15 mm Rod Port
Baseplate, Rear: 2 x 15 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
None |
General
| Construction |
Aluminum |
| Dimensions |
12 x 3.25 x 1" / 30.5 x 8.26 x 2.5 cm |
| Weight |
1.05 lb / 476 g |
Packaging Info
| Package Weight |
1.25 lb |
| Box Dimensions (LxWxH) |
12.6 x 4.3 x 2.3" |
SHAPE Camera Cage for Sony FX6 Specs
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Sony FX6 |
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Cage: Multiple x ARRI Anti-Twist 3/8"-16 Thread, Multiple x Anti-Twist 1/4"-20 Thread, Multiple x 1/4"-20 Thread |
| Camera Mounting |
1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting |
1/4"-20 Thread, 3/8"-16 Thread |
| Shoe Mounting |
None |
| Rosettes |
Cage, Side: 1 x ARRI Rosette w/ M6 Thread |
General
| Construction |
Aluminum |
| Dimensions |
6 x 5.25 x 4.25" / 15.2 x 13.34 x 10.79 cm |
| Weight |
13.8 oz / 390 g |
Packaging Info
| Package Weight |
1.245 lb |
| Box Dimensions (LxWxH) |
8.7 x 7.3 x 4.4" |
