SHAPE C52BT Canon C500 Mark II Top Plate and Baseplate with Handle

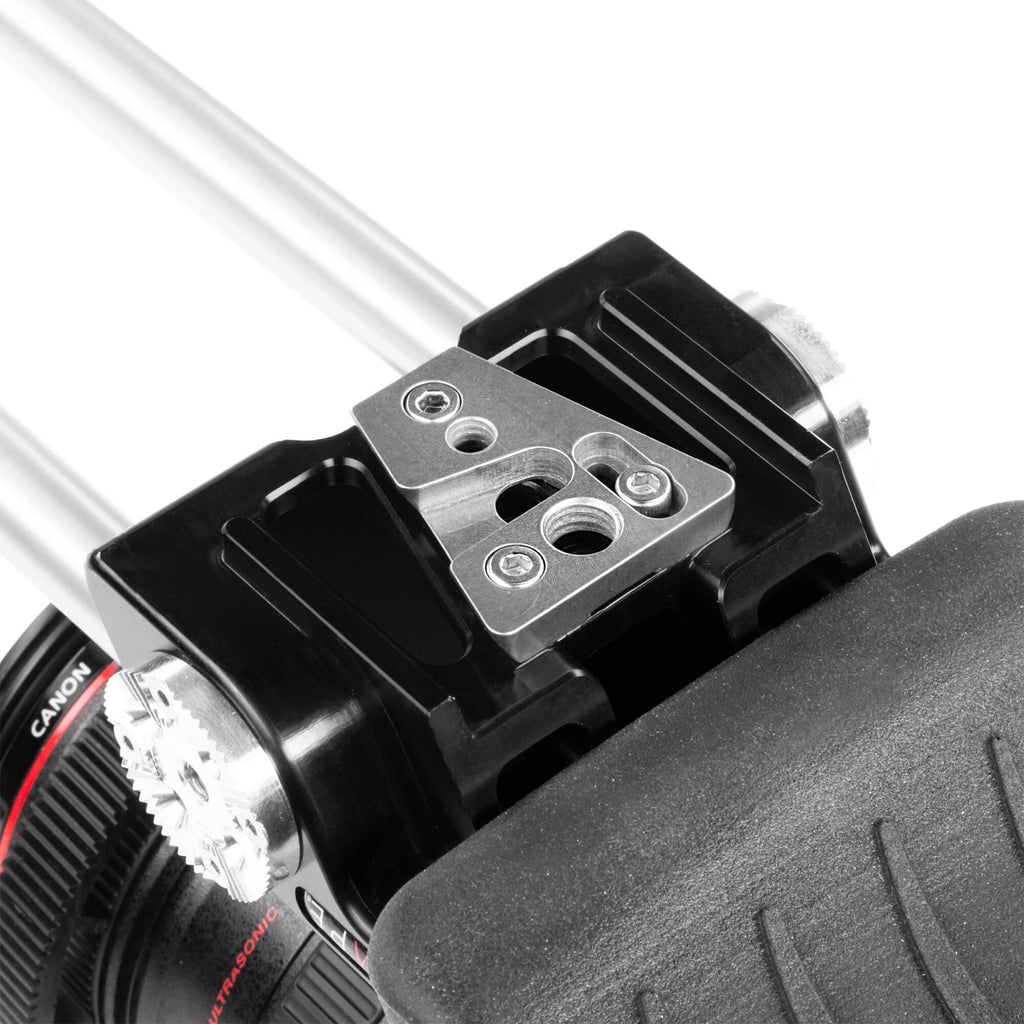

Top Plate for Canon C500 Mark II

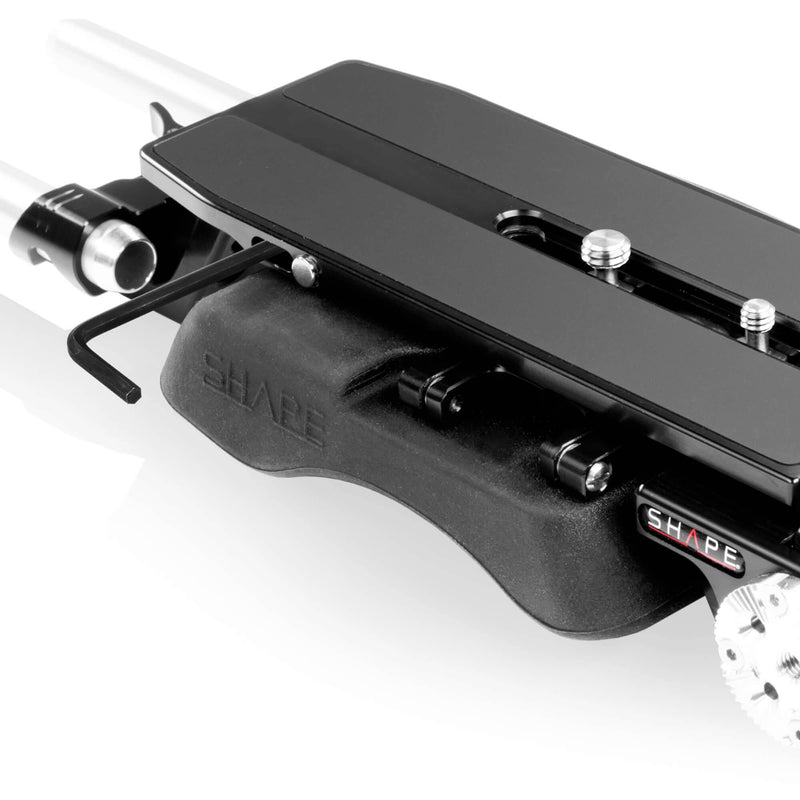

V-Lock Quick Release Baseplate

Articulating Left Handgrip

SHAPE Camera Kit for the Canon C500 Mark ii

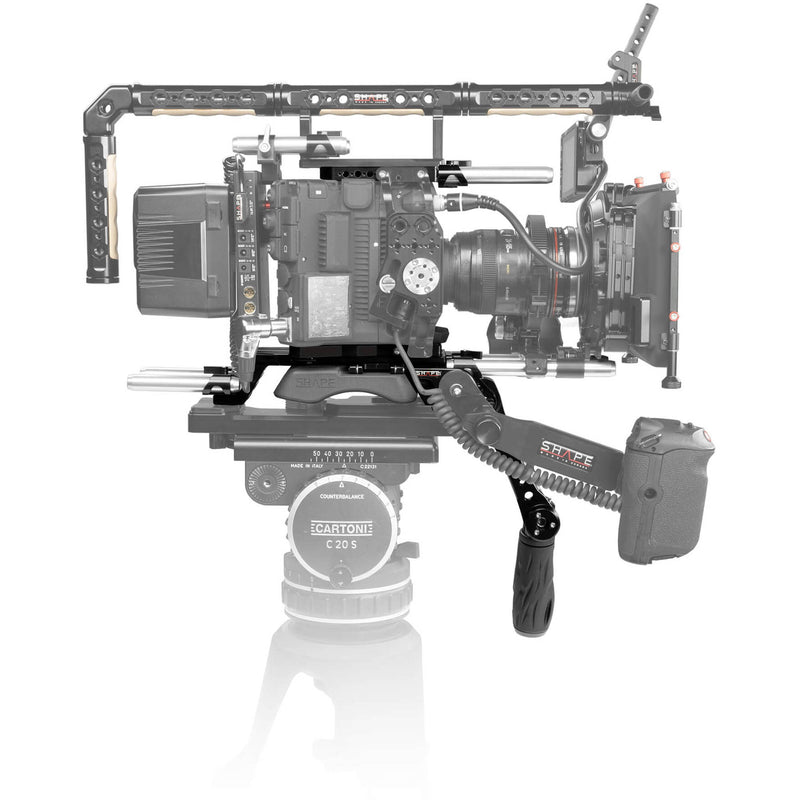

The SHAPE C52BT Canon C500 Mark II Top Plate and Baseplate with Handle provide handheld functionality, accessory mounting, and an integrated shoulder mount that allows you to quickly mount and remove the camera from tripods with a VCT-compatible mount. The system includes a top plate that mounts onto your C500 Mark II camera and features accessory mounting holes, as well as 15mm support rods for adding rod-mounted accessories above the lens.

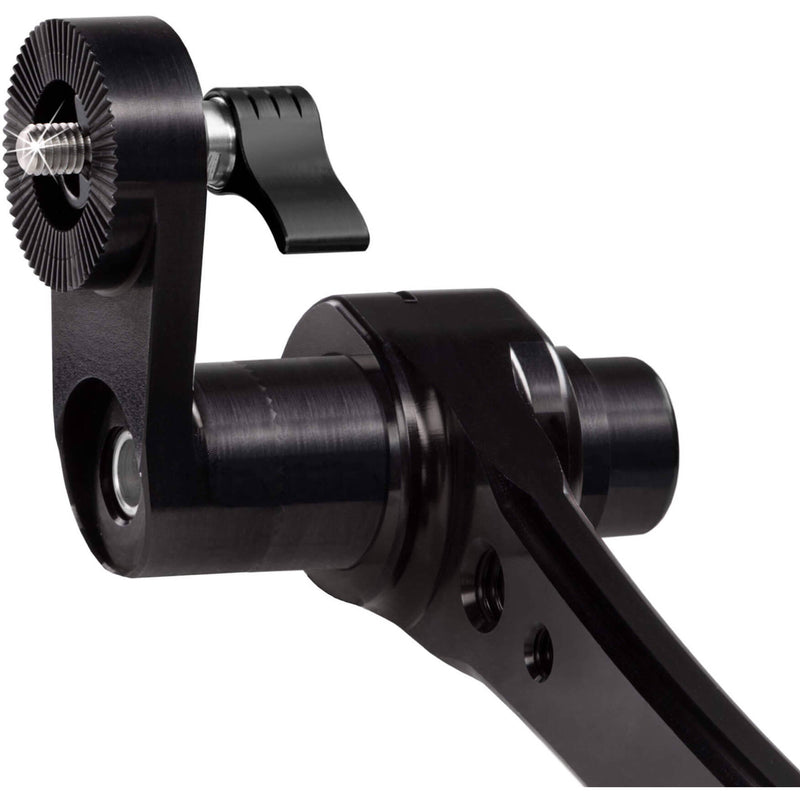

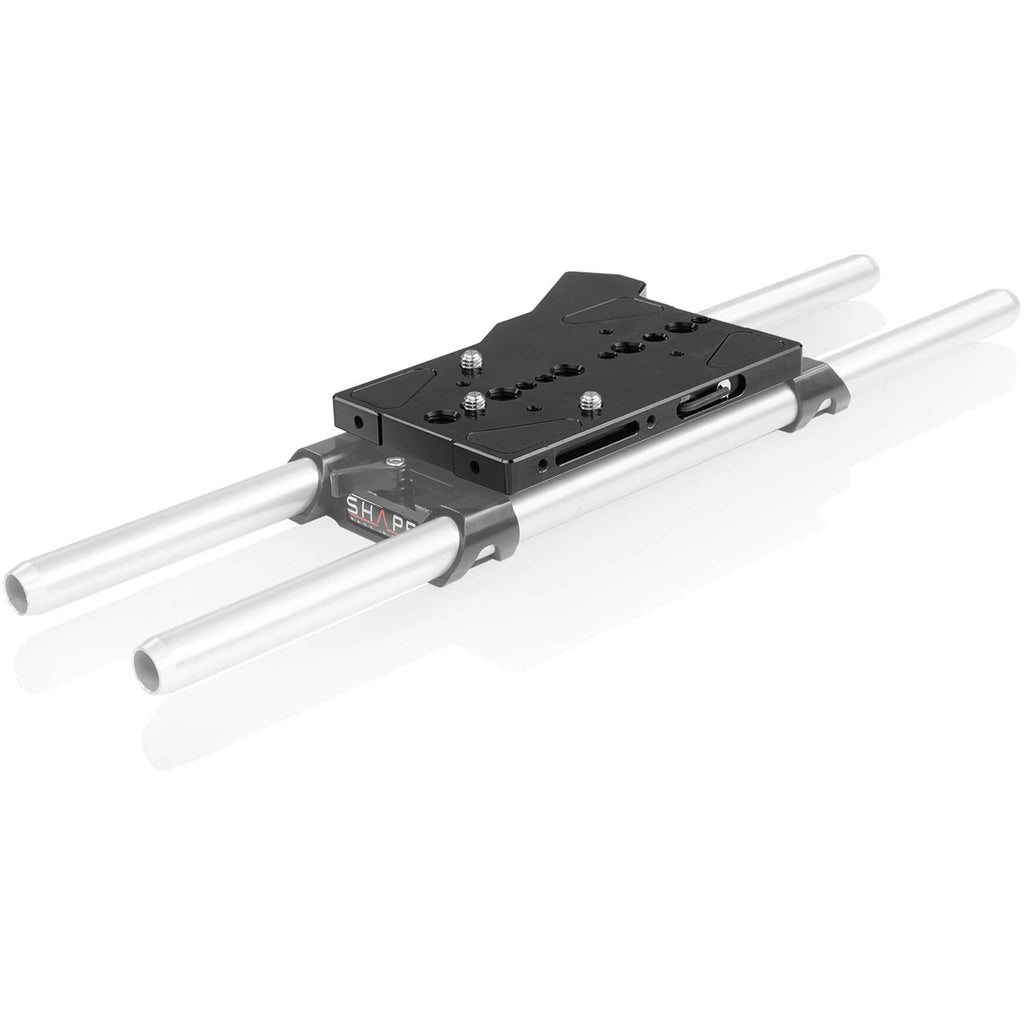

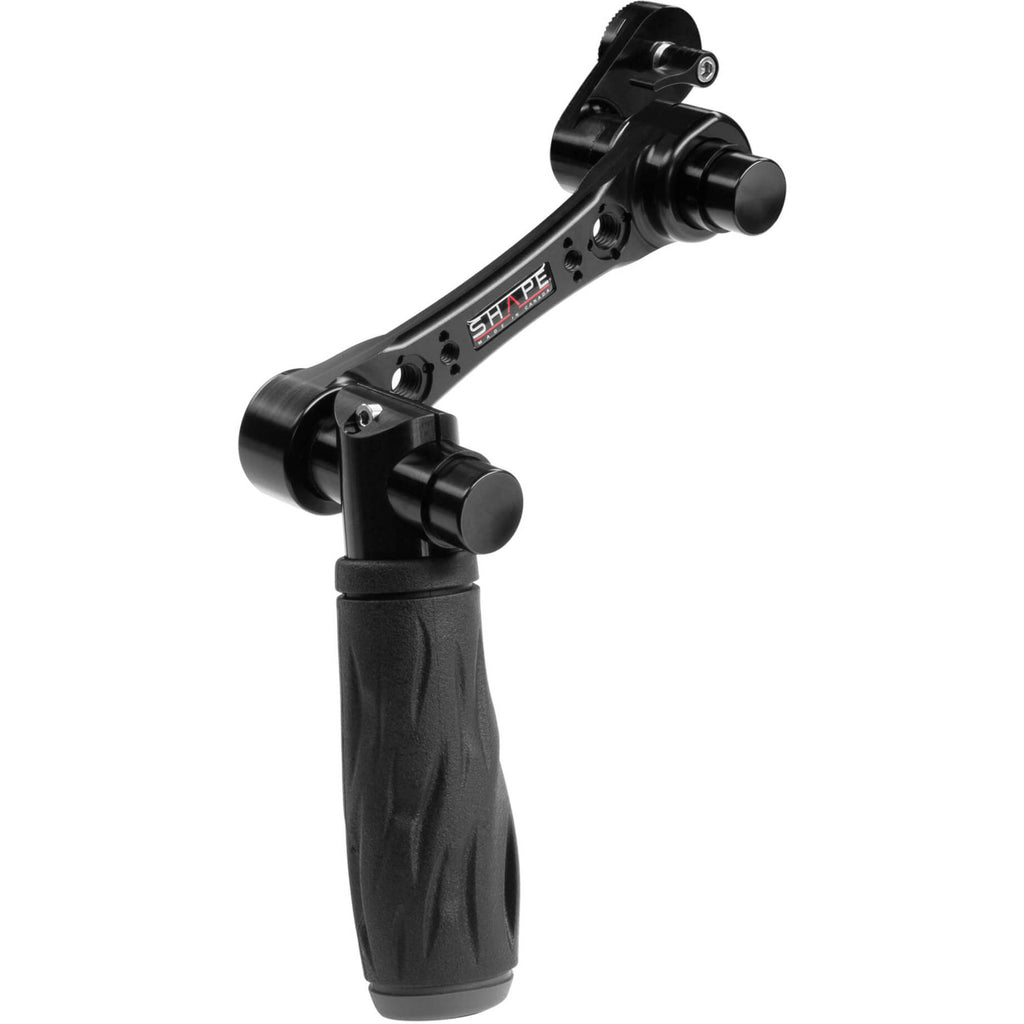

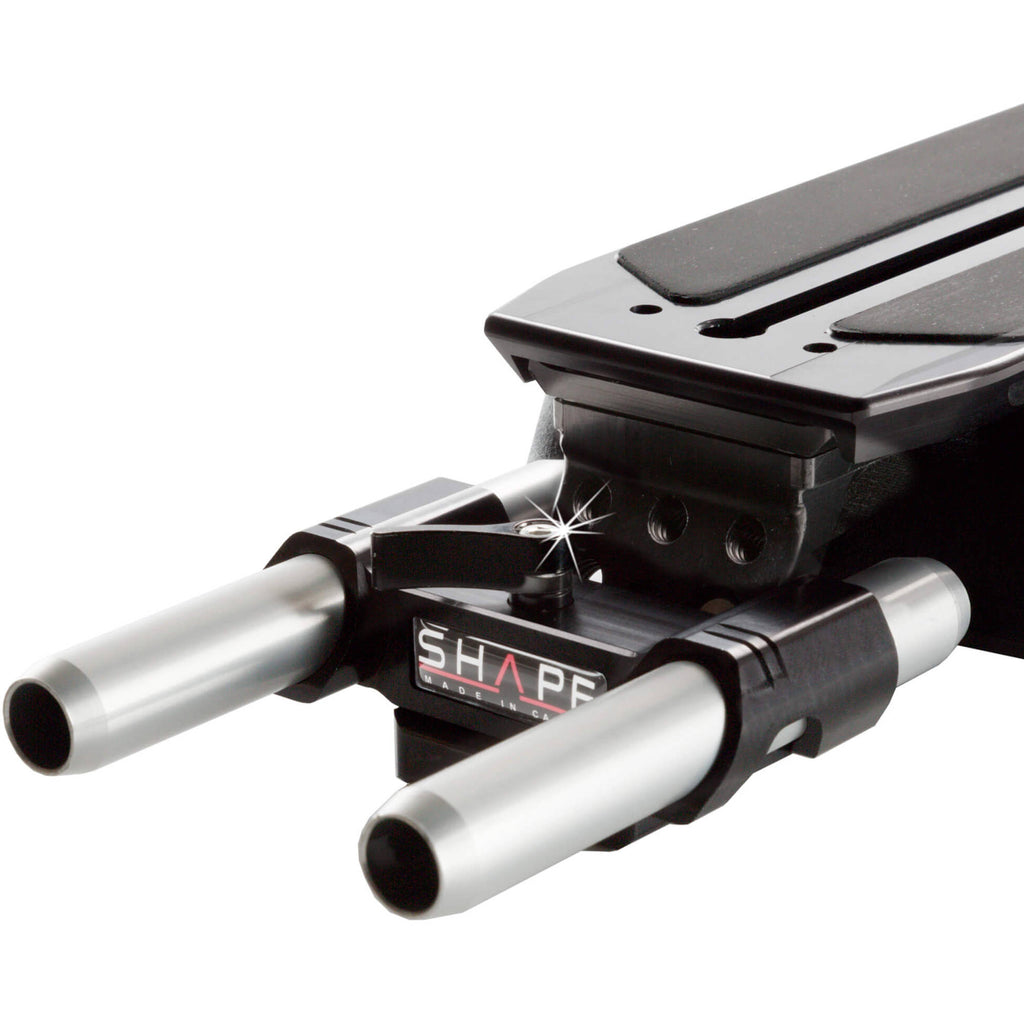

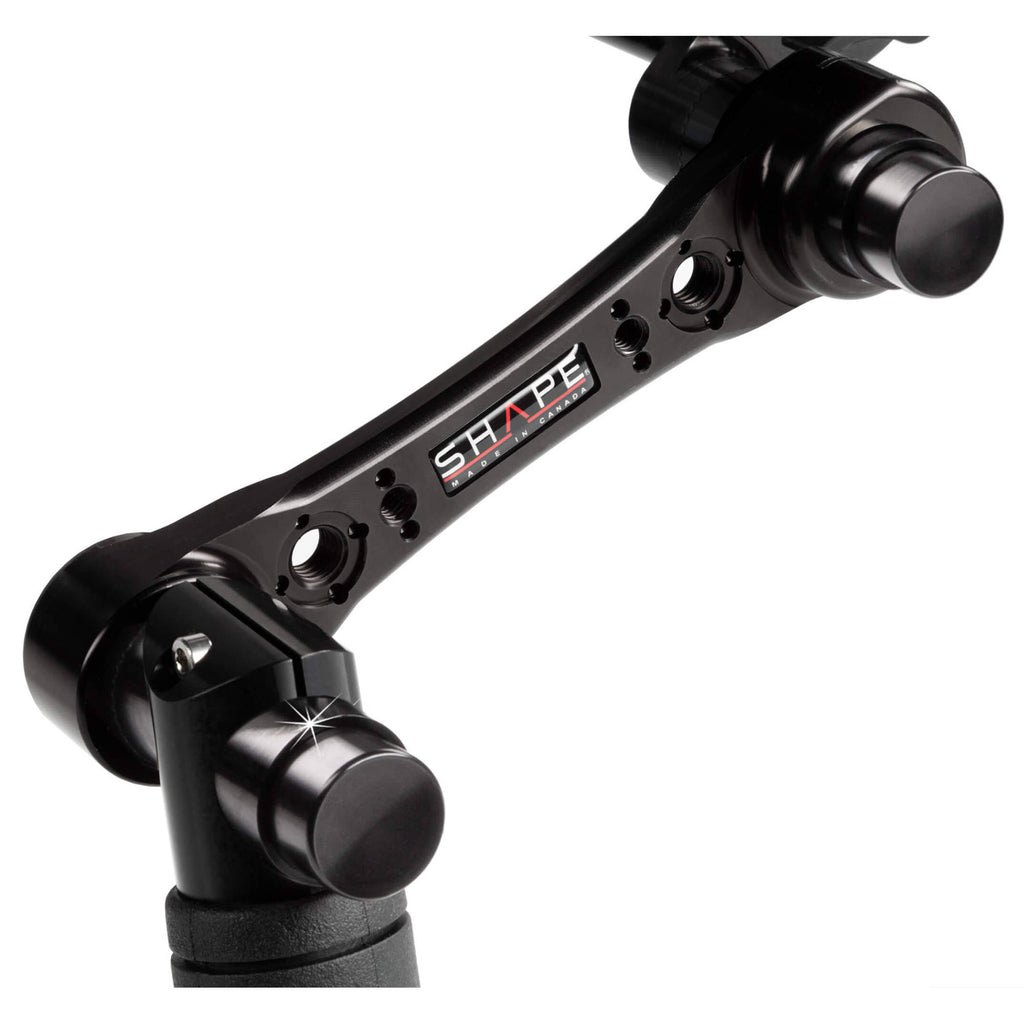

Also included is the V-lock quick release baseplate, which has an integrated shoulder pad, front and rear rod clamps, support rods, and integrated ARRI-compatible rosettes. These rosettes allow you to attach various handheld accessories, such as the included articulating left handgrip. The handgrip features three points of articulation, one at the ARRI-compatible rosette, and two additional points along the arm which are actuated by SHAPE's push-button release system, which allows you to press with your thumb to release and adjust the articulating joint, and simply release the button when you want to lock it in place. With the push-button release, there is no need to twist levers to loosen or lock. The handgrip''s arm also incorporates two each 1/4"-20 and 3/8"-16 threaded accessory mounting holes with anti-twist divots.

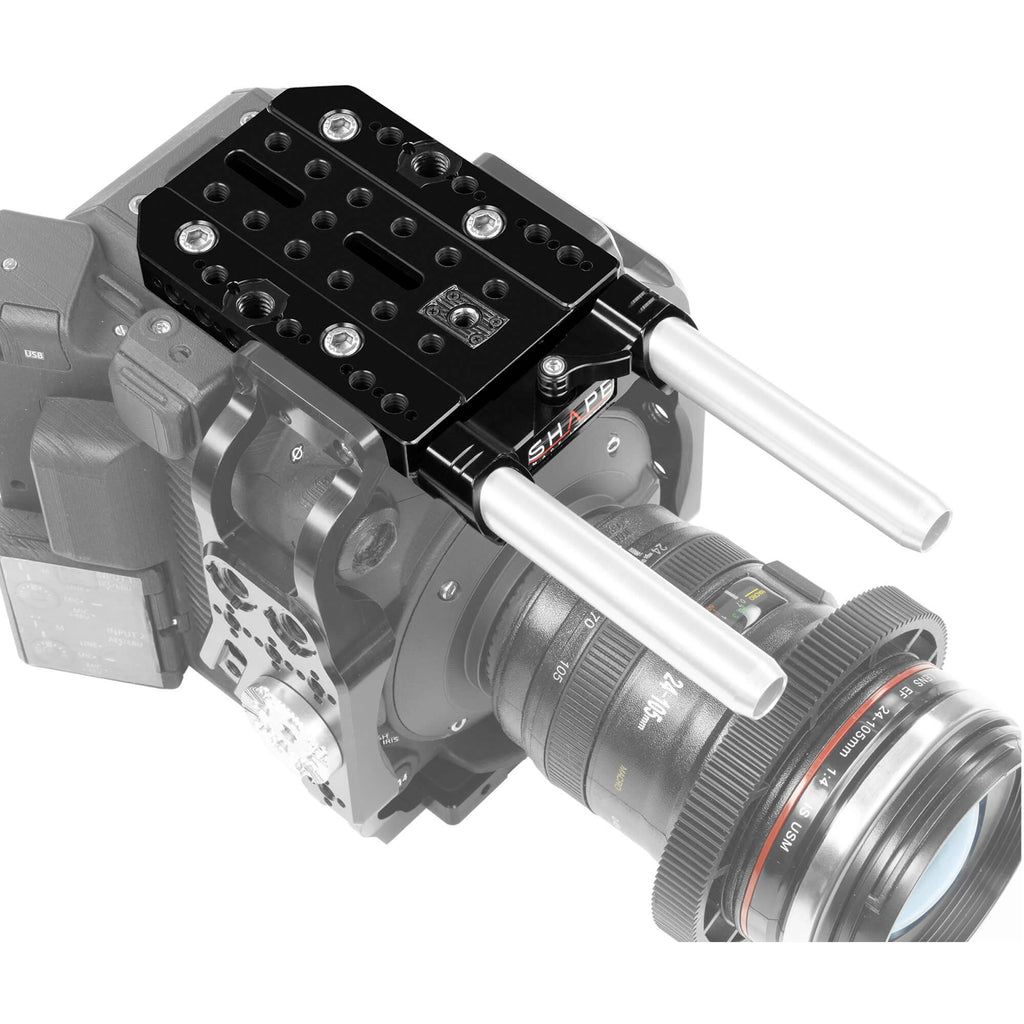

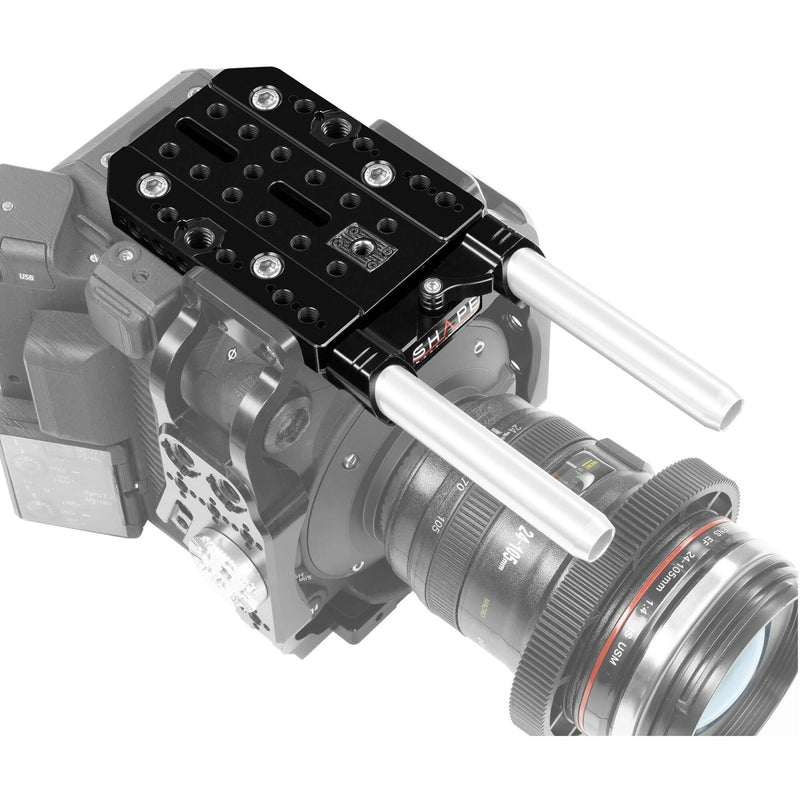

Mounts on top of your C500 Mark II Provides numerous 1/4"-20 threaded accessory mounting points, both with and without ARRI-compatible anti-twist divots Provides two 3/8"-16 threaded accessory mounting holes with ARRI-compatible anti-twist divots Includes removable 15mm rod clamps and a pair of 4" long 15mm support rods UPC: 629266010082

Material of Construction	CNC-Machined Anodized Aluminum
Mounting Holes	Top 18 x 1/4"-20 8 x 1/4"-20 (with Anti-Twist Divots) 2 x 3/8"-16 ( with Anti-Twist Divots) Plate Sides 10 x 1/4"-20 (with Anti-Twist Divots)
Dimensions	6.5 x 3.5 x 0.75" / 16.5 x 8.9 x 1.9 cm
Weight	8.8 oz / 249.5 g

Package Weight	0.555 lb
Box Dimensions (LxWxH)	11.2 x 7.15 x 1"
