SHAPE FX6BR Overview
-
1Description
-
2SHAPE Camera Cage for Sony FX6
-
3SHAPE REVOLT VCT Universal Baseplate
-
4SHAPE 15mm Aluminum Rods (Pair, 8")
-
5SHAPE 15mm Aluminum Rods (Pair, 4")
Sony FX6 kits & handheld solutions

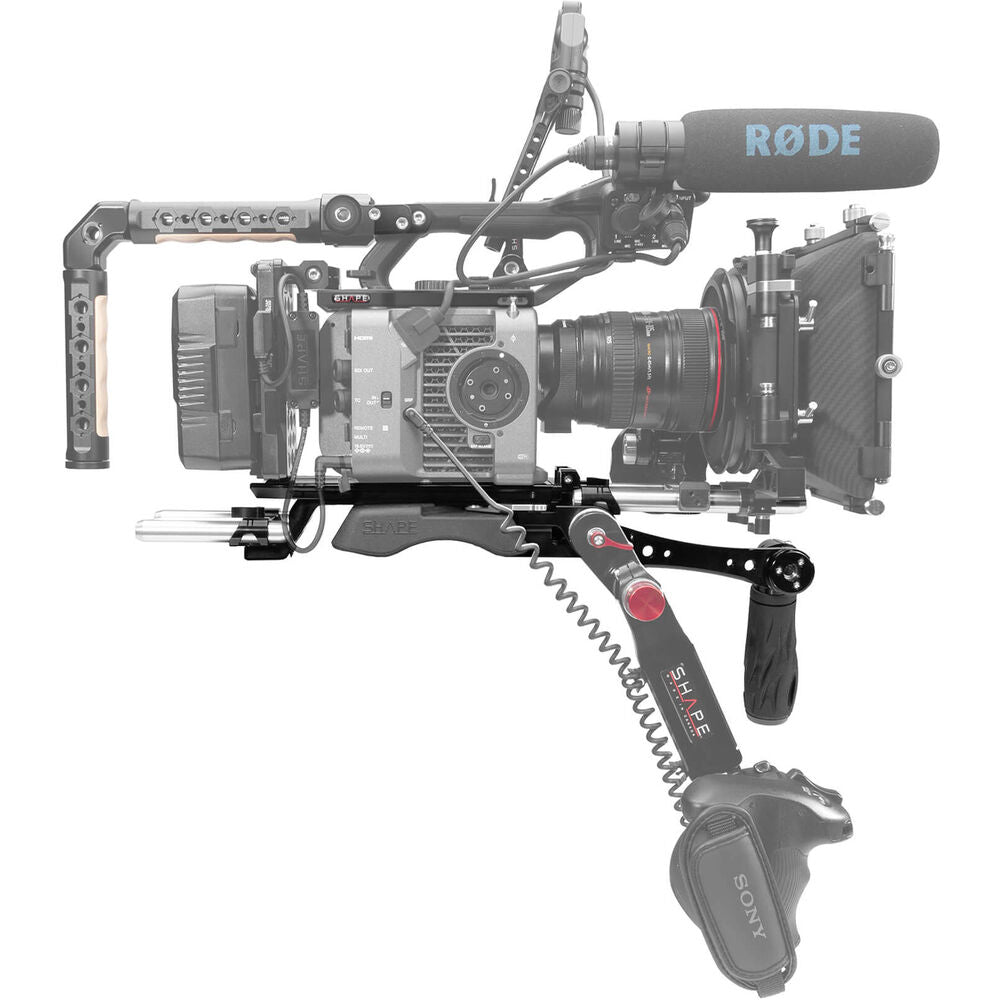

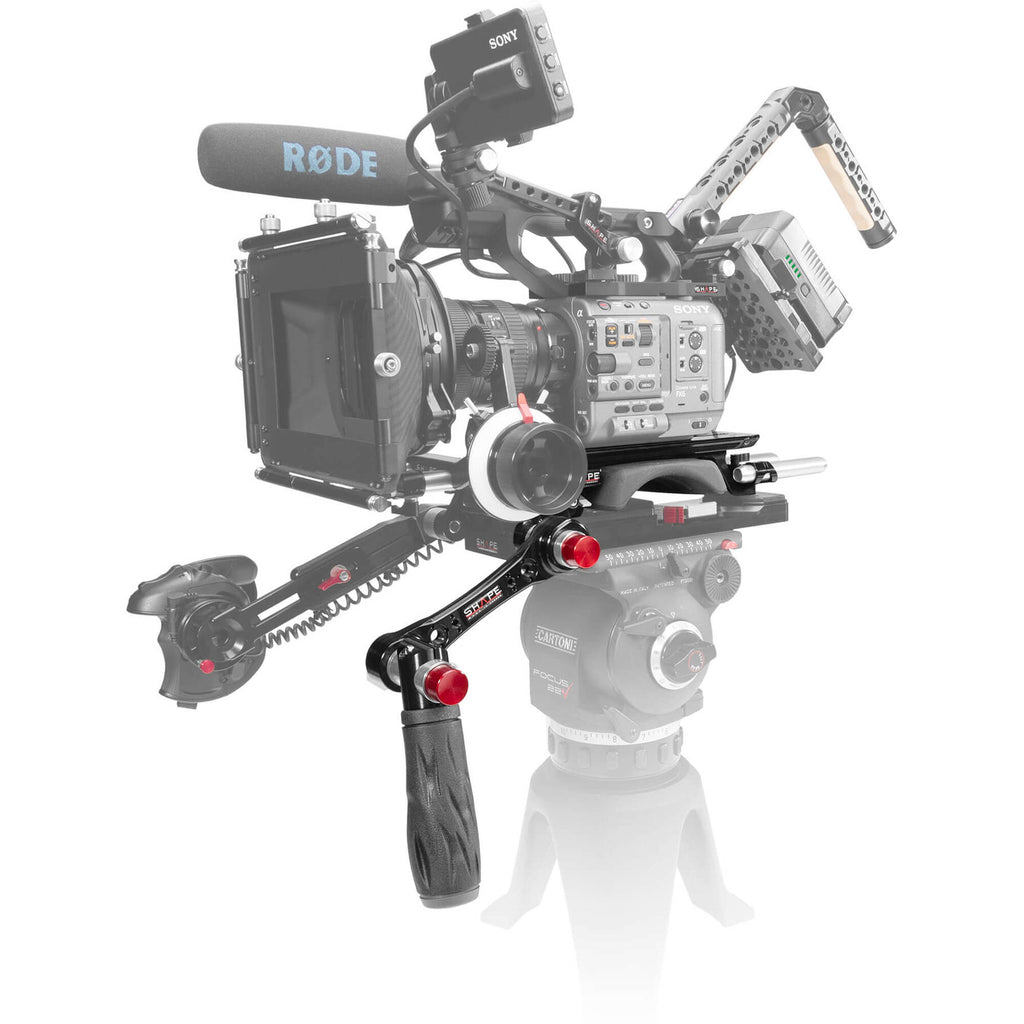

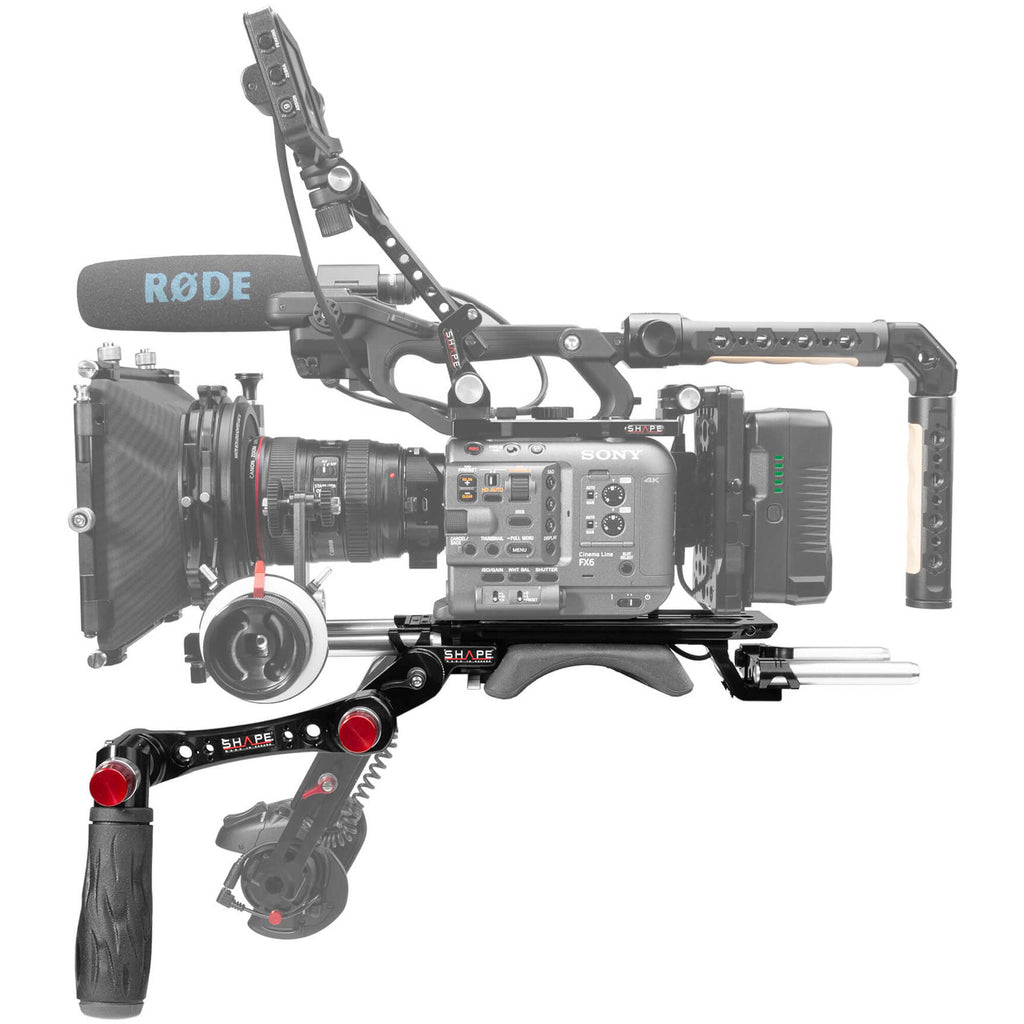

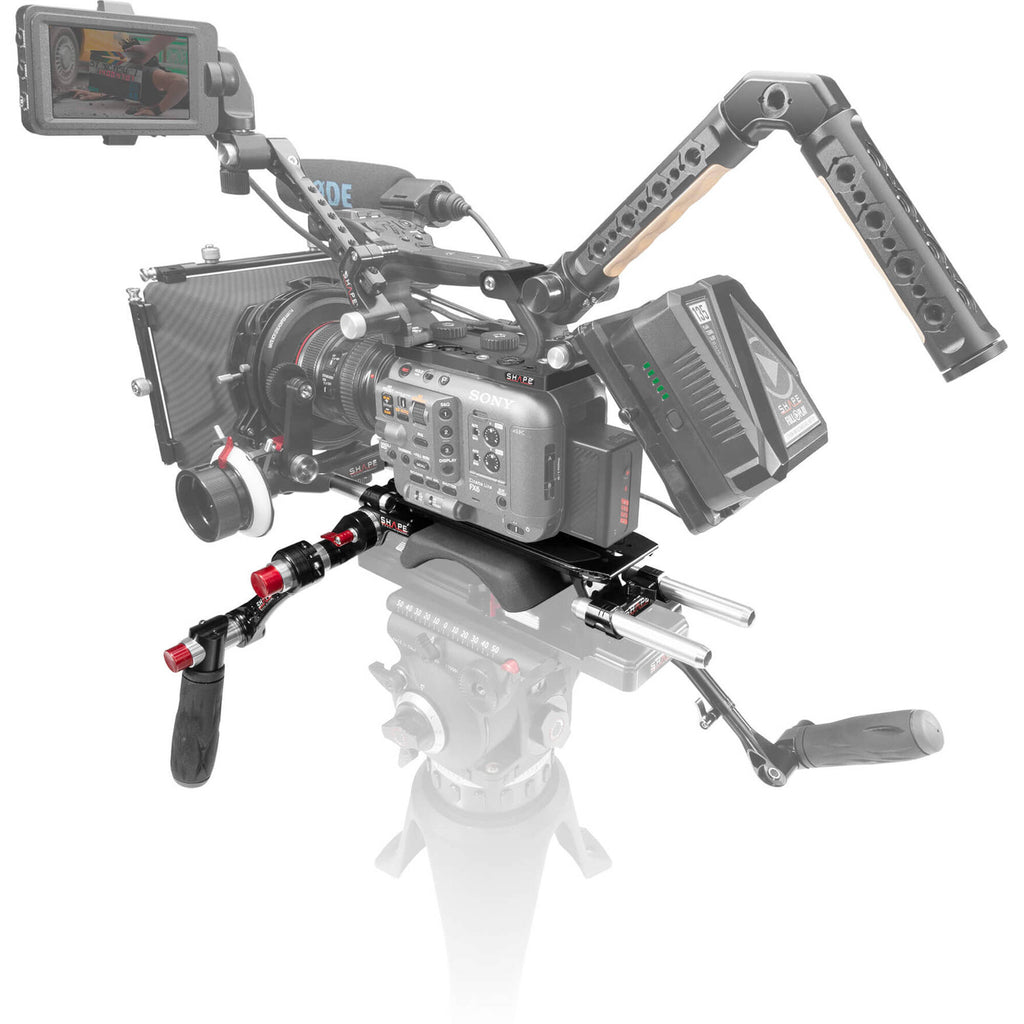

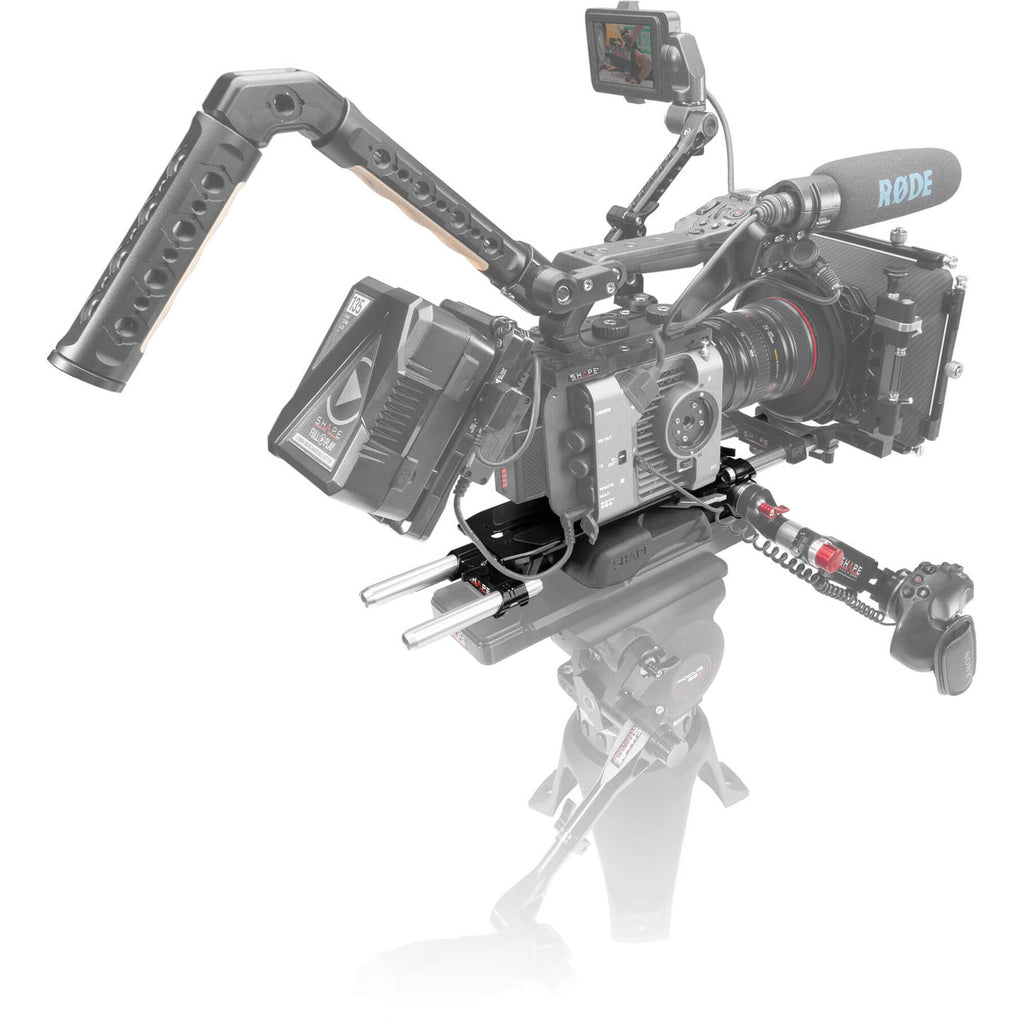

Add a protective cage, a shoulder mount, and a variety of accessories to your Sony FX6 camera with this Baseplate with Camera Cage and Articulating Handle from SHAPE. The kit includes a lightweight aluminum VCT baseplate, a camera cage, and an articulating push-button handle with a rubber handgrip.
The VCT baseplate incorporates two ARRI-compatible rosettes for attaching optional handgrips and accessories, features 1/4"-20 and 3/8"-16 camera mounting screws, and is VCT-14 quick release compatible. The aluminum cage features a top plate that mounts around your original FX6 handle, a side plate with a rosette, and multiple 1/4"-20 and 3/8"-16 threads all over the cage for mounting.
Its sliding shoulder pad plate allows you to optimally position your camera on your shoulder or rig. The articulating handle features a comfortable rubber handgrip and mounts onto one of the rosettes on the baseplate or cage, and it can be adjusted with the press of a button. The front and rear 15mm LWS rod clamps enable you to mount the included 8 and 4" pairs of rods to support accessories in front and in the rear.
SHAPE Camera Cage for Sony FX6
Protect your Sony FX6 camera and add accessories such as a light, monitor, and a side handgrip with this Camera Cage from SHAPE. The cage features a cheese-style top plate, side rail, and baseplate. The FX6 mounts onto the cage using the baseplate and top plate using the four included mounting screws on top and 1/4"-20 and 3/8"-16 camera screws on the bottom to prevent twisting.
The durable aluminum cage incorporates 1/4"-20 and 3/8"-16 mounting threads, 3/8"-16 and 1/4"-20 ARRI-style anti-twist threads, and an ARRI-style rosette on the side plate for a separately available handle or an extension arm.
![]()
UPC: 629266102527
SHAPE REVOLT VCT Universal Baseplate
Featuring a sliding camera plate, SHAPE's REVOLT VCT Universal Baseplate can accommodate rigs of varying sizes. Simply attach your camera via 1/4"-20 or 3/8"-16 screws to the top plate, and slide it onto the shoulder plate. Fore and aft movement allows you to balance the weight of your setup properly. Further adjustments can be made by moving the shoulder pad. The 15mm rod clamps at the front and rear of the baseplate allow you to secure 15mm accessories such as a matte box, follow focus, lens motors, lens supports, battery plates, or external recorders. Since the front rod clamp is attached to the top plate, the rod-mounted accessories don't need to be repositioned as the rig is adjusted. Additionally, handles can be mounted to the ARRI standard rosettes on either side of the plate. When not shoulder-mounted, the baseplate can be secured to a standard VCT-14 ENG quick release in a matter of seconds, saving time on set.
The sliding baseplate provides a quick positioning of your camera and accessories for an optimal adjustment of your camera's balance center.
Height-adjustable rod clamp for aligning the 15mm rods at the proper LWS height in relation to the optical axis.
Front and rear rod clamps allow you to extend your rig forwards and backwards.
Built-in storage areas for extra screws and the Allen wrench ensure that necessary adjustment tools are always close at hand.
Safety pins and spring-loaded levers prevent the top plate from sliding unintentionally.
Soft and ergonomic shoulder pad.
![]()
UPC: 629266006672
SHAPE 15mm Aluminum Rods (Pair, 8")
This pair of Shape 15mm Aluminum Rods (8") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 8 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.
![]()
UPC: 629266001691
SHAPE 15mm Aluminum Rods (Pair, 4")
This pair of Shape 15mm Aluminum Rods (4") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.
![]()
UPC: 629266001677
In the Box
- SHAPE Camera Cage for Sony FX6
- 4 x Screw
- Limited Lifetime Warranty
- SHAPE REVOLT VCT Universal Baseplate
- Limited Lifetime Warranty
- SHAPE 15mm Aluminum Rods (Pair, 8")
- Limited Lifetime Warranty
- SHAPE 15mm Aluminum Rods (Pair, 4")
- Limited Lifetime Warranty
- Articulating Rosette Quick Handle
Table of Contents
- Description
- SHAPE Camera Cage for Sony FX6
- SHAPE REVOLT VCT Universal Baseplate
- SHAPE 15mm Aluminum Rods (Pair, 8")
- SHAPE 15mm Aluminum Rods (Pair, 4")
SHAPE Camera Cage for Sony FX6 Specs
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Sony FX6 |
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Cage: Multiple x ARRI Anti-Twist 3/8"-16 Thread, Multiple x Anti-Twist 1/4"-20 Thread, Multiple x 1/4"-20 Thread |
| Camera Mounting |
1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting |
1/4"-20 Thread, 3/8"-16 Thread |
| Shoe Mounting |
None |
| Rosettes |
Cage, Side: 1 x ARRI Rosette w/ M6 Thread |
General
| Construction |
Aluminum |
| Dimensions |
6 x 5.25 x 4.25" / 15.2 x 13.34 x 10.79 cm |
| Weight |
13.8 oz / 390 g |
Packaging Info
| Package Weight |
1.245 lb |
| Box Dimensions (LxWxH) |
8.7 x 7.3 x 4.4" |
SHAPE REVOLT VCT Universal Baseplate Specs
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing |
| Included Rods |
Yes |
| Camera Mounting |
1/4"-20 Screw, 3/8"-16 Screw |
| Rosettes |
Sides: 2 x ARRI Rosette w/ M6 Thread |
General
| Support Type |
Shoulder Support |
| Grip Type |
Grip Required (Not Included) |
| Camera Compatibility |
Universal |
| Dimensions |
10.4 x 4.4 x 2" / 26 x 11 x 5 cm |
| Weight |
2.2 lb / 1 kg |
Packaging Info
| Package Weight |
2.965 lb |
| Box Dimensions (LxWxH) |
14.4 x 6 x 4.5" |
SHAPE 15mm Aluminum Rods (Pair, 8") Specs
| Diameter |
15 mm |
| Length |
8 inches (20.3 cm) |
| Material |
Aluminum with a clear finish applied over it |
Packaging Info
| Package Weight |
0.2 lb |
| Box Dimensions (LxWxH) |
9.5 x 3.5 x 0.5" |
SHAPE 15mm Aluminum Rods (Pair, 4") Specs
