SHAPE HSMDV Overview

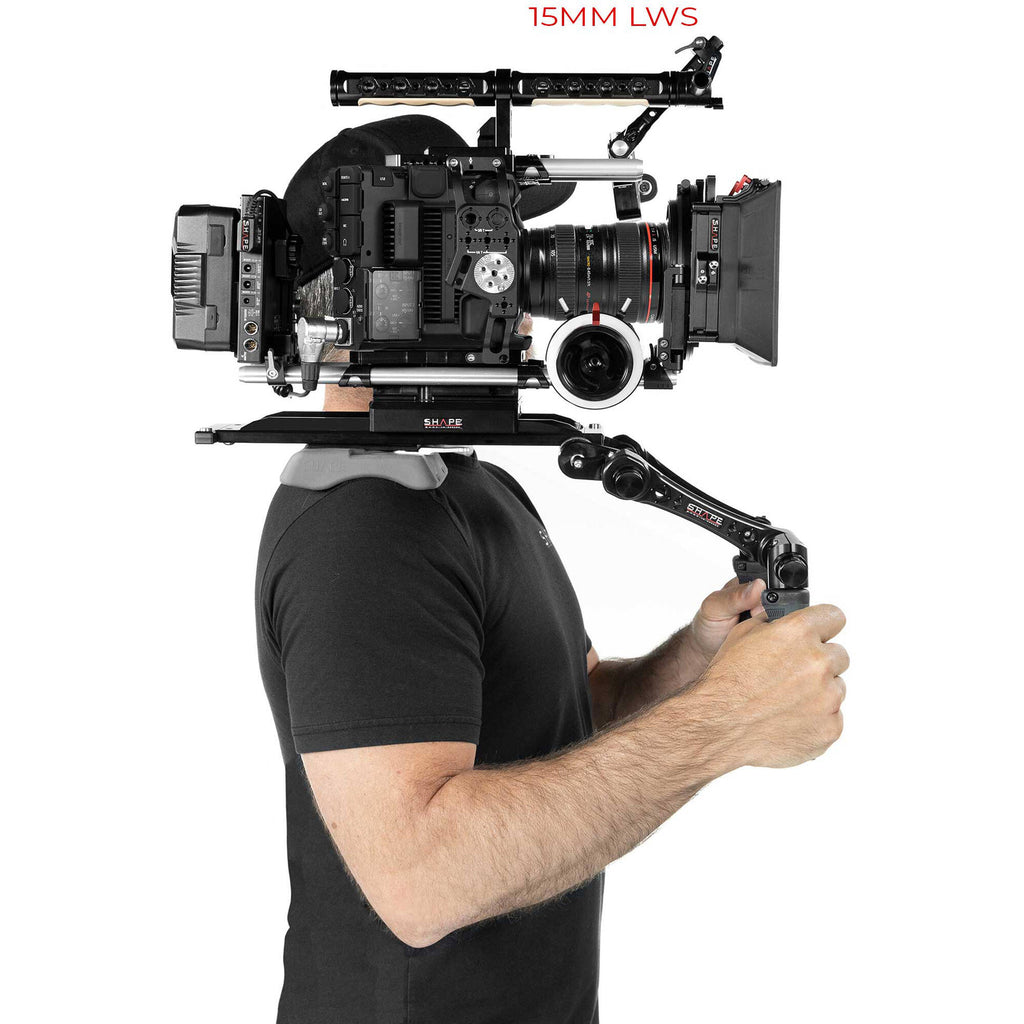

Easily secure your camera rig onto this ARRI Dovetail Shoulder Mount with Handles thanks to its ARRI-style dovetail plate and dual ARRI rosette handles. The entire system can accommodate 15mm LWS, 15mm studio, and 19mm studio bridge plates for wide compatibility.

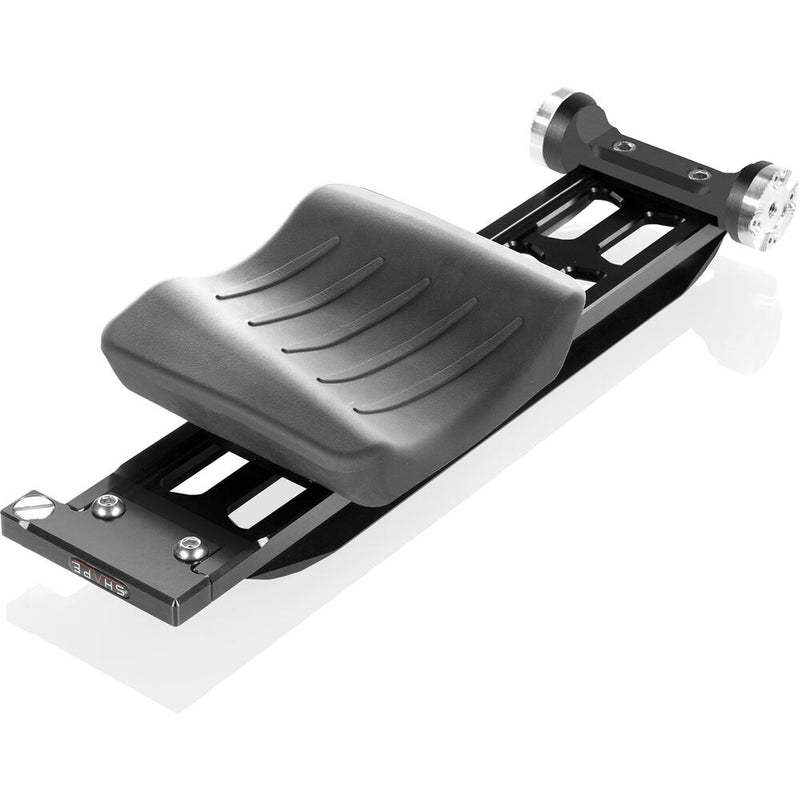

SHAPE ARRI Dovetail with Adjustable Shoulder Mount

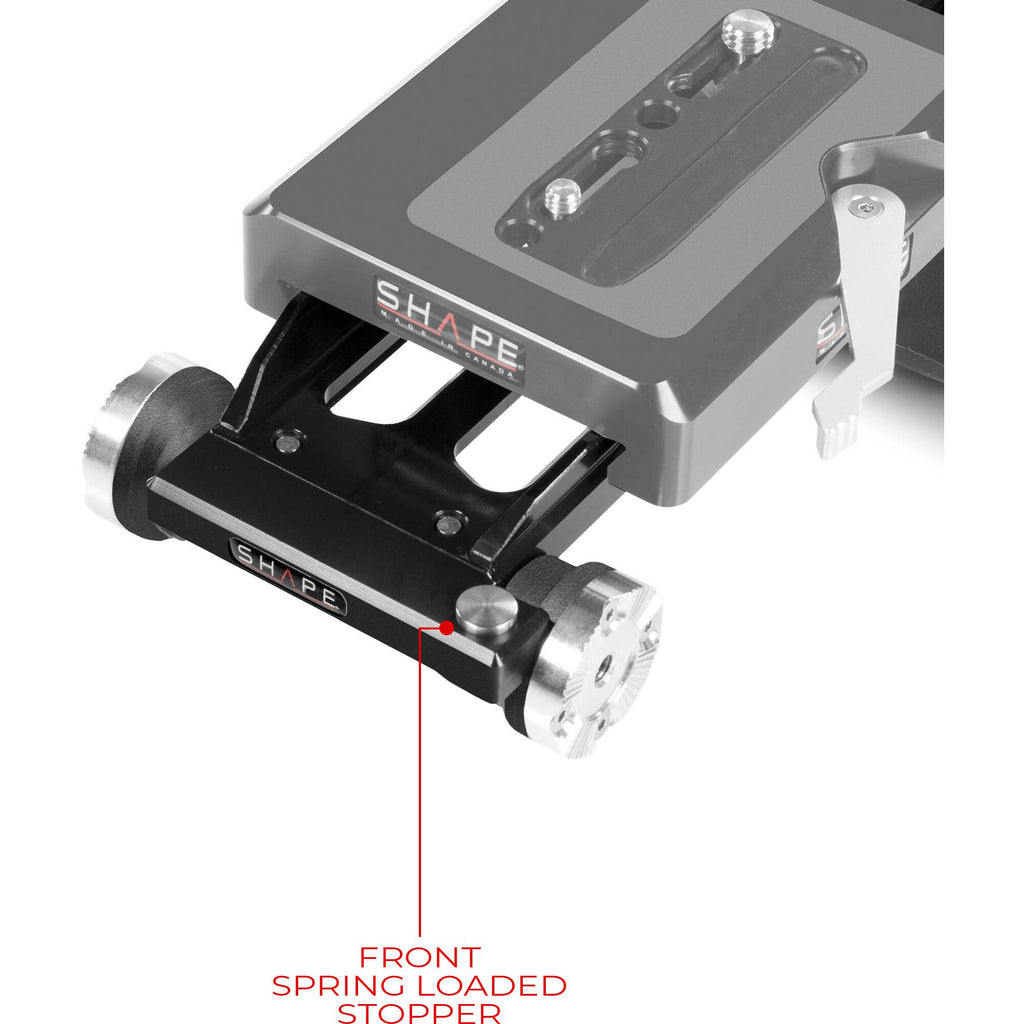

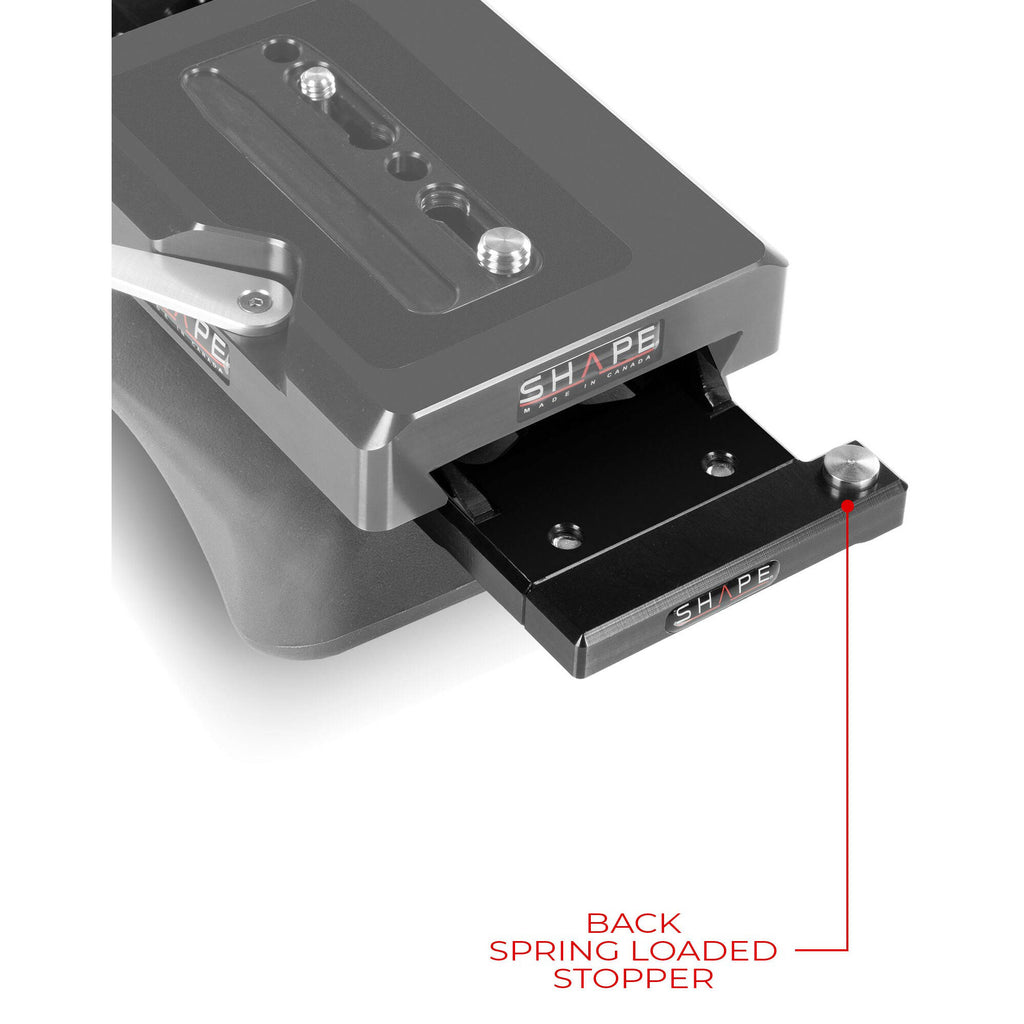

Designed to be compatible with all three industry-standard ARRI-Style bridge plates, this ARRI Dovetail with Adjustable Shoulder Mount from SHAPE offers a highly customizable mount for your camera rig. Spring-loaded stoppers on either end of the mount prevent the bridge from sliding off but allow for quick release when pressed.

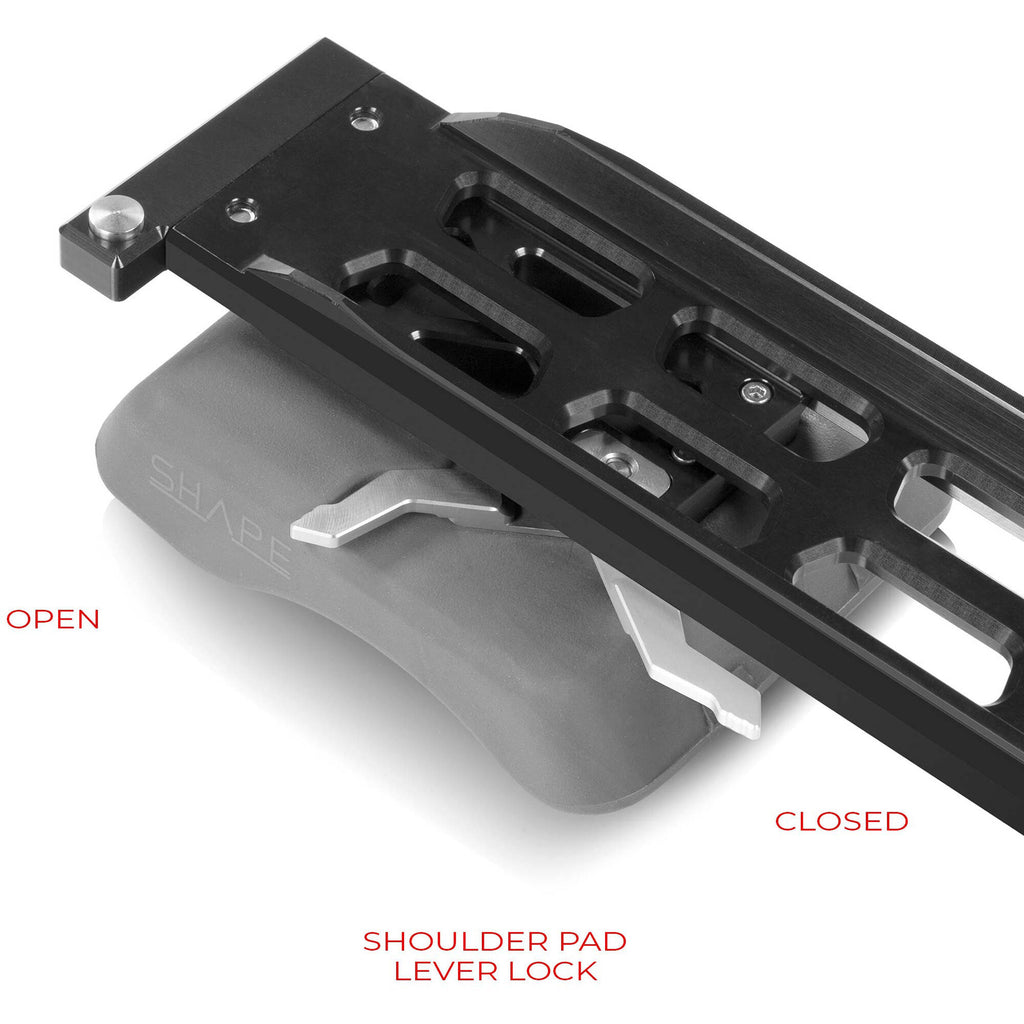

A shoulder pad on the bottom of the dovetail can be adjusted along the track to distribute the rig's weight effectively. Two ARRI rosettes at the front allow you to integrate handgrips of your choice. Constructed with CNC aluminum, the shoulder mount is designed to be durable.

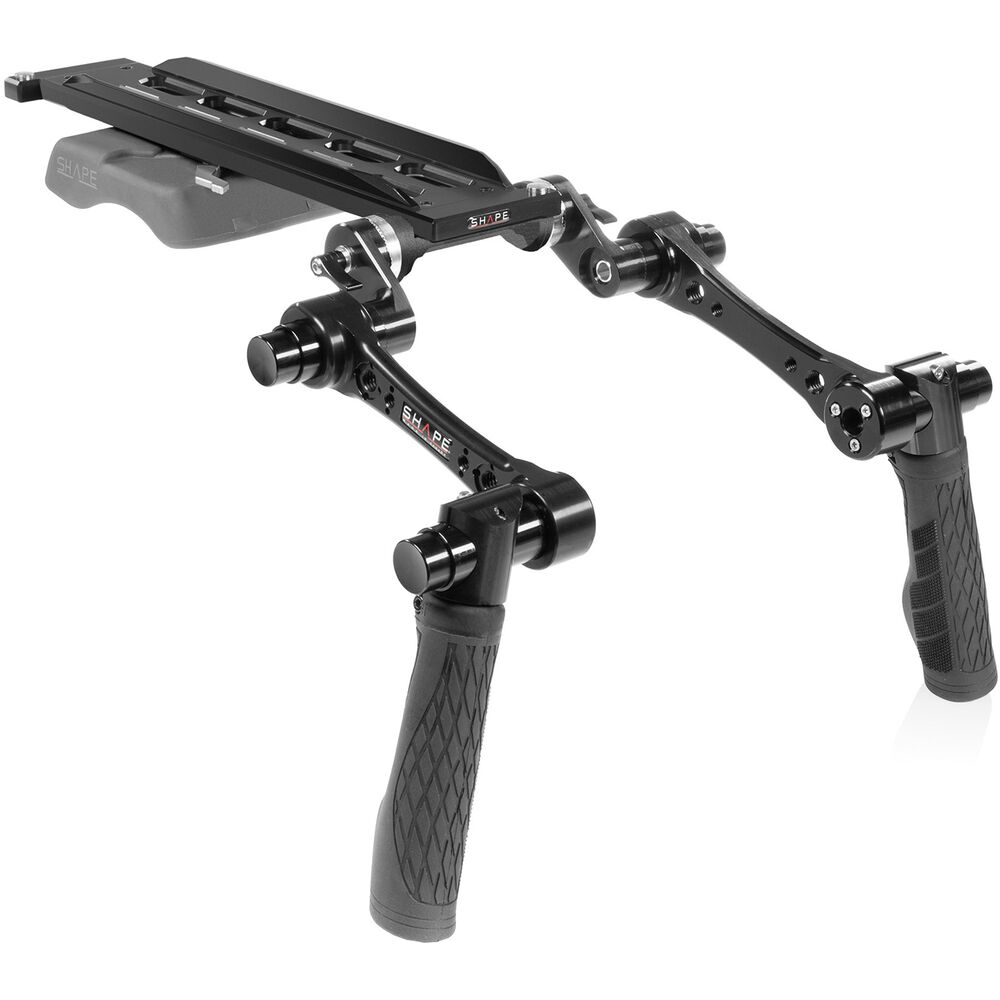

SHAPE Compact Quick Handle ARRI Rosette (Black)
The black SHAPE Compact Quick Handle ARRI Rosette consists of a left- and right-hand articulating arm with rubber handgrip. Each arm features a rosette with an M6 metric screw for attaching the handle to cameras and baseplates with ARRI rosettes. Each handle features two points of articulation actuated with SHAPE's patented quick-lock buttons.
The arms attach via the rosettes allowing you to select the attachment angle. Each arm also has two each 1/4"-20 and 3/8"-16 threaded mounting holes with anti-twist indents for attaching accessories. The quick-lock buttons are located at the articulation points, one towards your baseplate and the other controlling the angle of the rubber handgrip.
Incorporates SHAPE's patented quick-lock buttons
Consists of a handle and an arm
Quick-lock button located at the articulation between the handle and the arm allows you to rotate the arm up to a full 360°
Pushing and holding down the quick-lock button allows rotating the arm/handle, and releasing it keeps the handle locked and firmly in place
In the Box
- SHAPE ARRI Dovetail with Adjustable Shoulder Mount
- SHAPE Compact Quick Handle ARRI Rosette (Black)
- 2 x Quick Handle Rosette
- 2 x M6 Metric Screw
SHAPE ARRI Dovetail with Adjustable Shoulder Mount Specs
| Support Type |
Shoulder Support |
| Grip Type |
Grip Required (Not Included) |
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing, 15 mm Studio / 100 mm Spacing, 19 mm Studio / 104 mm Spacing |
| Battery Plate Type |
None |
| Accessory Mounting |
None |
| Camera Mounting |
ARRI Dovetail |
| Tripod Mounting |
None |
| Shoe Mounting |
None |
| Rosettes |
2 x ARRI Rosette w/ M6 Female Thread |
General
| Materials |
Aluminum |
| Dimensions |
12.8 x 4.5 x 2.5" / 32.5 x 11.4 x 6.3 cm |
| Weight |
1.8 lb / 0.8 kg |
Packaging Info
| Package Weight |
2.52 lb |
| Box Dimensions (LxWxH) |
14.7 x 6.4 x 4.5" |
SHAPE Compact Quick Handle ARRI Rosette (Black) Specs
| Item Type |
Dual Handgrips |
| Rotation |
Yes |
Mounting
| Attachment Method |
Attaches via Rosette |
| Accessory Mounting |
Arm
2 x Anti-Twist 1/4"-20 Thread
2 x Anti-Twist 3/8"-16 Thread |
| Shoe Mounting |
None |
| Rosettes |
1 x ARRI Rosette w/ M6 Thread (per Handgrip) |
| Rail Mounting |
None |
Packaging Info
| Package Weight |
2.61 lb |
| Box Dimensions (LxWxH) |
8.7 x 7.4 x 3.3" |
SHAPE HSMDV Reviews
