SGM61410XN6G/TR is a 1.2MHz, 600mA, 42V synchronous buck converter. It is a high-frequency, synchronous buck converter with integrated switches. It is suitable for various industrial or automotive applications with high input voltage or for power conditioning from unregulated sources. It features high efficiency over a wide load range achieved by scaling down the switching frequency at light loads to reduce switching and gate-driving losses. Other features include internal compensation, internal monotonic soft-start even with pre-biased output and fast loop response due to the peak current mode controller. Protection features include current limiting and short-circuit protection, thermal shutdown with auto recovery and output over-voltage protection. Frequency fold-back helps prevent inductor current runaway during start-up. Applications include high voltage power conversions, automotive systems, industrial and distributed power system, battery powered systems, power meters.
- Wide 5V to 42V operating input voltage range
- 0.8V internal reference, 14µA typical low quiescent current
- Typical shutdown current is 0.6µA, current output up to 600mA
- 1.2MHz switching frequency, internal compensation and soft-start
- Simple design and minimal external components, current limit and short-circuit protection
- Output over-voltage protection and thermal shutdown, 90% maximum duty cycle
- Power-save mode and PWM mode operation, monotonic start-up with pre-biased output
- SOT-23-6 package, temperature range from -40°C to +125°C
Other details
| Brand |
SGMICRO |
| Part Number |
SGM61410XN6G/TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

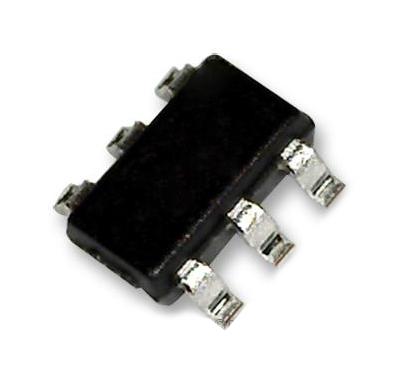

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
