SGM2210-ADJXN5G/TR is a 300mA, low quiescent current, low noise, and low dropout voltage linear regulator. Other features include logic-controlled shutdown mode, short-circuit current limit, and thermal shutdown protection. It has an automatic discharge function to quickly discharge VOUT in the disabled status. Application includes palmtop computers, portable electronics, industrial and medical equipment, and battery-powered equipment.
- Operating input voltage range from 2.5V to 20V, adjustable output
- 300mA output current, output voltage accuracy ±1% at +25°C
- Typical quiescent current 36µA, low dropout 80mV (TYP) at 100mA, VOUT = 3.3V, 25°C
- Low noise of 48µVRMS (TYP) at VOUT = 3.3V, +25°C, high PSRR 100dB (TYP) at 1KHz, 25°C
- Current limiting and thermal protection, with output automatic discharge
- Stable with small case size ceramic capacitors, shutdown supply current 0.5µA (TYP)
- SOT-23-5 package
- Operating temperature range from -40°C to +125°C
Other details
| Brand |
SGMICRO |
| Part Number |
SGM2210-ADJXN5G/TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

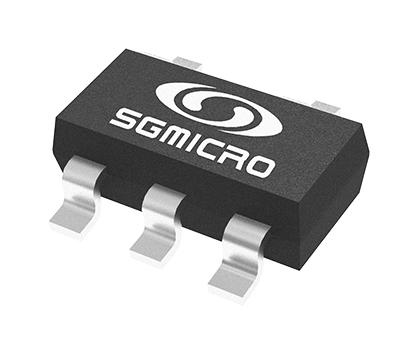

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
