Description

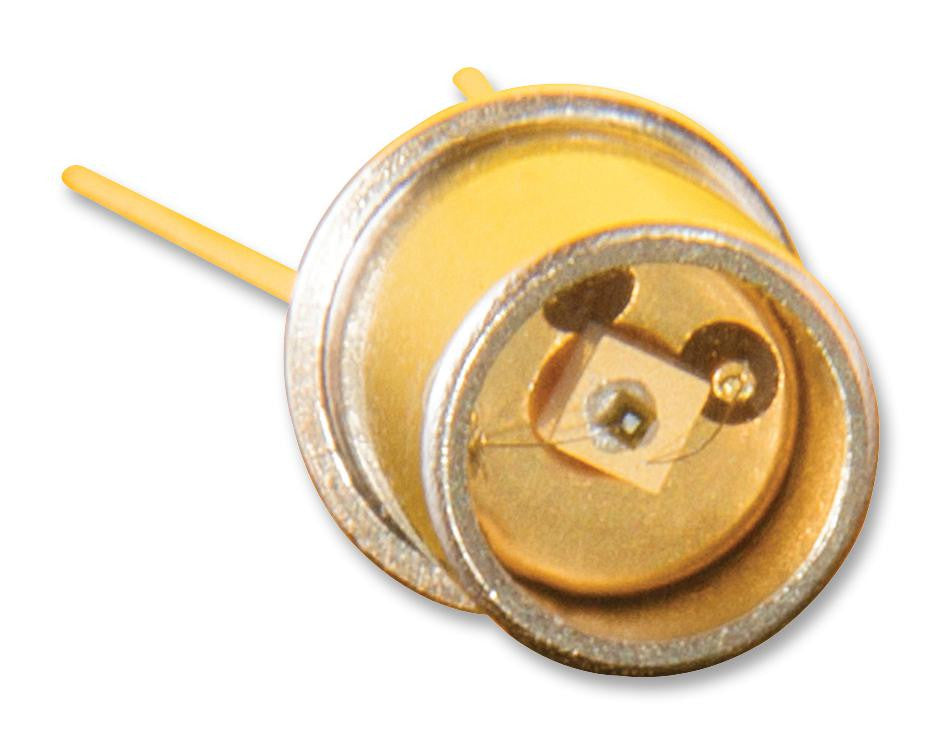

The SG01S-18 is a Broadband SiC based UV Photodiode provides the unique property of extreme radiation hardness, near-perfect visible blindness, low dark current, high speed and low noise. This features make SiC the best available material for visible blind semiconductor UV detectors. The SiC detectors can be permanently operated at up to 170�C. The temperature coefficient of signal (responsivity) is also low, <0.1%/K. It is available with seven different active chip areas from 0.06 to 36mm�. Four filtered versions lead to a tighter sensitivity range.
- 10mW/cm� Peak radiation results a current of approximately 780nA
Applications
Consumer Electronics
Product details
| Wavelength of Peak Sensitivity | 300nm |
| Operating Temperature Min | -55�C |
| Operating Temperature Max | 170�C |
| No. of Pins | 2Pins |
| Dark Current | 0.2fA |
| Product Range | - |
| Automotive Qualification Standard | - |
| Angle of Half Sensitivity � | - |
| Packaging | Each |
| Diode Case Style | TO-18 |
| MSL | - |
Other details
| Brand | SGLUX |
| Part Number | SG01S-18 |
| Quantity | Each |
| Technical Data Sheet EN |  |
