Sescom XLR-ABC Overview

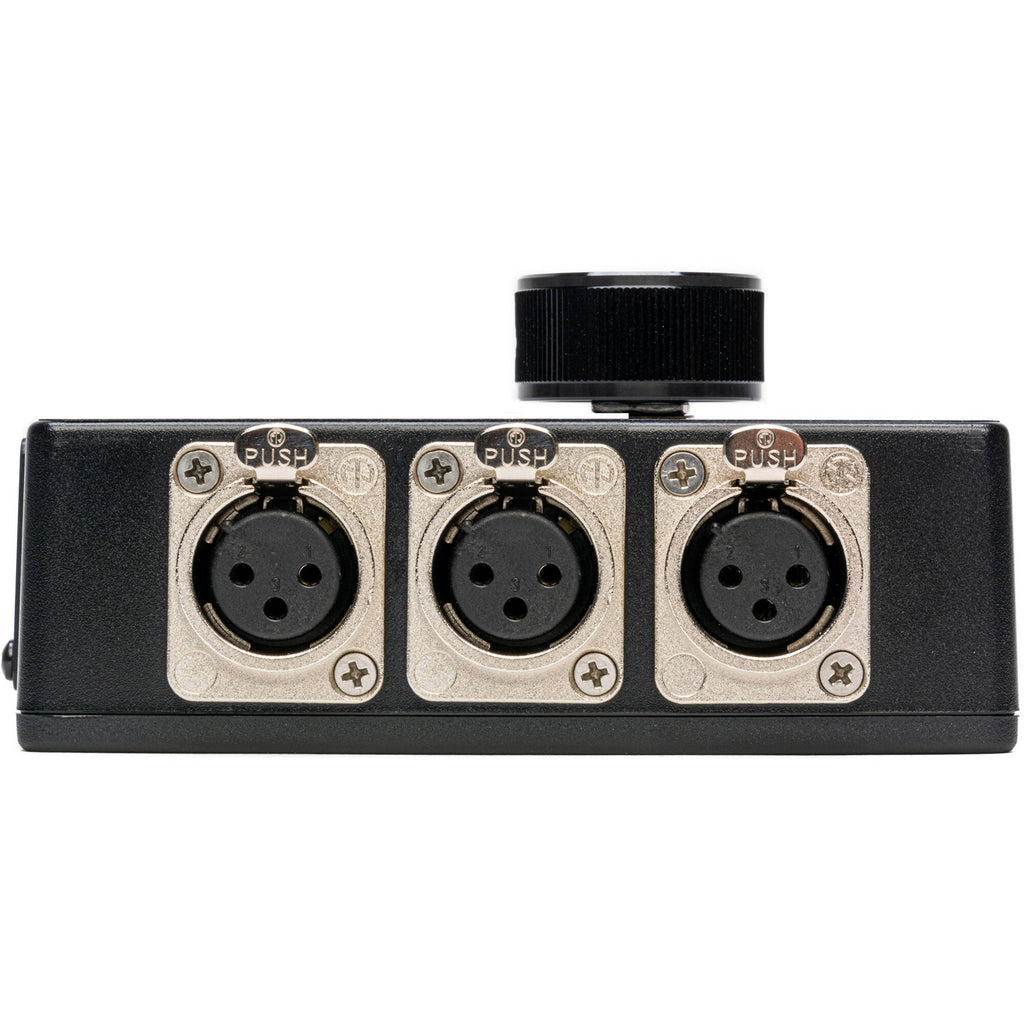

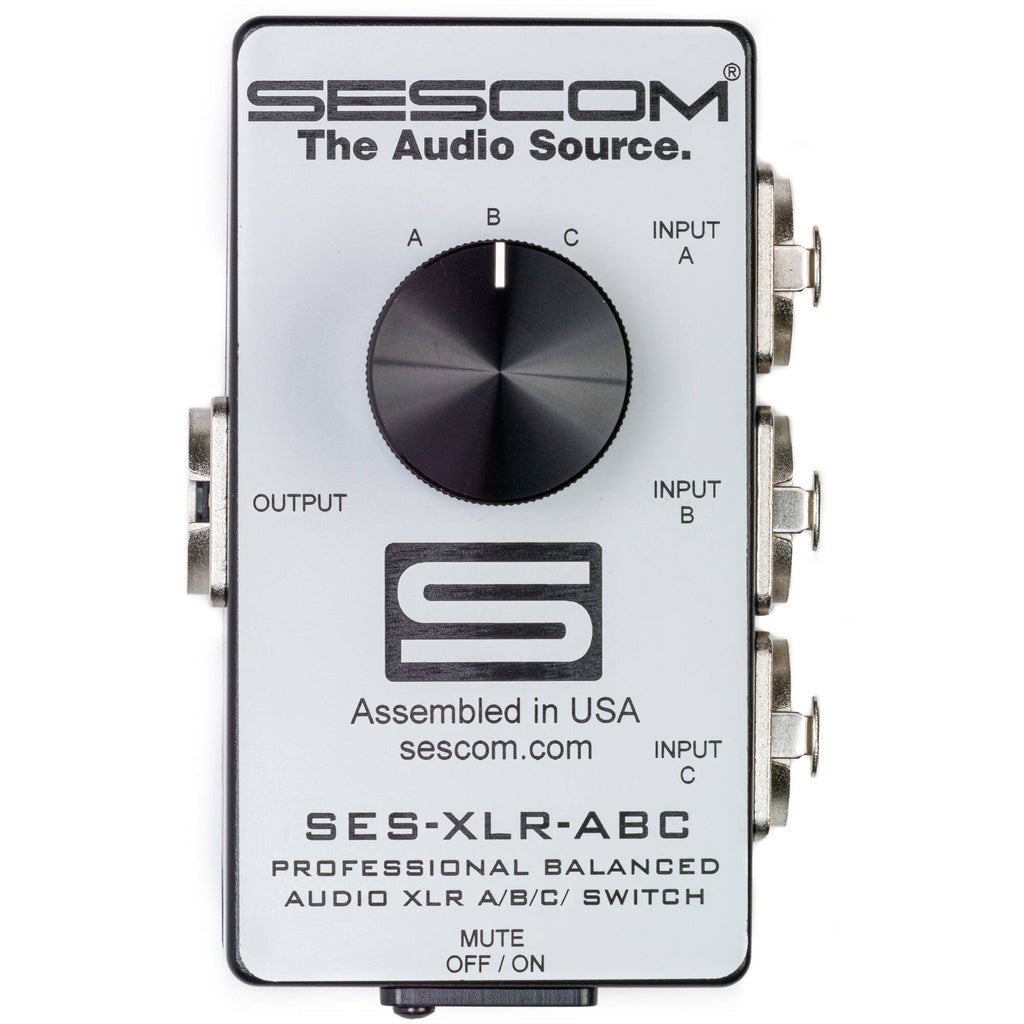

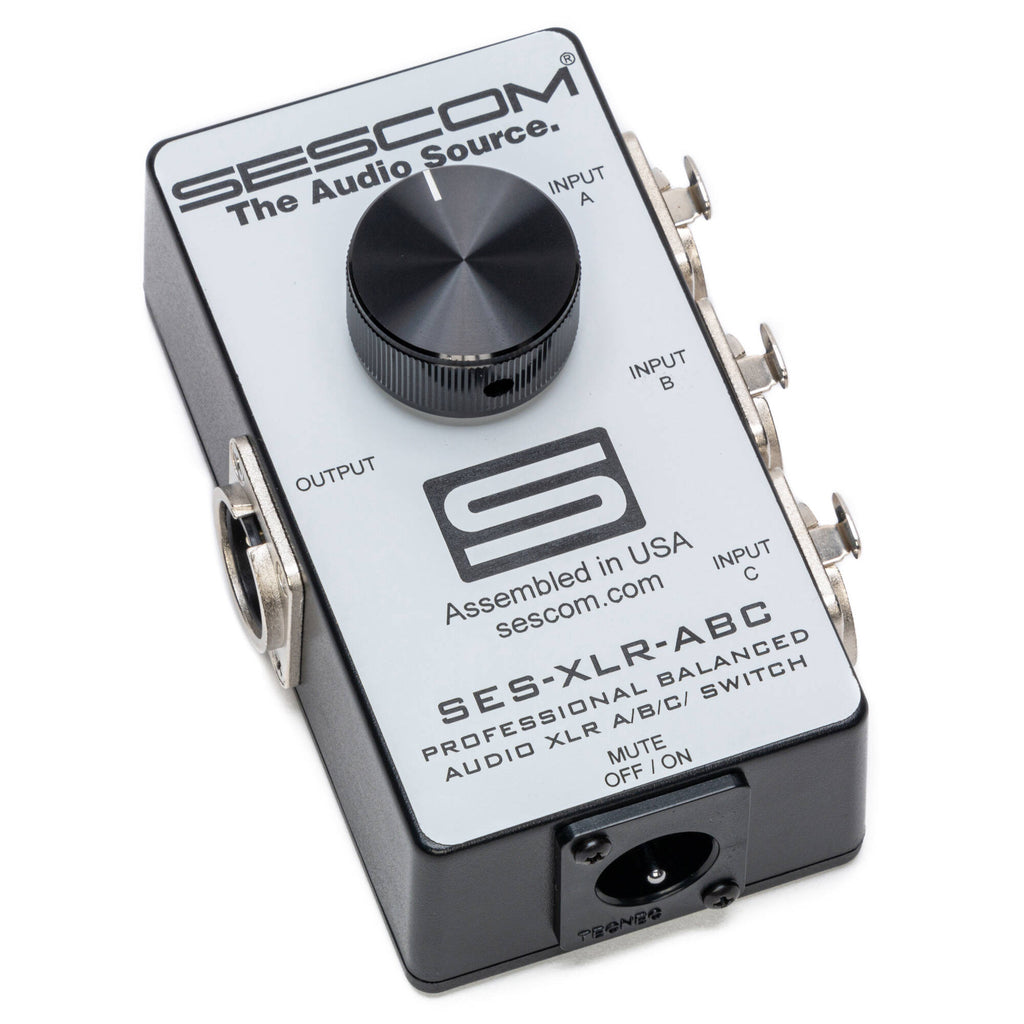

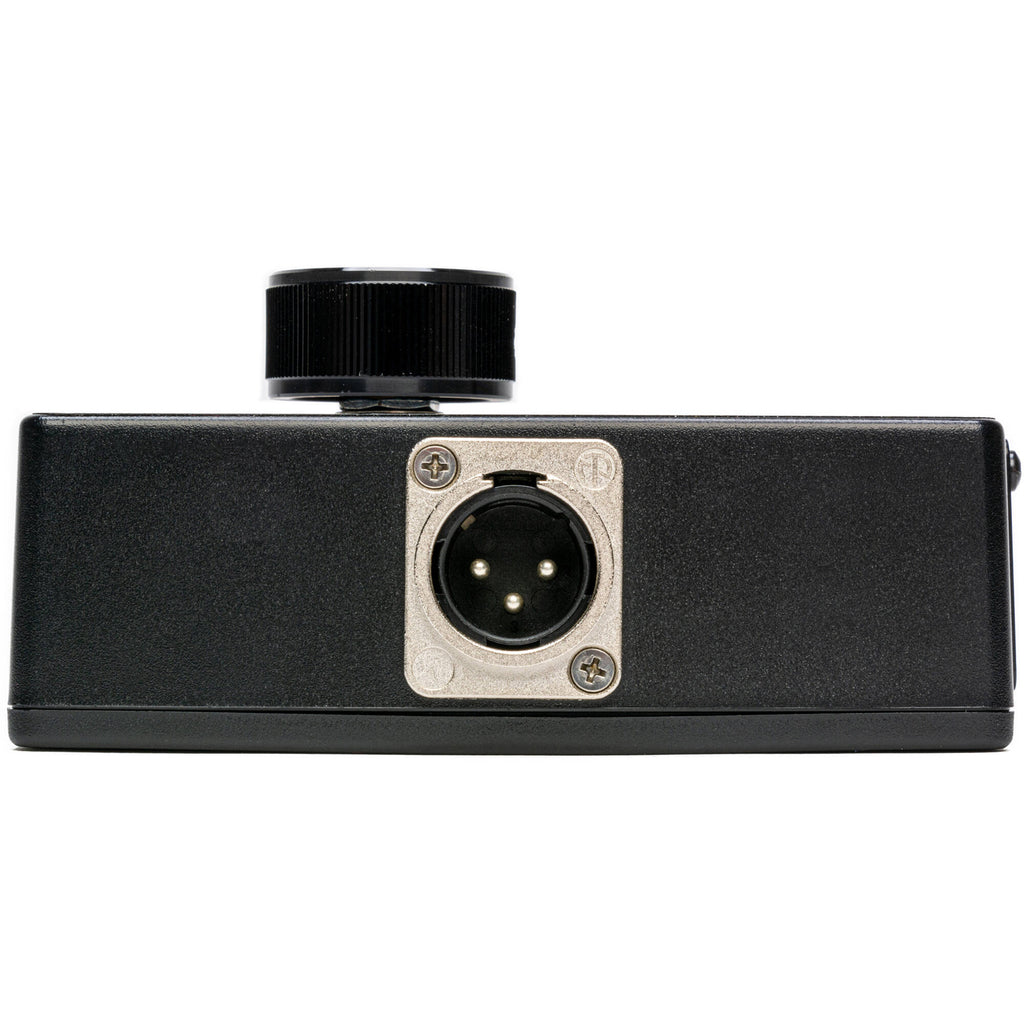

The Sescom SES-XLR-ABC is a high-quality passive signal splitter for balanced audio signal. You'll note the box has 3 XLR female connections, and 1 XLR male connection. A prominent rotary dial lets you select which of the three XLR-F connections feeds the XLR-M termination.
This is a fully passive design requiring no power. High-quality locking Neutrik XLR connectors have been used. The design is bidirectional�whether your feeding a single XLR connection to one three destinations, or choosing among three XLR signals to feed one XLR output, the unit will work.
In the Box
- Sescom SES-XLR-ABC Balanced Audio Pro-Grade XLR A/B/C Passive Switch
- Limited 1-Year Manufacturer Warranty
Sescom XLR-ABC Specs
Input
Audio Inputs |
3 x XLR 3-Pin Female Balanced Mono |
Input Audio Format |
Analog |
Output
Audio Outputs |
1 x XLR 3-Pin Male Balanced Mono |
Output Audio Format |
Analog |
General
Dimensions |
4.9 x 2.5 x 2.5" / 124.5 x 63.5 x 63.5 mm |
Weight |
7.9 oz / 224 g |
Packaging Info
Package Weight |
0.53 lb |
Box Dimensions (LxWxH) |
7.15 x 4.8 x 2.6" |
