Description
Sescom SES-4XLR1F3M-CAT Overview
- 1Description
- 2Transmission Distance
- 3Passive Extender
- 4Cable Fanout

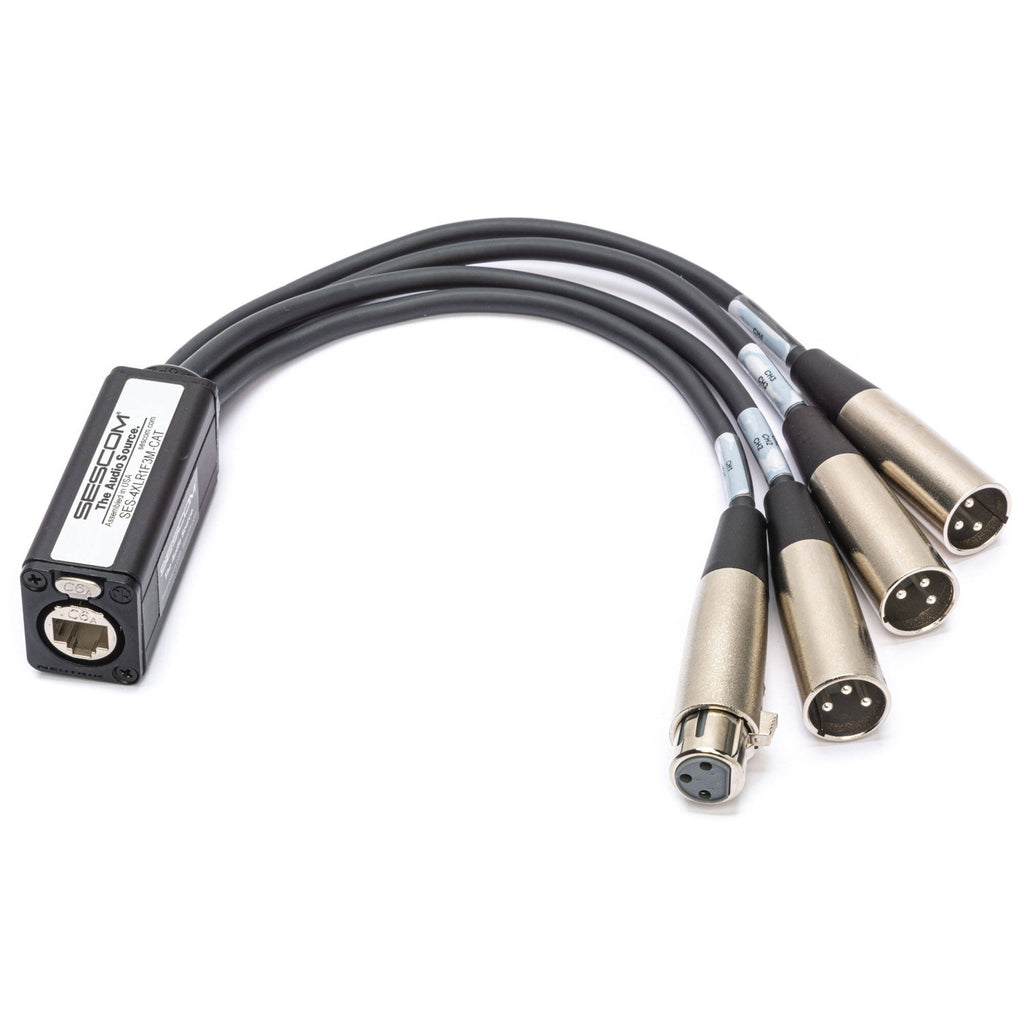

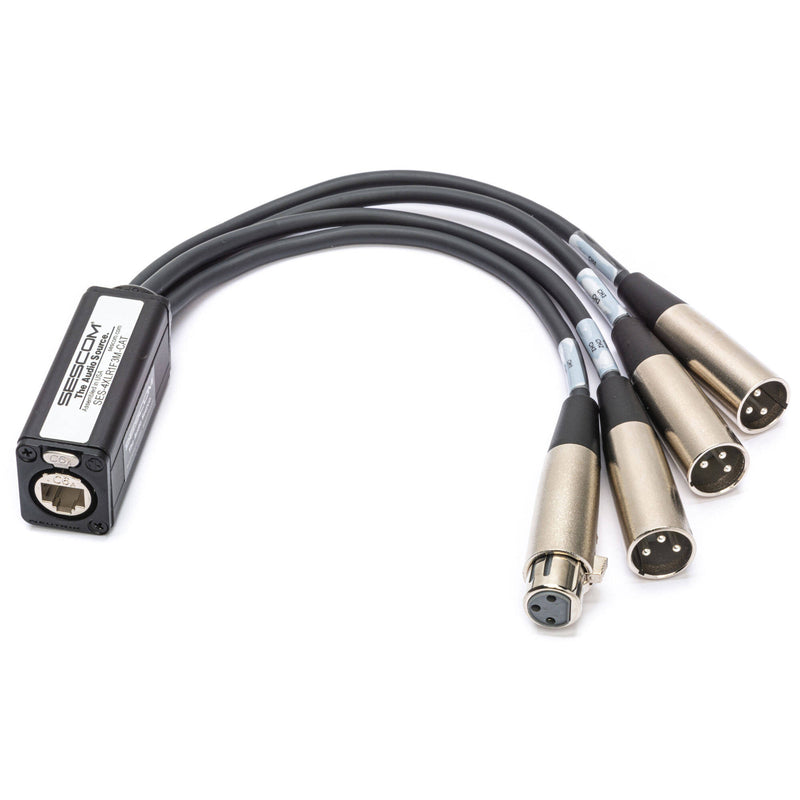

Send up to four channels of analog or digital audio, AES/EBU, or DMX over cat 5/6/7 cable using the SES-4XLR1F3M-CAT 4-Channel Passive Audio Extender from Sescom. This 12" cable fanout incorporates one female RJ45, one female XLR, and three male XLR connectors, enabling you to replace bulky multichannel audio snakes with a single, low-profile cable.
Note:
This unit supports 48V phantom power only when paired with shielded cable.
Transmission Distance
- Digital audio 48 kHz, 24-bit AES/EBU: 1000'
- Analog balance, line-level audio: 2000'
- Mic level audio: 2000'
Passive Extender
This passive extender is compatible with analog or digital mixers, consoles, breakouts boxes, and more and it supports balanced mic level, AES/EBU digital, and DMX signals
Cable Fanout
This 12" cable fanout eliminates the bulk of multichannel snakes by consolidating four cables into a single cat 5/5e/6/7 cable
Table of Contents
- Description
- Transmission Distance
- Passive Extender
- Cable Fanout
Sescom SES-4XLR1F3M-CAT Specs
Interfaces
| Inputs | 1 x XLR 3-Pin Female 3 x XLR 3-Pin Male |
| Outputs | 1 x Ethercon Female |
Transmission
| Audio Format | AES/EBU: Analog: DMX: |
| Supported Cable Types | Cat 5/5e/6/7 |
General
| Cable Length | 12" / 30.5 cm |
Packaging Info
| Package Weight | 0.615 lb |
| Box Dimensions (LxWxH) | 6.55 x 4.65 x 1.05" |
Sescom SES-4XLR1F3M-CAT Reviews
