Description

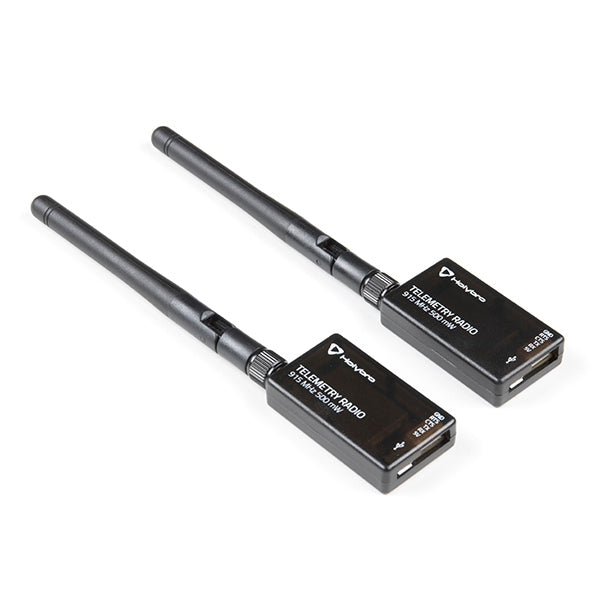

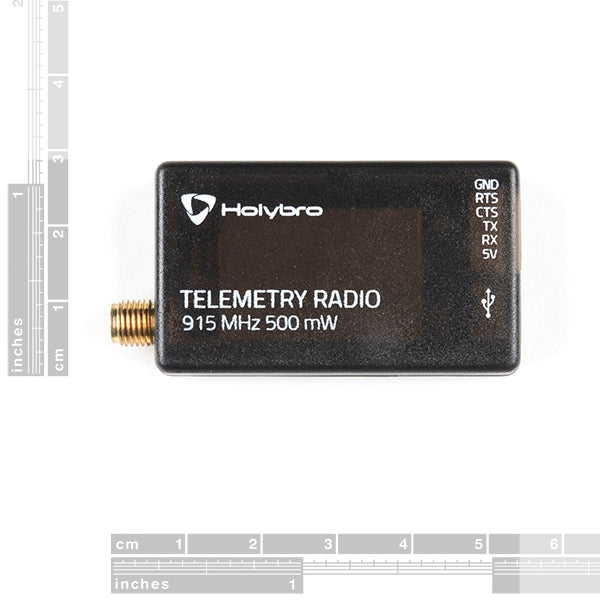

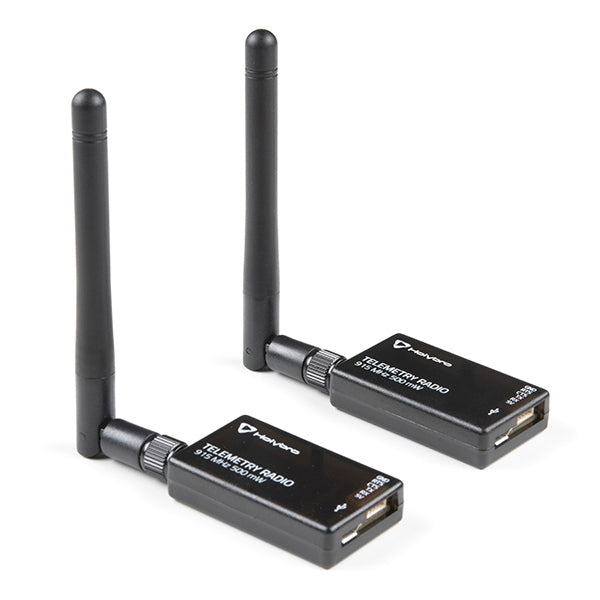

The 915MHz Serial Telemetry Radio Kit is a lightweight and inexpensive open source radio platform that can allow for ranges of 300m or more out of the box.
Features & Specs
- 500 mW maximum output power (adjustable) -117 dBm receive sensitivity
- Open-source SIK firmware
- RP-SMA connector
- 2-way full-duplex communication through adaptive TDM UART interface
- Transparent serial link
- MAVLink protocol framing
- FT230X is a USB to BASIC UART IC
- Interchangeable air and ground modules 915 or 433MHz
- Micro-USB port
- 4-position JST-GH connector
- Supply voltage: 5V DC (from USB or JST-GH)
- Transmit current: 100mA at 20dBm
- Receive current: 25mA
- Serial interface: 3.3V UART
Features & Specs
- 500 mW maximum output power (adjustable) -117 dBm receive sensitivity
- Open-source SIK firmware
- RP-SMA connector
- 2-way full-duplex communication through adaptive TDM UART interface
- Transparent serial link
- MAVLink protocol framing
- FT230X is a USB to BASIC UART IC
- Interchangeable air and ground modules 915 or 433MHz
- Micro-USB port
- 4-position JST-GH connector
- Supply voltage: 5V DC (from USB or JST-GH)
- Transmit current: 100mA at 20dBm
- Receive current: 25mA
- Serial interface: 3.3V UART
