Description
Sequential TRIGON 6 MODULE Overview
- 1Description
- 2Trigon-6 with 3 Powerful Oscillators and Ladder Filter
- 3A Sound That's Bold and Familiar
- 4Rounding Out the Picture
- 5More Power Features
- 6Dual Effects
- 7Adjustable Vintage Character
- 8Portable and Powerful

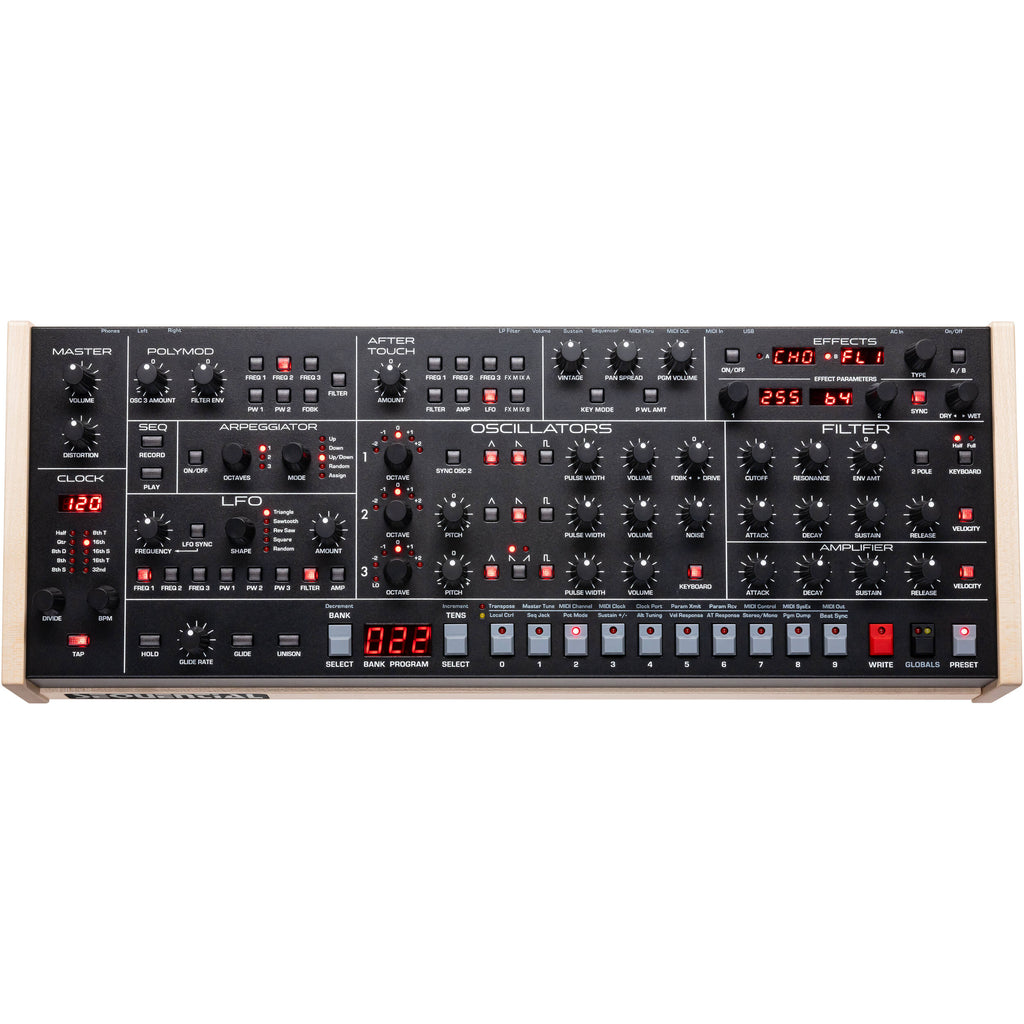

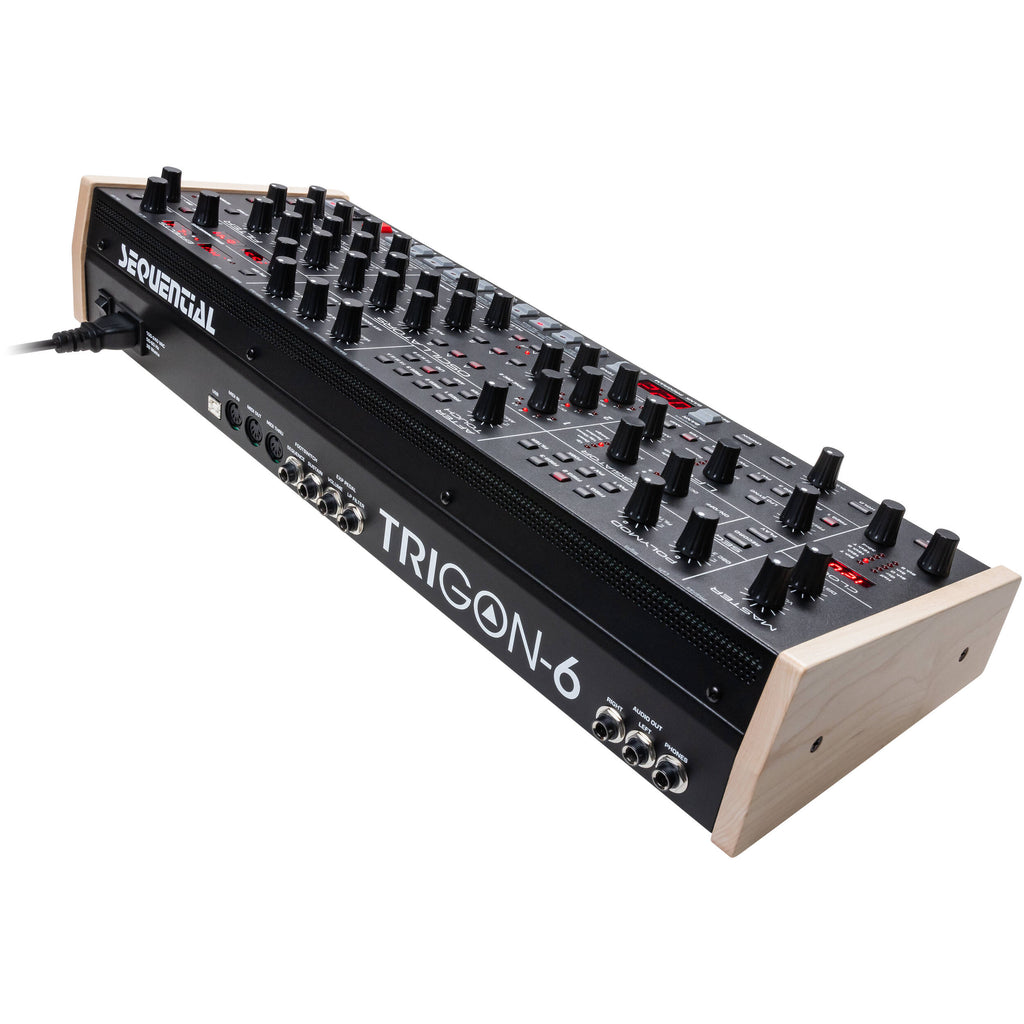

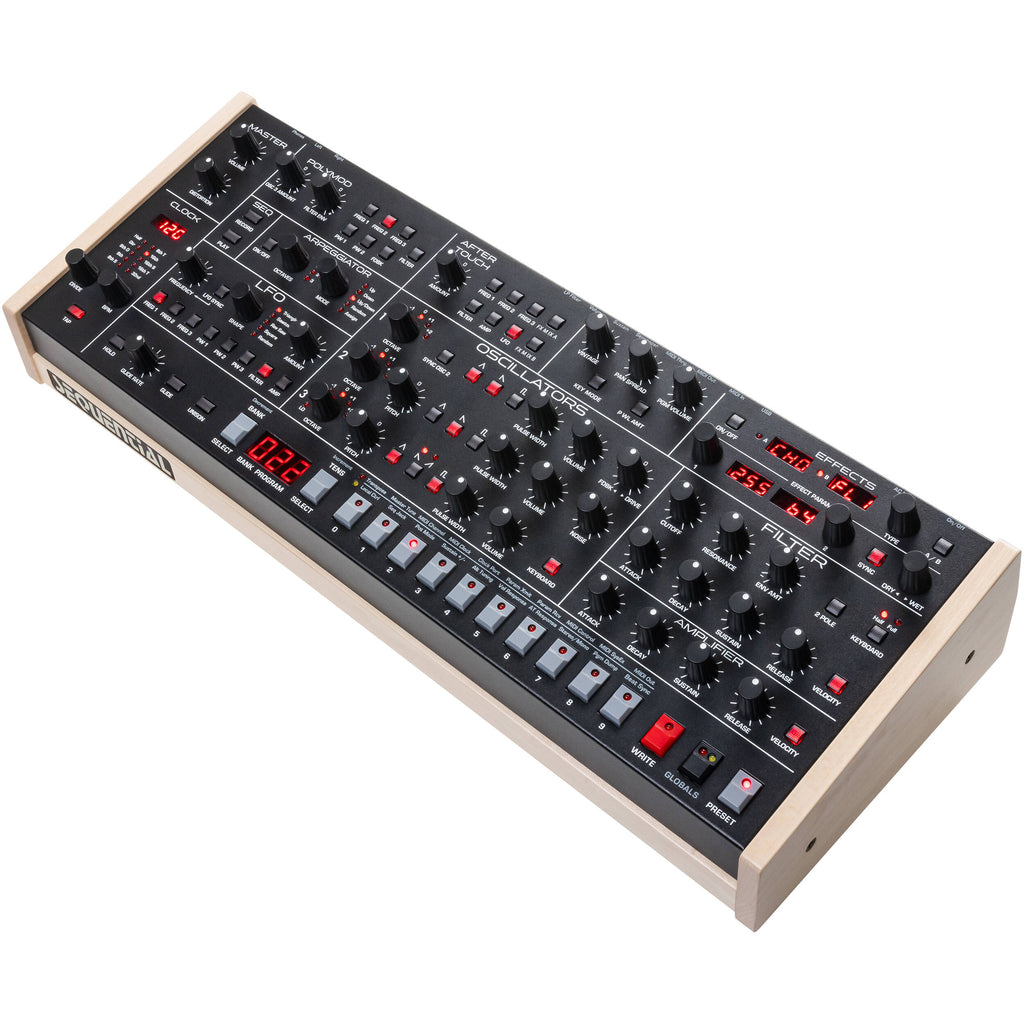

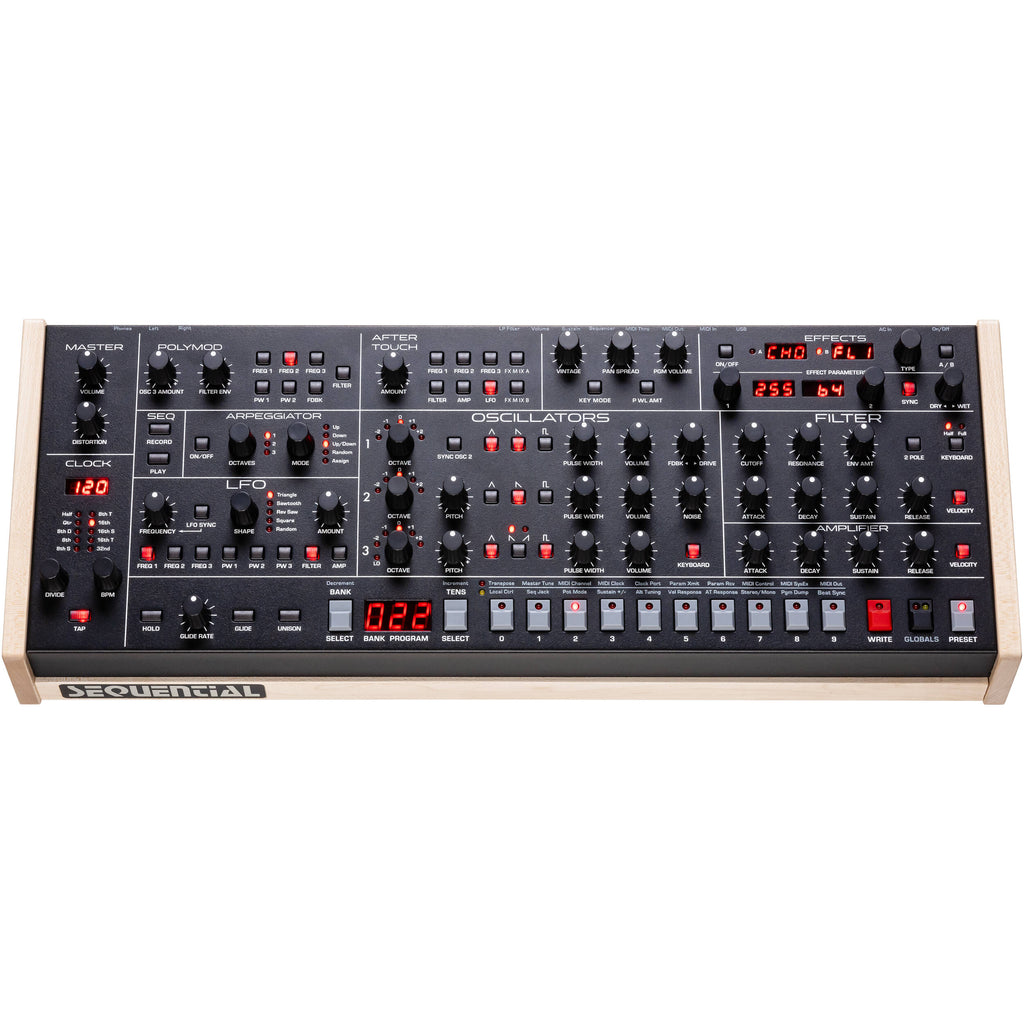

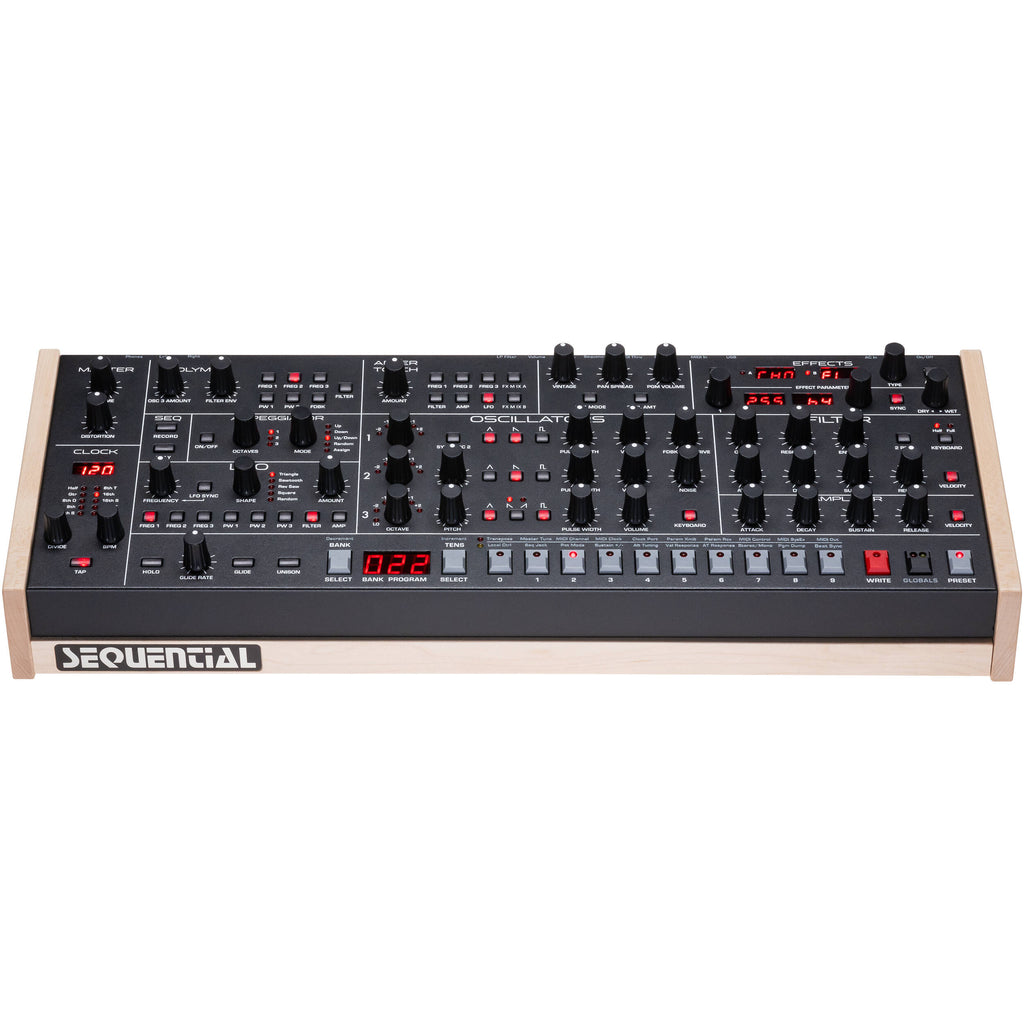

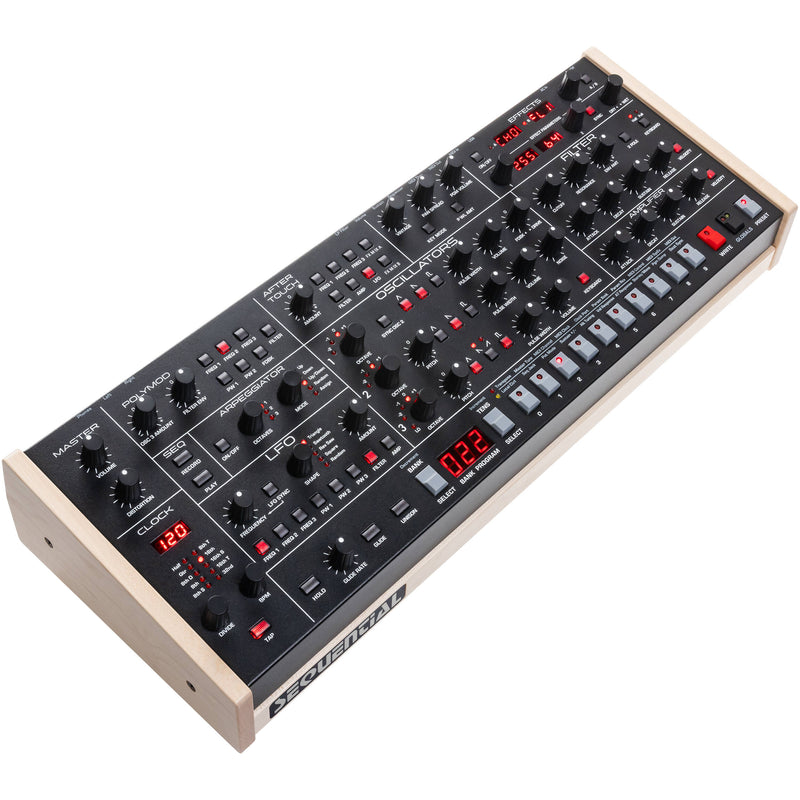

Create bold, in-your-face sounds with the Sequential Trigon-6 Desktop, a modern all-analog 6-voice polyphonic synthesizer module with the same form factor and user interface as the Prophet-6 and OB-6 desktop modules, but with a new twist: a 3-VCO-plus-ladder filter sound engine. This new design adds feedback, drive, and a 2-/4-pole slope switchable ladder filter with a ton of versatility and broad tonal palette, delivering maximum analog punch and presence.
The module responds to channel aftertouch, while the control panel offers knob-per-function control with no menu diving. There are 500 factory programs and 500 user programs, which are organized into 10 banks of 100 presets. The Trigon-6 Desktop offers an ideal combination of portability and power for the project studio or the gigging musician.
Trigon-6 with 3 Powerful Oscillators and Ladder Filter
- The Sequential Trigon-6 desktop module delivers the same massive sound and hands-on timbre shaping control as the Trigon-6 Keyboard. It features the same pure analog signal path with discrete oscillators and filters, and the same high-quality digital effects. It also has the same intuitive layout with full-sized knobs and switches that make it quick and easy to create new sounds.
- The Trigon-6 module sounds huge�just like the keyboard�because it is the same six-voice polyphonic instrument, just in a smaller form factor. And if you want even more polyphony, you can use the poly chain feature to link any two Trigon-6s for a stunning twelve-voice synth.
A Sound That's Bold and Familiar
The Trigon-6 is Sequential's polyphonic take on the classic, thick, and creamy, 3-oscillator-plus-ladder-filter analog sound that defined the dawn of the synth era. It's a sound that bridges genres and styles�now refined and redefined with Sequential's own modern imprint.
Rounding Out the Picture
Naturally, the Trigon-6 has the full complement of Sequential's must-have sound-sculpting features including supersnappy envelopes, a syncable LFO with multiple waveforms and destinations, a polyphonic step sequencer, and an arpeggiator. Best of all, the knob-per-function front panel of the Trigon-6 puts these controls at your fingertips. And the ready-made palette of 500 factory and 500 user presets provides classic basses, leads, and pads to jump-start any project.
More Power Features
Also present is Sequential's classic Poly Mod, with enhancements for creative sound design. Modulation sources are filter envelope and oscillator 3 (both with bi-polar control). Destinations include frequency and pulse-width for each oscillator 1, 2, and 3, filter cutoff, and feedback. Unison mode is here as well, featuring configurable voice count (1-6 voices for up to 18 simultaneous oscillators) and key modes.
Dual Effects
The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus, flanger, phaser, and ring modulator. The independent stereo distortion effect adds on-demand aggression and is 100% analog.
Adjustable Vintage Character
Finally, to give even more classic organic warmth to an already classic synth, there's the Vintage Knob, which adds voice-to-voice variations in calibration and component behavior. Vintage behavior is adjustable from subtle to extreme to emulate the stability of a perfect modern instrument or a time-worn relic.
Portable and Powerful
With all that Trigon-6 has to offer, it's amazing that this analog beast is packed into a desktop module light enough to carry in a backpack. And with Trigon's new MPE compatibility, this instrument is more playable and nuanced than ever before. It is the perfect choice for the project studio or the gigging musician who wants the ultimate Sequential synthesis experience.
UPC: 855346000531
In the Box
- Sequential Trigon-6 Desktop 6-Voice Polyphonic Analog Synthesizer Module
- IEC Power Cord
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Trigon-6 with 3 Powerful Oscillators and Ladder Filter
- A Sound That's Bold and Familiar
- Rounding Out the Picture
- More Power Features
- Dual Effects
- Adjustable Vintage Character
- Portable and Powerful
Sequential TRIGON 6 MODULE Specs
Key Specs
| Sound Generation |
Analog
|
| Number of Sounds, Kits, or Samples |
500x Factory Sound Preset
500x User Sound Preset |
| Maximum Polyphony |
6 Voice
|
| Audio I/O |
2x 1/4" TRS Stereo Output (1 Stereo Pair)
1x 1/4" TRS Unbalanced Stereo Headphone Output |
| MIDI I/O |
1x DIN 5-Pin Input
1x DIN 5-Pin Output 1x DIN 5-Pin Thru |
| CV/Gate I/O |
No
|
| Patch Points |
No
|
General
| Item Type |
Desktop Synth Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Aftertouch |
Channel/Mono Aftertouch (Destination Assignable)
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
Monochrome LED
|
Sounds
| Number of Sounds, Kits, or Samples |
500x Factory Sound Preset
500x User Sound Preset |
| Number of Song Presets |
No
|
| Maximum Polyphony |
6 Voice
|
| Multitimbrality |
1-Part
|
| Built-In Effects |
2x Multi-Effect: Bucket Brigade Delay, Chorus, Delay, Distortion, Flanger, Phaser, Reverb, Ring Modulator
|
| Performance Functions |
Arpeggiator, Sequencer, Transpose
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
3x Variable (PWM, Sawtooth, Square, Triangle)
|
| Mixer |
No
|
| Amplifiers |
1x VCA per Voice
|
| Envelopes |
2x Amp/Filter Envelope Generator per Voice: Attack, Decay, Sustain
|
| Filters |
Number of Filters: 1 per Voice
Characteristic: Analog Ladder (Modern) Type: Low-Pass Slope: 2-Pole/12 dB, 4-Pole/24 dB (LPF) Key Tracking: Yes (Off, Half, Full) Controls: Cutoff, Resonance, Envelope Amount |
| LFOs |
Number of LFOs: 1x Global per Voice
Waveforms: Sine, Sawtooth, Reverse Sawtooth, Square, Random, Sample & Hold Controls/Modes: Clock Sync, LFO Sync, Rate/Frequency, Initial Amount Destinations: Oscillator 1 Frequency, Oscillator 2 Frequency, Oscillator 1 and 2 Pulse Width, Low-Pass Filter Cutoff, VCA, VCF, VCO, Filter Cutoff, Amp |
| Aftertouch Destinations |
Filter Cutoff Frequency, LFO Amount, Oscillator 1 Frequency, Oscillator 2 Frequency, VCA
|
| Glide/Portamento |
Yes
|
Sequencing & Recording
| Sequencer |
Number of Steps: 64x Step
Number of Sequencer Patterns: 1x User Pattern Length: 4 Bars |
| Arpeggiator |
Number of Arpeggio Patterns: 5x User Range: Up to 3 Octaves Note Values: 32nd, 16th, 16th Note Triplet, Dotted 16th, 8th, 8th Note Triplet, Dotted 8th, Quarter Note Modes: Up, Down, Up & Down, Random, Assign |
Connectivity
| Audio I/O |
2x 1/4" TRS Stereo Output (1 Stereo Pair)
1x 1/4" TRS Unbalanced Stereo Headphone Output |
| Pedal Support |
2x 1/4" Expression/Volume
2x 1/4" Footswitch |
| MIDI I/O |
1x DIN 5-Pin Input
1x DIN 5-Pin Output 1x DIN 5-Pin Thru |
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
1x USB-B (USB 2.0, Host Connection, MIDI)
|
| Media/Memory Card Slot |
No
|
| Bluetooth |
No
|
Compatibility
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
26 W
|
Physical
| Color |
Black
|
| Included Accessories |
No
|
| Dimensions |
22 x 8.5 x 4.5" / 55.9 x 21.6 x 11.4 cm
|
| Weight |
10.9 lb / 4.9 kg
|
Packaging Info
| Package Weight |
13.97 lb
|
| Box Dimensions (LxWxH) |
27 x 12.5 x 9.5"
|
