Description
Sequential Rev2 8-Voice Overview
- 1Description
- 28-Voice Polyphony
- 3Bold Sound
- 4Waveshape Modulation
- 5Effects per Layer
- 6Extended Modulation Matrix
- 7Poly Step Sequencing
- 8Per-Knob Programmability
- 9Versatile Playability
- 10Expandable

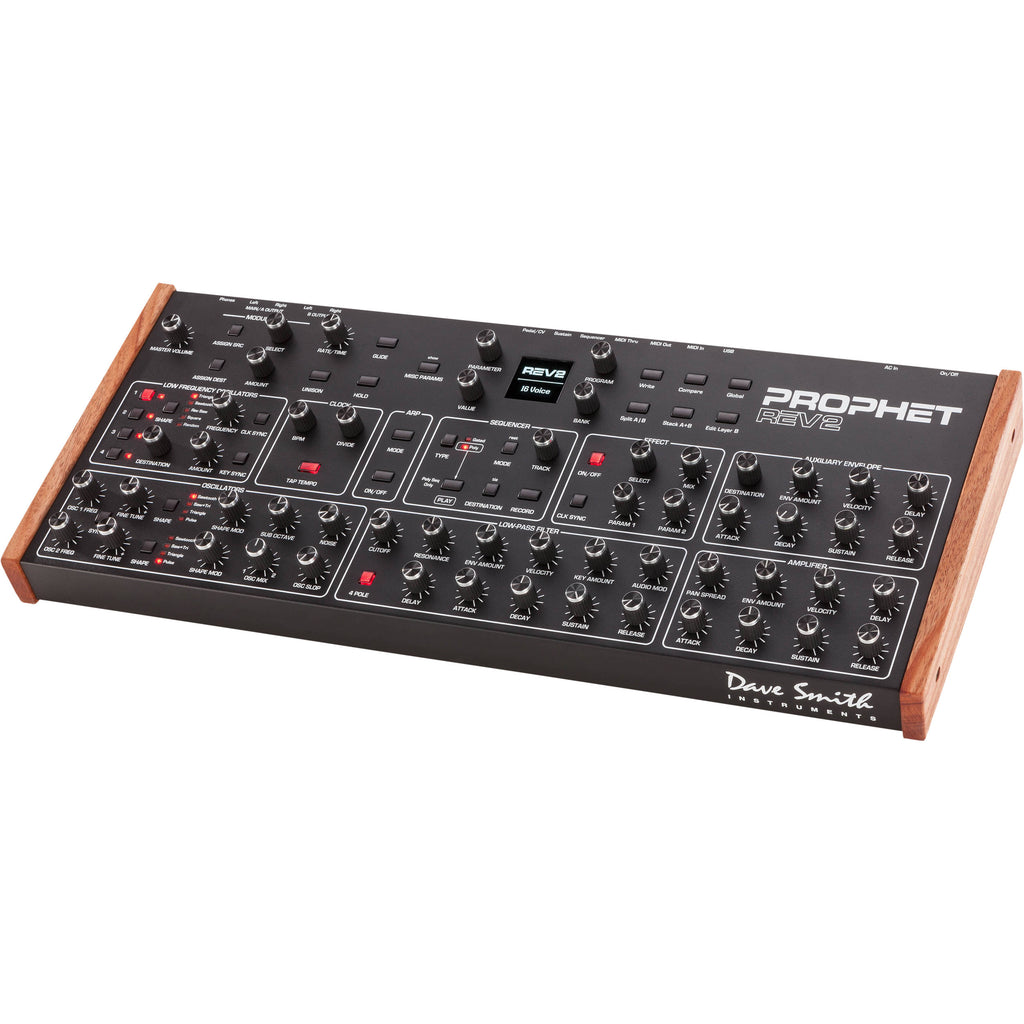

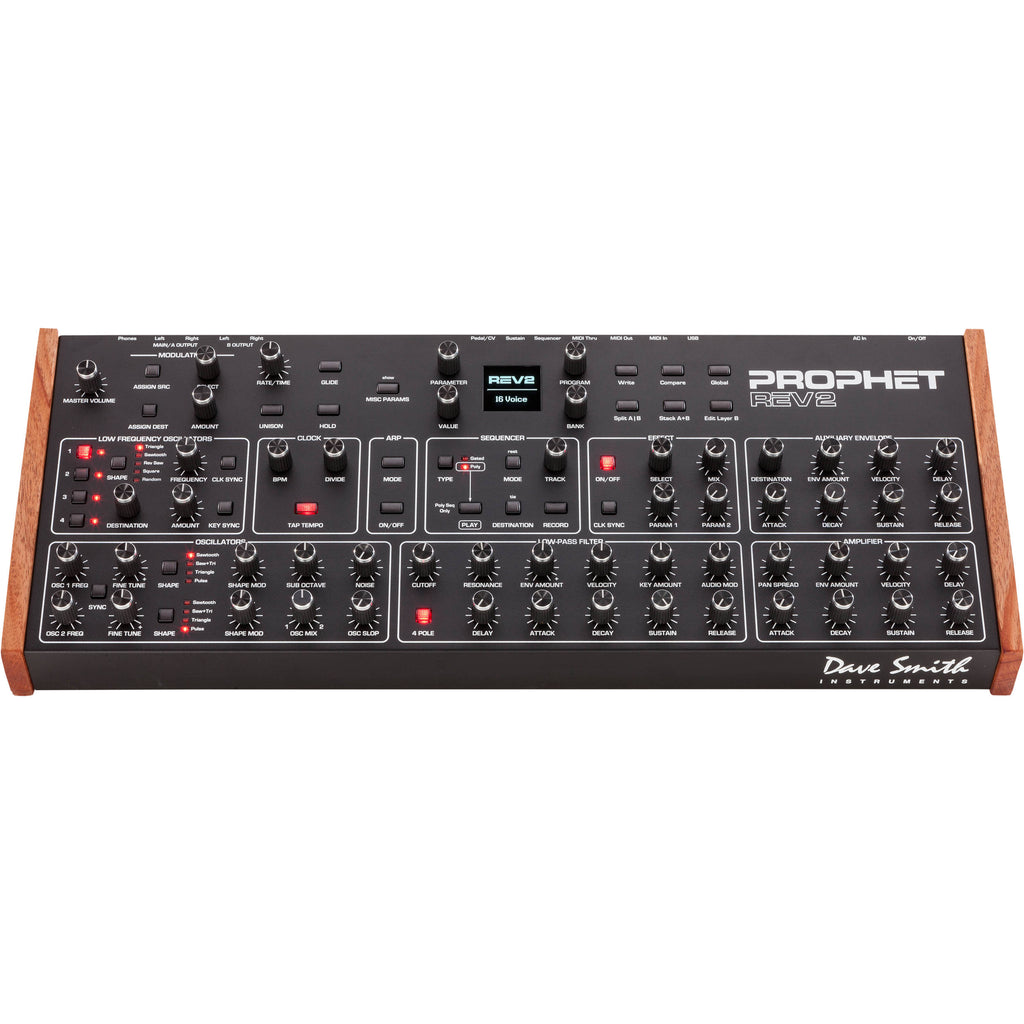

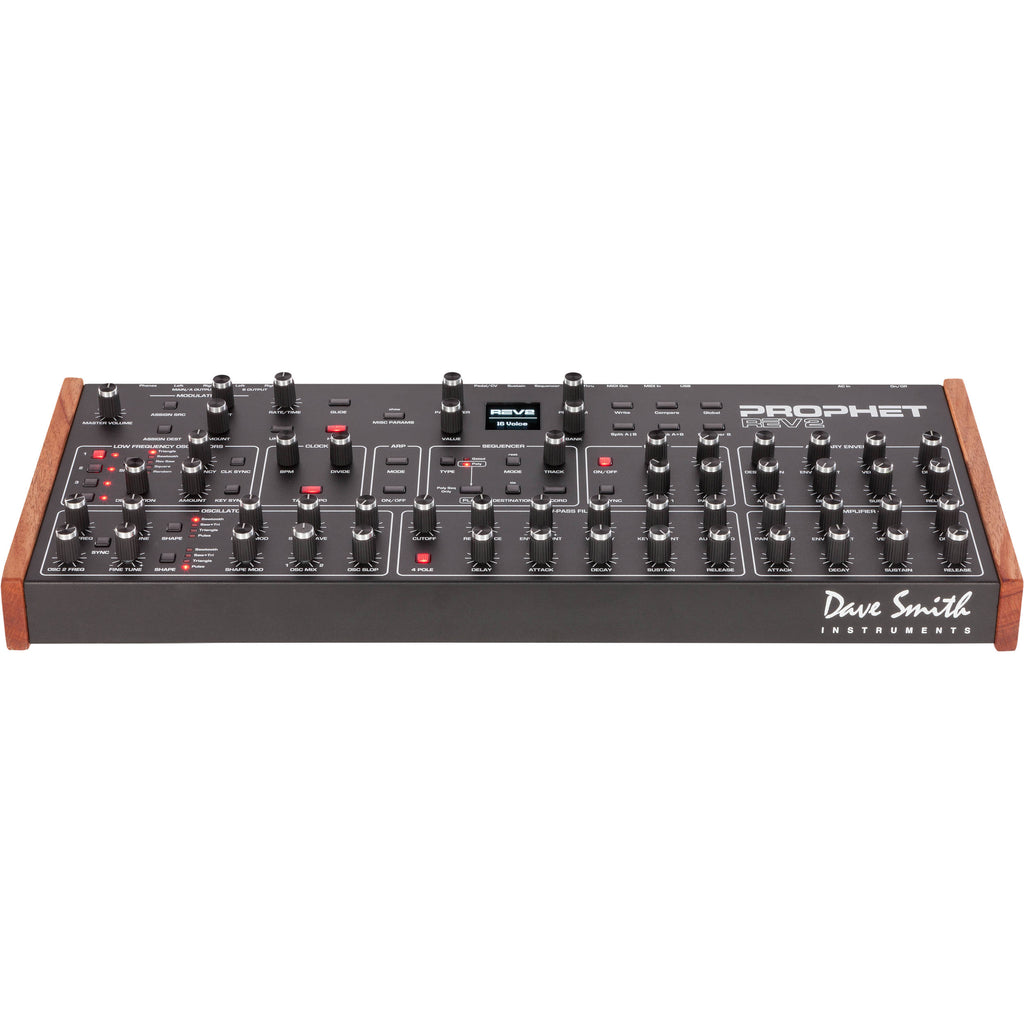

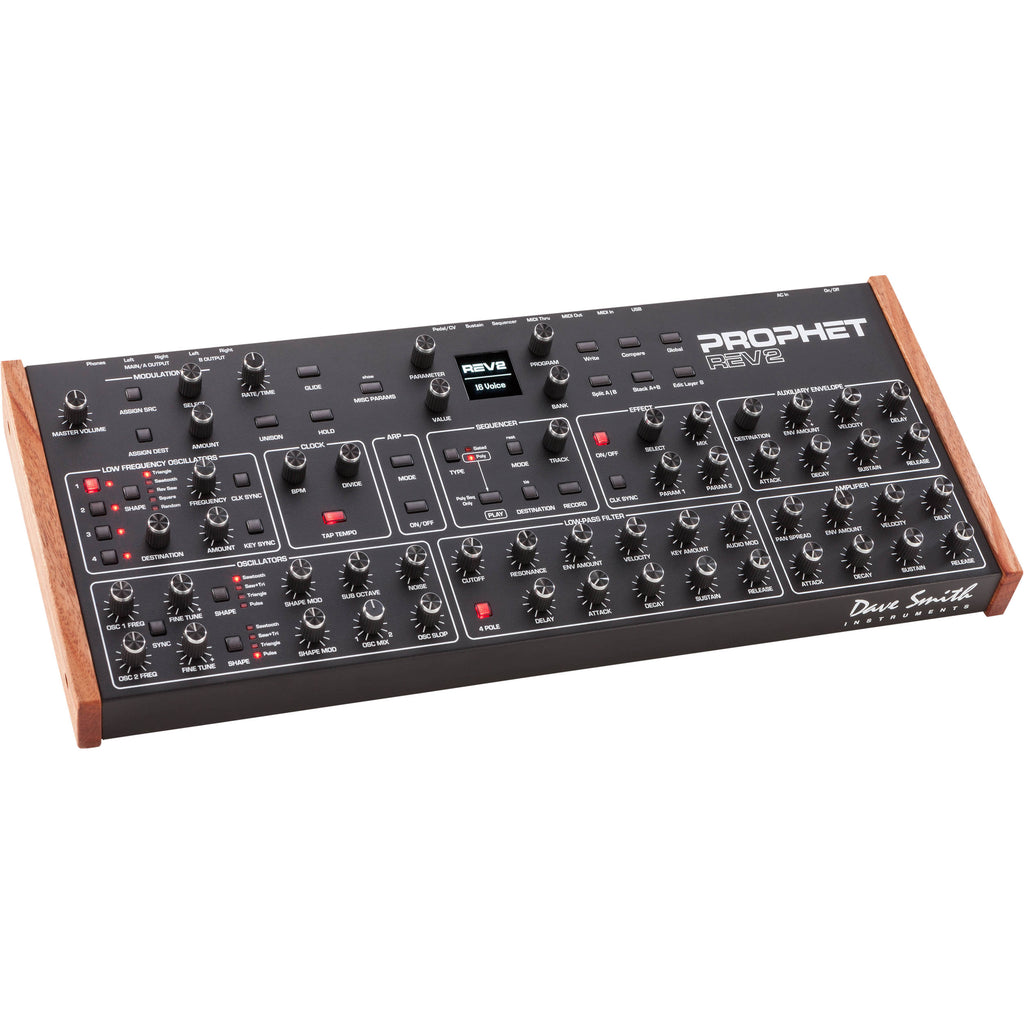

The Dave Smith Instruments Prophet Rev2 8-Voice Module is an 8-voice polyphonic analog synthesizer that builds upon the success of the original Prophet '08 synthesizer, but with an improved design and enhanced features. The Prophet Rev2 retains all the sound capabilities � including two digitally controlled analog oscillators (DCO) per voice (plus octave on oscillator 1) � with selectable sawtooth, triangle, saw/triangle mix, and pulse-wave and pulse-width modulation, as well as the signature analog Curtis low-pass filter with 2-/4-pole selections (resonating in 4-pole mode). Additionally, the synthesizer offers three envelope generators to control the filter and VCA, with the 3rd being assignable and offering ADSR + delay and loop capabilities.
Other notable features include the doubling of the modulation matrix, waveshape modulation on all waveforms, digital effects per layer in stacked or split voice mode, a polyphonic step sequencer per layer, and more. The Prophet Rev2 is compatible with any existing libraries or patches from the Prophet '08. The instrument has inputs for a sustain pedal and expression pedal, which doubles as an input for control voltage for further sonic manipulation. Four 1/4" unbalanced TS outputs provide audio output, while a stereo 1/4" headphone connection allows for playing in quiet environments. The Dave Smith Instruments Prophet Rev2 8-Voice Module can be expanded to 16 voices by installing the optional Expander Kit.
- With 8 voices available, you have the freedom to allocate them as you wish. Play two-fisted chords, stack two 4-voice sounds for massive, complex textures, or split the keyboard into two separate 4-voice instruments
- The Prophet Rev2 gets its bold, punchy sound from its single 2-/4-pole, low-pass, resonant Curtis filter per voice. This is the same filter used not only in the Prophet '08, but in many classic instruments of the '70s and '80s. A separate Audio Mod control adds additional harmonic complexity and movement
- Waveshape Modulation: Vary the "pulse width" of any of the four waveforms (sawtooth, saw+tri, triangle, square)
- Shape Mod Control: Manually dial in a desired waveshape width or use an LFO or other mod source for continuously shifting timbre
- Vast Tonal Possibilities: Single-oscillator sounds take on new depth and dimension
- Effect Section: Reverb, delays (standard and BBD), chorus, phase shifter, ring modulation, and distortion
- Stacked or Split Voice Mode: Apply a different effect to each layer. Effects parameters can be modulated through the Mod Matrix
- Mod Matrix: Doubled in sized, with 8 individual slots and many more sources/destinations
- Polyphonic Step Sequencer: Allows up to 64 steps and up to 6 notes per step. Create a different sequence for each layer when you are working in stacked or split voice mode, making it a powerful tool for composition or performance
- Gate Mode: Modulation sequencer that allows you to create up to 4 different 16-step sequences for complex modulation
- Sequences Allow Ties and Rests: Syncs to an external MIDI clock
- Arpeggiator: Features note repeats, re-latching, and can be synced to external MIDI clock
- The knob-per-function front panel offers instant access to Prophet Rev2 functions
- Programs: 512 permanent factory programs and 512 rewritable user programs
- Roadworthy
- Integrated power supply
- USB support
- Crisp OLED display
In the Box
- Sequential Prophet Rev2 8-Voice Polyphonic Analog Synthesizer Module
- Power Cord
- Description
- 8-Voice Polyphony
- Bold Sound
- Waveshape Modulation
- Effects per Layer
- Extended Modulation Matrix
- Poly Step Sequencing
- Per-Knob Programmability
- Versatile Playability
- Expandable
Sequential Rev2 8-Voice Specs
| Controls | Controls: Enable deep and comprehensive editing with little to no menu diving 55 x knobs 35 x buttons |

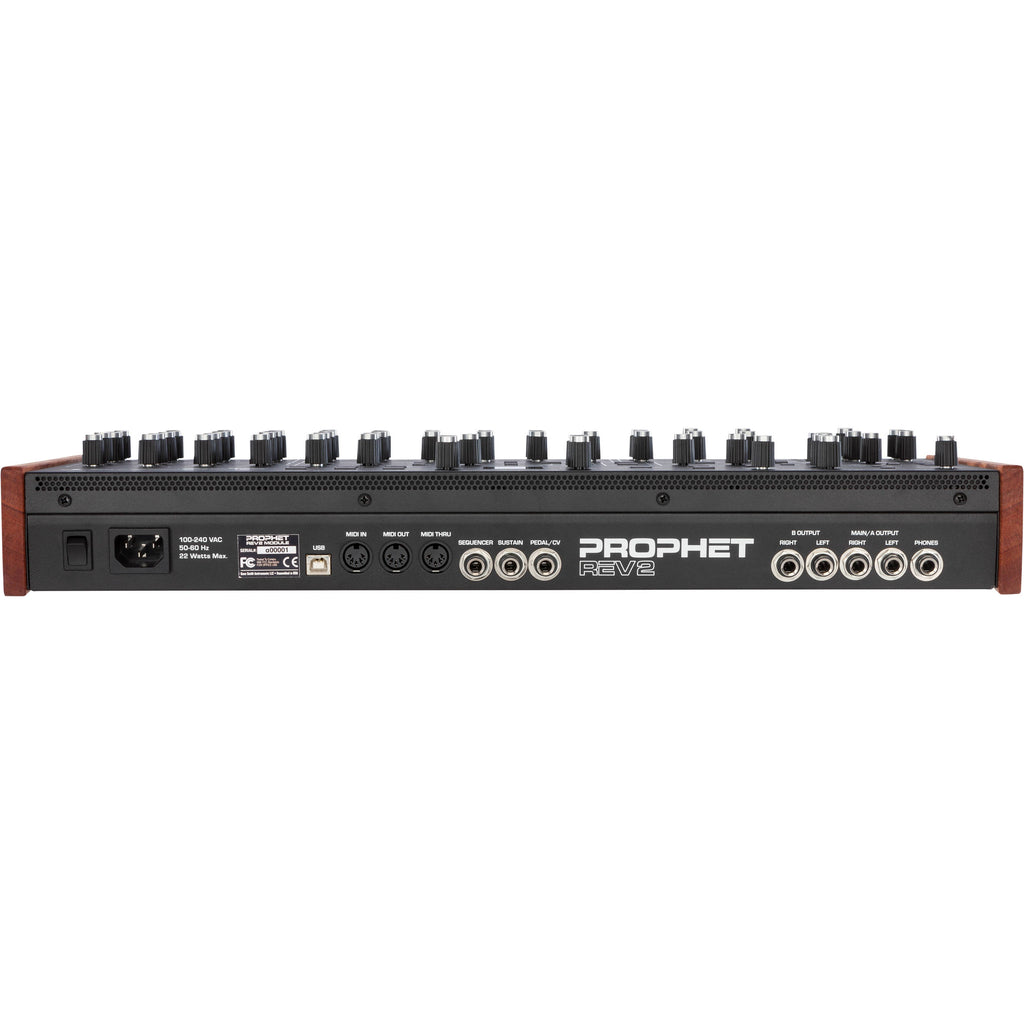

| MIDI | MIDI Connectors: In, Out, Thru (5-pin DIN) |
| Input | Pedal/CV Input: 1/4" / 6.3 mm (responds to expression pedals or control voltages ranging from 0 to 5 VDC, protected against higher or negative voltages) Sustain Pedal Input: 1 x 1/4" / 6.3 mm (accepts normally on or normally off momentary footswitch) |
| Output | Main Stereo Output: 2 x 1/4" / 6.3 mm TS unbalanced Output B Stereo: 2 x 1/4" / 6.3 mm TS unbalanced Headphone: 1 x 1/4" / 6.3 mm TRS balanced |
| Voices | 8 |
| Sequencer | Gated Step Sequencer: 16 x 4 (each layer can have a separate sequence) Polyphonic Step Sequencer: 64 steps (6 notes per step), and ties and rests |
| Arpeggiator | Programmable arpeggiator with up, down, up+down, random, assign modes Selectable Note Value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note One-, two-, or three-octave range Re-latching arpeggiation Note repeat |
| Oscillators | 2 x digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1) Glide (Portamento): Separate rates per oscillator White-noise generator Analog VCAs Hard sync |
| Waveform Type | Selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation) |
| Low-Pass Filter | 1 x analog Curtis with selectable 2-/4-pole operation (self-resonating in 4-pole mode), per voice |
| Envelope Generators | 3 x Envelope Generators: Filter, VCA, and assignable (four-stage ADSR + delay); envelope 3 can loop |
| LFO | 4 x LFO with key sync per LFO |
| Modulation | 8-slot modulation matrix 22 sources 53 destinations 5 Additional Dedicated Sources: Mod wheel, pressure, velocity, breath controller, footswitch |
| Memory | Factory Programs: 512 (4 banks of 128) Fully Editable User Programs: 512 with 2 layers (2 separate sounds) in each program |
| End Pieces | Oiled African mahogany wood end panels |
| Power | Internal Power Supply: IEC AC power inlet Worldwide Voltage: 100 and 240 V at 50/60 Hz Power Consumption: 22 W maximum (17 W for 8-voice configuration; 22 W for 16-voice configuration) |
| Dimensions | 7.9 x 21.6 x 3.3" / 20.1 x 54.9 x 8.4 cm |
| Weight | 7.5 lb / 3.4 kg |
| Package Weight | 10.625 lb |
| Box Dimensions (LxWxH) | 24.9 x 12.4 x 7.5" |
