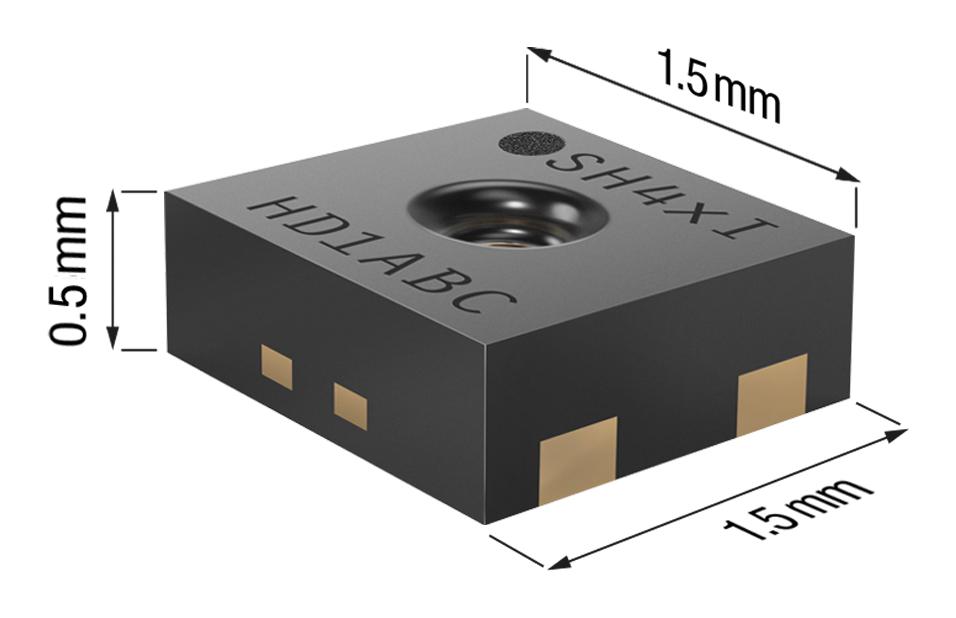

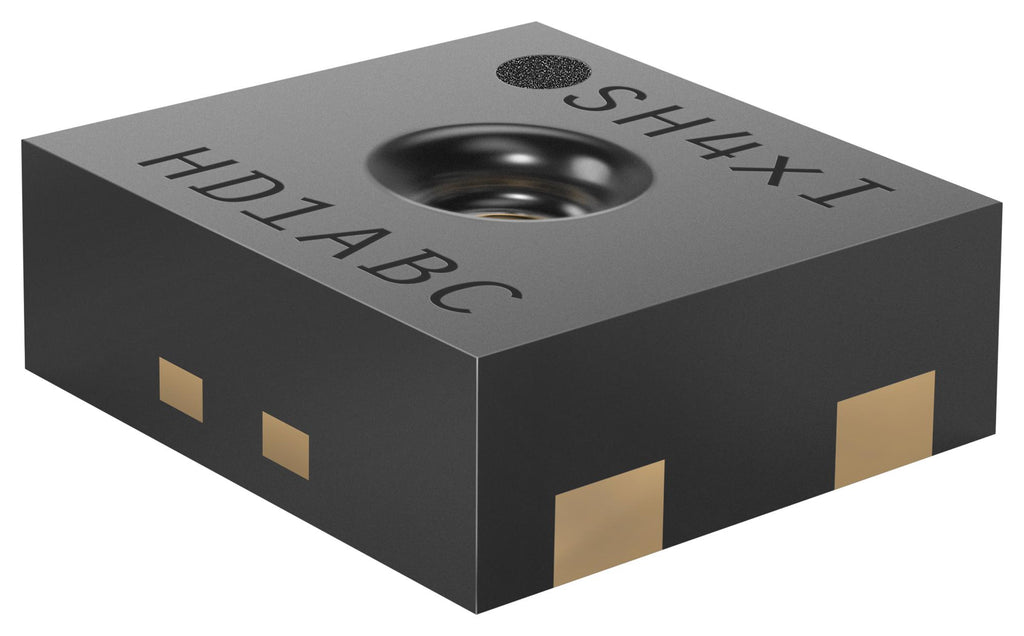

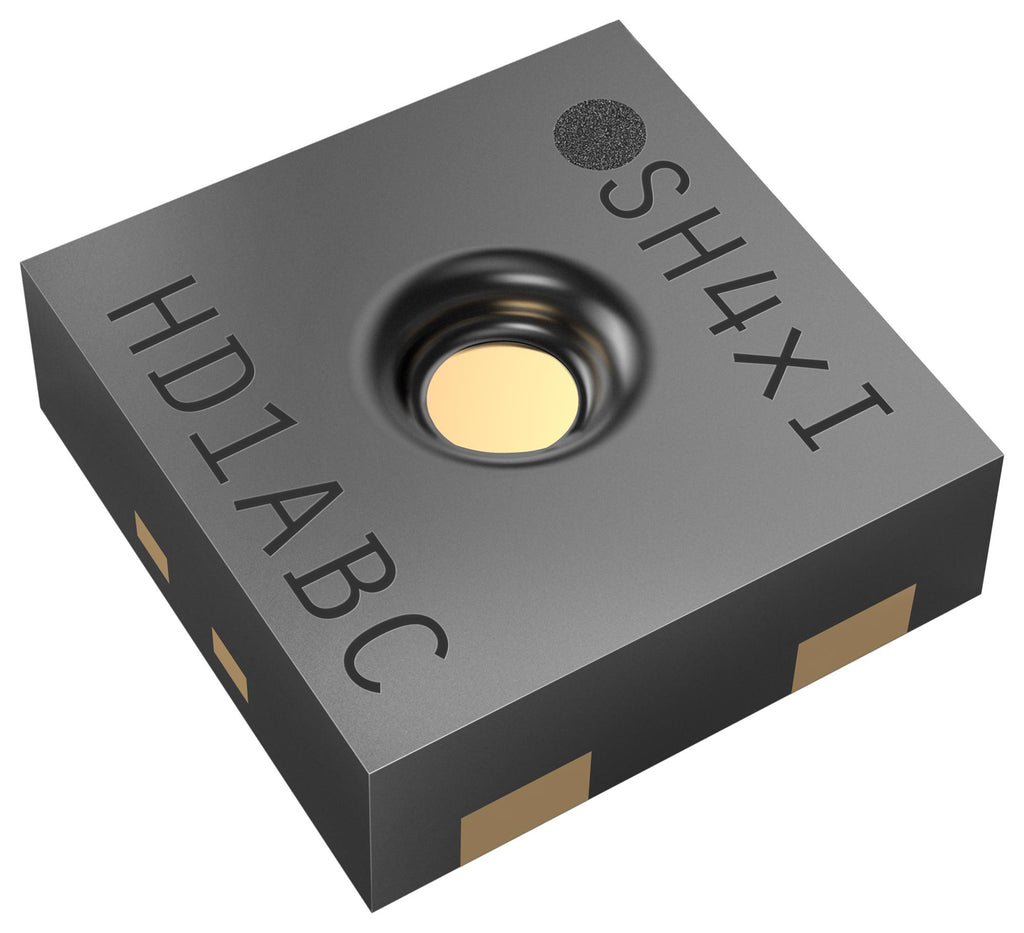

SHT40I-HD1B-R2 is a 4th generation, high-accuracy, ultra-low-power, 16-bit relative humidity and temperature sensor at different accuracy classes. Its I²C interface provides several preconfigured I²C addresses and maintains an ultra-low power budget. The power-trimmed internal heater can be used at three heating levels thus enabling sensor operation in demanding environments. The four-pin dual-flat-no leads package is suitable for surface mount technology (SMT) processing and comprises an optional on-package patented PTFE [1] membrane or a removable protection cap.
- Relative humidity accuracy up to ±1.0%RH, supply voltage range from 1.08V to 3.6V
- Average current is 0.4µA (at meas. rate 1Hz), idle current is 80nA
- I2C FM+, CRC checksum, multiple. I²C address
- Patented on-package PTFE membrane, fully functional in condensing environment
- Temperature accuracy is up to ±0.1°C, variable power heater
- NIST traceability, JEDEC JESD47 qualification
- Mature technology from global market leader, removable protection cap
- Operating humidity range from 0 to 100 %RH, -40 to 125°C temperature range
Product details
| Humidity Range:
0% to 100% Relative Humidity
|
| Humidity Accuracy:
± 2.5% RH
|
| Temperature Accuracy:
± 0.3°C
|
| RH Response Time:
4s
|
| Temperature Response Time:
2s
|
| Sensor Interface Type:
-
|
| Sensor Output Type:
Analogue
|
| Sensor Case Style:
DFN
|
| No. of Pins:
4Pins
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| Supply Voltage Min:
4.5V
|
| Supply Voltage Max:
5.5V
|
| Product Range:
SHT4xI-Analog Series
|
| MSL:
MSL 1 - Unlimited
|
Other details
| Brand |
SENSIRION |
| Part Number |
SHT40I-HD1B-R2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
