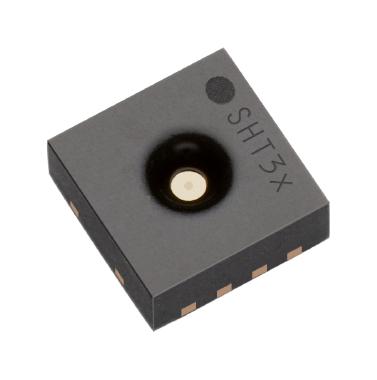

SHT33-DIS-B2.5KS is a 3rd generation, high-reliability, certified relative humidity and temperature sensor. This is a new family of low drift digital calibrated and ISO17025-certified sensor, combining ISO17025-certified temperature and highly accurate humidity sensing in a single package. It relies on the industry-proven CMOSens® technology, enabling increased computational power, reliability, and improved accuracy specifications compared to its predecessors. Its functionality includes enhanced signal processing, two distinctive and user-selectable I2C addresses, and communication speeds of up to 1MHz. Every SHT33 can be identified by its unique serial number and is supplied with an ISO17025-accredited calibration certificate for temperature measurement.
- Accuracy is ±2.0 %RH, ±0.48°C
- VDD range from 2.15 to 5.5V
- Low drift, <0.01°C per year
- Sensor-specific calibration certificate acc. To ISO 17025 : 2017, 3-point temp. calibration
- JEDEC JESD47 qualification
- Operating temperature range from 0 to 100%RH, -40 to 125°C
- Fully functional in a condensing environment
- True NIST-traceability, unique serial number, I2C FM, CRC checksum, multiple I2C address
- Tiny 8-pin DFN package with ALERT pin
Other details
| Brand |
SENSIRION |
| Part Number |
SHT33-DIS-B2.5KS |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
