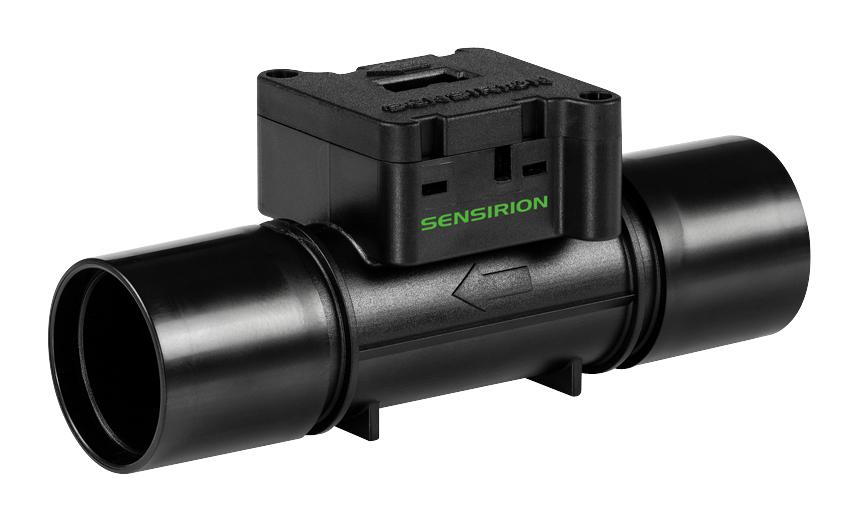

SENSIRION SFM3003-300-CET FLOW SENSOR, -150TO 300LPM, -20TO85DEG C

SFM3003-300-CET is a versatile, low-pressure drop, bidirectional flow meter. Compared to the SFM3019, the SFM3003 comes with a wider flow range as well as improved specifications. The SFM3003 outputs an easily integrable digital I2C interface. The outstanding performance of the SFM3003 sensor is based on Sensirion�s patented CMOSens® Technology, which combines the sensor element, signal processing and digital calibration on a tiny microchip. Gas is measured by a thermal sensor element to provide an extended dynamic range and enhanced long-term stability compared to other flow-measuring technologies. The SFM3003 series is the ideal choice for medical and industrial applications.

• Calibrated for O2, air and mixtures thereof, low pressure drop across the sensor
• No recalibration needed, direct gas temperature measurement
• High reliability and long-term stability, best signal-to-noise ratio
• Industry-proven technology with a track record of more than 15 years
• Designed for mass production, high process capability, scalability
• Full scale flow rate: -150 to 300slm
• Typical accuracy: ±2.5%mv, 1.3bar maximum operating pressure
• 2.7 to 5.5V supply voltage
• 3800uA average supply current
• Size (LxWxH) is 81.78mm x 34.79mm x 31.75mm
