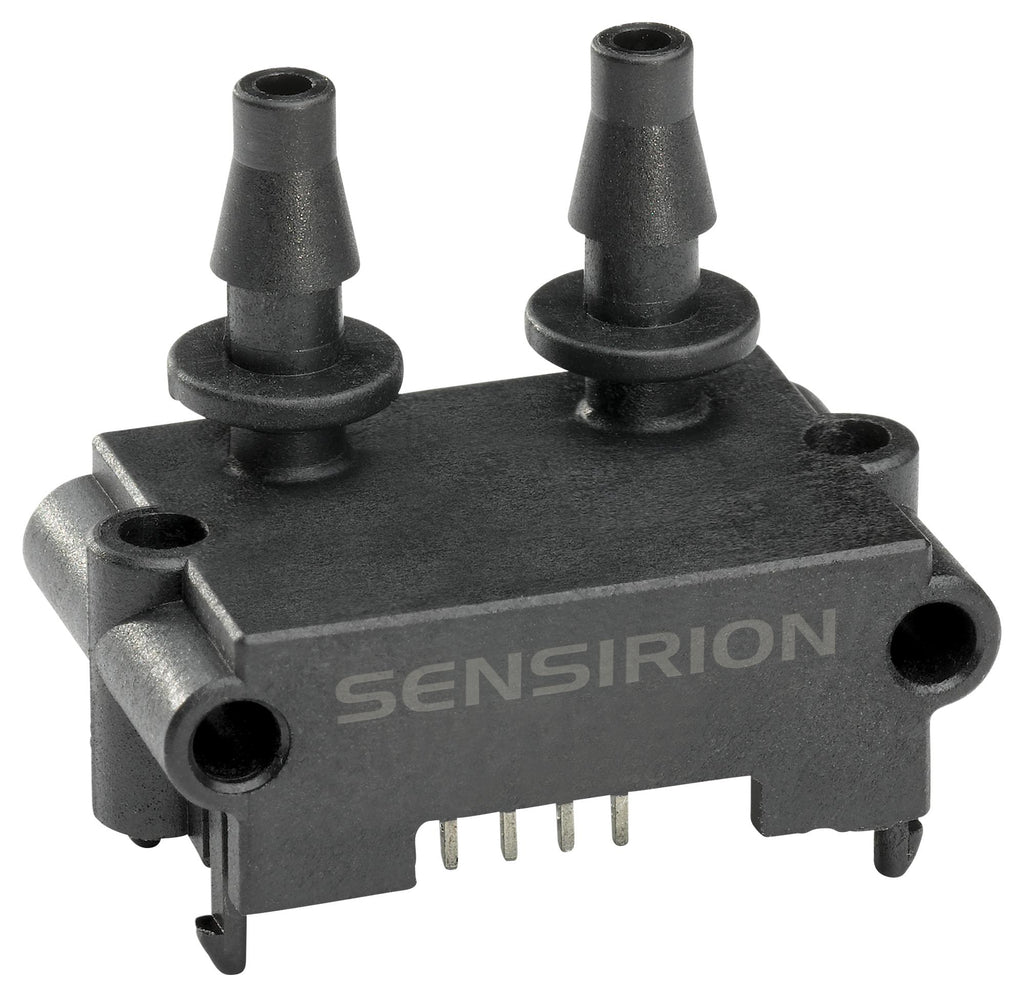

SENSIRION SDP810-500PA Pressure Sensor, Differential, -500 Pa, 500 Pa, 2.7 V, 5.5 V, SIP

The SDP810-500PA from Sensirion is a digital differential pressure sensor with tube connection. It is designed for high volume applications. The sensor measures pressure of air and non-aggressive gases with superb accuracy and no offset drift. It delivers outstanding accuracy at bottom end of measuring range. The SDP800 features a digital 2-wire interface which makes it easy to connect directly to a microprocessor. The outstanding performance of this sensor is based on Sensirion�s patented CMOSens sensor technology which combines sensor element, signal processing and digital calibration on small CMOS chip. The differential pressure is measured by a thermal sensor element using flow through technology. The well proven CMOS technology is suitable for high quality mass production and it is ideal choice for demanding & cost sensitive OEM applications. It is also in HVAC, gas boilers, pellet stoves and fuel cells, filter monitoring, VAV control, heat recovery.

• Excellent accuracy & repeatability, no drift, no offset, hysteresis free
• Extended feature set, smart averaging, outstanding accuracy and long term stability
• Calibrated temperature range from -20°C to 85°C, measurement time from 40ms to 50ms
• High reliability, best signal to noise ratio, <lt/>3ms flow step response time, 16bit resolution
• 25ms power-up time, 2ms soft reset time, 400KHz I2C SCL frequency, 0.5ms measurement speed
• 3V to 5.5V supply voltage, 3.8mA (measuring), 1.1mA (idle state), 1uA (sleep mode) supply current
• Measurement range from -500Pa to 500Pa (-2.0 to 2.0inch H2O), calibrated for air, N2
• 0.1Pa zero point accuracy, 3% of reading span accuracy, 0.05Pa zero point repeatability
• 0.5% of reading span repeatability, less than 0.05Pa/year offset stability
• Less than 0.5% of reading per 10°C span shift due to temperature variation

Applications

Sensing & Instrumentation, Medical
