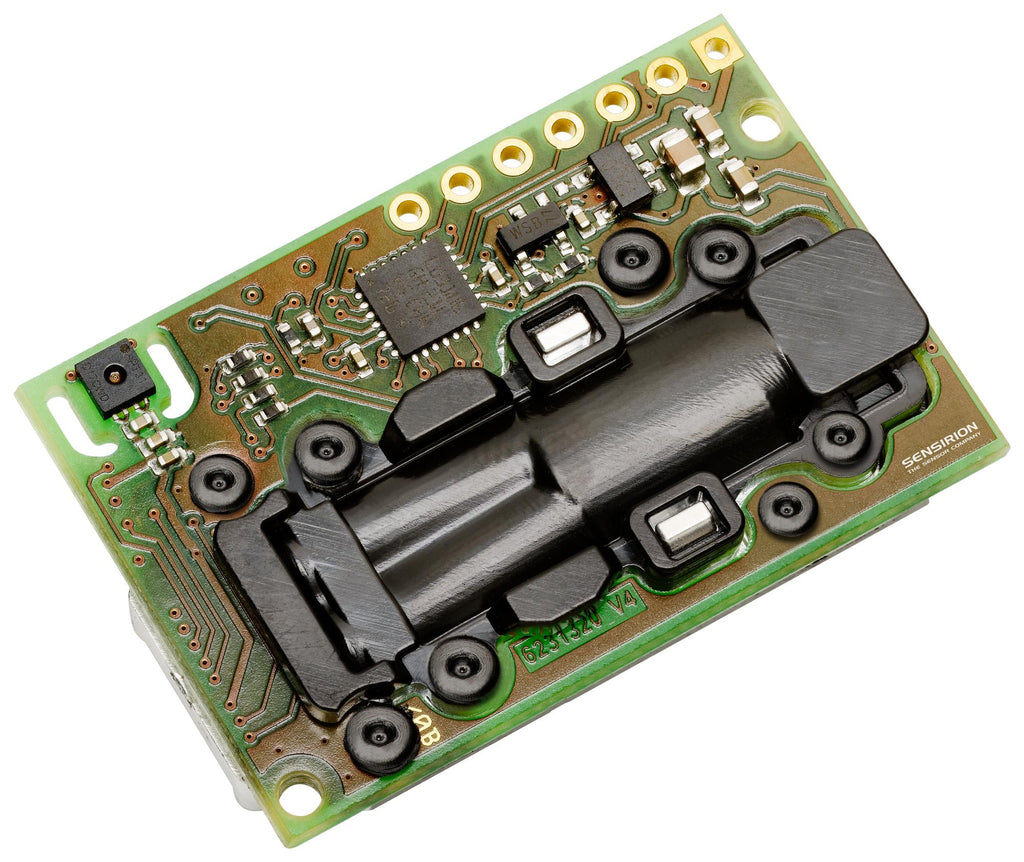

SCD30 Sensor Module along with the NDIR measurement technology for detecting CO2 comes a best-in-class Sensirion humidity and temperature sensor integrated on the very same sensor module. Ambient humidity and temperature can be measured by Sensirion's algorithm expertise through modelling and compensating of external heat sources without the need of any additional components. The very small module height allows easy integration into different applications.
- Dual-channel detection for superior stability
- Small form factor: 35 mm x 23 mm x 7 mm
- Measurement range: 400 ppm - 10.000 ppm
- Accuracy: ±(30 ppm + 3%)
- Current consumption: 19mA at 1 meas. per 2s
- Fully calibrated and linearized
- Digital interface UART or I2C
Other details
| Brand |
SENSIRION |
| Part Number |
SCD30 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| Application Note EN |
|
| Operating Instructions EN |
|
