Description

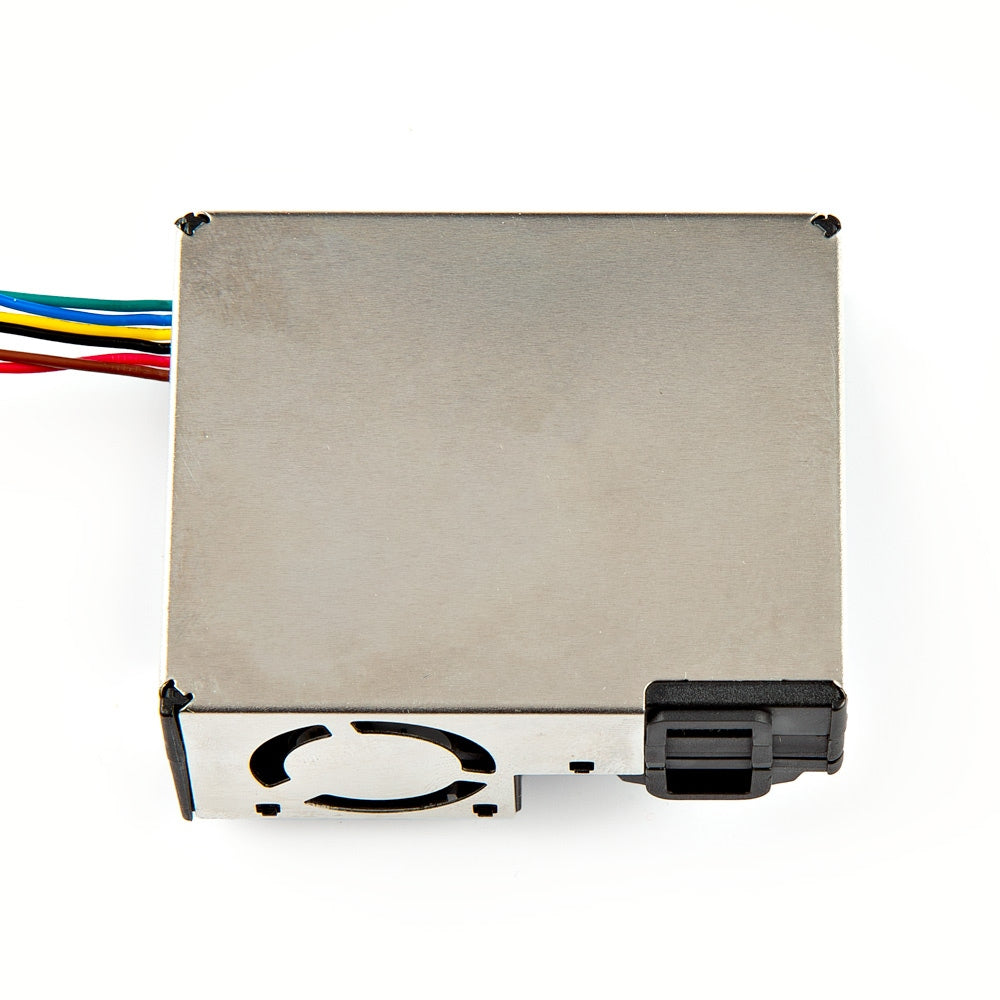

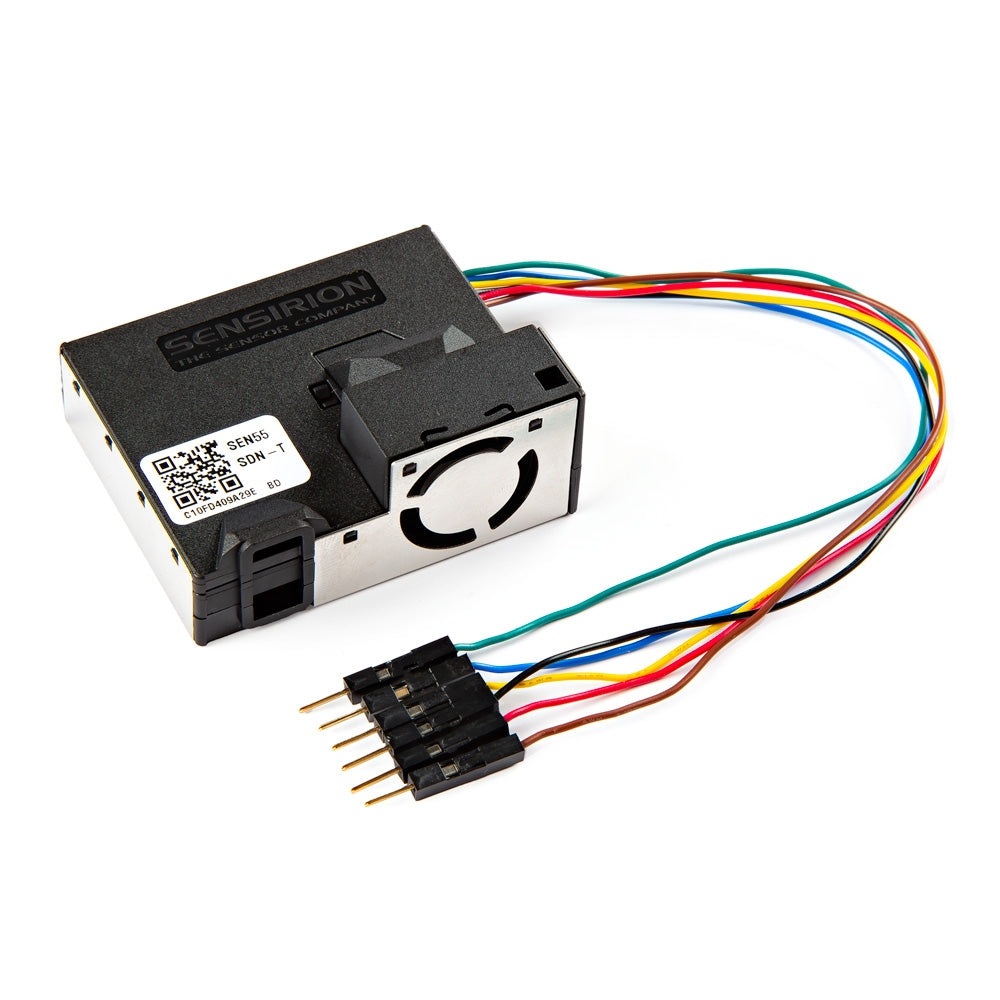

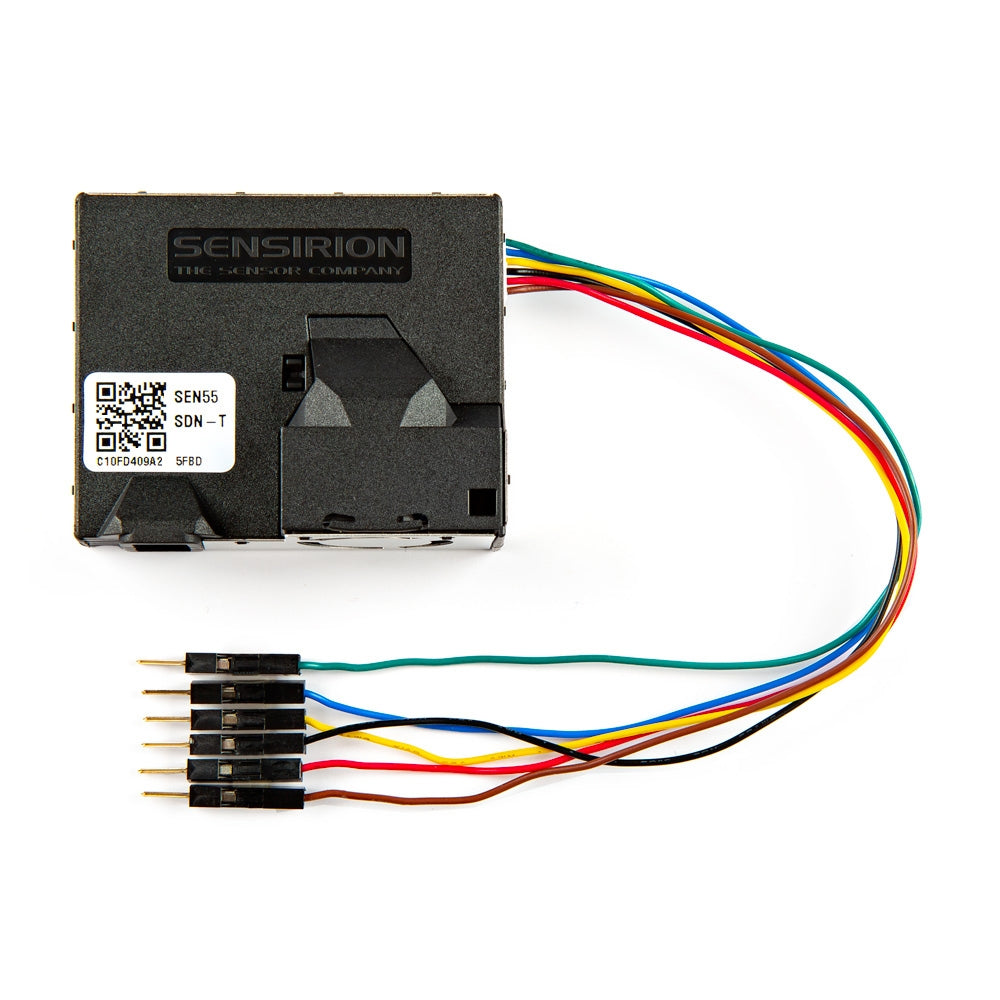

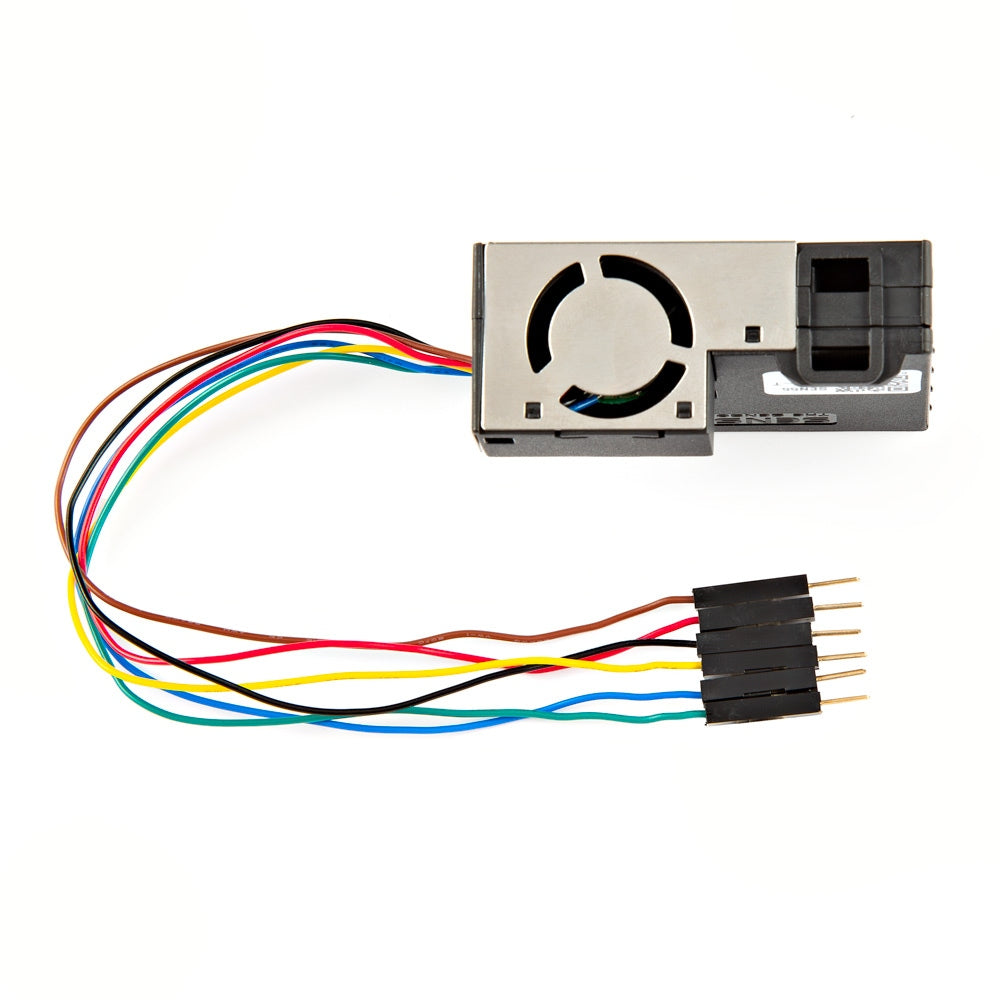

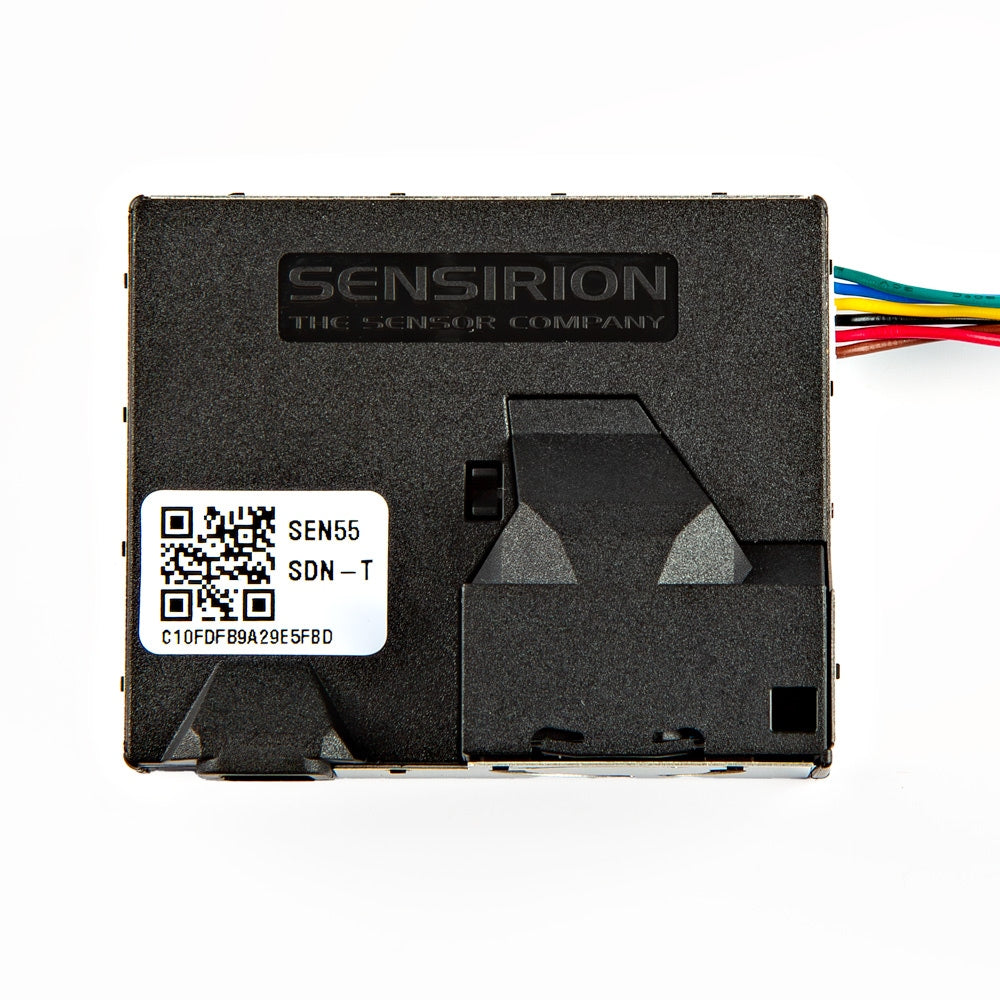

The SEN55 environmental node is a straightforward, all-in-one sensor solution platform for the accurate measurement of various environmental parameters.
Features & Specs
- Properties
- Supply voltage: 4.5V
- Average supply current: 63000uA
- Max. supply current: 110000uA
- Interfaces: I²C
- Size (LxWxH): 52.8 x 43.6 x 22.3 mm³
- Particulate Matter
- Mass concentration precision: ±10%
- Mass concentration range: 0 - 1000μg/m³
- Lifetime: > 10 years
- Particle size range: PM1.0, PM2.5, PM4 and PM10
- Temperature
- Typ. temperature accuracy: 0.45°C
- Operating temperature range: -10 - 50°C
- Response time(τ63%): < 60s
- Humidity
- Typ. relative humidity accuracy: 4.5 %RH
- Operating relative humidity range: 0 - 90 %RH
- Response time(τ63%): 20s
- VOC
- Sensor output: 0-500 VOC Index
- Measurement range: 0 - 1000ppm
- Response time(τ63%): < 10s
- Device-to-device var.: ±15% m.v.
- Limit of detection: < 0.05 ppm of ethanol equivalents or < 10 % of concentration setpoint, whichever is larger
- Switch-on time: 1h
- On-chip humidity compensation: Yes
Features & Specs
- Properties
- Supply voltage: 4.5V
- Average supply current: 63000uA
- Max. supply current: 110000uA
- Interfaces: I²C
- Size (LxWxH): 52.8 x 43.6 x 22.3 mm³
- Particulate Matter
- Mass concentration precision: ±10%
- Mass concentration range: 0 - 1000μg/m³
- Lifetime: > 10 years
- Particle size range: PM1.0, PM2.5, PM4 and PM10
- Temperature
- Typ. temperature accuracy: 0.45°C
- Operating temperature range: -10 - 50°C
- Response time(τ63%): < 60s
- Humidity
- Typ. relative humidity accuracy: 4.5 %RH
- Operating relative humidity range: 0 - 90 %RH
- Response time(τ63%): 20s
- VOC
- Sensor output: 0-500 VOC Index
- Measurement range: 0 - 1000ppm
- Response time(τ63%): < 10s
- Device-to-device var.: ±15% m.v.
- Limit of detection: < 0.05 ppm of ethanol equivalents or < 10 % of concentration setpoint, whichever is larger
- Switch-on time: 1h
- On-chip humidity compensation: Yes
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6022.1 |
| 3-5 | ₹ 5960.65 |
| 5-10 | ₹ 5837.75 |
| 10+ | ₹ 5714.85 |
Bulk discount will be automatically applied during checkout based on quantity.
