Description

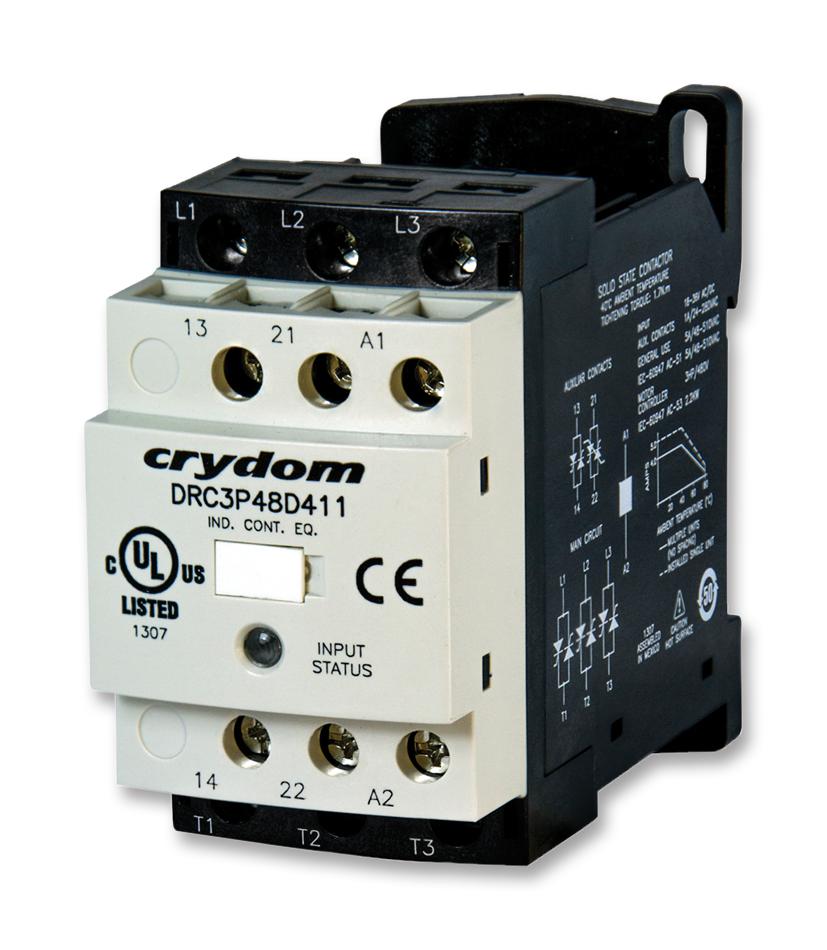

The DRC3P48D400R2 is a black and light grey 35mm DIN-rail mount Solid State Relay intended for frequently switching ON and OFF 3-phase loads up to 5HP, 480VAC 7.6A. It combines the benefits and advantages of a solid state contactor with the functionality and simplicity of use of an electromechanical contactor. It has ultra-efficient thermal management design (patented) and has complete electrical insulation (no grounding required).
- LED input status indicator
- Built-in overvoltage protection
- Instantaneous turn-on switching
- 2 Controlled legs
- 3750Vrms Dielectric strength
- 10�R Minimum insulation resistance
- 20pF Input/output maximum capacitance
- 100kA Short circuit current rating
- UL94V-0 Flammability rating
- IP20 Protection rating
- -30 to 80°C Operating temperature range
Industrial, Motor Drive & Control
Warnings Hazard of electric shock, explosion or arc flash. Disconnect all power before installing or working with this equipment. Verify all connections and replace all covers before turning ON power.Other details
| Brand | SENSATA/CRYDOM |
| Part Number | DRC3P48D400R2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| Operating Instructions EN | |
| Manufacturer Catalogue EN | |
