| ₹ 10155.73 includes GST and import duties. | |
| B2B customers can avail ₹ 1548.75 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

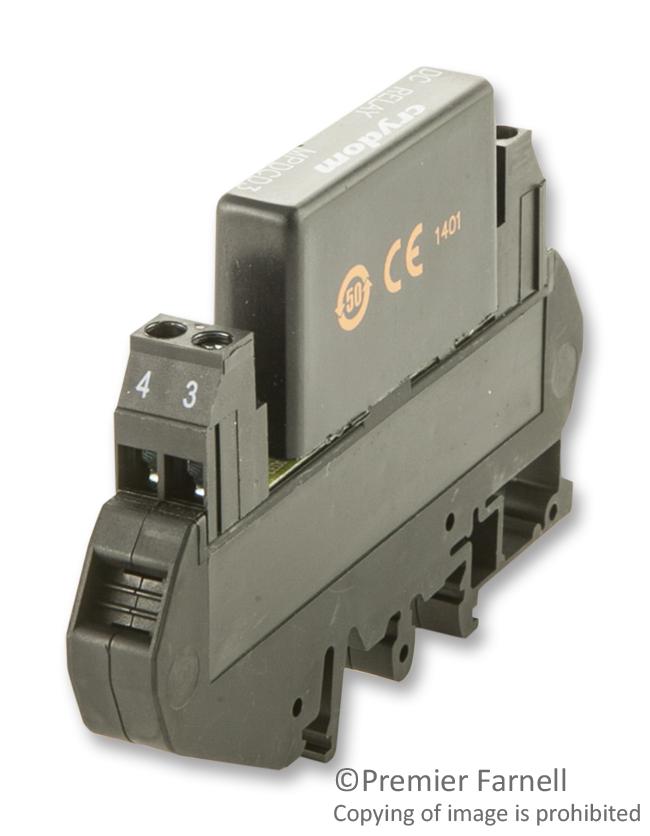

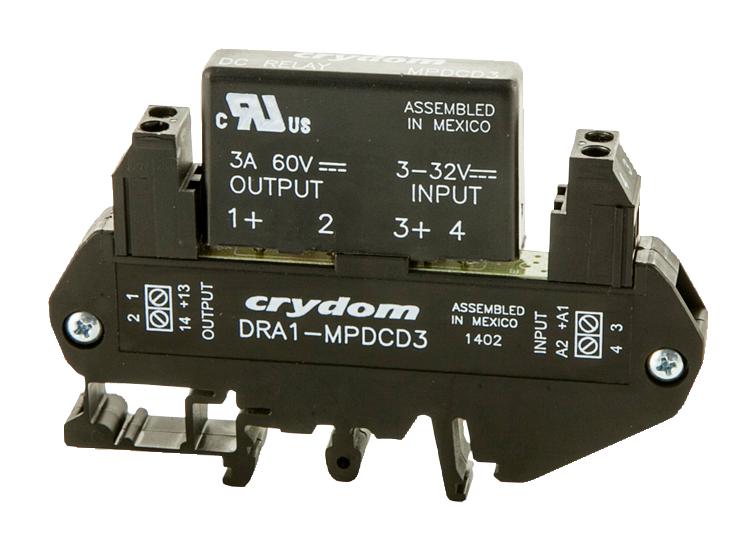

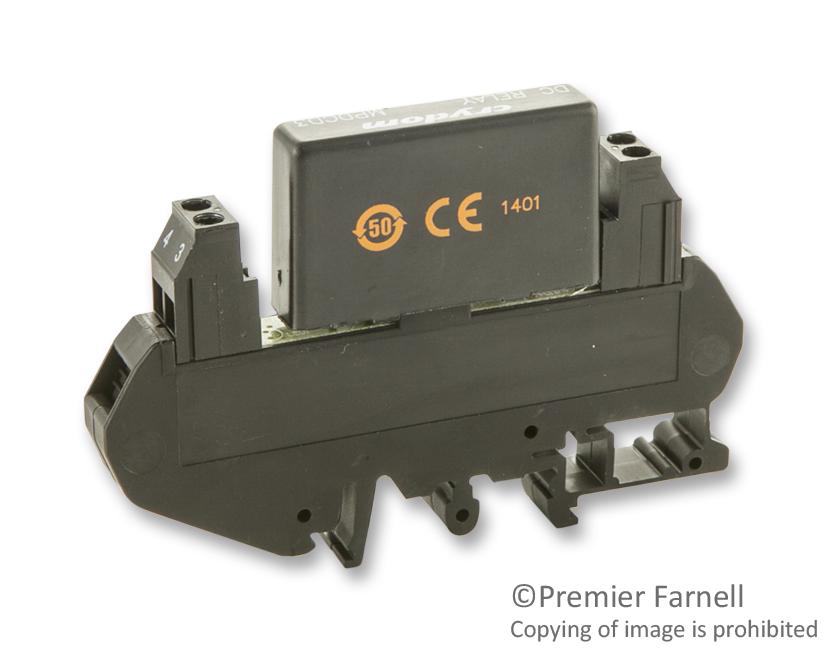

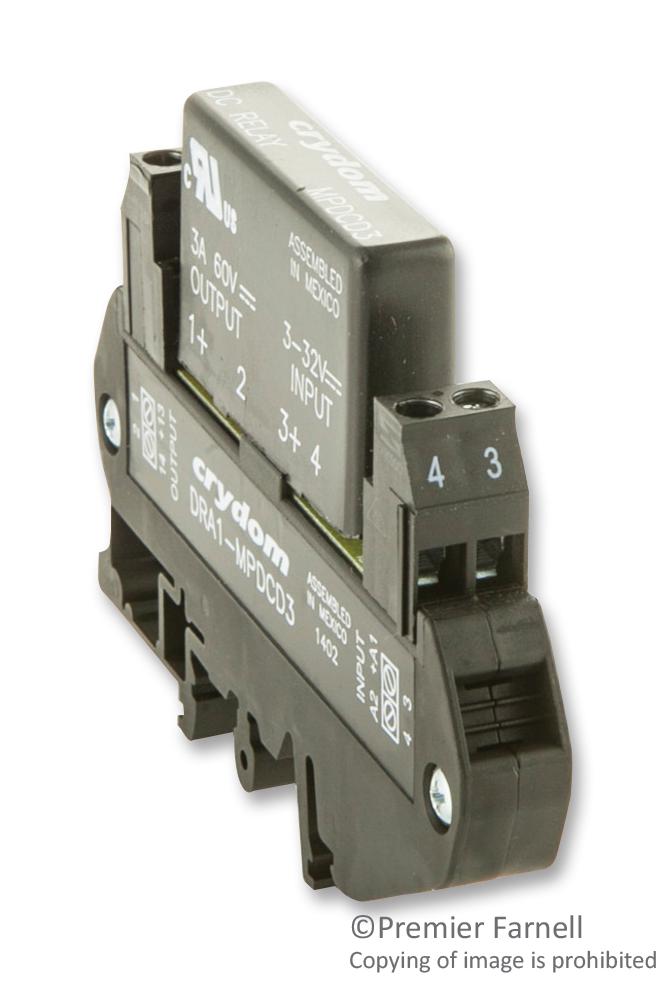

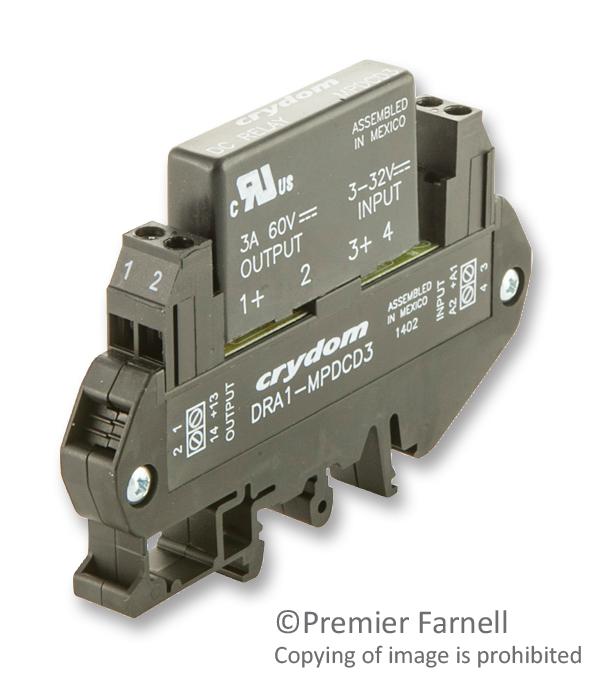

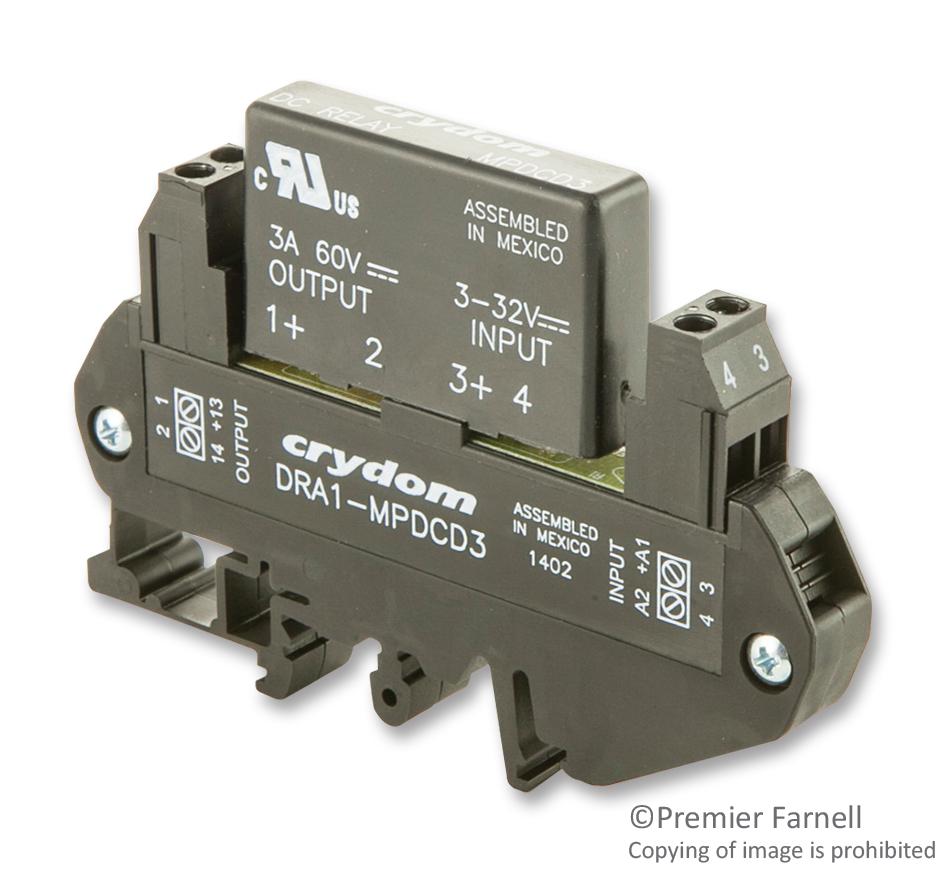

The DRA1-MPDCD3 is a 1-phase Solid-state Relay with DIN rail mount, DRA1 MP series. DC output, DC ratings 60VDC and 3A. Normally closed type output function. Cage style screw terminals for easy connection. Fits standard 35mm DIN rail.
- 10mm Single channel DIN rail mount SSR assembly
- -40 to 80°C Operating temperature range
- Thermally conductive epoxy encapsulation
- 1500R Nominal input impedance
- 0.10ms Turn-on/off maximum time
- -40 to 80°C Ambient operating temperature range
Industrial, Power Management, Automation & Process Control
Warnings Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.Other details
| Brand | SENSATA/CRYDOM |
| Part Number | DRA1-MPDCD3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9952.62 |
| 3-5 | ₹ 9851.06 |
| 5-10 | ₹ 9647.94 |
| 10+ | ₹ 9444.83 |
Bulk discount will be automatically applied during checkout based on quantity.
