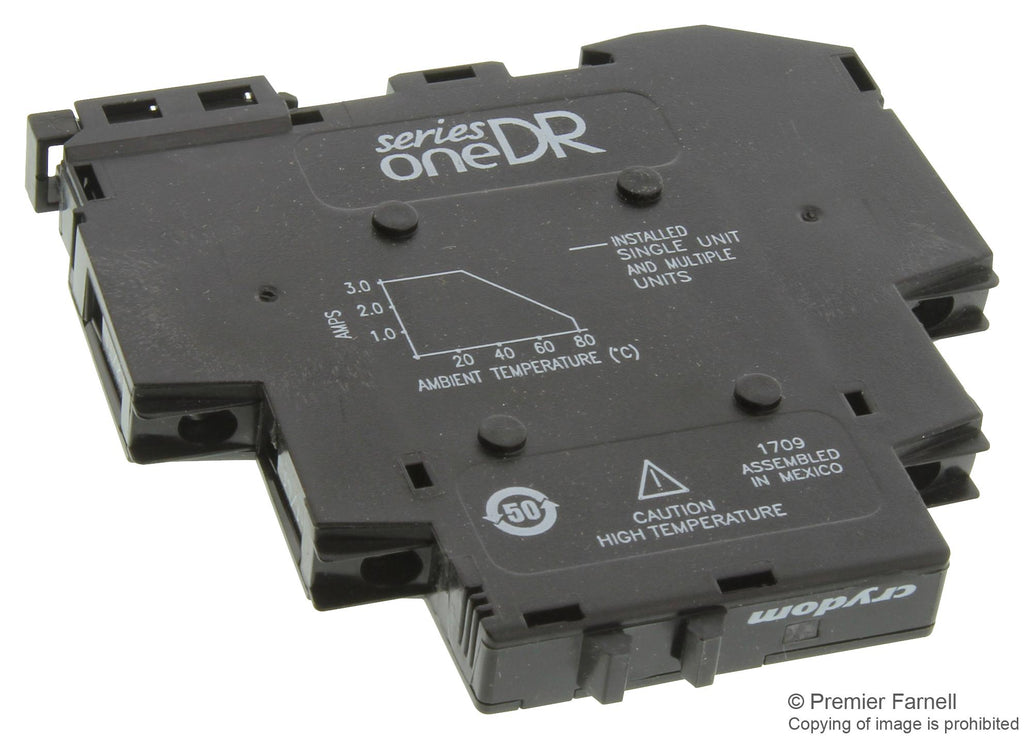

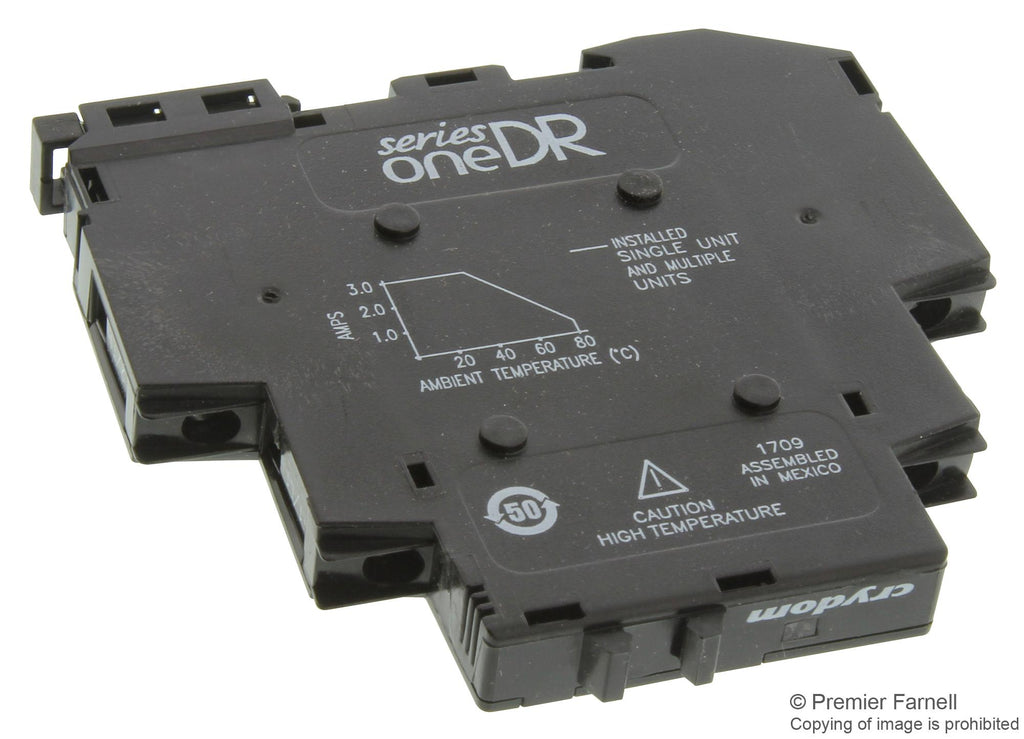

The DR06D03 is a 1-phase Solid-state Relay with DIN rail mount, SeriesOne DR. DC output, AC or DC control. Zero-crossing (resistive loads) or random turn-on (inductive loads) output. Fits standard 35mm DIN-rail. Load voltage ratings of 1 to 60VDC. UL 508 Endurance rating for enhanced reliability. UL Class I and II, Division 2, for Hazardous Locations.
- LED input status indicator
- -30 to 80°C Operating temperature range
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Configuration |
- |
| Load Current |
3A |
| Operating Voltage Max |
60VDC |
| Relay Mounting |
DIN Rail |
| Relay Terminals |
Screw |
| Switching Mode |
Zero Crossing |
| Operating Voltage Min |
1VDC |
| Control Voltage Min |
4VDC |
| Control Voltage Max |
32VDC |
| Product Range |
- |
Other details
| Brand |
SENSATA/CRYDOM |
| Part Number |
DR06D03 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
