Description

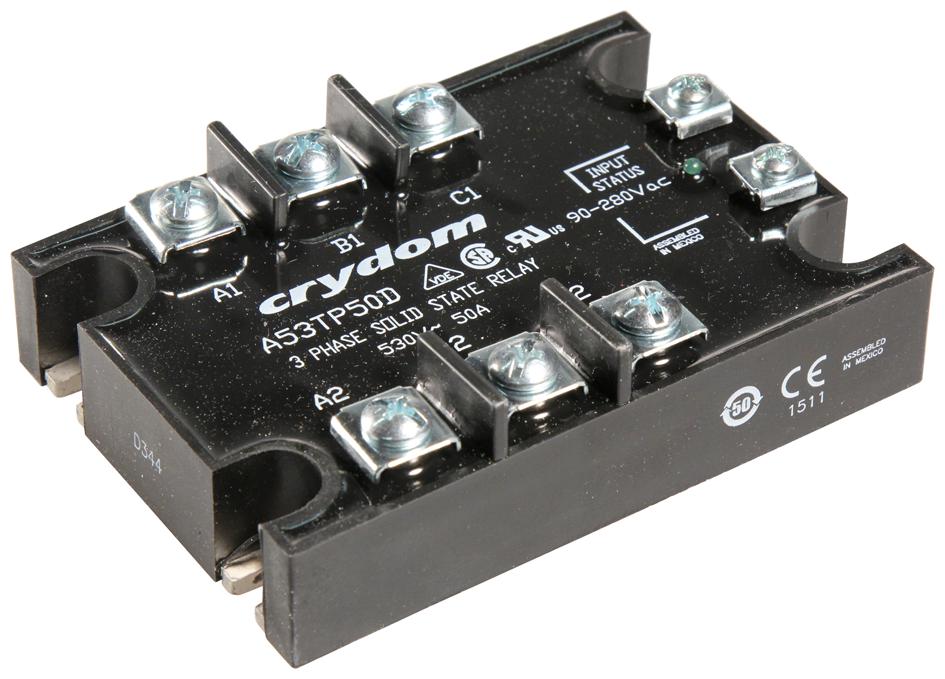

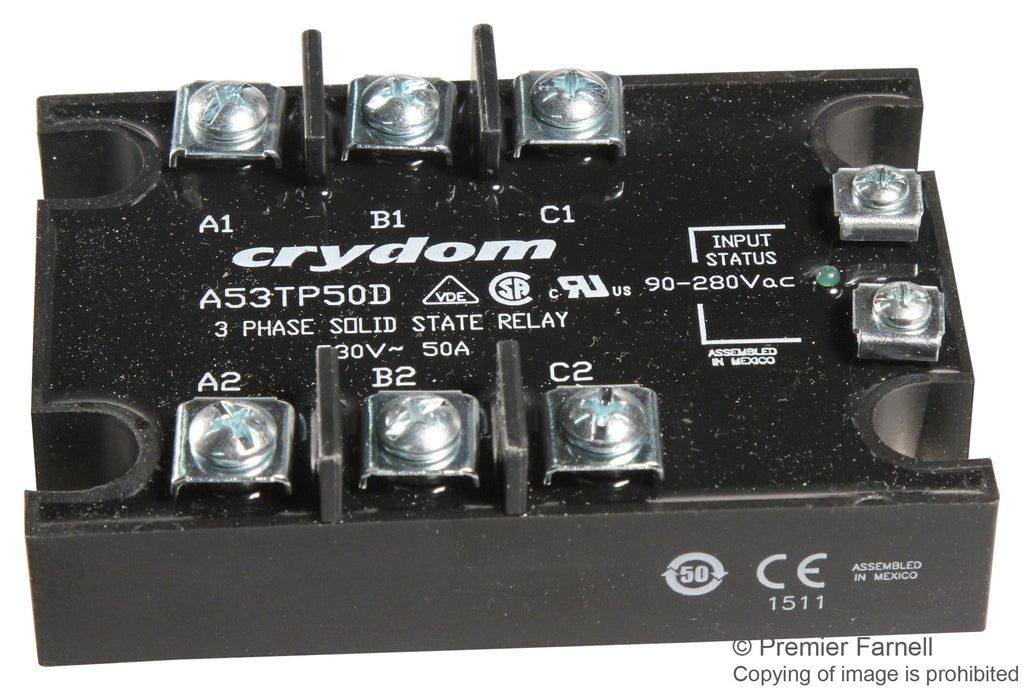

The A53TP50D is a 3-phase Solid State Relay with thermally conductive epoxy encapsulation, SPST-NO contact, zero crossing switching mode and zinc plated steel screw terminals. This 53TP-series panel mount relay features transient protection built-in and LED input status indicator.
- AC or DC Control
- SCR output for heavy industrial loads
- 1.6Vpk Maximum on-state voltage drop
- Current limiter nominal input impedance
- 4000Vrms Dielectric strength
- 50ms Turn-on/off maximum time
- -40 to 80°C Ambient operating temperature range
Industrial
Warnings Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.Other details
| Brand | SENSATA/CRYDOM |
| Part Number | A53TP50D |
| Quantity | Each |
| Technical Data Sheet EN |  |
