Description
Sennheiser EW 500 FILM G4 Overview
- 1 Description
- 2 Built for Reliable Performance in the Field
- 3 Advanced Controls for Flexible Use
- 4 Proven Broadcast-Quality Sound
- 5 Additional Features
- 6 EW 100 G4 vs EW 500 G4 Systems at a Glance
First Look: Sennheiser G4 Wireless Combo Microphone Sets Sennheiser G4 100 vs Sennheiser G4 500 | Which is Best for Me? Basic Tips for Recording Audio for Video | Audio for Video, Part 1 Choosing a Mic for Video Production | Audio for Video, Part 2 How to Get Great Audio Levels | Audio for Video, Part 3 Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4

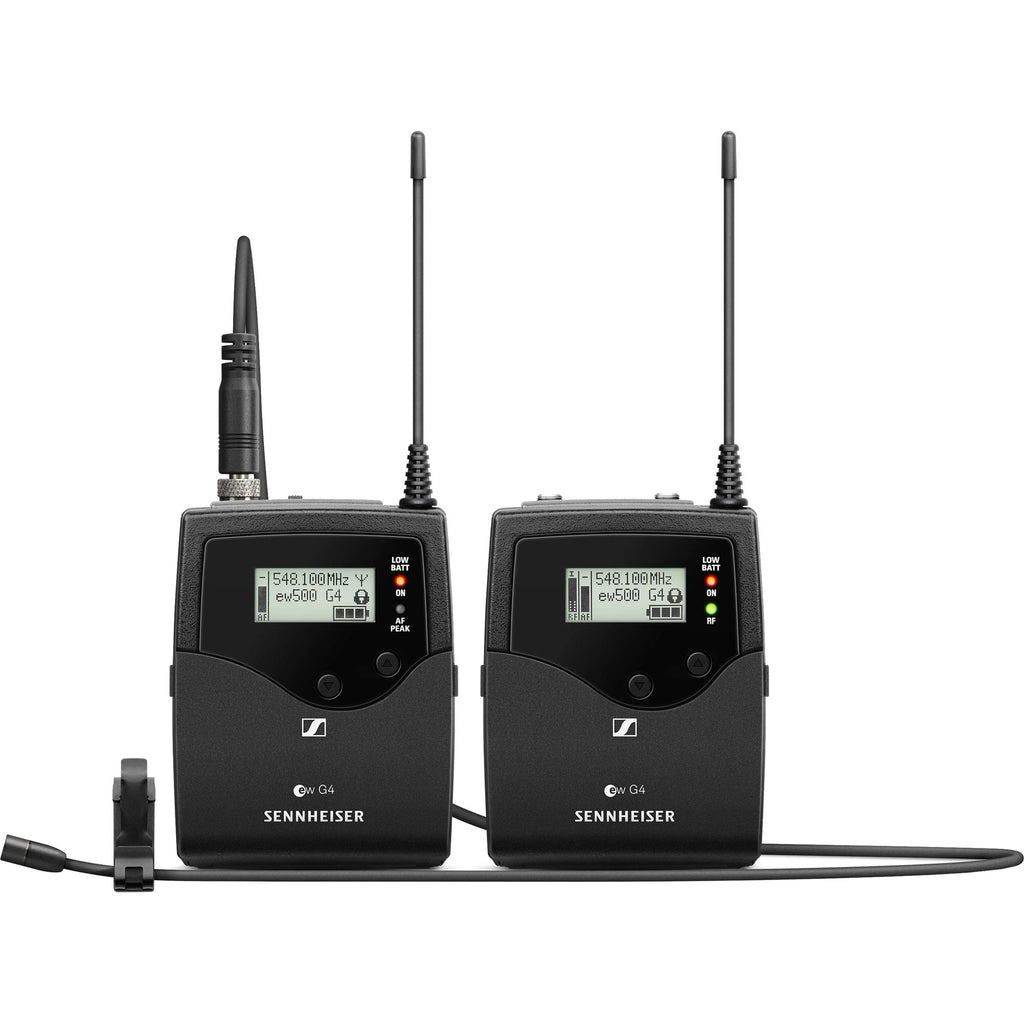

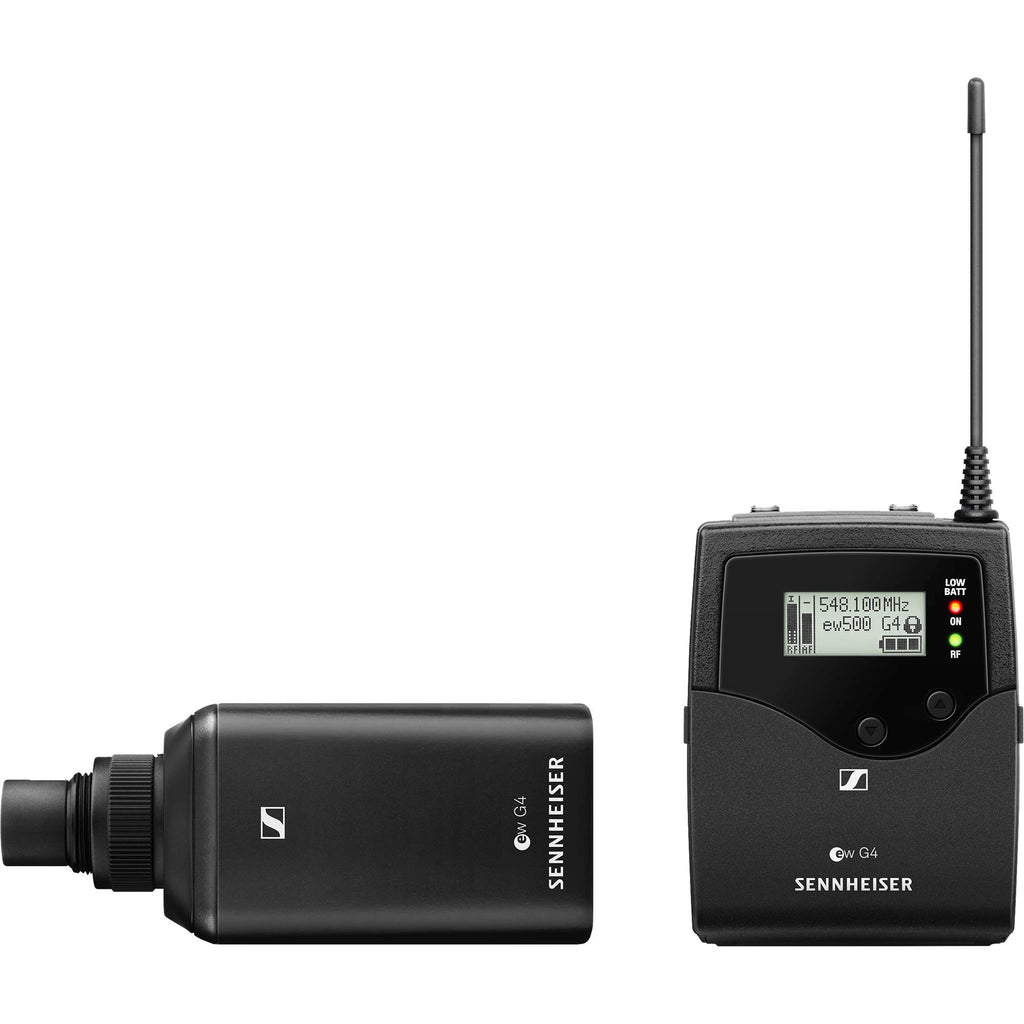

The Sennheiser EW 500 FILM G4 is a camera-mount wireless lavalier microphone system that brings advanced features to the EW Series, expanding this industry-standard system into a fully professional, yet cost-effective solution that filmmakers, videographers, and journalists can rely on�even in challenging shooting environments like big cities.
The rugged EW 512P G4 combines a wide 88 MHz bandwidth with 3520 frequencies and an RF output level up to 50 mW for a clean transmission and broadcast-quality sound. Depending on your location, you can operate up to 32 mics in one space.
Designed to accommodate a broad range of applications, the EW 500 FILM G4 gives you the tools to adapt to various shooting scenarios. For hands-free interviews, the system includes a bodypack transmitter with a high-grade, miniature MKE 2 omnidirectional lavalier mic, which is sweat-resistant and easy to conceal. For man-on-the-street interviews or for wireless booming, the plug-on transmitter is ready to attach to a handheld or shotgun mic of your choice (both types of mics are available separately). It also provides 48V phantom power, giving you the option to use a condenser microphone.
The camera-mount receiver connects to a camcorder, a DSLR/mirrorless, or a cinema camera to capture crisp-sounding speech or dialog for projects ranging from films and documentaries to wedding videos, corporate spots, and hands-free interviews.
The EW 500 FILM G4 is backward-compatible with previous evolution systems, including EW 100 models, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters.
Note: While this system includes two transmitters, only one can be used at a time.
Built for Reliable Performance in the Field
- The EW 500 BOOM G4 features rugged, all-metal chassis well suited for extended use on location.

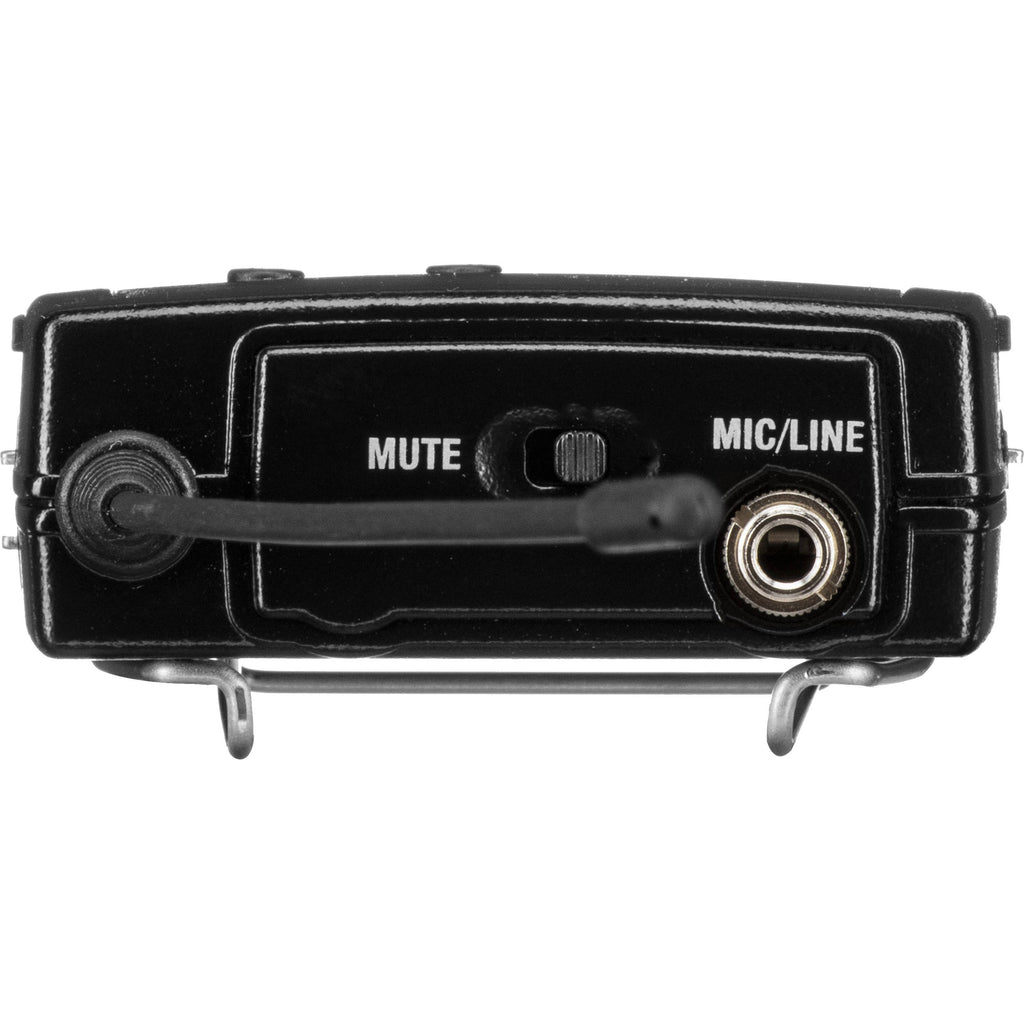

- The lightweight, compact bodypack transmitter is moisture-resistant, easy to conceal, and offers rounded edges that are soft to the touch and comfortable for the talent to wear. The plug-on transmitter attaches to any dynamic or condenser microphone equipped with an XLR connector. Both transmitters are equipped with locking connectors ensuring your mic doesn�t detach at a critical moment. Each also feature a convenient mute switch.

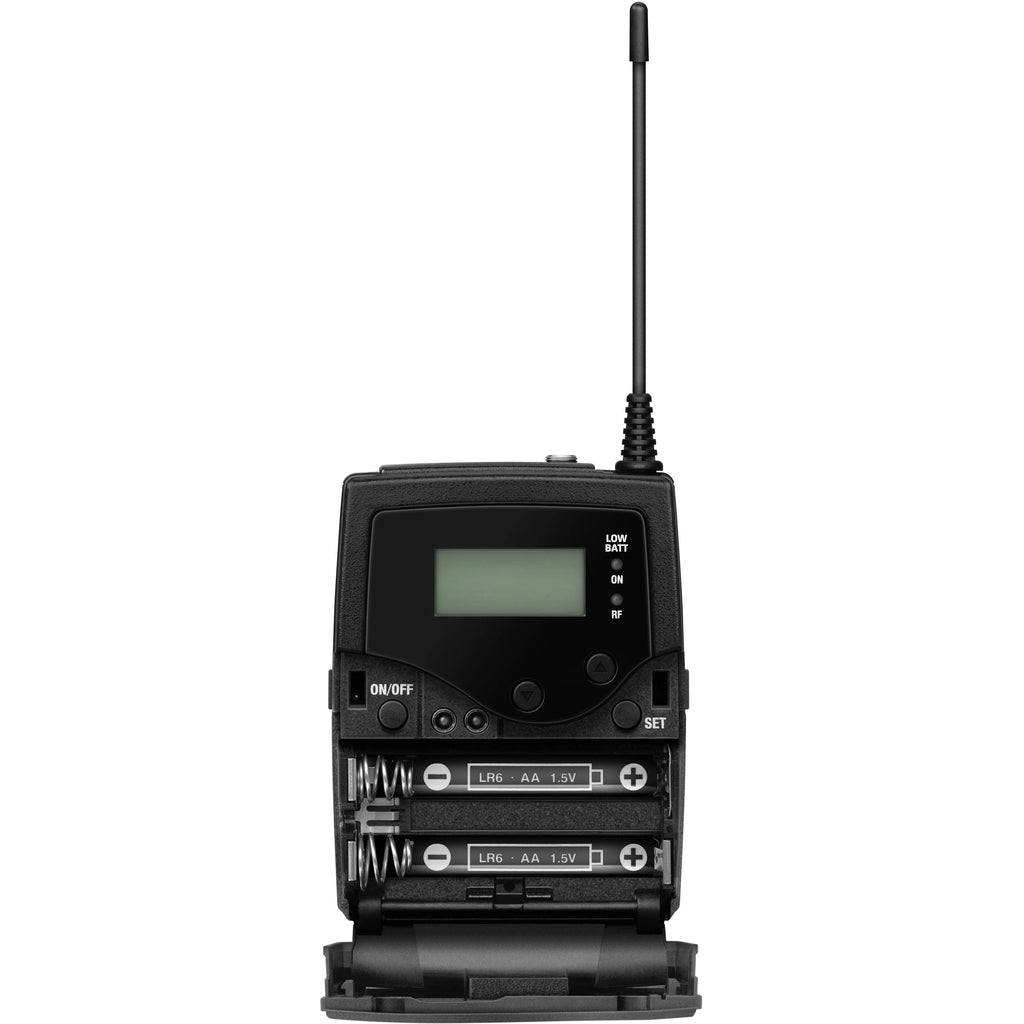

- Using the included shoemount adapter, the compact receiver easily mounts on your camera without adding much weight. The included CL 500 cable provides a balanced connection from the receiver to the XLR audio input of your camcorder, cinema camera, or recording device. The CL 1 cable is for DSLR/mirrorless cameras and devices with 3.5mm inputs. A headphone output lets you monitor the quality of your sound while recording.
- The transmitters and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level.
Advanced Controls for Flexible Use
- The frequency scan function automatically searches for the cleanest frequency at your location.
- To get you going quickly, the transmitter and receiver synchronize via infrared interface with the simple push of a button.
- 10/30/50 mW switchable RF output helps overcome interference or save battery life.
- The adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio.
- The receiver has an adjustable output range of 42 dB to match the audio input of your camera or recording device.
Proven Broadcast-Quality Sound
- Popular with industry professionals, the MKE 2 omnidirectional lavalier microphone delivers a natural, broadcast-quality sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker�s head moves away from the mic.
- To take full advantage of your microphone�s dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission�delivering audio with remarkable accuracy and quality.
Additional Features
- Adaptive-diversity reception for reliable transmission up to 330'
- 20 frequency banks, each with up to 32 factory-preset channels to prevent intermodulation
- Pilot tone squelch for eliminating RF noise when transmitter is turned off
- User-friendly menu operation with flexible control options
- Transmitters and receiver feature 4-step battery-life indicator
- Auto-Lock function avoids accidental changing of settings
- RF Mute function
- 8 hours of battery life
- Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
- Side contacts on the receiver and bodypack transmitter for recharging the Accupacks without removing them�requires the L 2015 quick-charging unit (available separately)
- Unlike digital wireless systems, the SK 500 G4 and SKP 500 G4 transmitters can transmit to an unlimited number of EW series receivers
- Wide range of accessories adapts the system to a variety of applications
EW 100 G4 vs EW 500 G4 Systems at a Glance
- Bandwidth: 42 MHz vs up to 88 MHz
- UHF Frequencies: 1680 vs up to 3520
- RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
- Mics at Once: Up to 12 mics vs up to 32 mics
- Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
- Headphone Output: No vs yes
- Audio Output: Unbalanced vs balanced
- Plug-On Transmitter: No phantom vs +48V phantom power
UPC: 615104316232
In the Box

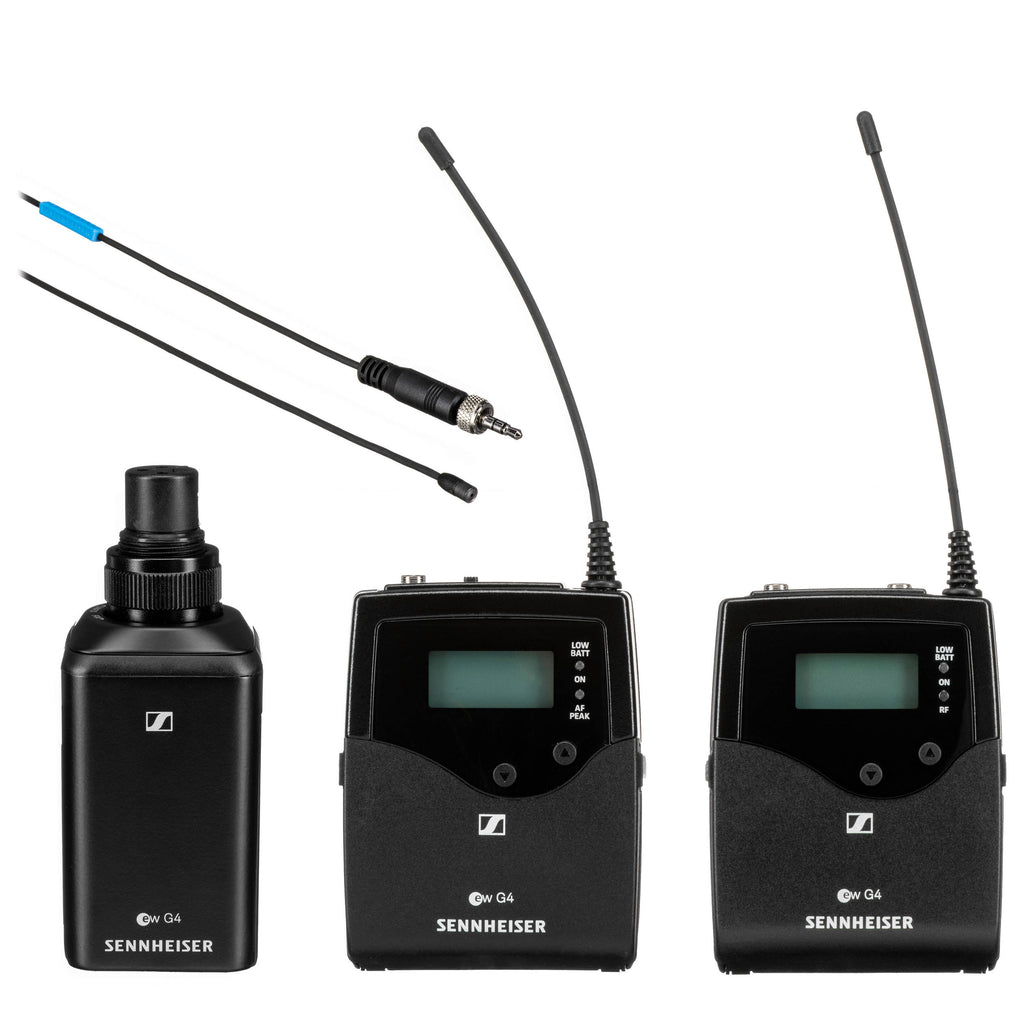

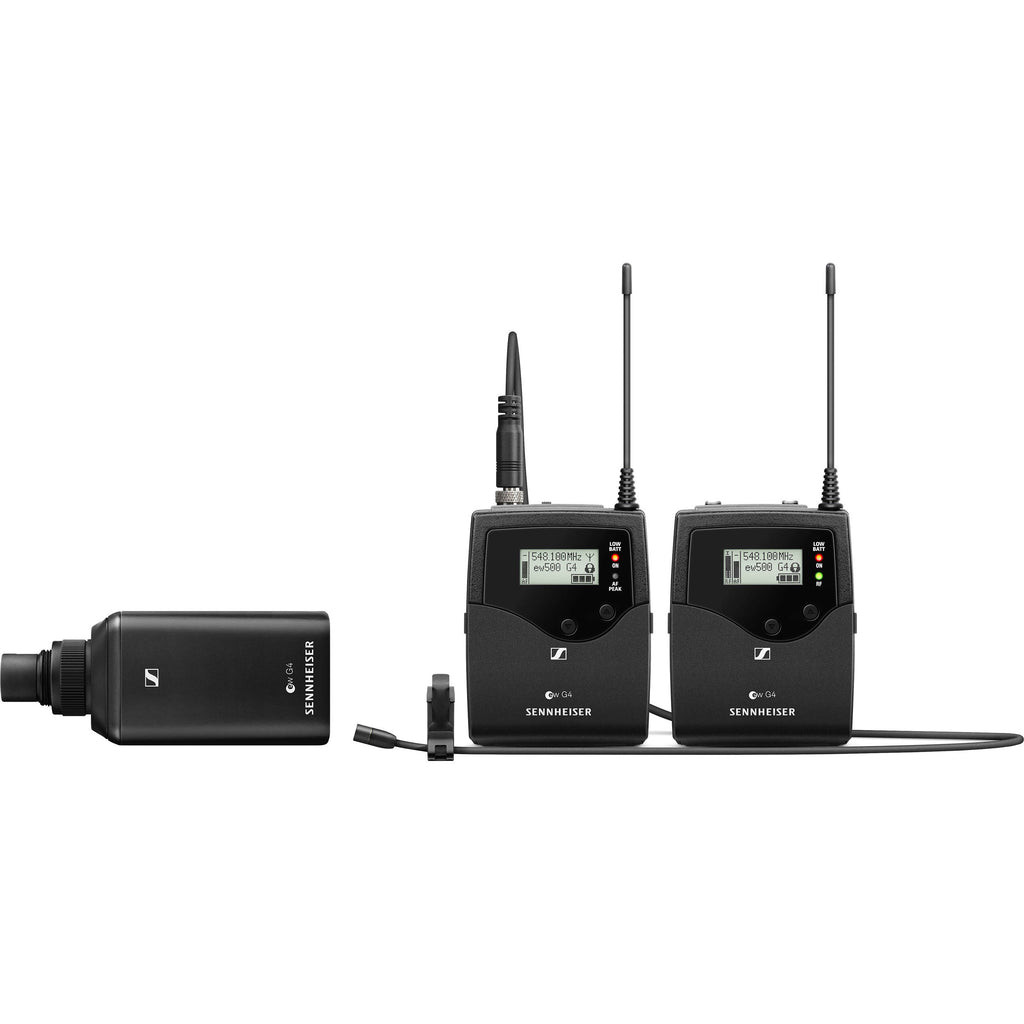

- Sennheiser EW 500 FILM G4 Camera-Mount Wireless Combo Microphone System (AW+: 470 to 558 MHz)

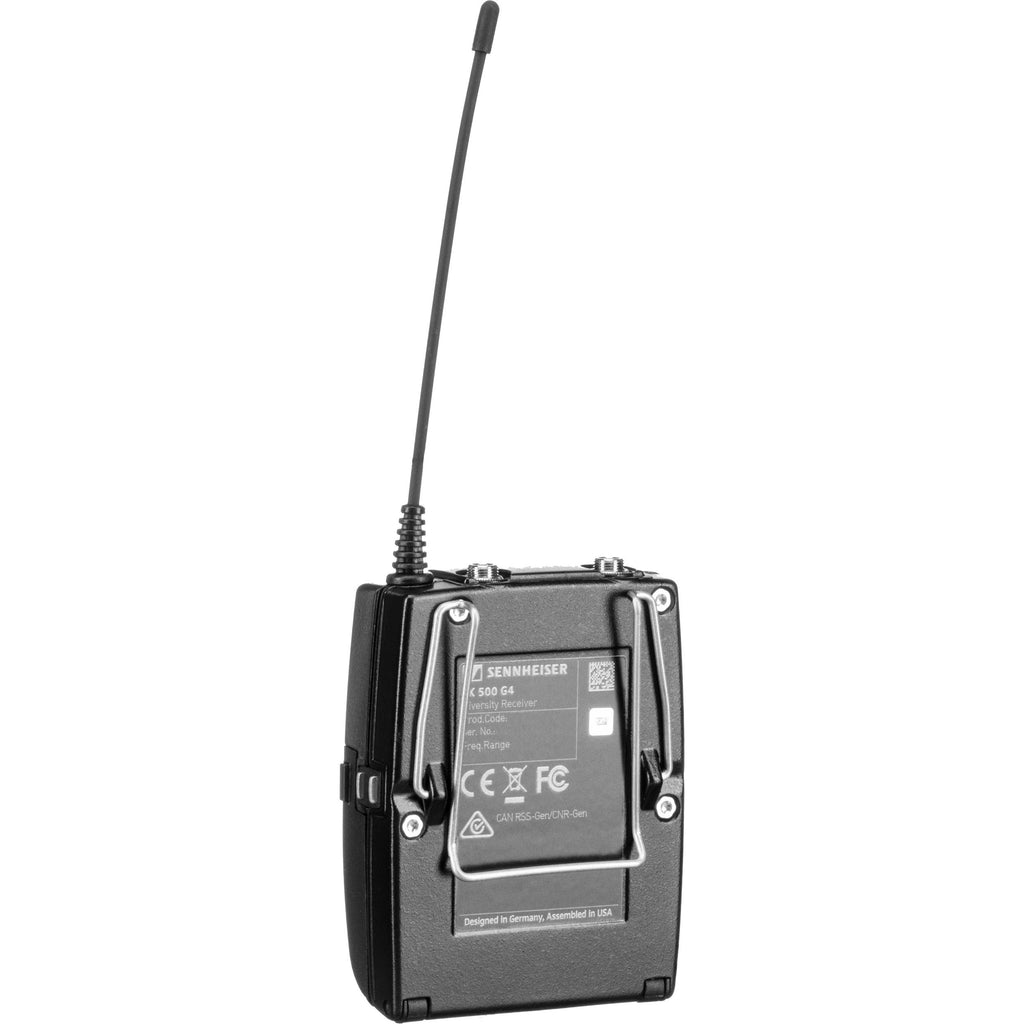

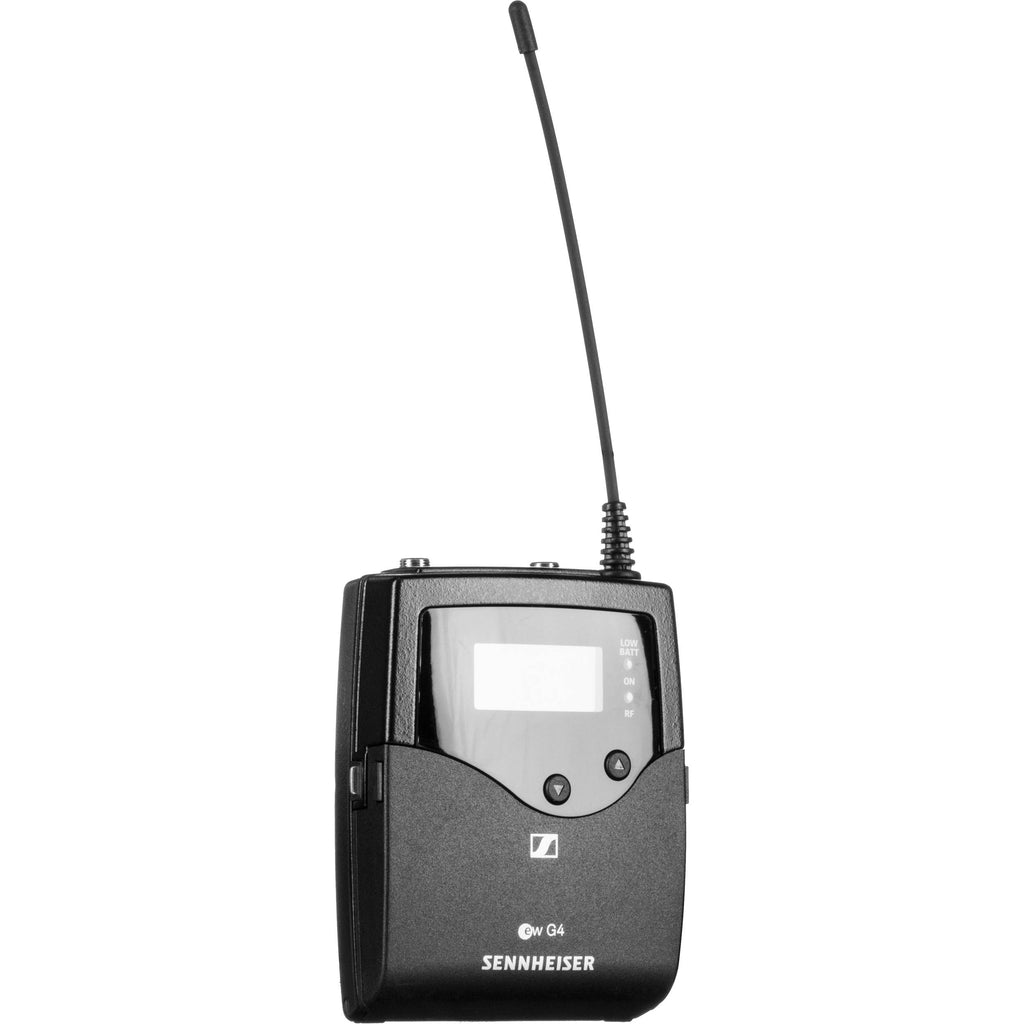

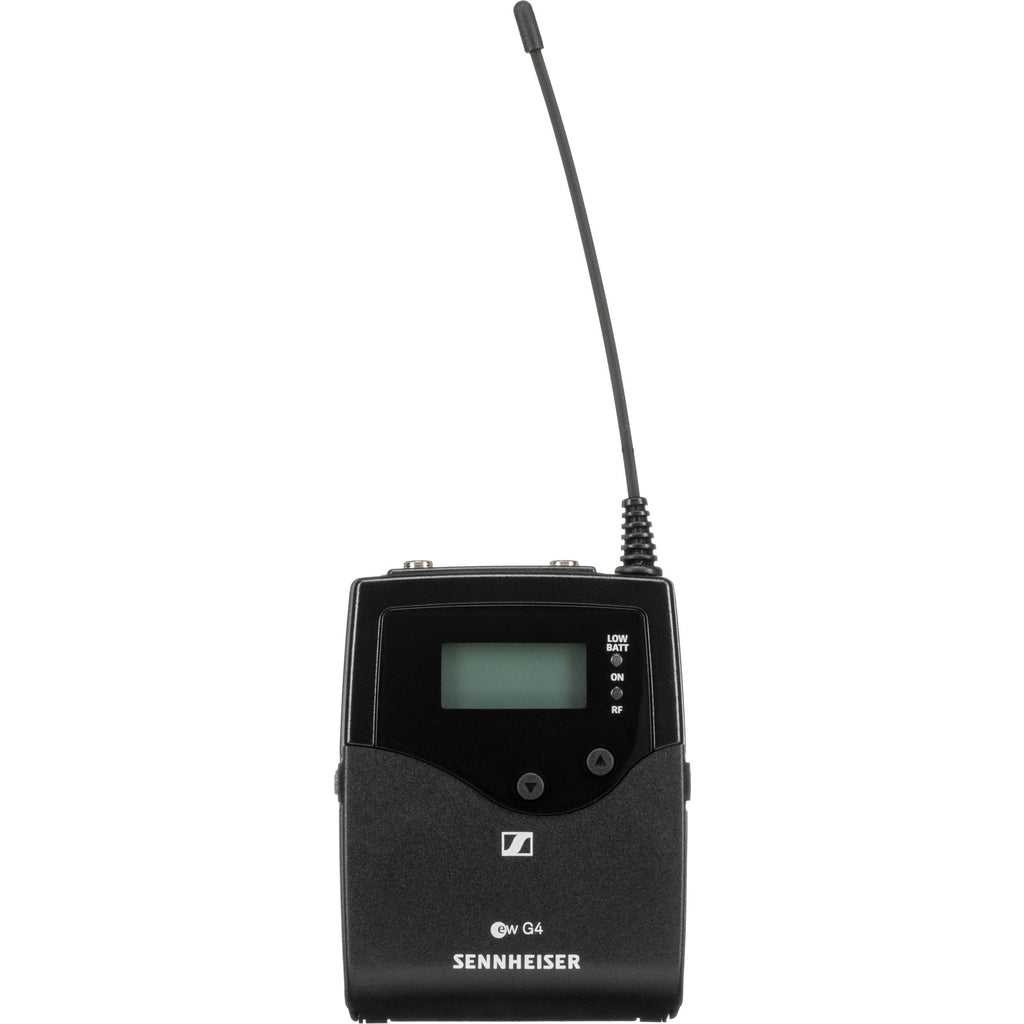

- Sennheiser EK 500 G4 Pro Wireless Camera-Mount Receiver AW+: (470 to 558 MHz)

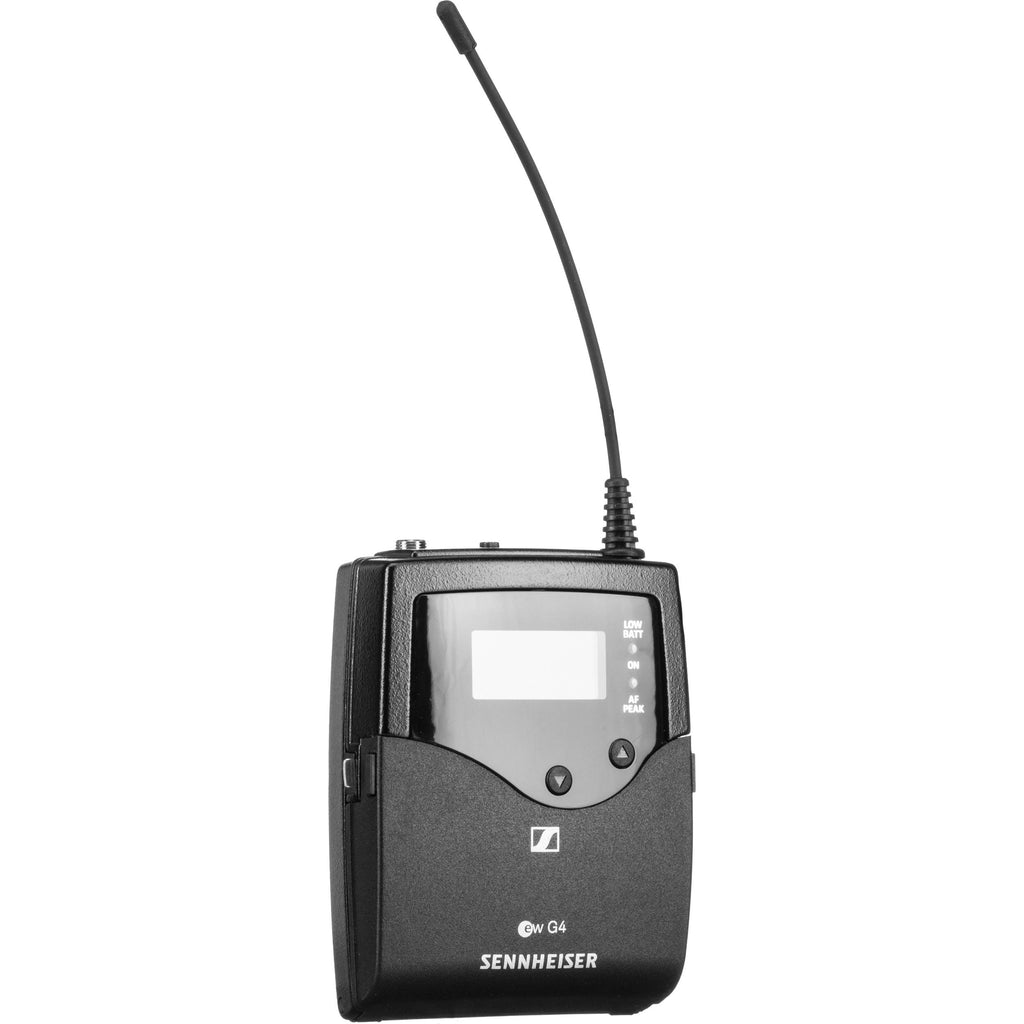

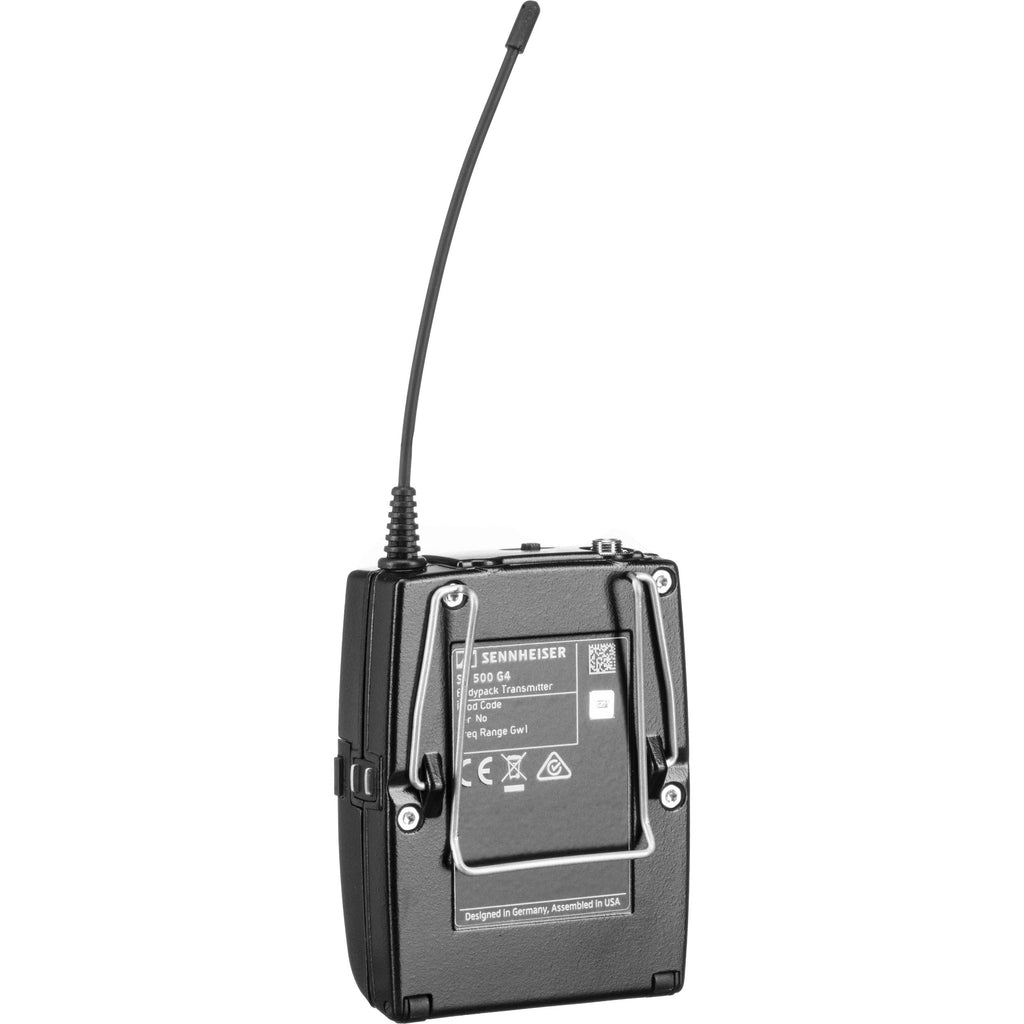

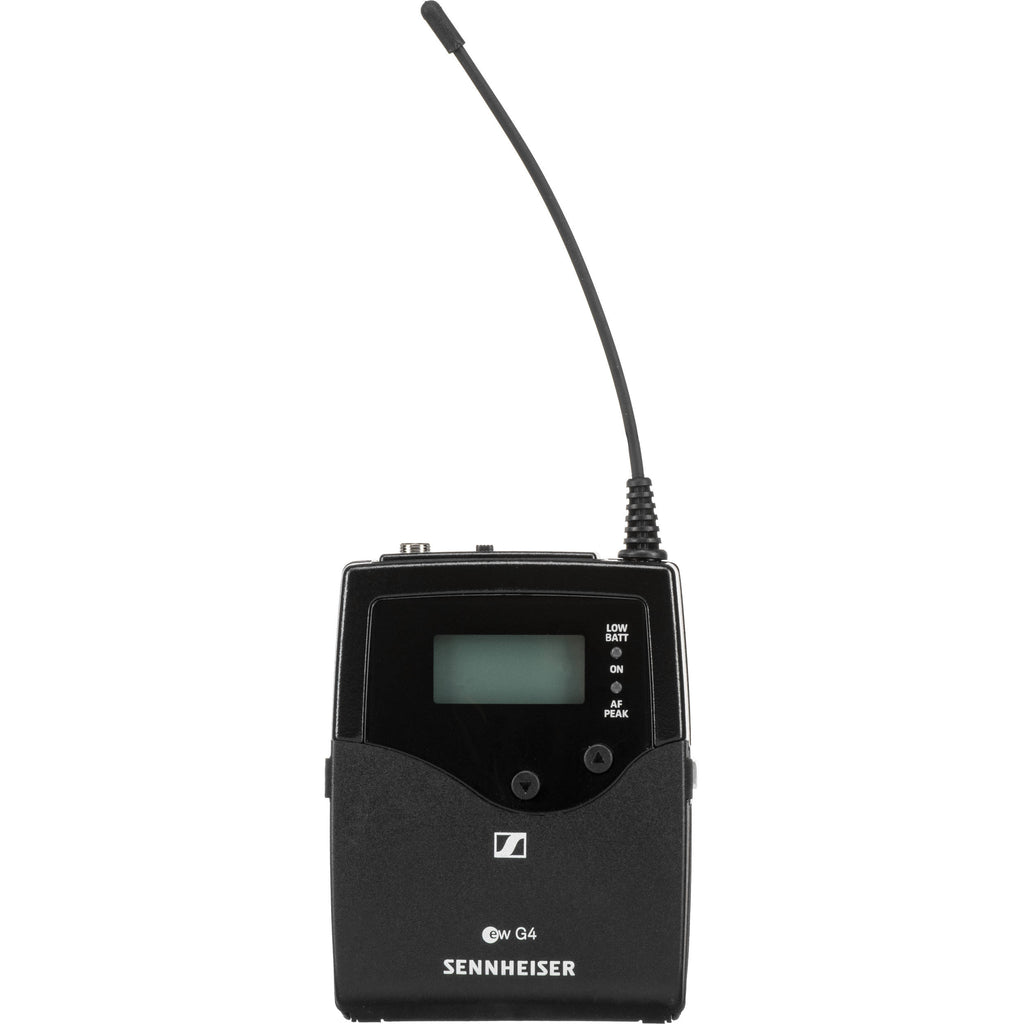

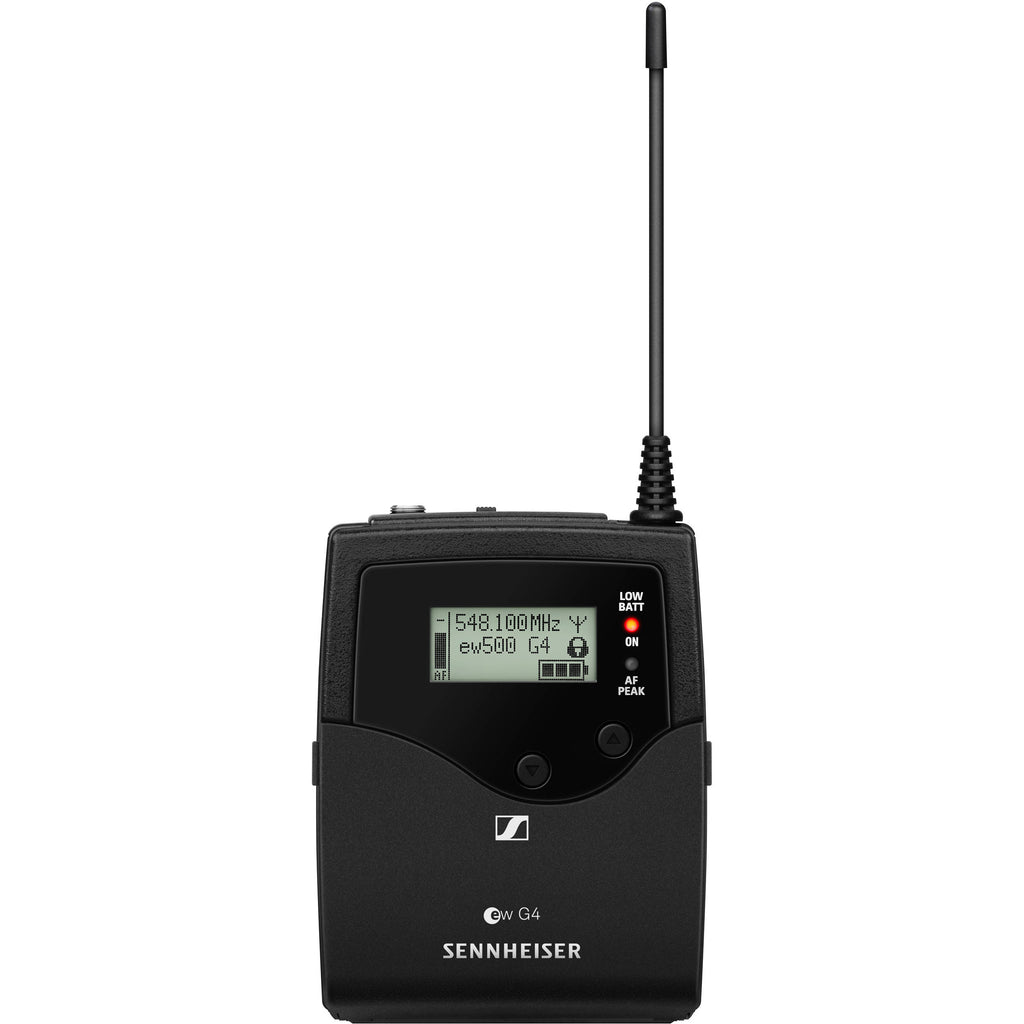

- Sennheiser SK 500 G4 Wireless Bodypack Transmitter (AW+: 470 to 558 MHz)

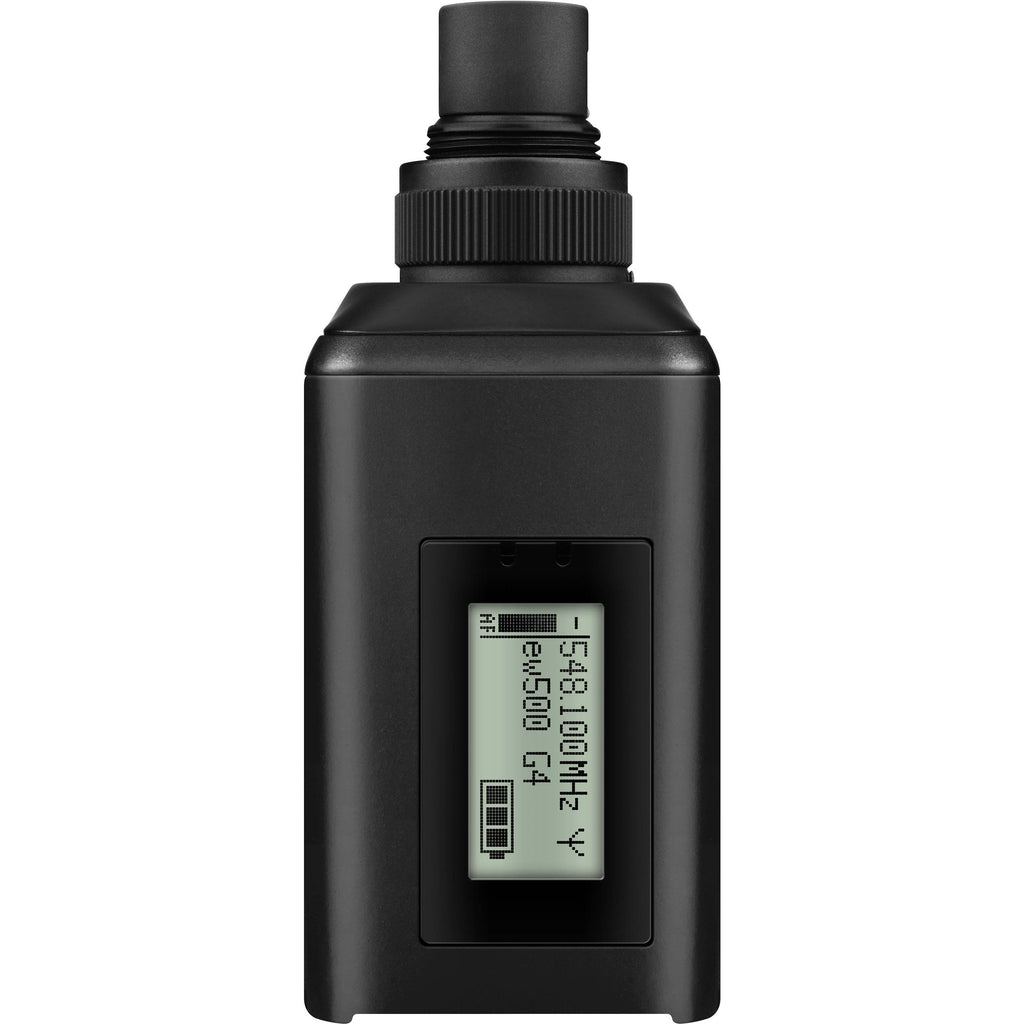

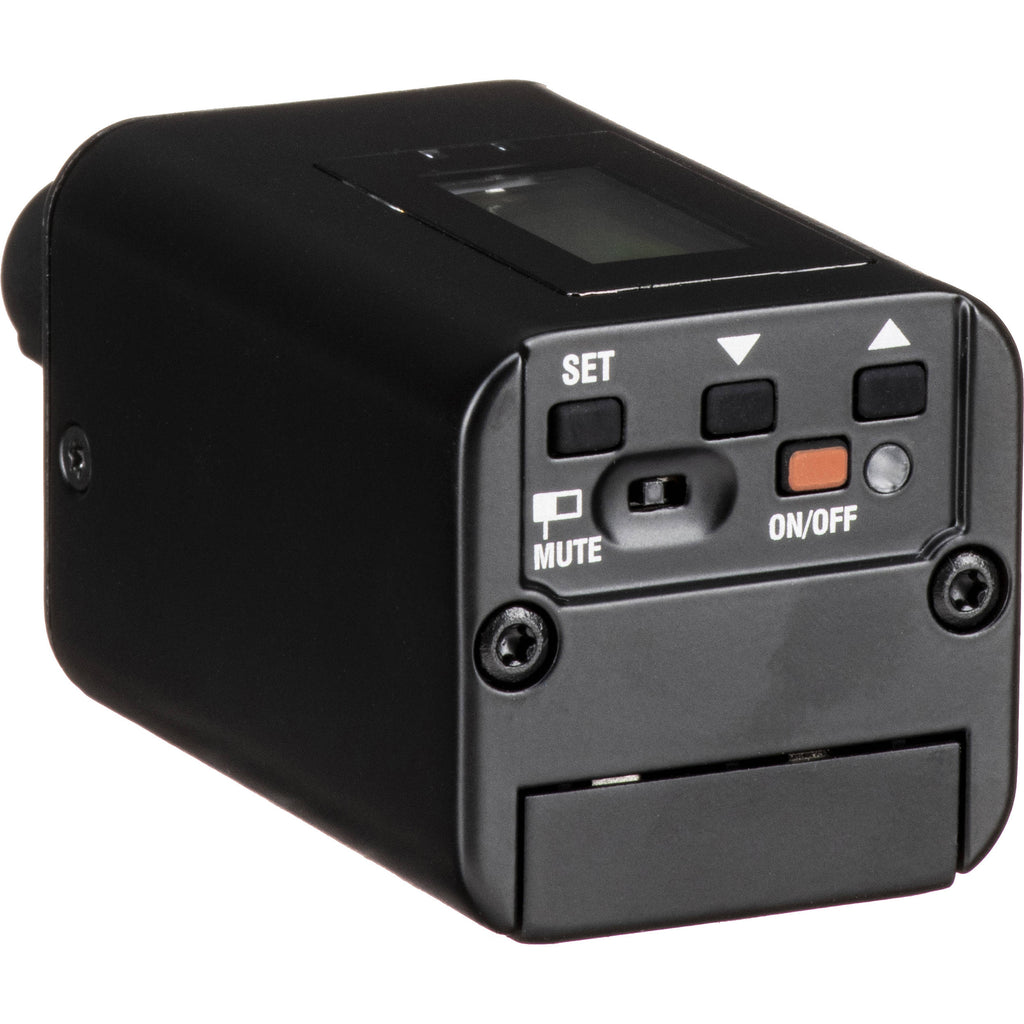

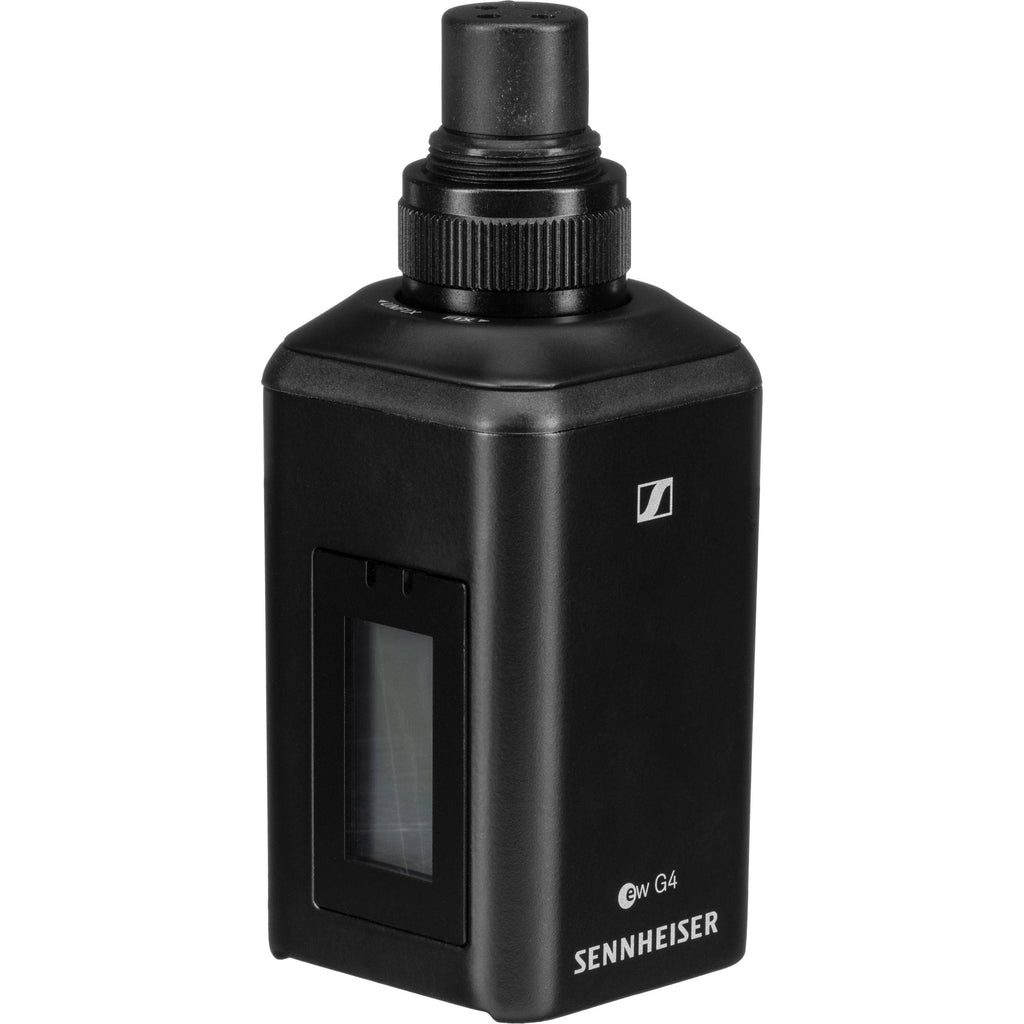

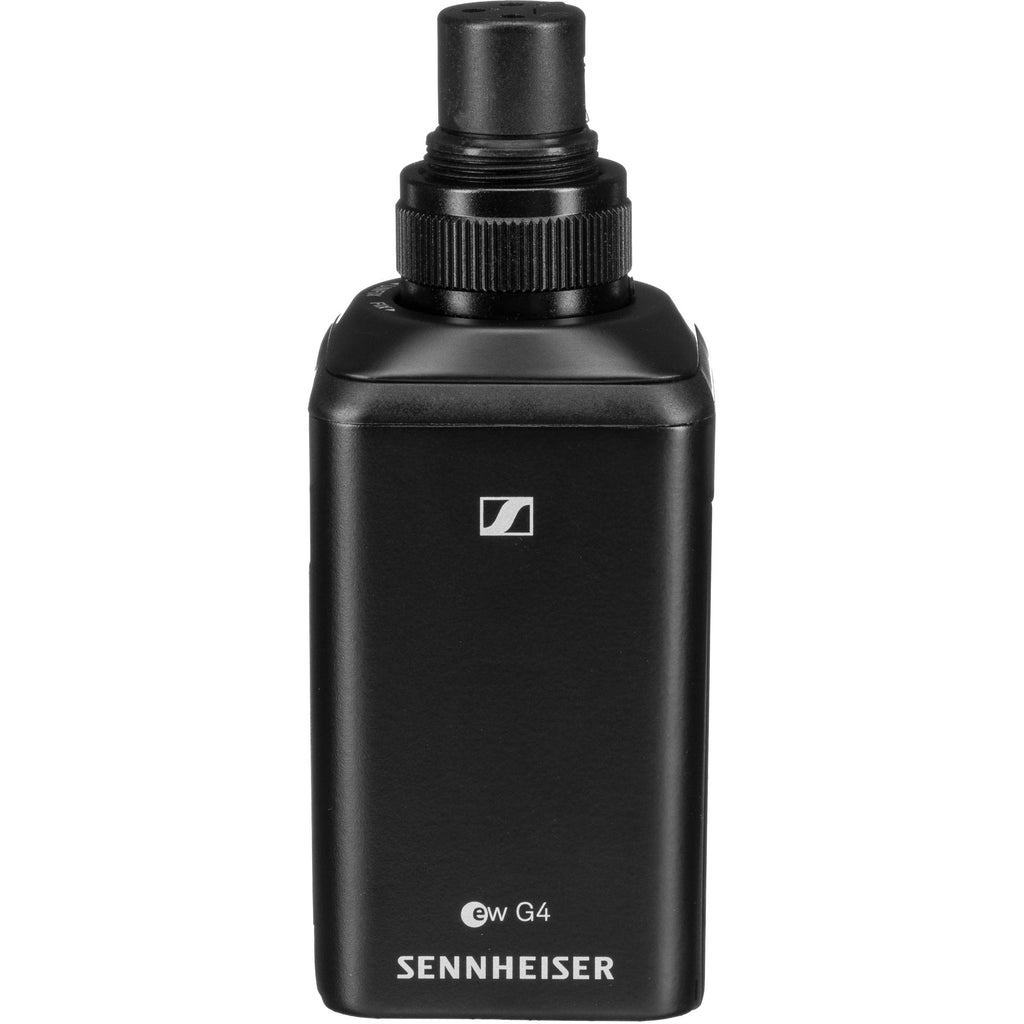

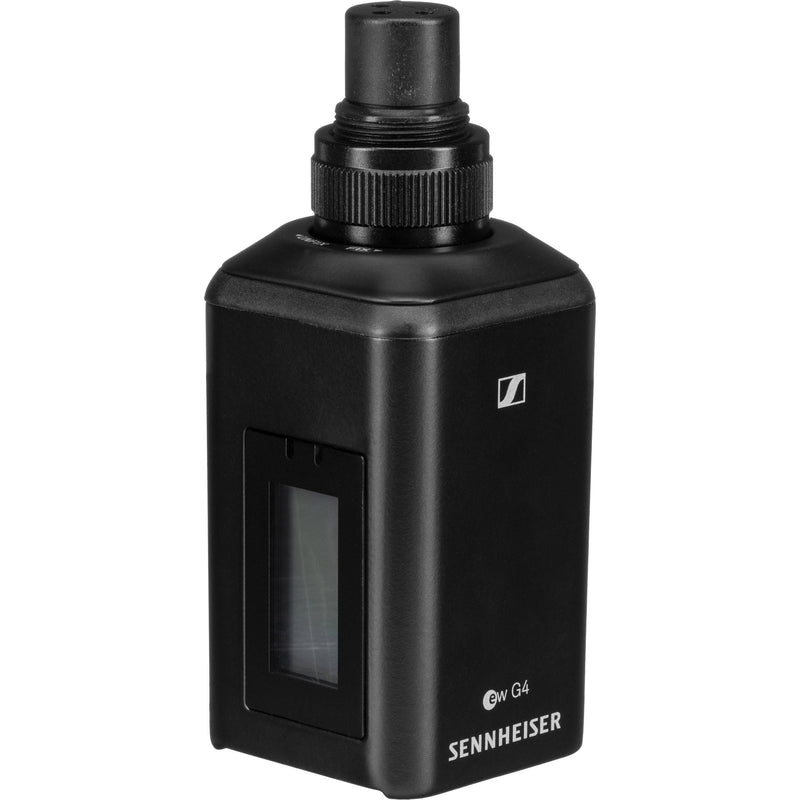

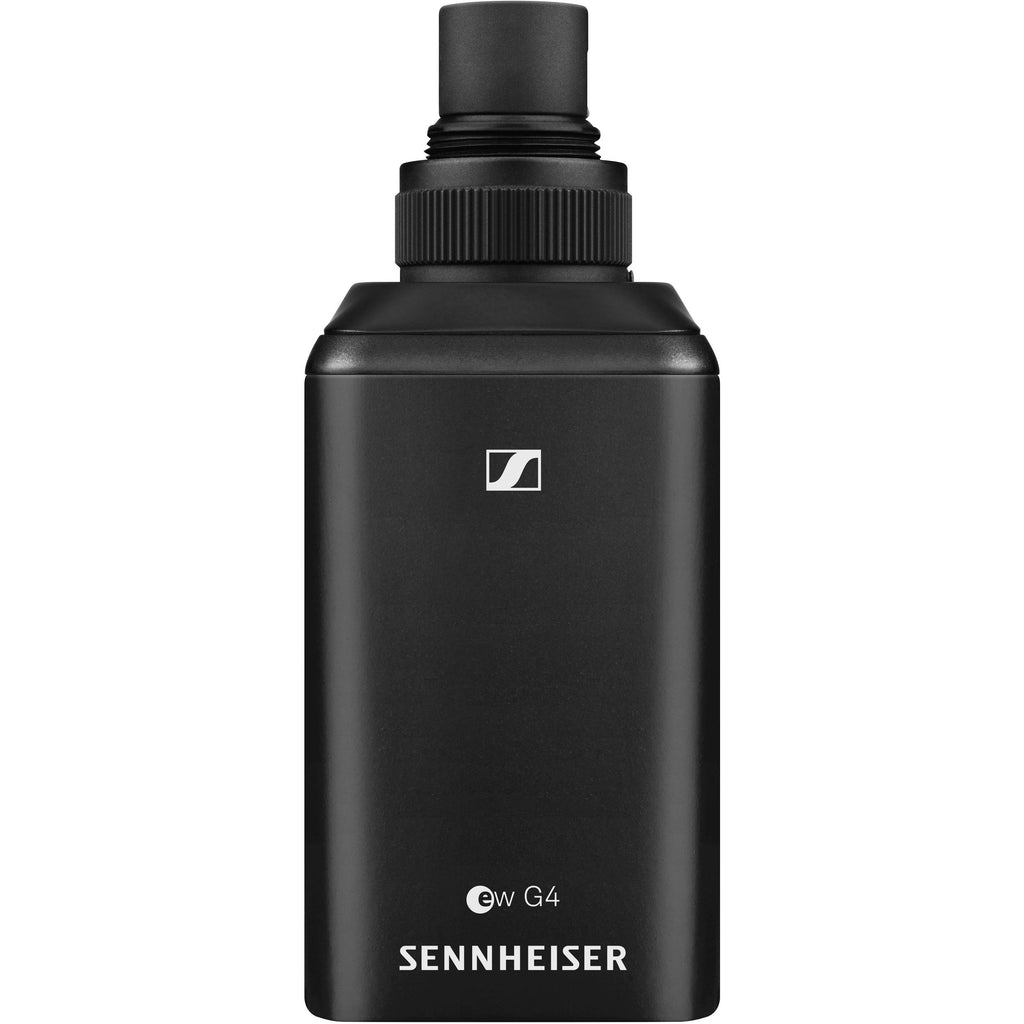

- Sennheiser SKP 500 G4 Pro Wireless Plug-On Transmitter AW+: (470 to 558 MHz)

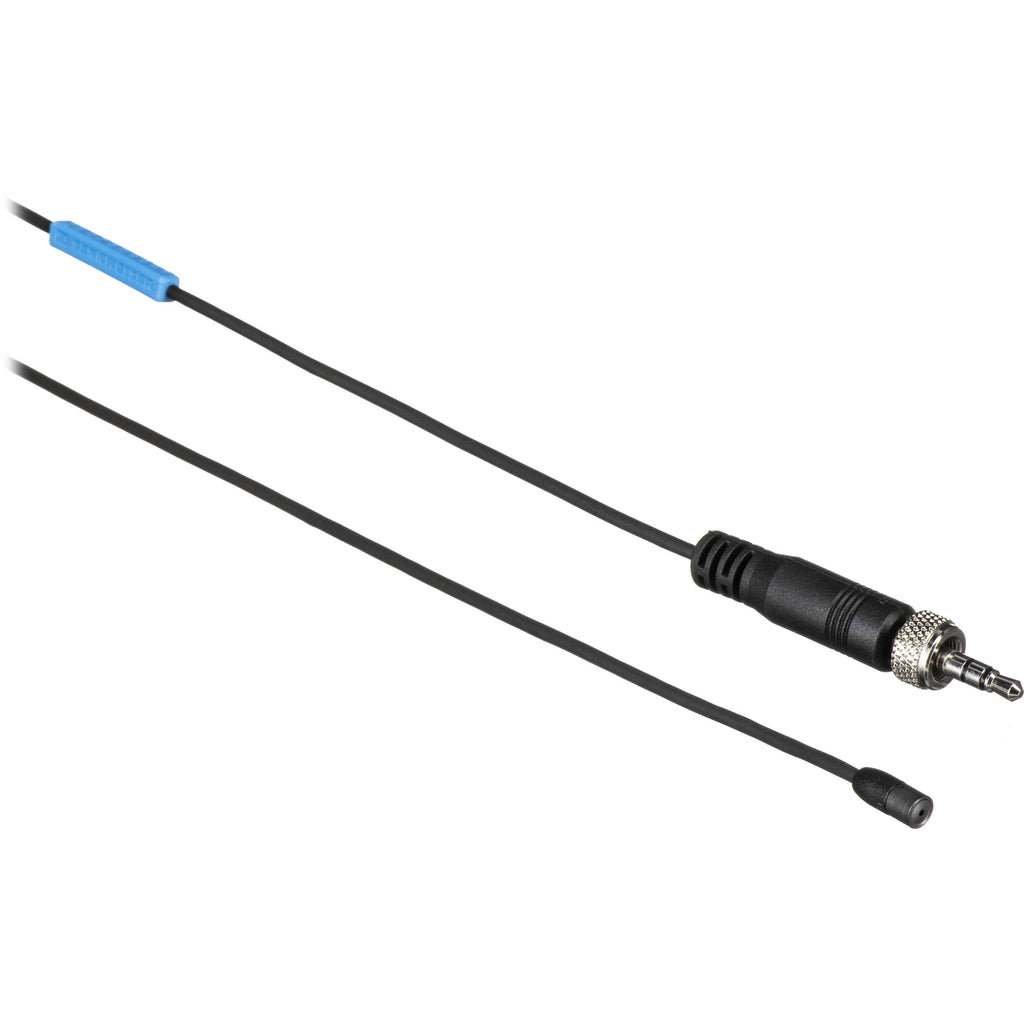

- Sennheiser MKE2 Gold Series Omnidirectional Lavalier Condenser Microphone (with Accessories, Black)
- Fur Lavalier Windscreen
- Sennheiser CA2 Shoemount Adapter for EW Series Camera Mountable Receivers
- Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
- Sennheiser CL-500 Balanced Cable for Use with Sennheiser EK500 Receiver 1/8"-Male Mini Jack to XLR-Male Connector
- 6 x AA Batteries
- Limited 2-Year Warranty
Table of Contents
- Description
- Built for Reliable Performance in the Field
- Advanced Controls for Flexible Use
- Proven Broadcast-Quality Sound
- Additional Features
- EW 100 G4 vs EW 500 G4 Systems at a Glance
Sennheiser EW 500 FILM G4 Specs
System
| Wireless Transmission | Analog UHF |
| Number of RF Channels | 3520 |
| Included Transmitters | 1 x Bodypack 1 x Plug-On |
| Diversity | Antenna Diversity |
| RF Frequency Band | 470 to 558 MHz |
| RF Bandwidth | 88 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 330' / 100.6 m (Line of Sight) |
| Max Systems per Setup | 32 |
| Encryption | None |
| Deviation | ±48 kHz (Peak) |
| Modulation | Wideband FM |
Receiver
| Form Factor | Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) |
| Antenna | 1 x Flexible Whip, Fixed (Top-Mount) |
| Number of Audio Channels | 1 |

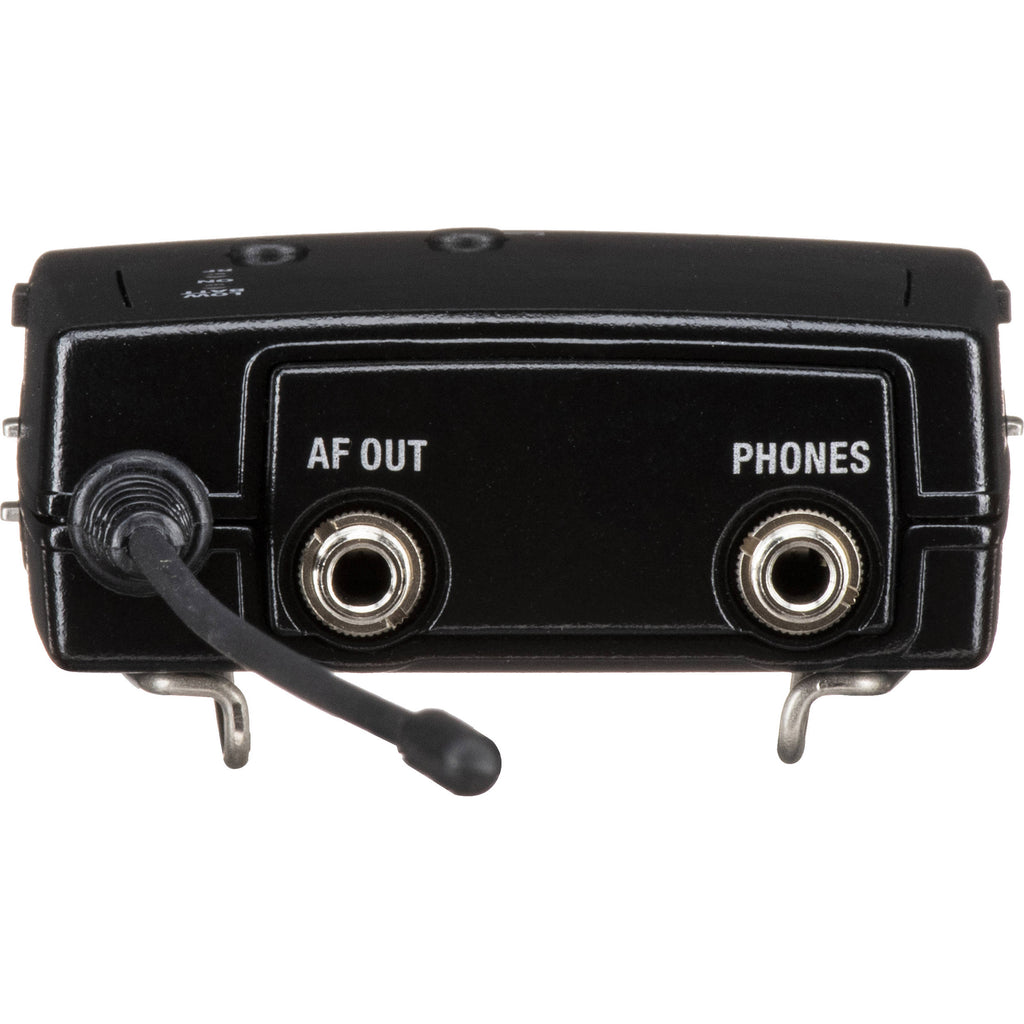

| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Balanced Line Output (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable) |
| Gain Range | 42 dB (6 dB Steps) |
| Audio Output Level | 1/8" / 3.5 mm Output: +17 dBu (Balanced) |
| Approximate RF Sensitivity | 1.6 µV |
| Squelch | Adjustable, 5 to 25 dB?V |
| Adjacent Channel Isolation | >65 dB |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| Display & Indicators | 1 x Back-Lit LCD (Battery Status, Output Level, RF Level) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
| Weight | 4.6 oz / 130 g (with Batteries) |
Transmitter
| Form Factor | Bodypack |
| RF Output Power | 10 / 30 / 50 mW (Switchable, at 50 Ohms) |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Pad | None |
| Muting | Mute Switch |
| Audio Input Level | 3 V RMS (Mic Level, Line Level) |
| Gain Range | 60 dB (3 dB Steps) |
| Frequency Response | 80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line) |
| Sync Method | IR |
| Antenna | 1 x Internal, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| Display & Indicators | 1 x Back-Lit LCD (Audio Level, Battery Status, Signal Strength) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
| Weight | 5.6 oz / 160 g (with Batteries) |
Microphone
| Form Factor | Lavalier |
| Sound Field | Mono |
| Capsule | Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 20 Hz to 20 kHz |
| Equivalent Noise Level | 39 dB CCIR |
| Maximum SPL | 142 dB SPL |
| Sensitivity | 5 mV/Pa at 1 kHz |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Cable Length | 5.25' / 1.6 m |
| Operating Voltage | 7.5 V |
| Operating Current Consumption | 250 µA |
| Weight | 0.6 oz / 17 g |

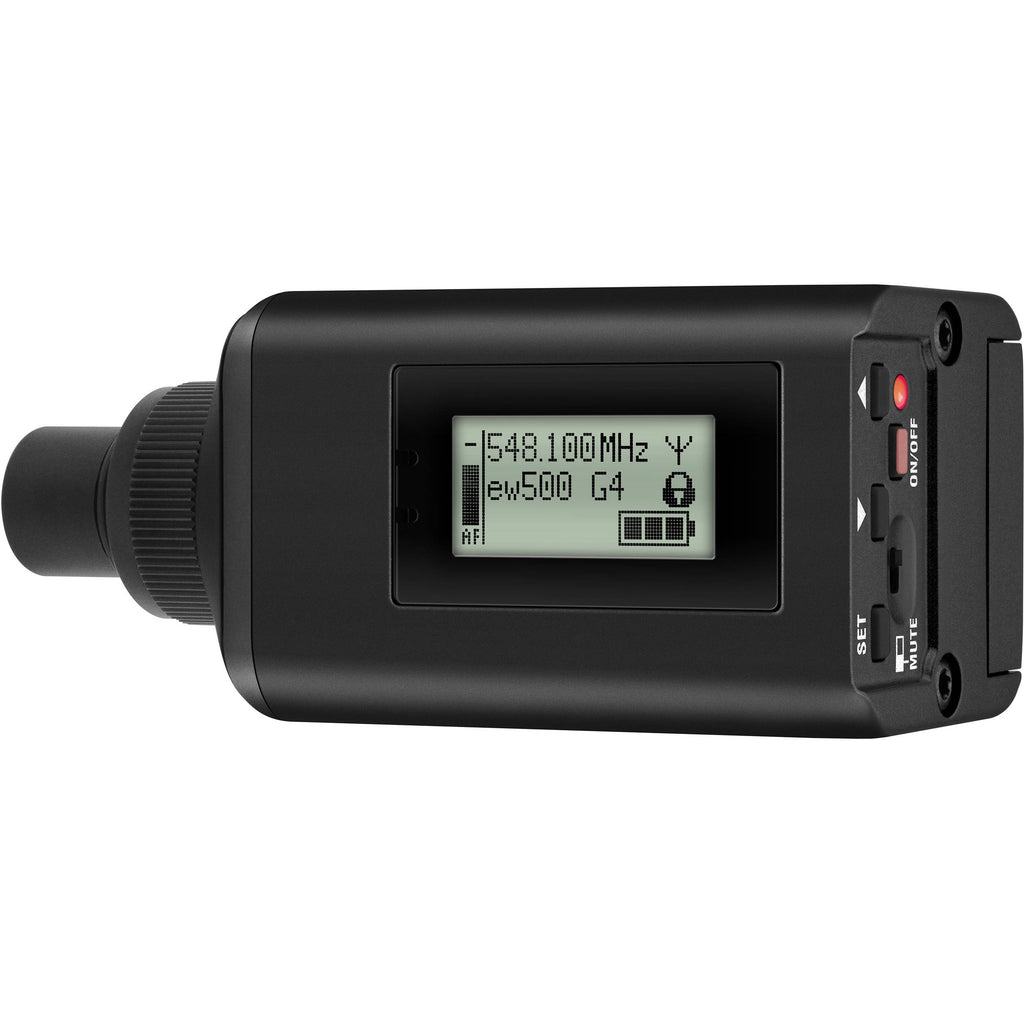

Transmitter 2
| Form Factor | Plug-On |
| RF Output Power | 10 / 30 / 50 mW (Switchable, at 50 Ohms) |

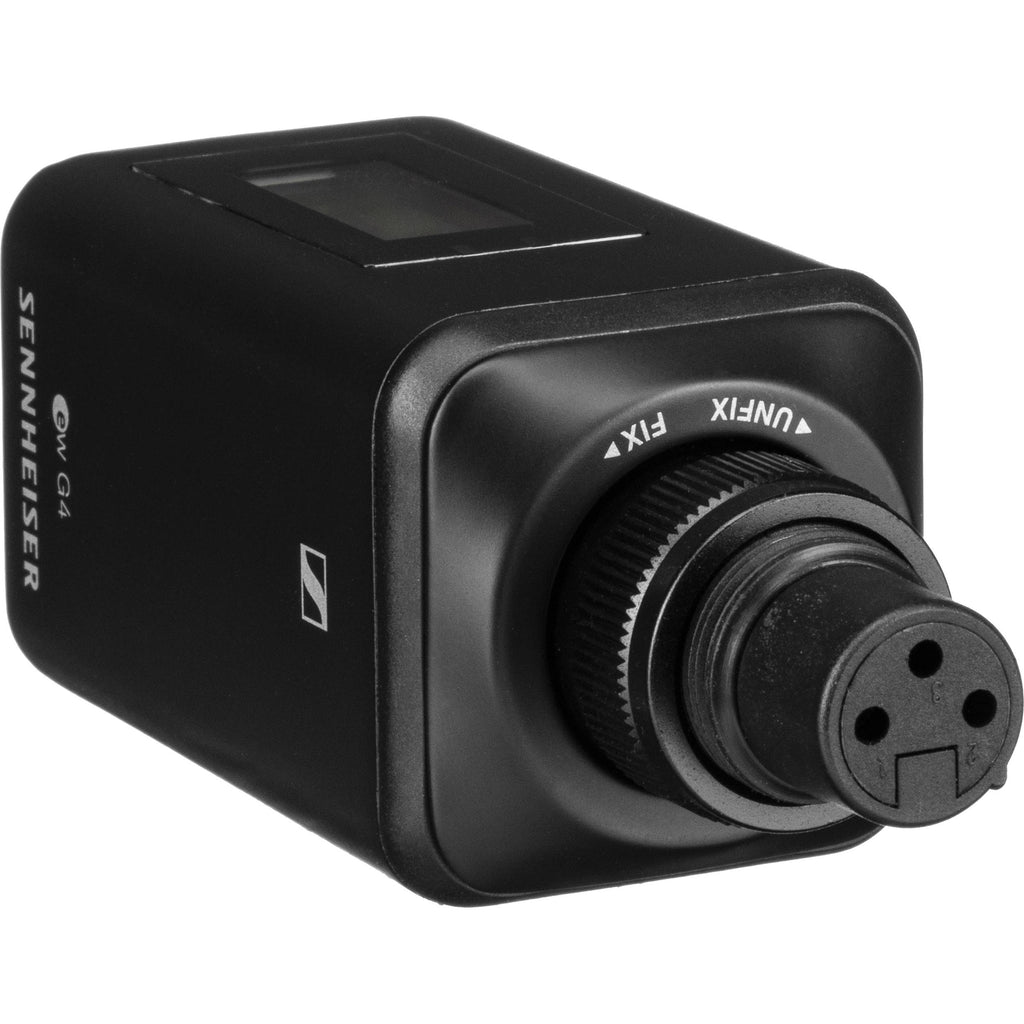

| Audio I/O | 1 x XLR 3-Pin Female Unbalanced Input (Lockable) |
| Phantom Power | +48 V |
| Pad | None |
| Muting | Mute Switch |
| Audio Input Level | 6 V RMS (Mic Level, Line Level) |
| Gain Range | 48 dB (6 dB Steps) |
| Signal Processing | None |
| Frequency Response | 80 Hz to 18 kHz |
| Sync Method | IR |
| Antenna | 1 x Internal, Fixed |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x Back-Lit LCD (Audio Level, Battery Status, Signal Strength) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 1.7 x 4.1 x 1.7" / 43 x 105 x 43 mm |
| Weight | 6.9 oz / 195 g (without Batteries) |
Packaging Info
| Package Weight | 2.385 lb |
| Box Dimensions (LxWxH) | 16 x 7.8 x 3" |
