Product details
Peak Repetitive Off-State Voltage, Vdrm |
1.2kV |
On State RMS Current IT(rms) |
150A |
Operating Temperature Max |
125°C |
SCR Module Type |
Series Connected - SCRs |
Gate Trigger Voltage Max Vgt |
3V |
Product Range |
- |
Holding Current Max Ih |
250mA |
Gate Trigger Current Max, Igt |
150mA |
Peak Non Rep Surge Current Itsm 50Hz |
2kA |
Current It av |
95A |
Other details
Brand |
SEMIKRON |
Part Number |

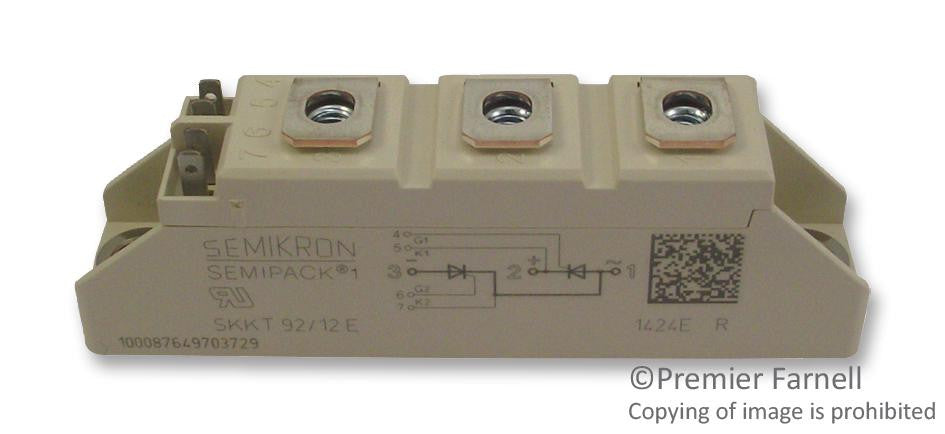

SKKT 92/12 E |
Quantity |
Each |
Technical Data Sheet EN |
|
