Product details
| Peak Repetitive Off-State Voltage, Vdrm |
1.6kV |
| On State RMS Current IT(rms) |
180A |
| Operating Temperature Max |
130°C |
| SCR Module Type |
Series Connected - SCRs |
| Gate Trigger Voltage Max Vgt |
3V |
| Product Range |
- |
| Holding Current Max Ih |
250mA |
| Gate Trigger Current Max, Igt |
150mA |
| Peak Non Rep Surge Current Itsm 50Hz |
22.5kA |
| Current It av |
106A |
Other details
| Brand |
SEMIKRON |
| Part Number |

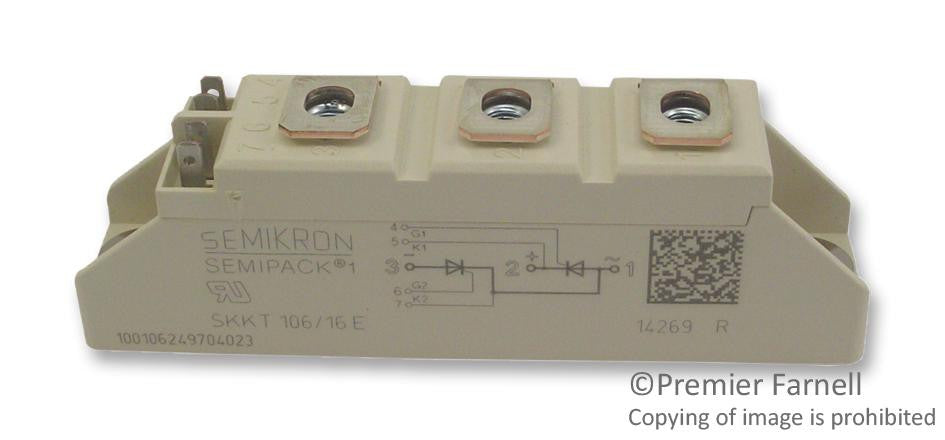

SKKT 106/16 E |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
