Description

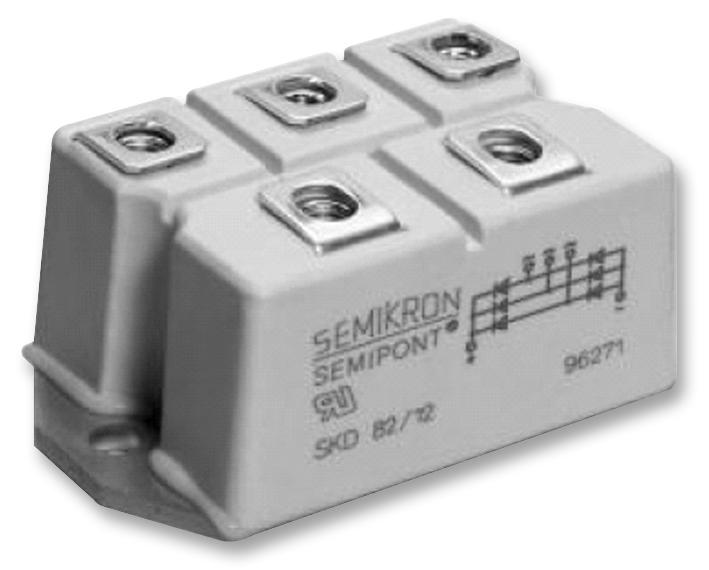

The SKD 62/16 is a three-phase SEMIPONT® 3 power Bridge Rectifier with robust plastic case, screw terminals and large/isolated base plate. The bridge rectifier features high surge current and easy chassis mount.
- 1800V Blocking voltage
Applications
Mains Rectification
Product details
| No. of Phases: Three Phase |
| Repetitive Peak Reverse Voltage: 1.6kV |
| Average Forward Current: 86A |
| Bridge Rectifier Case Style: Module |
| No. of Pins: 5Pins |
| Forward Voltage Max: 1.8V |
| Bridge Rectifier Mounting: Panel Mount |
| Forward Surge Current: 500A |
| Operating Temperature Max: 150°C |
| Product Range: SKD |
Other details
| Brand | SEMIKRON |
| Part Number | SKD62/16 |
| Quantity | Each |
| Technical Data Sheet EN |  |
